K-Array Lyzard-KZ14

Call for price

Ultra miniaturized line-array element.
The KZ12 is a remarkable ultra micro line array designed for discreet use in a variety of situations.

  • Visually Discreet
  • Lightweight
  • Colour Customizable
  • Pure Array Technology

Individually sold – price per speaker.

Category: SKU: SP/LOWKAR99

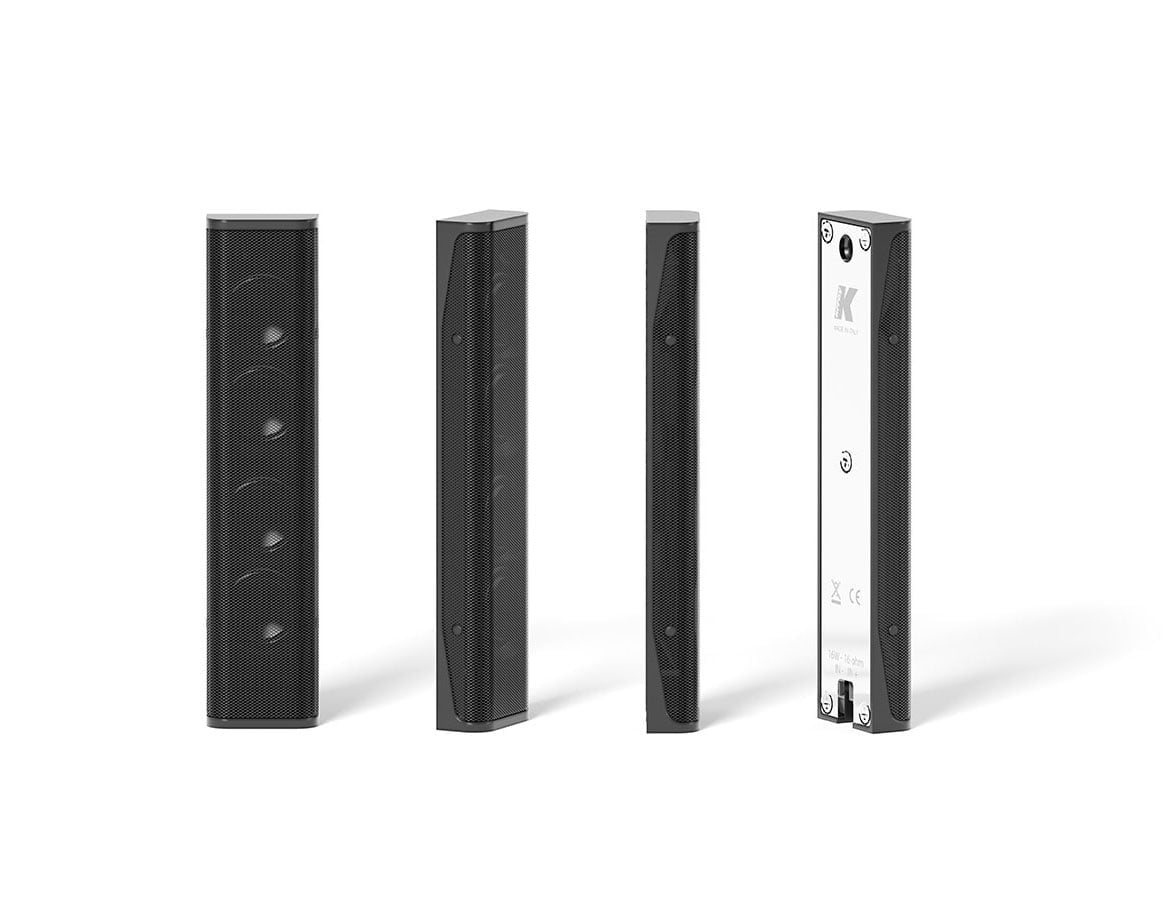

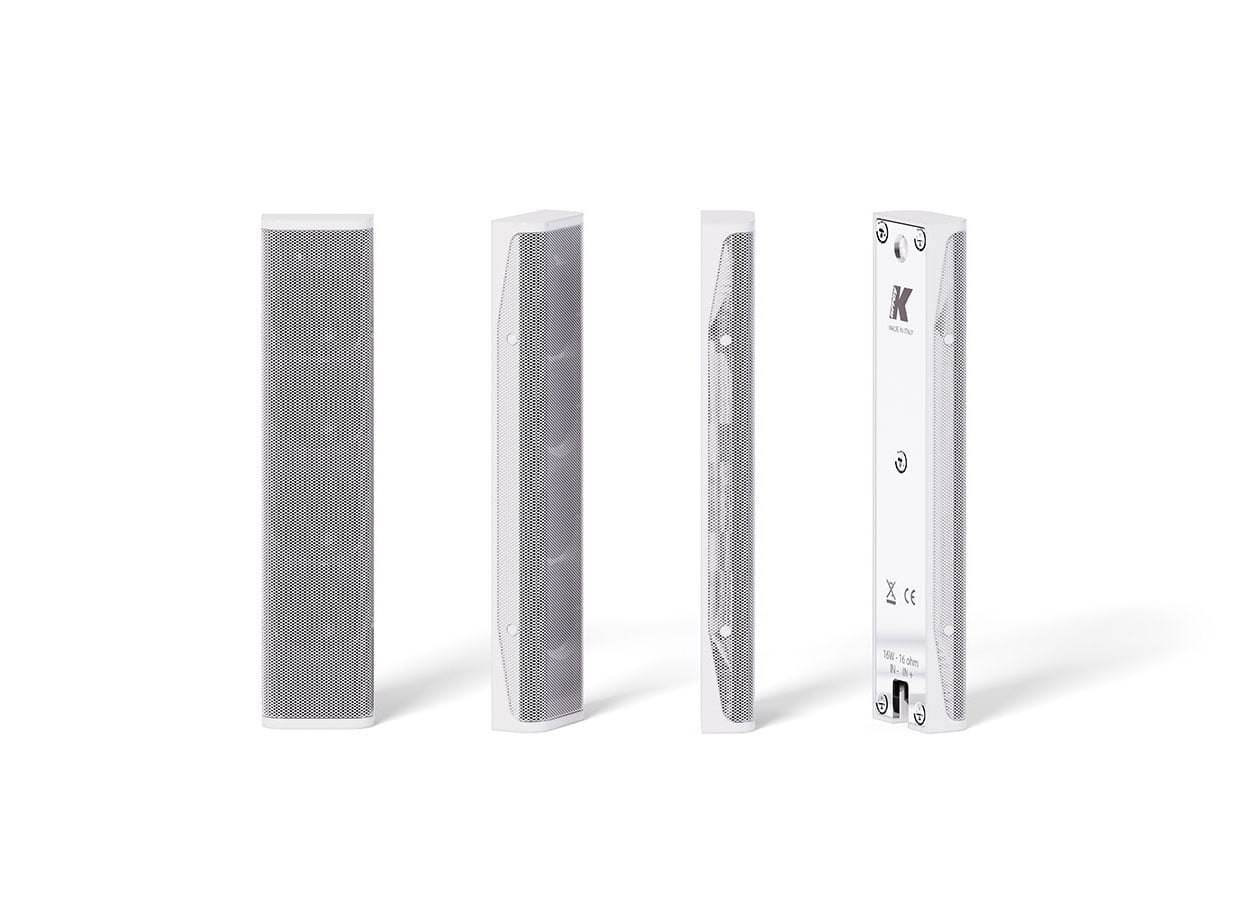

The Lyzard-KZ14 has resistant enclosure milled from a single bar of aluminium containing four 0.5” long excursion, full-range drivers housed in a sleek frame. The high efficiency drive units have neodymium magnet structures and suspensions engineered for maximum linear excursion and minimum residual transducer noise. This miniature, slim column is only 10 cm tall and 2.2 cm wide yet delivers clear audio with an amazing output of 92 dB continuous – remarkable from such a minuscule enclosure.

Visually Discreet

For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality. We put careful thought into designing a sleek form factor taking into consideration shape, space and function, resulting in a delicate balance of durable materials and advanced technology.


We created a portfolio complete with lightweight products that are easy to transportation and quick to setup optimizing logistics, space, labour costs and time. Boasting an incredible size-to-weight ratio, the most important factors of our audio solutions’ weight are design methods, materials and manufacturing technology. Our strategy consists of utilizing minimal components and certain lower-density materials like aluminium and steel.

Premium Finishes

Similar to the process high-end fashion accessories and jewellery undergo, our products are treated with a galvanic bath for a more beautiful and lustrous look. The most opulent finish is a pure 24K gold coating. Other finishes include Ruthenium and brushed or polished stainless steel finishes, for a chameleon-like ability to mirror surrounding surfaces and blend in with the background at any venue.

Colour Customizable

We have the ability to customize your project by colour matching your system to any RAL colour to help you to better integrate the speakers into a wide variety of venues. RAL is used for defining standard colours for paint and coatings and is the most popular Central European colour standard used today.

Weather Resistant

The most durable and resistant materials is used when developing our products to offer the most reliable solutions on the market: aluminium and steel make up the frame of all weather resistant speakers within the K-array portfolio.

Versatile and efficient, aluminium provides strong structural support without adding excess weight to the products. Naturally generating a protective oxide coating, aluminium is particularly useful for protection and conservation rendering a K-array installation dependable, regardless of the application elements.

Steel is the other functional material K-array implements, which offers corrosion resistance and strength. Stainless steel does not readily corrode, rust or stain with water making those products perfect for aquatic environments as well as traditional settings.

Pure Array Technology

Composed of closely-spaced, full-range sound sources, our line array elements feature demonstrate pure line array characteristics.

With no drivers dedicated to the high frequencies, no bass reflex or passive radiators dedicated to the low end, there are no crossover points and a perfect phase response is achieved in both the near and far fields.

All the sound sources in the array are identical and perfectly coupled producing a true line array with benefit of having the sound beam radiated by the column very wide on the horizontal plane and very narrow on the vertical plane. The amount of energy sent towards the ceiling and the floor is then minimized greatly improving the intelligibility in highly reverberant venues like houses of worship and conference rooms.

Furthermore, such a focused sound beam is able to cover a long distance uniformly: both the audience located in front of the array and at the back of the venue will experience the same tonal balance without the need of several delay lines.

With no horns and no waveguides, PAT columns can be joined to create longer arrays. The longer the array, the narrower the sound beam and the further the distance that can be covered uniformly.

Dedicated accessories aid in connecting the columns and tilting at an angle, while dedicated stacking and suspending hardware render the installation quick and easy.

Made from stainless steel with the possibility to customize the appearance with fine finishes and an endless spectrum of color choices, K-array’s discreet PAT columns meet the demands of architects, system integrators and rental companies alike who are looking for invisible systems that provide excellent audio quality in sleek form.


  • Max Power Handling 8 W (AES)
  • Impedance 16Ω
  • Frequency range 250 Hz – 18 KHz +/- 6dB (1)
  • SPL 1W/1mt 82 dB (2)
  • Maximum SPL 92 dB continuous – 98 dB peak (3)


  • Horizontal 140°
  • Vertical 20°


  • Type External Crossover required
  • Frequency 250Hz 24dB/oct suggested minimum


  • Full range 4 x 0.5” Neodymium speakers with 0.5” voice coil

Power Audio input

  • Connectors IN+ IN- (to be soldered or screwed)

Recommended Amplifier

  • KA14, KA24 for up to 4 units each channel


  • Dimensions 2.1 x 10.0 x 1.2 cm (0.83”x 3.93”x 0.47”) (4)
  • Weight 0.059 kg (0.13 lb)


Notes for data:

  1. With dedicated preset
  2. Measured @ 8m then scaled @ 1m;
  3. Measured with musical signal
  4. (W x H x D).
