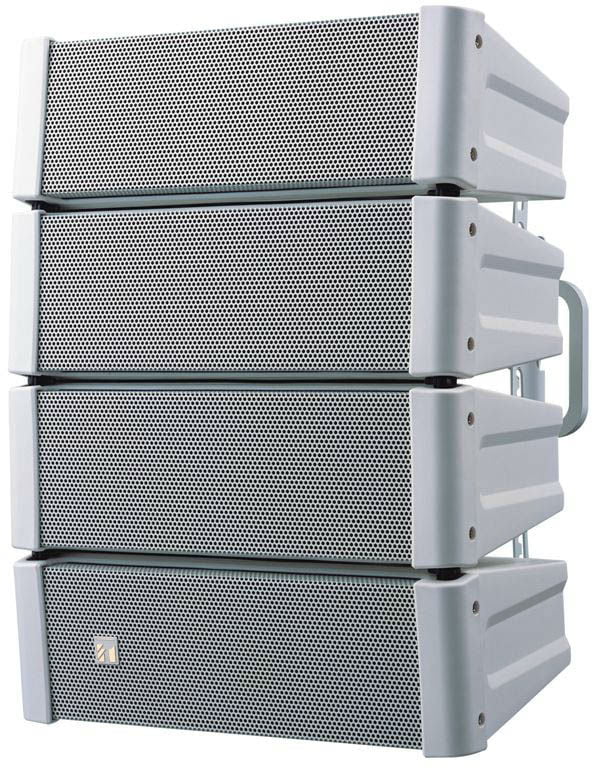

IF YOU DESIGN AND INSTALL SPEAKER SYSTEMS using conventional two-way box speakers, you know that pattern control in the voice frequency range can be difficult to manage, especially in reverberant spaces. The TOA HX-5 Variable Dispersion Speaker offers a radically different approach to speaker design with four adjustable dispersion angles ¢ 60, 45, 30 and 15 degrees ¢ that you can change in seconds! Best of all, you get pattern control below 1kHz in a compact and lightweight enclosure that’s perfect for a multitude of applications. Think of it as the most versatile “building block speaker in your toolkit.
Features include high power handling (600 Watts continuous), lightweight polypropylene construction, available in black and white, plus Speakon and screw terminal connectors. The HX-5 can vertically or horizontally mounted with the built-in bracket or with optional wall, ceiling and stand-mount hardware. Other options include weather-resistant versions, FB-120 subwoofer and 70 volt matching transformer. The new HX-5 speakers are backed with a five year product warranty.
Ideal for auditoriums, houses of worship and gymnasiums and more!
Adjustable dispersion angle to 60, 45, 30 or 15 degrees
Improved intelligibility through tailored coverage

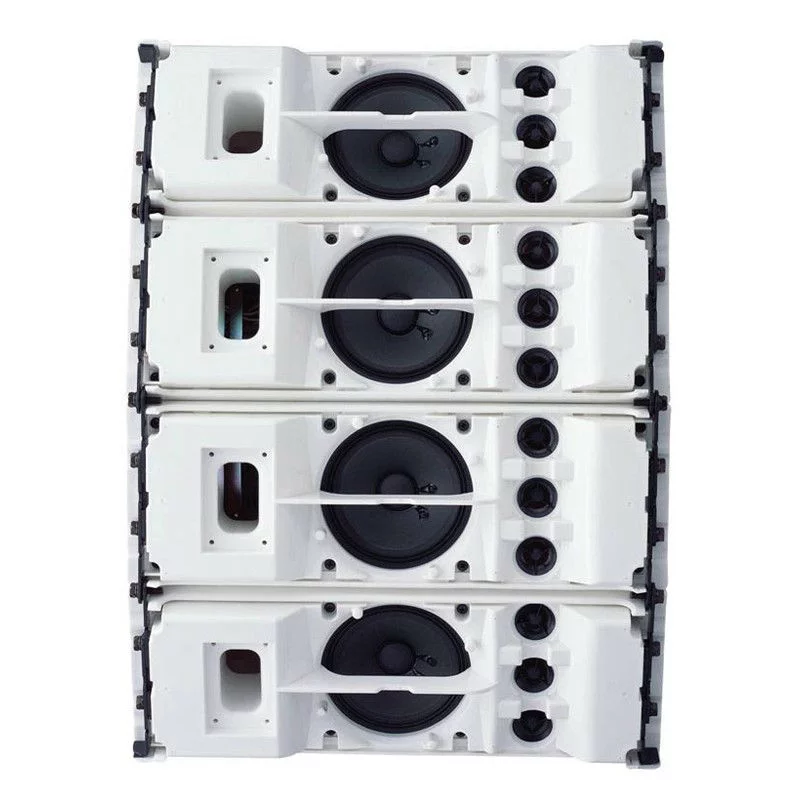

Compact design includes four preassembled modules with four LF drivers and twelve HF dome tweeters
In-line driver arrangement for superior vertical coverage control
Horizontal coverage remains broad through speech range: 100 deg. fixed
Contoured waveguide-baffle for distortion-free coverage control
High power handling: 600 W cont. (200 W, 24 hr. pink noise)
High sensitivity: up to 99 dB, 1 watt @ 1 meter (500 to 5,000 Hz)
Stack up to four units for improved coverage control
Lightweight polypropylene construction
Available in black and white
Parallel connectors – dual Speakon and screw terminal
Vertical or horizontal mounting
Built-in surface-mount bracket
Hardware included for flying / suspension
Optional wall, ceiling and stand-mount hardware
Optional bracket for joining multiples into one array
Compatible with Omnimount 60 Series mounting hardware
Optional subwoofer, model FB-120
Optional 70 volt transformer, model MT-200
Five year warranty
* Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.
Specifications Enclosure Bass-reflex type Power Handling Capacity Continuous pink noise: 200 W, Continuous program: 600 W Rated Impedance 8 ? Sensitivity (1 W, 1m) 96 dB (60? mode), 97 dB (45? mode), 98 dB (30? mode), 99 dB (15? mode) Frequency Response 70 to 20,000 Hz (60? mode) 95 to 20,000 Hz (60? mode) (Deviation ¤10 dB) 75 to 20,000 Hz (45? mode) 100 to 20,000 Hz (45? mode) 80 to 20,000 Hz (30? mode) 105 to 20,000 Hz (30? mode) 85 to 20,000 Hz (15? mode) 110 to 20,000 Hz (15? mode) Crossover Frequency 4 kHz Directivity Angle Horizontal: 100deg (over 2,000 Hz) Vertical: 60deg (over 800 Hz), 45deg (over 1.2 kHz), 30deg (over 1.6 kHz), 15deg (over 3.2 kHz) variable Speaker Component Low frequency: 12 cm (5″) cone-type x 4 High frequency: Balanced dome-type x 12 Input Terminal Speakon NL4MP x 2 and M4 screw terminal Speaker Cord ¤ 2-core cabtyre cord with diameter of 6 mm or 15/64 in. (60 cm or 23 5/8 in. long) Water Protection ¤ IPX4* Operating Temperature ¤ ¤15?C to 50?C Finish (Enclosure) Polypropylene, black Polypropylene, white Polypropylene, black Polypropylene, white
Dimensions 408 (w) x 546 (h) x 342 (d) mm 16 1/16 (w) x 21 1/2 (h) x 13 15/32 (d) inches Weight 16 kg
