Line-array element, variable beam speaker

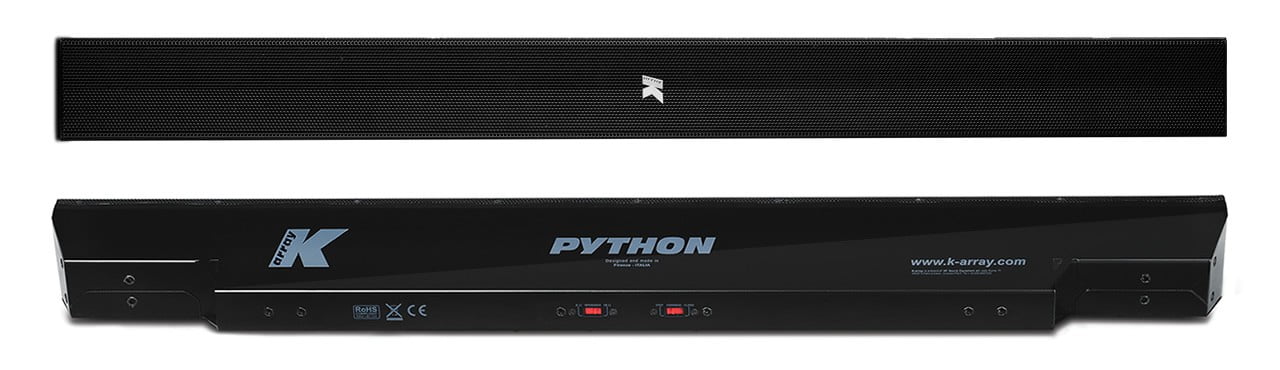

The K-array KP102 is a passive speaker system comprised of twelve 3.15” neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis.
Black or White Finish
- Unique performance-to-size ratio
- Vertical, Horizontal and 3D line-array applications
- Multiple 3.15” long-excursion full-range cone drivers
- Wide horizontal coverage
- Electronically protected
- Selectable 4 Ohm or 16 Ohm impedance
- Selectable wide or narrow vertical coverage
- Weather proof, suitable for outdoor installations – IP54
- Theatre, Club, Churches
- Front fill and under-balcony fill
- Portable and installed AV systems
- Stage and AV studio monitoring
Acoustics
Power handling 720 W
Impedence 4 Ohm– 16 Ohm (Selectable)
Frequency range
100 Hz – 20 KHz.
Maximum SPL
128 dB continuous – 134 dB peak
Coverage
Horizontal 90°
Vertical 7° – 30° (Selectable)
Crossover
Type External Crossover required
Frequency High pass @100 Hz, 24 dB/oct suggested minimum
Transducers
Full-range 16×3.15″ Neodymium magnet with 1″ voice coil
Power Audio Input
Connectors 2×4-pin Speakon
Wiring 1 1- (signal IN & LINK); 2 2- (through)

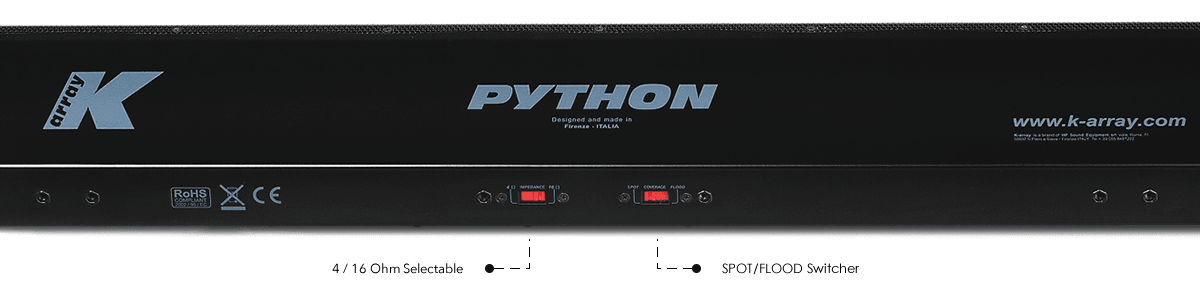

Selection Switch
Vertical pattern
Spot – Flood
Impedence 4 Ohm– 16 Ohm (Selectable)
Dimension
Dimensions 8.8 x 100 x 11.8 cm (3.56″ x 39.4″ x 4.65″)
Weight 12 Kg (28.45 lbs)
Brand
K-Array
