£1,075.00 Inc VAT

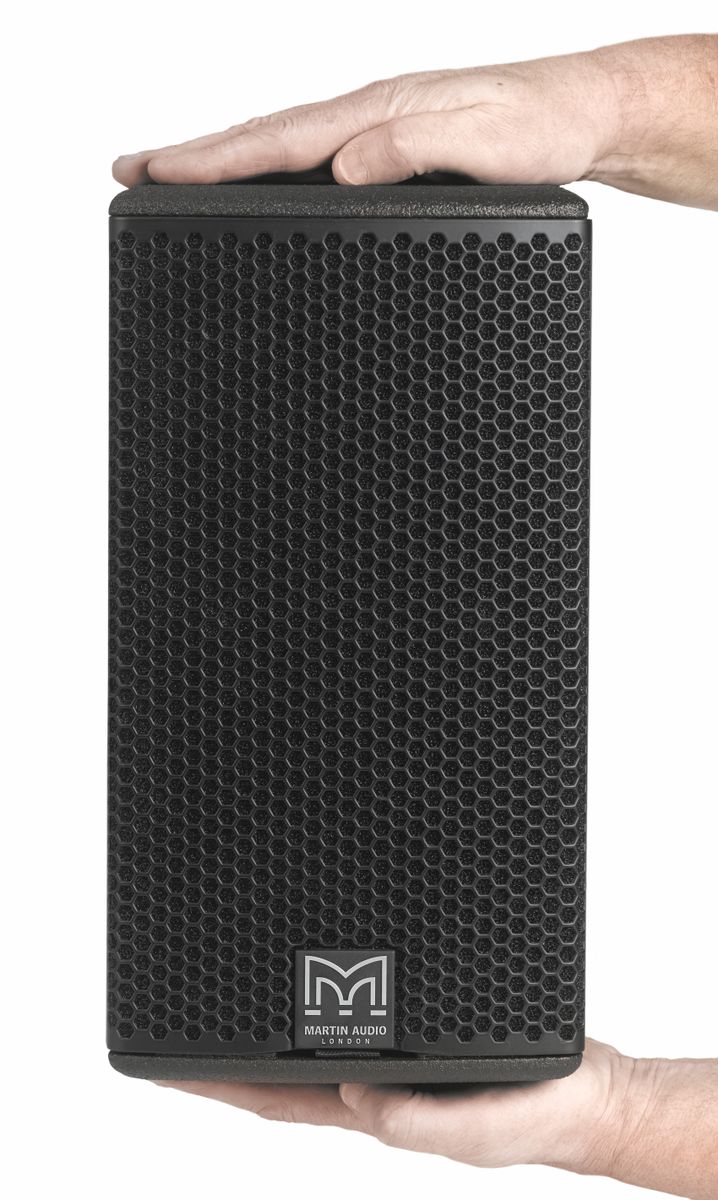

Ultra-compact Differential Dispersion™ System
The DD6’s Differential Dispersion technology provides an advanced solution to the requirements of even coverage over wide angles and medium throw distances.

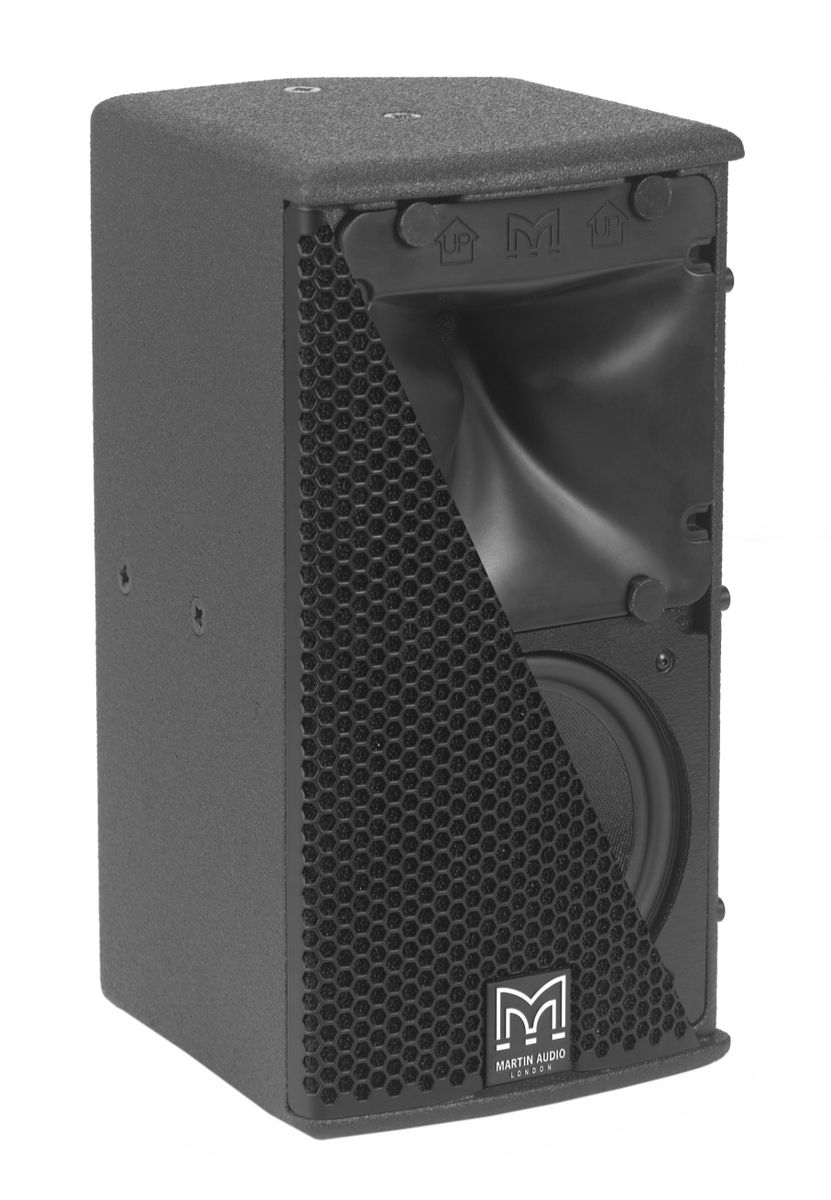

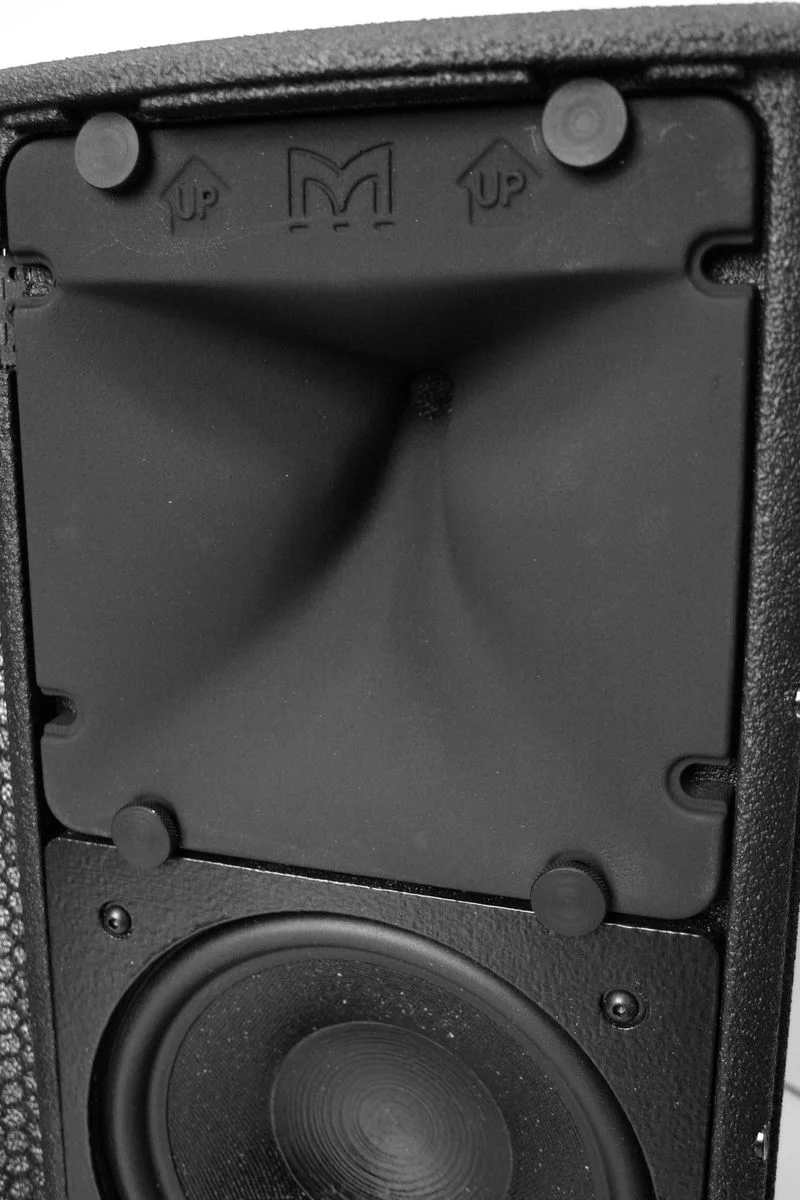

Designed using Martin Audio’s in-house BEM (Boundary Element Method) tools, the short throw horizontal dispersion of the horn is 120°, narrowing to 90° as throw increases. Vertically, the horn covers 60º, with greater output above the horizontal centre plane.
The combination of narrower horizontal dispersion and greater output above the horn’s horizontal centre plane creates progressively more HF output as the throw distance increases. The resultant dispersion pattern is ideally suited to covering audiences located on flat or gradually sloping surfaces.

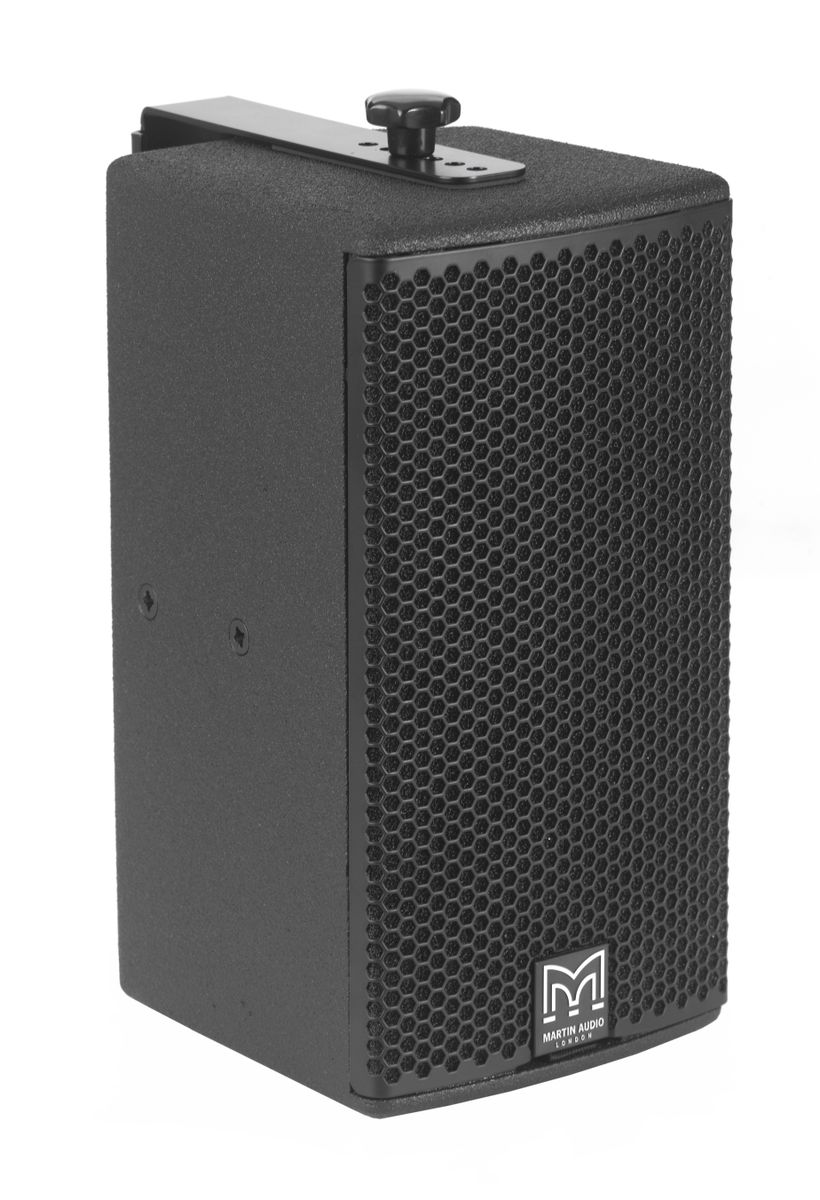

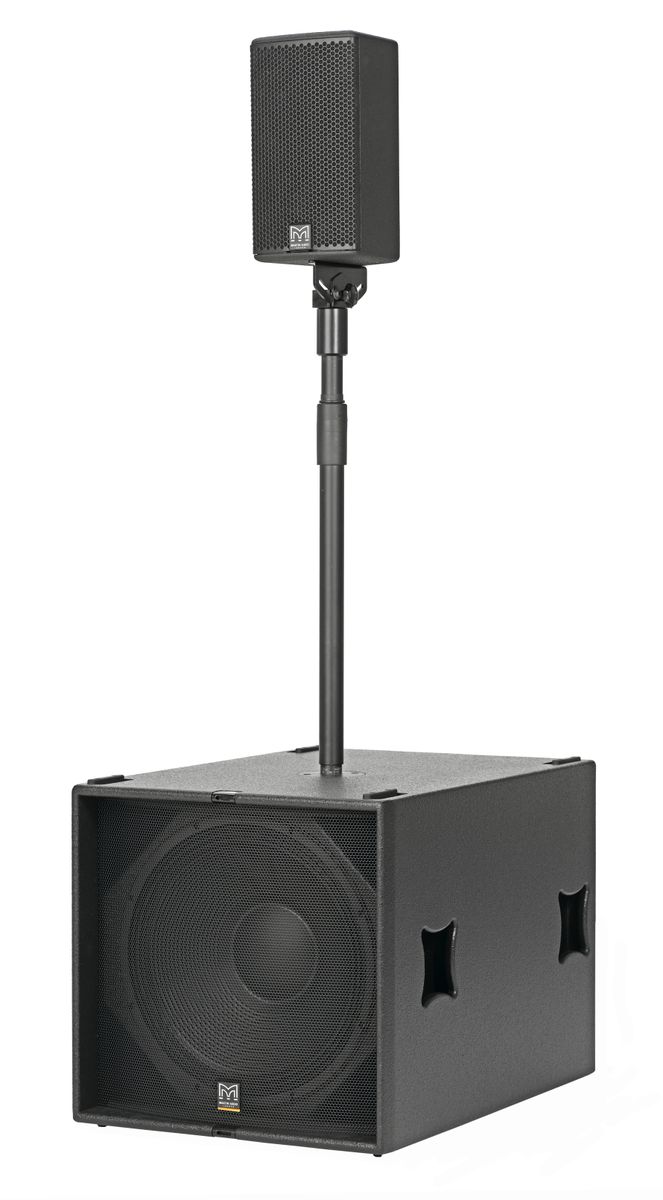

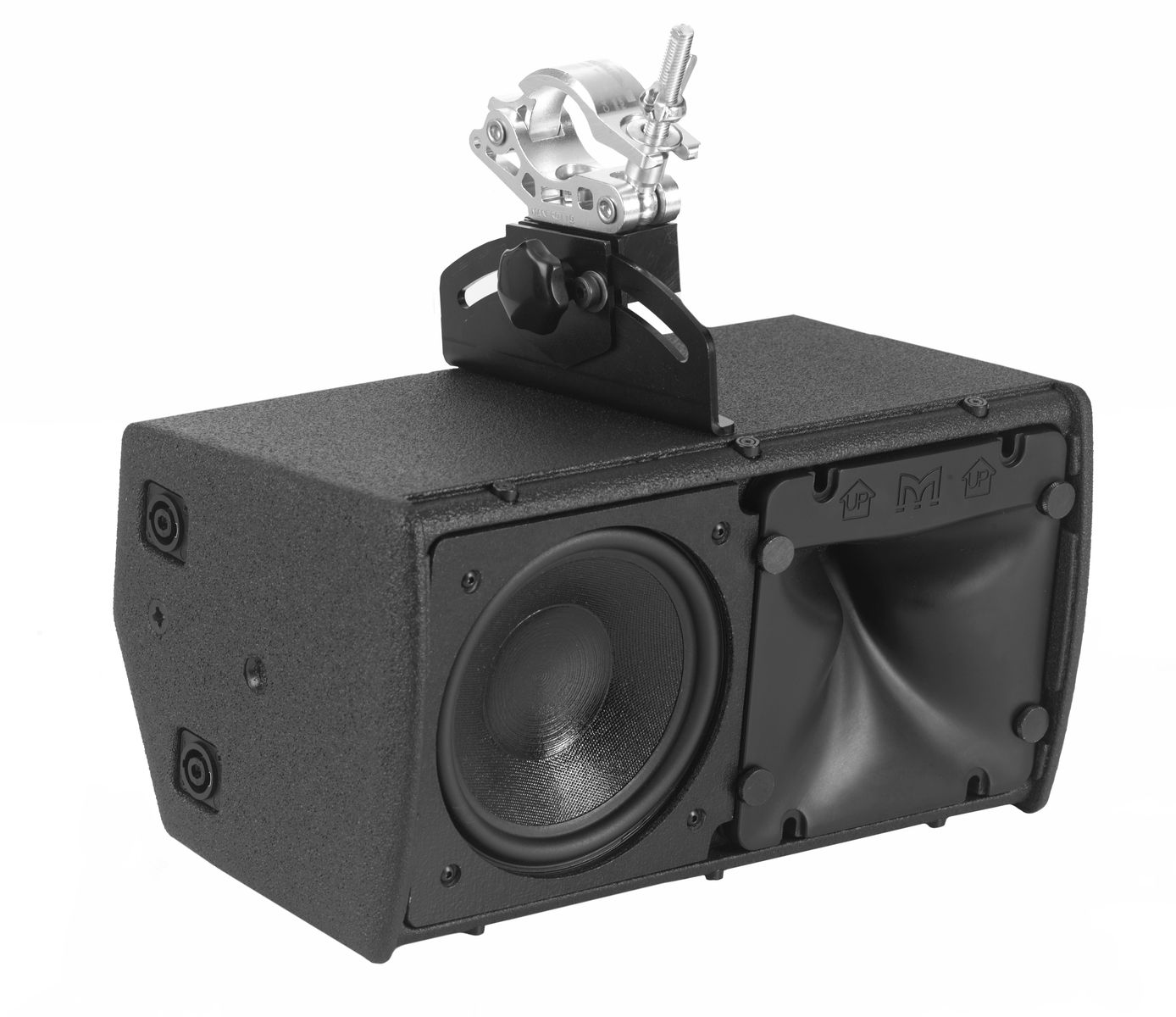

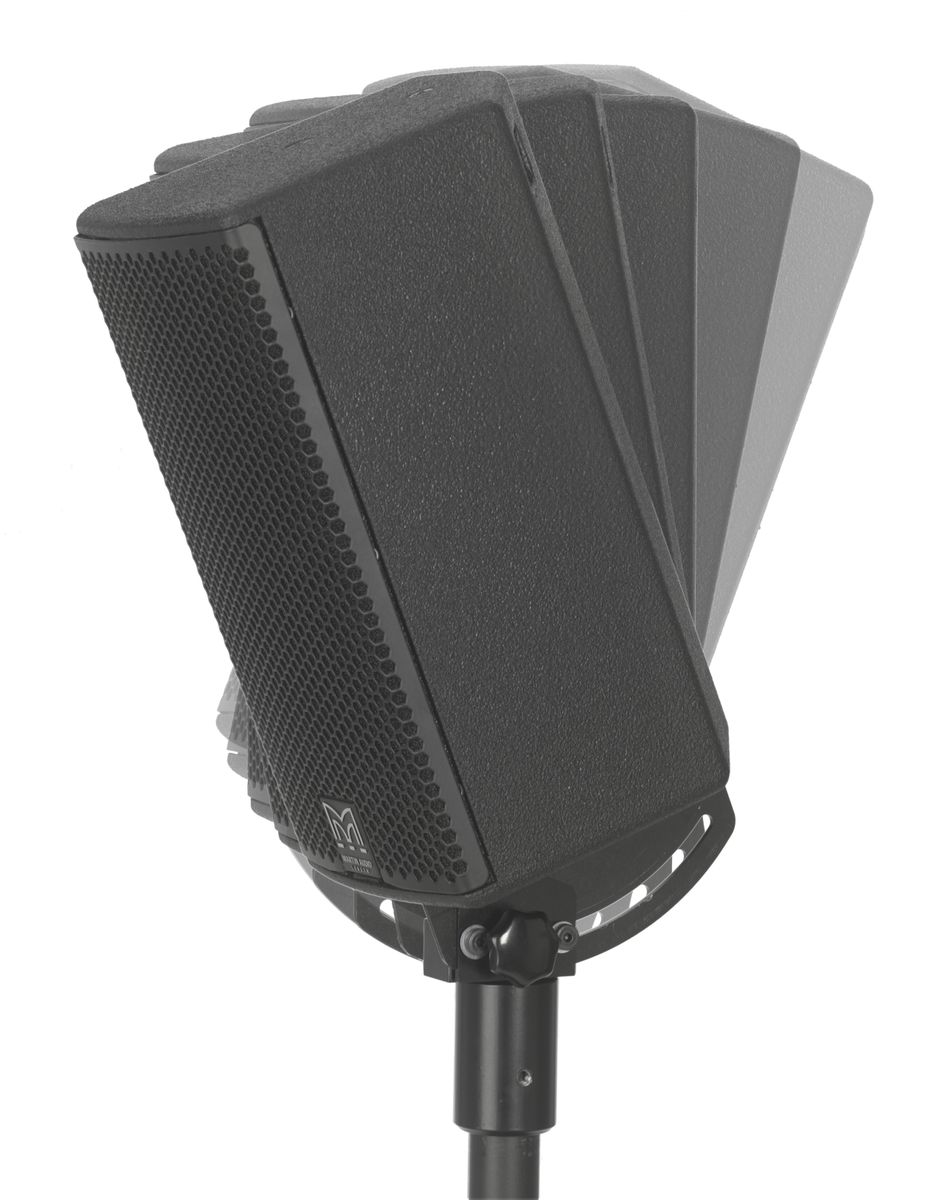

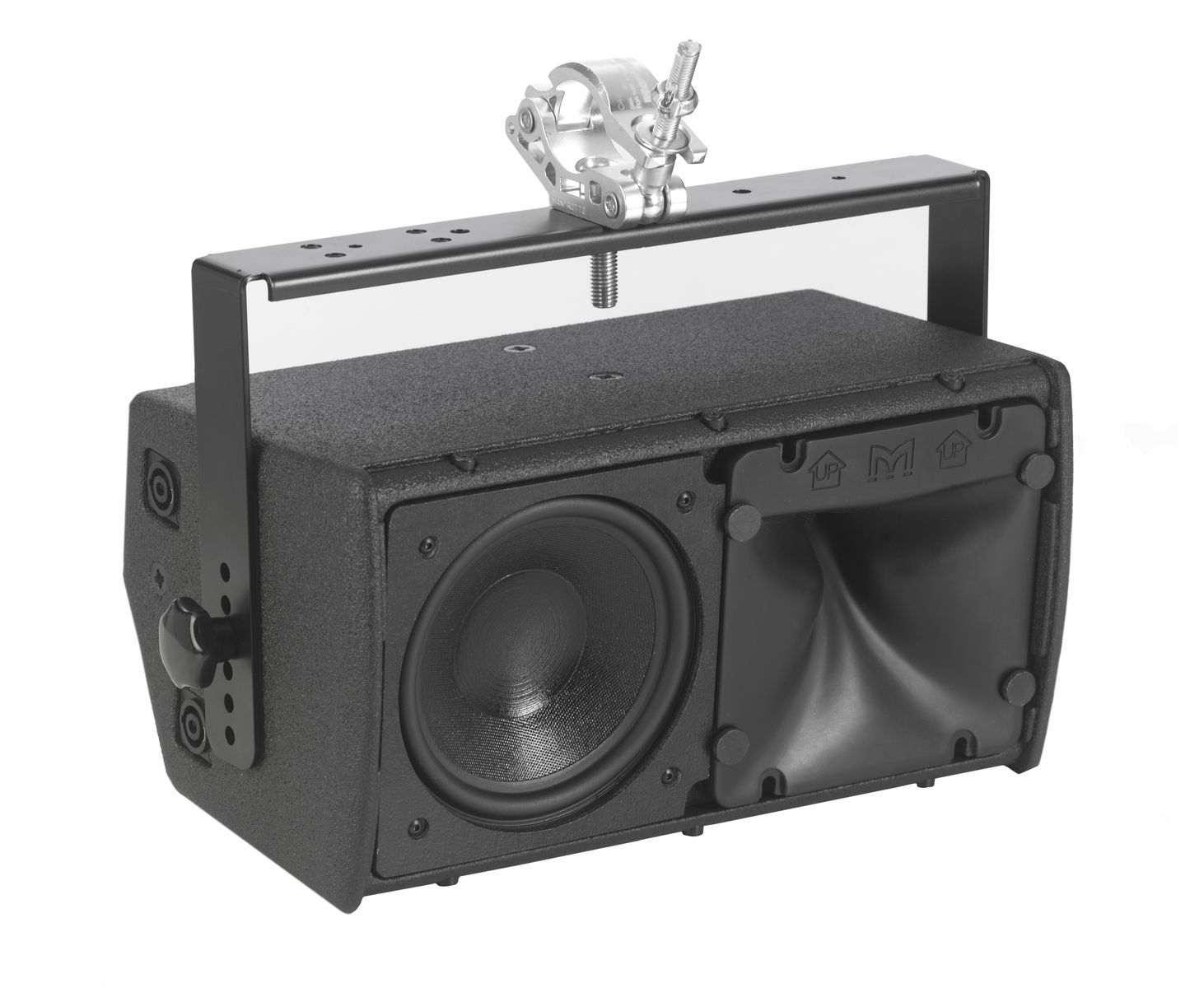

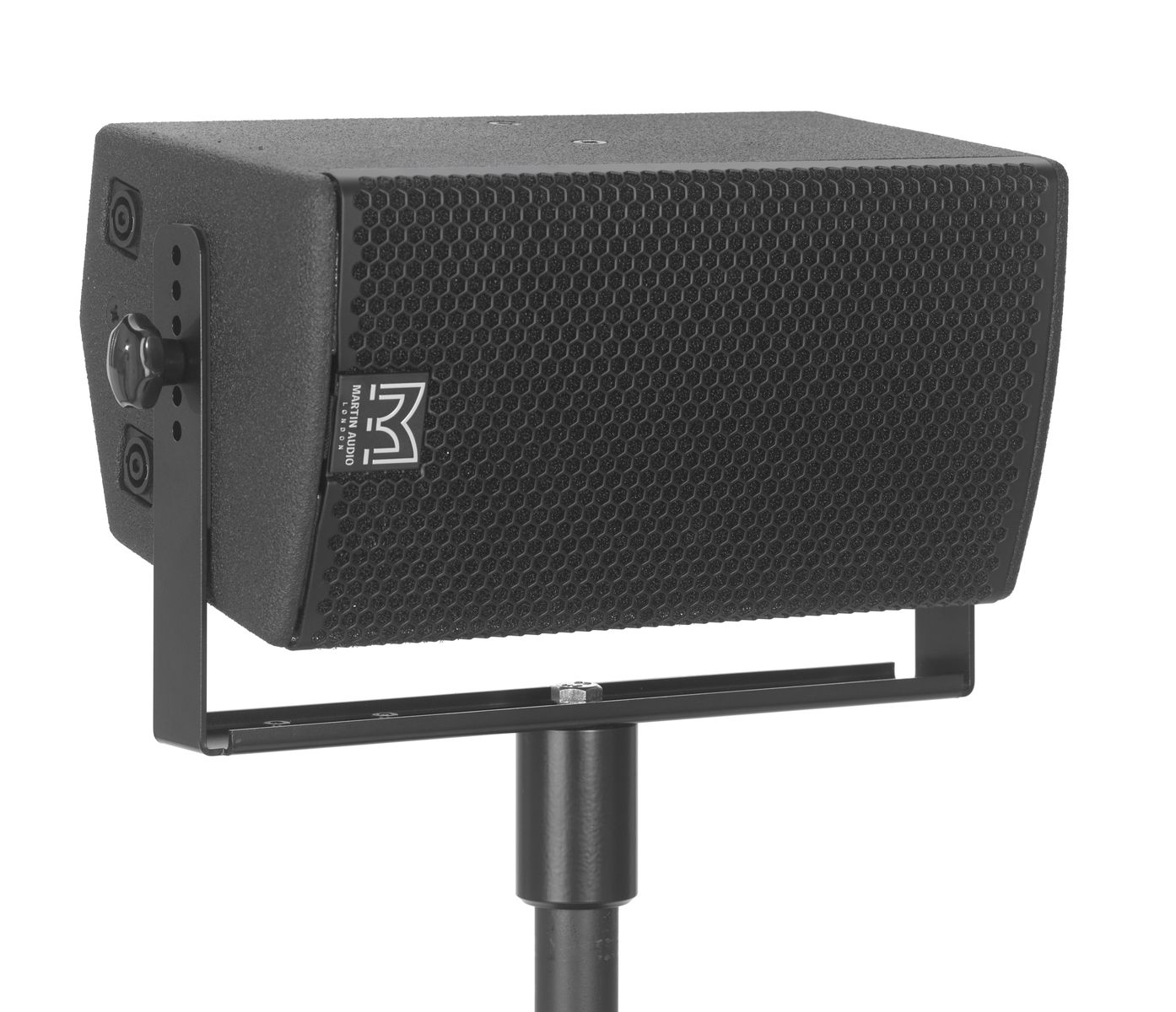

The comprehensive mounting options offer an incredible degree of flexibility for any application. M8 inserts can be used with eyebolts and there are three dedicated brackets available; a multipurpose vertical tilt bracket which can be attached to the top, bottom or side of the DD6 and can be used with a top hat fitting or scaffold clamp, a yoke for fitting to walls or ceilings in any orientation, and a wall bracket with invisible fitting to a wall..
TYPE Differential Dispersion™ ultra-compact, multi-angled, two-way passive
FREQUENCY RESPONSE 70Hz-20kHz 3dB
-10dB @ 55Hz

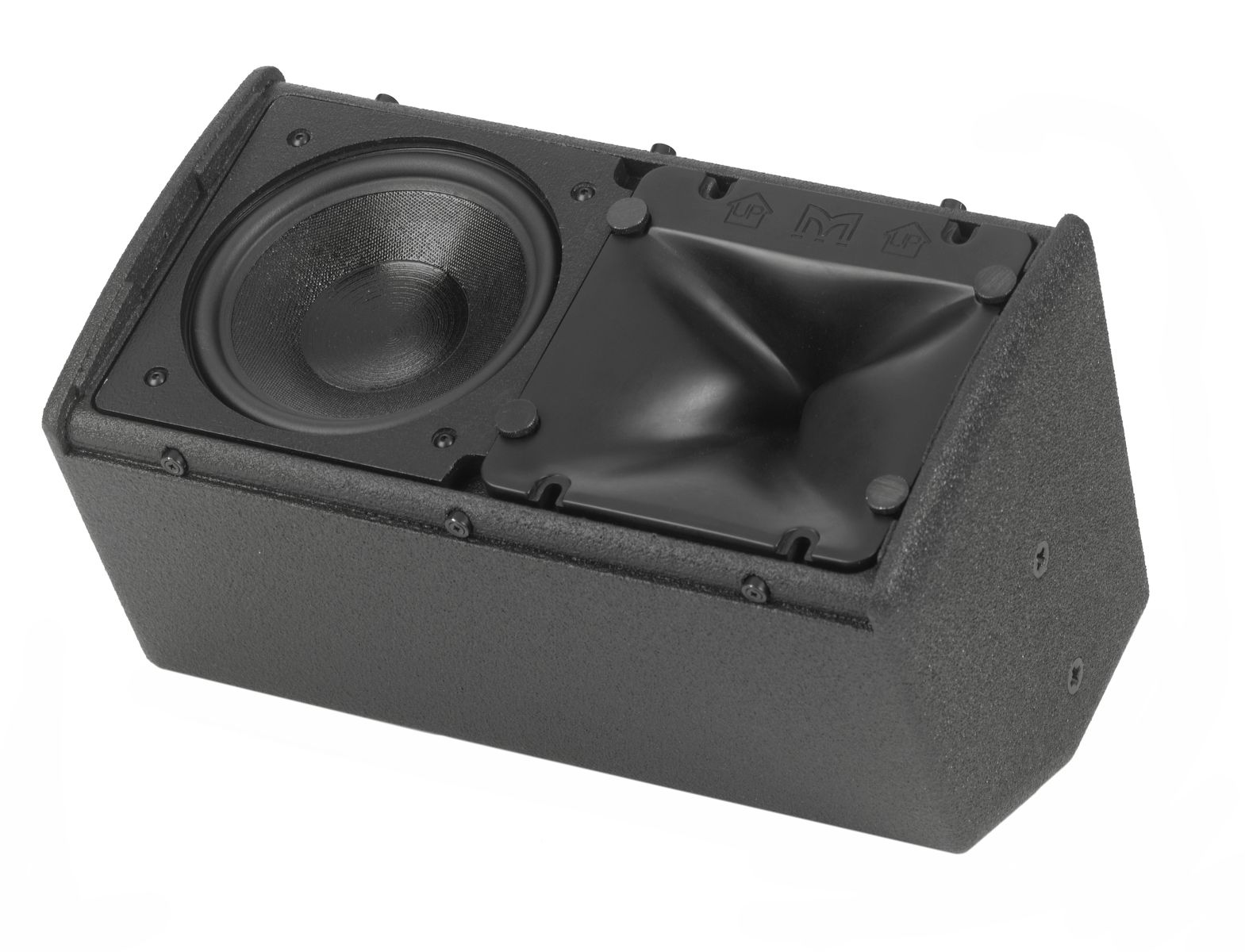

DRIVERS 6.5″ (165mm)/1.75″ (44mm) voice coil neodymium magnet LF driver
0.5″ (12.5mm) exit neodymium magnet HF compression driver
RATED POWER (a) 150W AES, 600W peak
RECOMMENDED AMPLIFIER 400W-1200W into 4 ohms
SENSITIVITY (b) 91dB
MAXIMUM SPL (c) 113dB continuous, 119dB peak
NOMINAL IMPEDANCE 16 ohms
DISPERSION (-6dB) 90°-120° horizontal, 60° vertical
CROSSOVER 3.7kHz passive
ENCLOSURE 7 litre, multi-laminate birch ply
FINISH Textured black polyurethane coating
PROTECTIVE GRILLE Black perforated steel

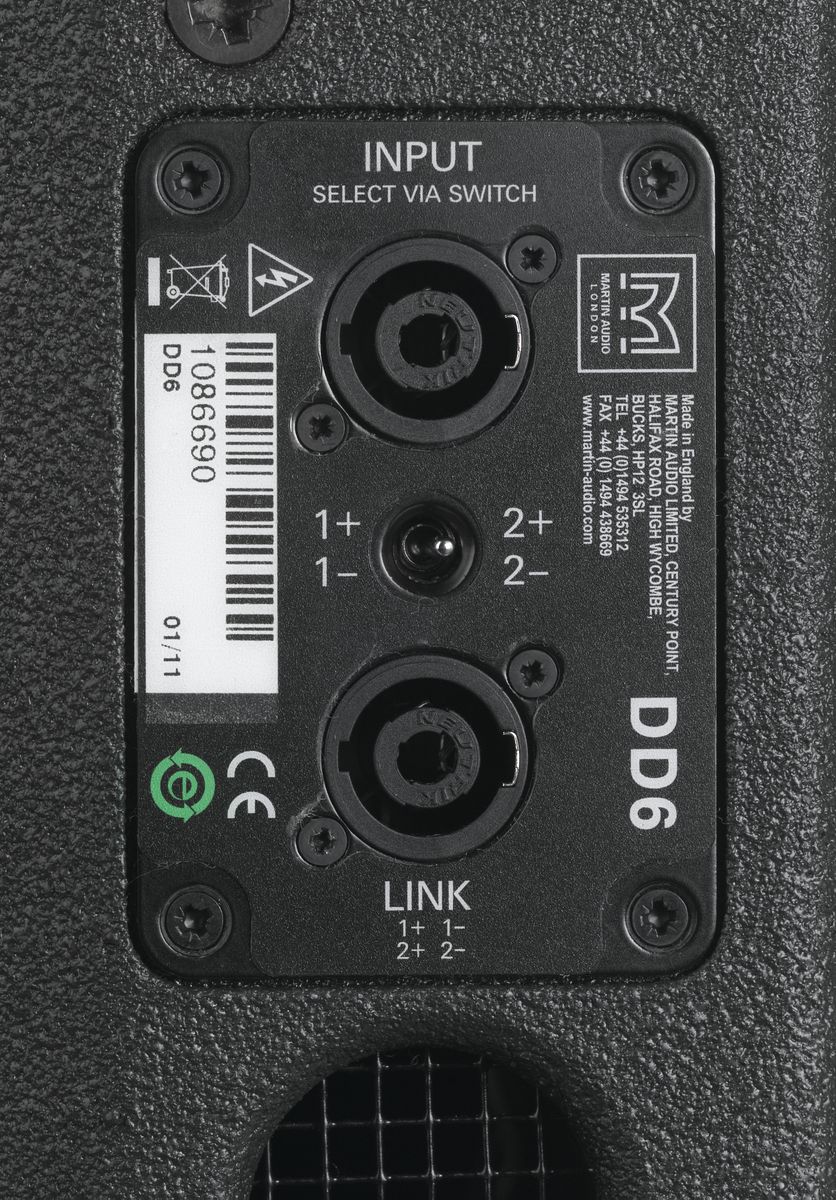

CONNECTORS 4 x Neutrik® NL4, connected in parallel
INPUT CONNECTIONS 1 ,1- or 2 ,2- selected via rear-mounted switch
FITTINGS 8 x M8, 4 x M6 threaded inserts, Integrated Pocket Handle
DIMENSIONS (W) 190mm x (H) 359mm x (D) 207mm
(W) 7.5ins x (H) 14.1ins x (D) 8.1ins
WEIGHT 5.9Kg (13lbs)
