£1,680.00 Inc VAT
Low profile variable coverage speaker 180 watt

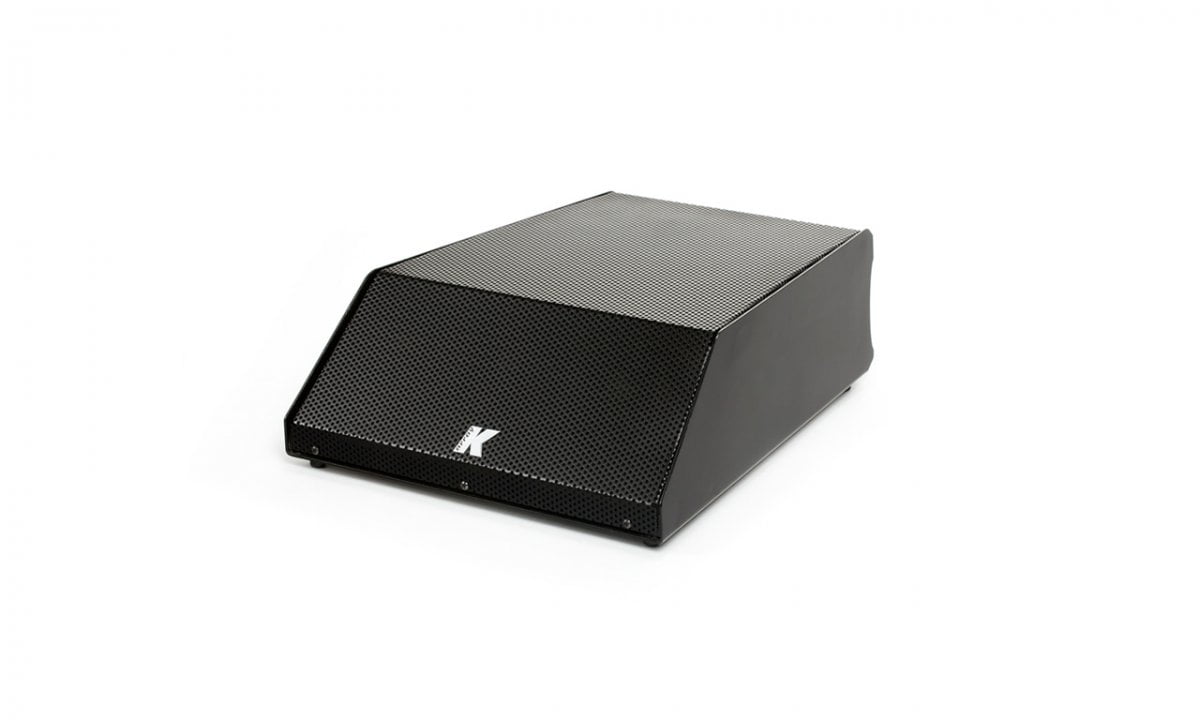

The KRM33 or “the cheese box” as it has been affectionately nicknamed, is an ultra-compact and low-profile powered wedge
speaker with a controlled horizontal pattern and has an extended frequency response. It is made up of three 3.15” cone
drivers and one 6” passive radiator. This combination guarantees a controlled and linear emission on a really wide range, with
a bass enhancement mode that can go from 70Hz to 18KHz.
The KRM33 is equipped with a two channel amplifier and a DSP that can be used to adjust the EQ directly inside the box.
An USB direct connection guarantees an easy plug & play connection. The DSP also offers the possibility of changing the
horizontal pattern of the single speaker and its bass response, two buttons located at the back of the box are used to quickly
change these settings without the need of a computer.

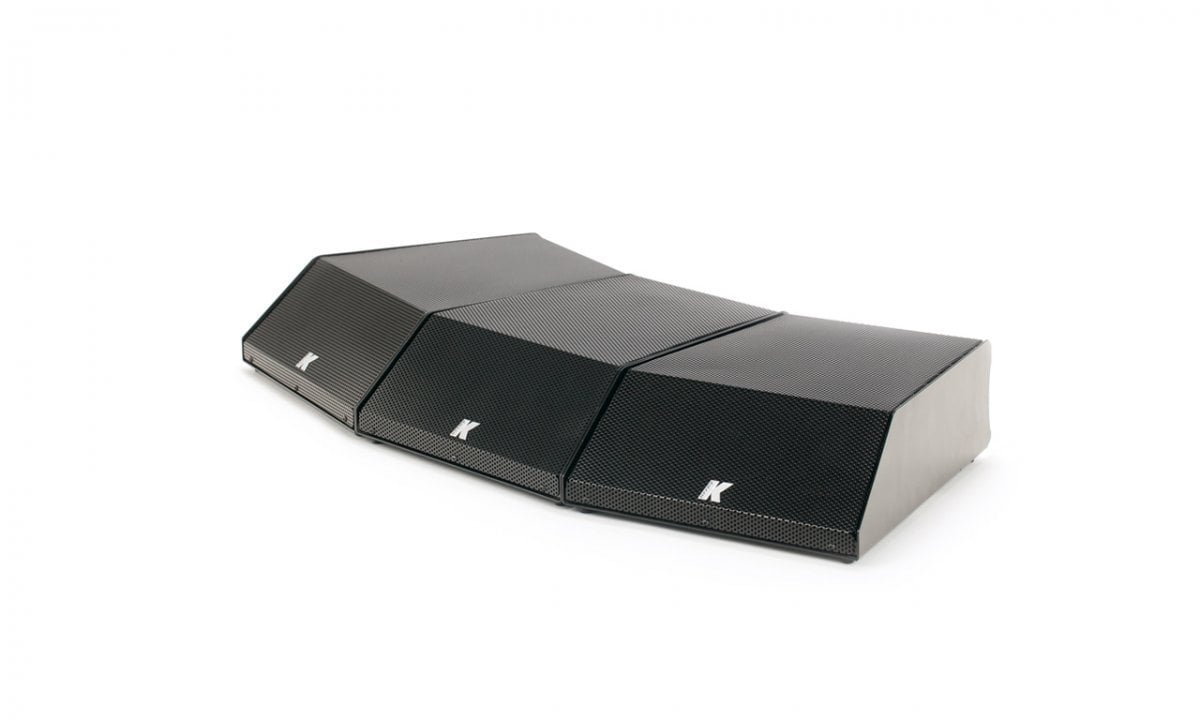

The controlled horizontal dispersion gives the possibility of creating horizontal arrays which increase the SPL and the coverage
while maintaining a high and constant signal-before-feedback within all the cluster’s beams.
The stainless steel chassis is a sturdy and durable box solution which is also remarkably short in height. Thanks to this
feature the KRM33 can be easily and discreetly integrated in scenography designs, broadcast studios as well as under-balcony
speakers in theaters.
All the components of the Redline KRM33 are designed by the K-array R&D department and made in Italy under the K-array
quality control system.
Speaker power handling 180 W(AES)
Frequency range 70 Hz – 18 KHz /- 3dB (1) / 100 Hz – 18 KHz /- 3dB (2)
SPL 1W/1mt 93 dB
Maximum SPL 115 dB (cont.) – 121 dB (peak)
Horizontal DSP controlled (30° / 70° selectable)
Type DSP controlled
Frequency 70 Hz minimum (preset dependent)
3 X 3,15” Neodymiun cone driver with 1” voice coil
1 X 6” passive radiator
Horizontal pattern Spot – Flood
Response Bass Enhancer

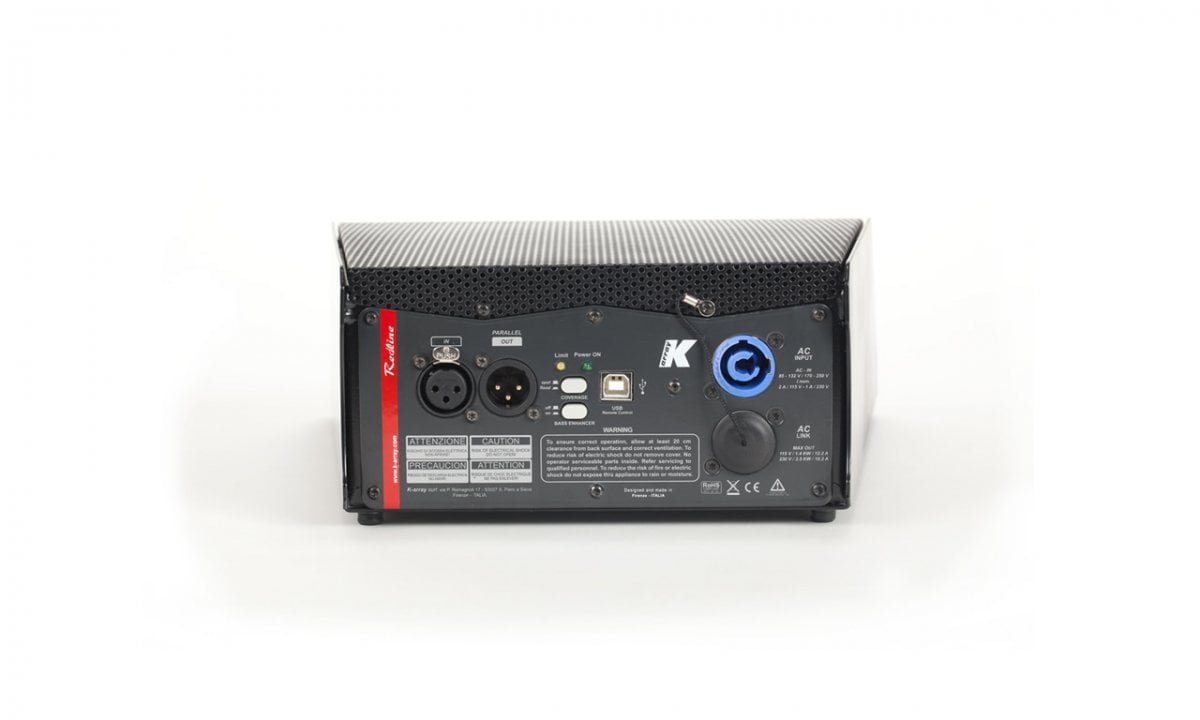

Analog connector 1 male 1 female 3-pin balanced XLR
Remote Control Input
Connector 1 USB type B
Connector 2 x PowerCon IN/OUT
Type 1 module class D – DSP controlled
Nominal power output 2 X 125 W @ 4 Ω 1% THD NOISE
Protection Dynamic limiter – Over current – Short circuit
Frequency response 20 Hz – 20 KHz, all load /- 0.5 dB
Damping factor 8Ω, 100 Hz > 500
THD N 1KHz, 1 W 0.003%
Nominal voltage 115 / 230 Vac auto switching
Operating range 85 – 132 Vac 170 – 264 Vac 50 – 60 Hz
I. Nom 2 A / 115 Vac 1 A / 230 Vac
Quiescent power (with no signal in) 10 W
1/8 rated power (pink noise) @ 4 Ω 110 W
Peak power 660 W / 120 ms
Dimensions 26.6 x 10.3 x 3.02 cm (10.47” x 4.06” x 11.89”)
Weight 5.2 Kg (11.59 lbs)
