The active two-way speaker series providing a professional sonic performance to all kind of users. The most accurate sound reproduction combined with aggressive sound pressure levels and enhanced portability.
B·H series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 120 dB for this 8” cabinet), while delivering the most accurate sound reproduction.

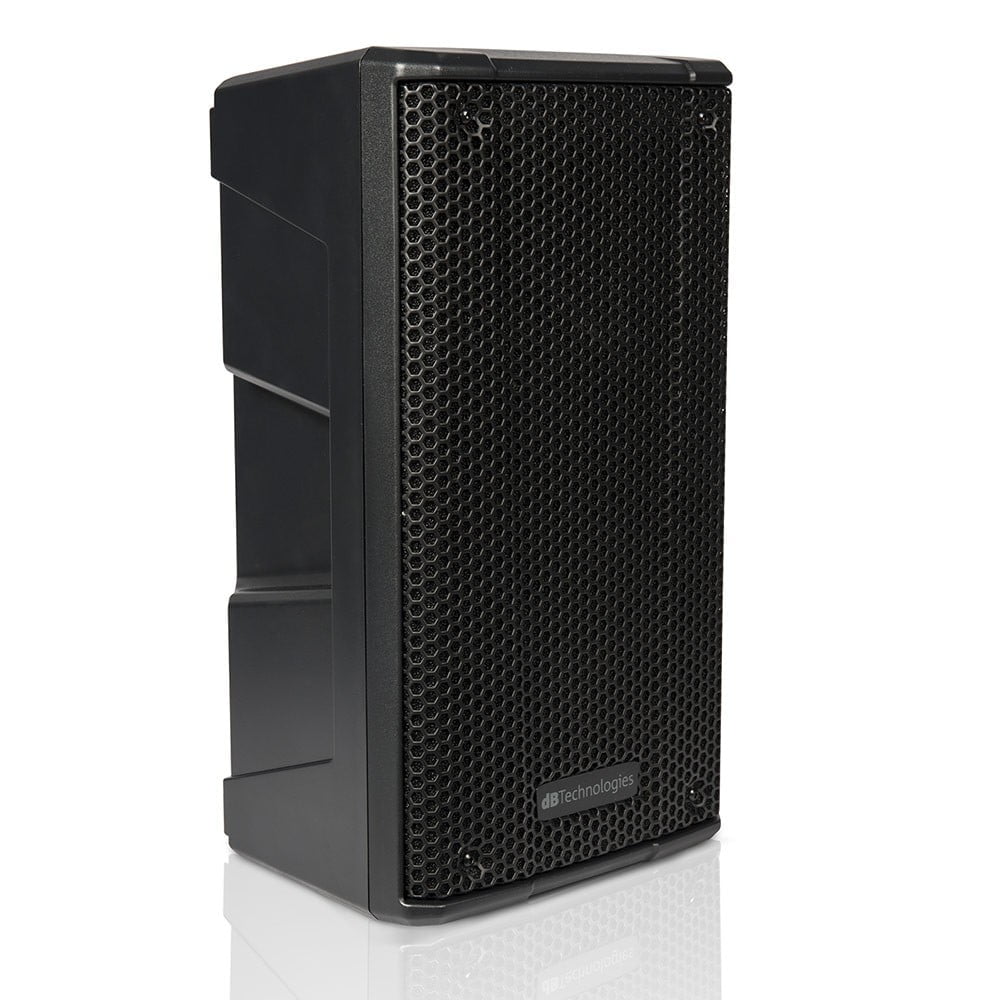

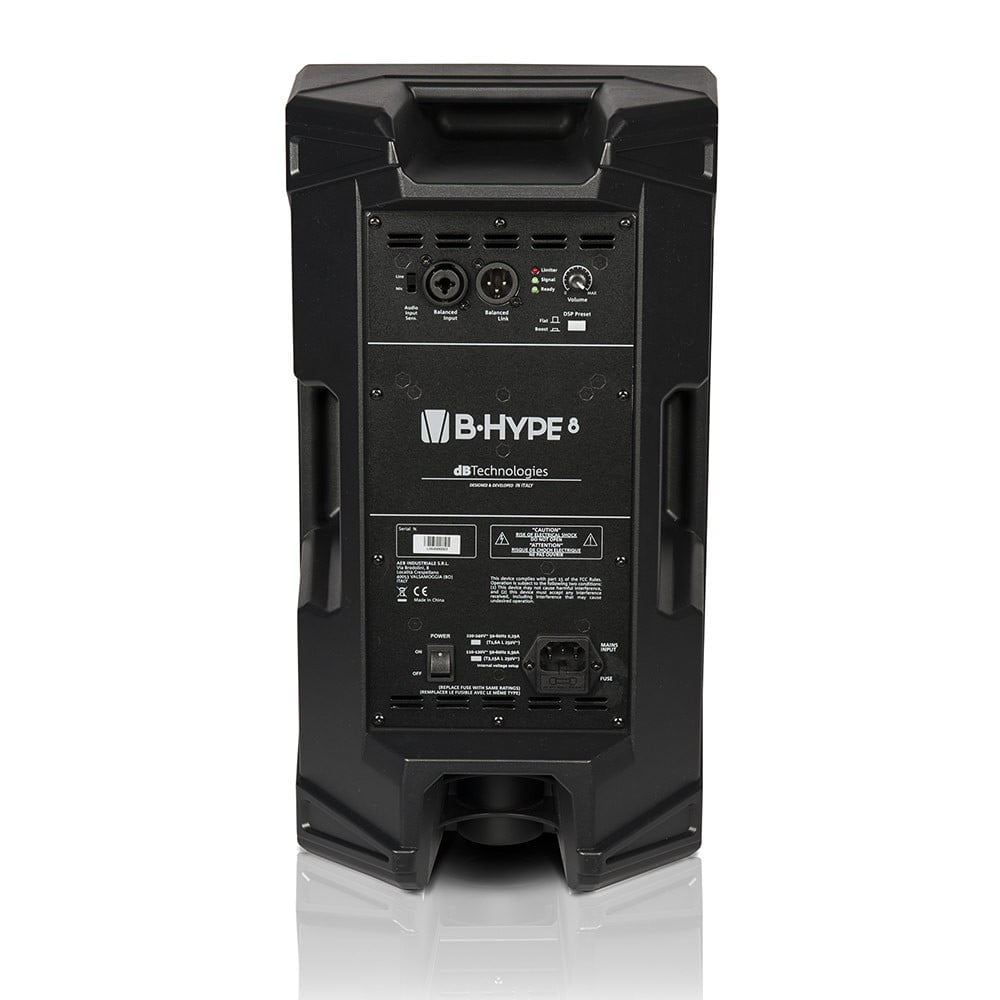

The new B-HYPE 8 is a versatile active speaker. It is equipped with one 1” compression driver (1” voice coil), and one 8” woofer (1.5” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

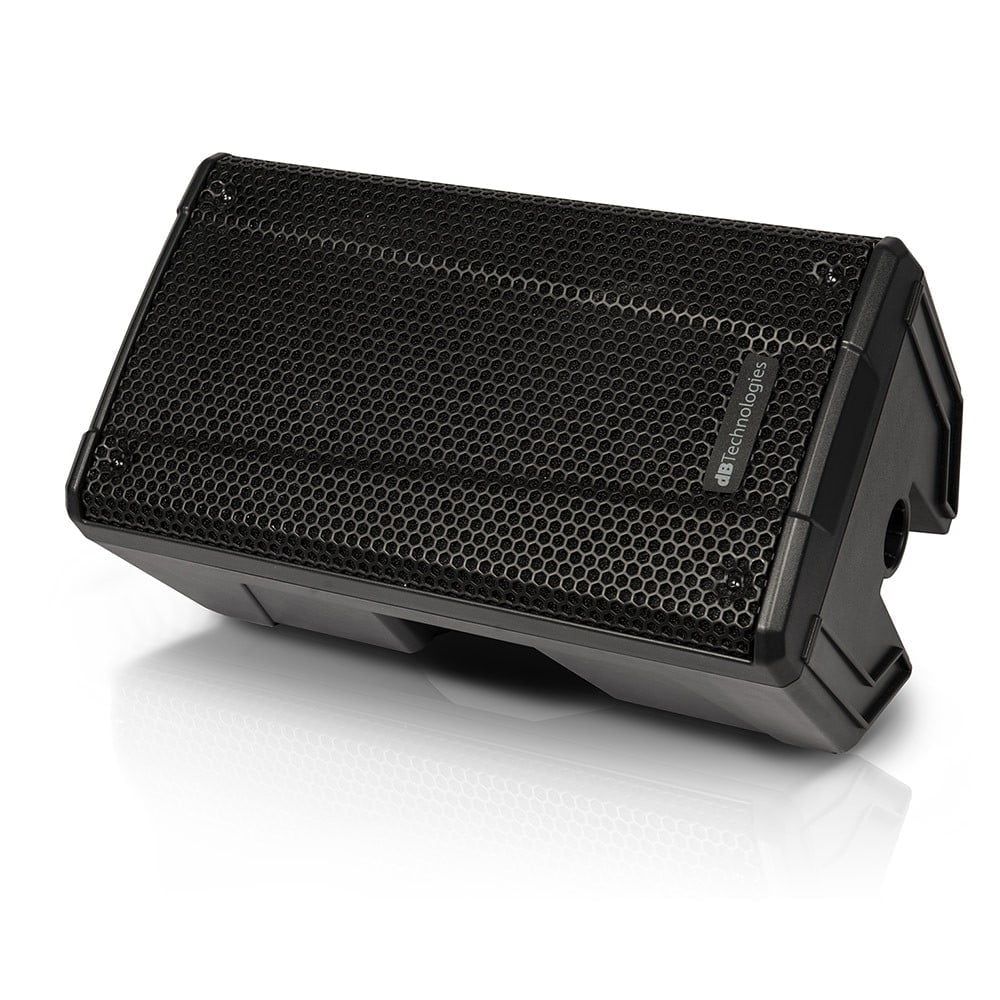

This featherweight cabinet (14 lbs/6.6 kg) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1xside and 1 on top-) and multifunctionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.
Maximum efficiency up to 120 dB SPL
Professional acoustic performance
Innovative horn design for uniform and extended coverage
Clean and contemporary design enhancing portability
Double stage monitor angle
Preset EQ Flat /Boost
Speaker Type 2-Way Active Speaker
Usable Bandwidth [-10dB] 65 – 20.000 Hz
Frequency Response [-6 dB] 70 – 19.600 Hz
Max SPL 120 dB
Type HF Compression Driver
HF voice coil 1 “
LF 8 “
LF voice coil 1.5 “
Crossover Frequency 2300 Hz (24 dB/oct.)
Horizontal Dispersion asymmetrical 85° up / 120°down
