Line-array element, variable beam speaker

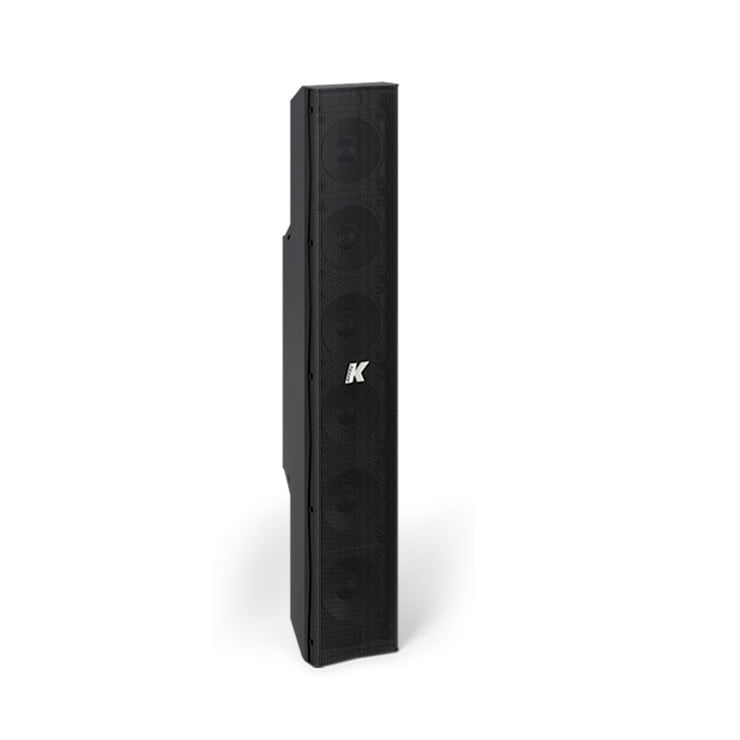

The K-array KP52 is a passive speaker system comprised of six 3.15” neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The vertical dispersion pattern can be switched for wide or narrow coverage, allowing for a great variety of applications.

Black or White Finish

K-Array
Categories: , SKU: SP/LOW/KAR18
  • Unique performance-to-size ratio
  • Vertical, Horizontal and 3D line-array applications
  • Multiple 3.15” long-excursion full-range cone drivers
  • Wide horizontal coverage
  • Electronically protected
  • Selectable 8 Ohm or 32 Ohm impedance
  • Selectable wide or narrow vertical coverage
  • Weather proof, suitable for outdoor installations – IP54

Applications

  • Theatre, Club, Churches
  • Front fill and under-balcony fill
  • Portable and installed AV systems
  • Stage and AV studio monitoring

Acoustics
Power handling 360 W
Impedence 8 Ohm– 32 Ohm (Selectable)
Frequency range
100 Hz – 20 KHz.
Maximum SPL
118 dB continuous – 124 dB peak

Coverage
Horizontal 90°
Vertical 10° – 45° (Selectable)

Crossover
Type External Crossover required
Frequency High pass @100 Hz, 24 dB/oct suggested minimum

Transducers
Full-range 6×3.15″ Neodymium magnet with 1″ voice coil

Power Audio Input
Connectors 2×4-pin Speakon
Wiring 1 1- (signal IN & LINK); 2 2- (through)

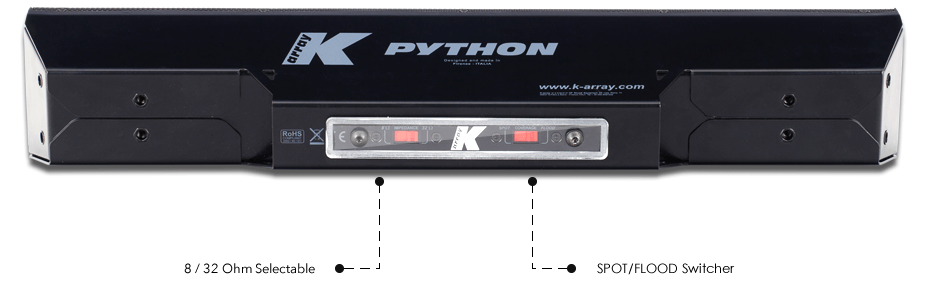

Selection Switch
Vertical pattern
Spot – Flood
Impedence 8 Ohm– 32 Ohm (Selectable)

Dimension
Dimensions 8.8 x 50 x 11.8 cm (3.56″ x 19.7″ x 4.65″)
Weight 5.8 Kg (12.79 lbs)

Brand

K-Array

K-Array
