Tour X embodies the same engineering excellence and aesthetic design found in every world-class EV tour system. Its form is seamlessly integrated into practical, functional elements that make a bold statement about the multi-application purpose and breakthrough performance. A host of innovative features and patent-pending designs make Tour X the most exciting portable loudspeaker series available.

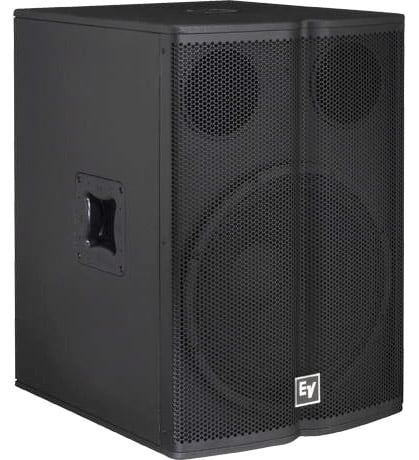

The TX1181 is the perfect companion sub to the TX1122 and TX1152 for compact and portable performance.
• Designed for Club Sound, House of Worship, Pro Music, and other applications. • EVS-18S 18Œ (457 mm) LF transducer • 100 dB sensitivity, 132 dB maximum SPL • Integrated low pass filter with 6 dB / octave slope • 500 W continuous, 2000 W peak power handling • Pole mount to elevate a two-way loudspeaker • Mounting points to attach optional TX-W1 wheel kit
Color Black Input Connections Parallel Neutrik® NL4 Speaker Type Subs Frequency Response (-3 dB) 50 – 160 Hz Frequency Response (-10 dB) 45 – 700 Hz Internal Crossover Yes Recommended High-Pass Frequency 30 Hz Sensitivity 1 W/1 m 100 dB Max. SPL/1m (calc) 132 dB System Power Handling (Continuous/Program/Peak) 500 Watts LF Transducer EVS18S Nominal Impedance (Passive) 8 O Minimum Impedance 7.5 O Enclosure Material Plywood and MDF with EVCOAT Flying No
Height 769 mm (30.28″) Width 508 mm (20″) Depth 591 mm (23.27″) Weight Net 33.8 kg (74.52 lbs)
