£949.00 Inc VAT

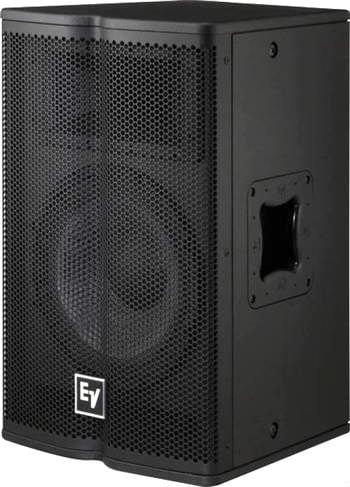

Tour X series 12″ two way passive speaker

  • 500W cont at 8 ohms
  • 90deg x 50deg coverage pattern
  • 35mm pole mount for tripod use
EV
Category: SKU: SP/LOW/EV26

Tour X embodies the same engineering excellence and aesthetic design found in every world-class EV tour system. Its form is seamlessly integrated into practical, functional elements that make a bold statement about the multi-application purpose and breakthrough performance. A host of innovative features and patent-pending designs make Tour X the most exciting portable loudspeaker series available.

Employing the same space-saving, 90° x 50° horn as the FM models and the incredibly low-distortion SMX2120 12 woofer, the TX1122 will astound you with performance that blows away ordinary 15 , two-way loudspeakers.

  • Designed for Club Sound, House of Worship, Pro Music, and other applications.
  • DH3 1.25Œ (32 mm) diaphragm, 1Œ (25 mm)-exit pure titanium compression driver
  • SMX2120 12Œ (305 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover with HF protection
  • 90° x 50° coverage pattern
  • 97 dB sensitivity, 130 dB maximum SPL
  • 500 W continuous, 2000 W peak power handling
  • Pole mount for tripod Use
  • Six 3/8Œ threaded points for suspension

Color  – Black
Input Connections  – Parallel Neutrik® NL4
Speaker Type Fullrange
Frequency Response (-3 dB) 60 – 20000 Hz
Frequency Response (-10 dB) 45 – 20000 Hz
Internal Crossover Yes
Recommended High-Pass Frequency 45 Hz
Sensitivity 1 W/1 m 97 dB
Max. SPL/1m (calc) 130 dB
Coverage (Nominal -6 dB) H- 90
Coverage (Nominal -6 dB) V- 50
Rotatable Horn No
System Power Handling (Continuous/Program/Peak) 500 Watts
LF Transducer SMX2120
HF Transducer DH3
Crossover Frequency 1750 Hz
Nominal Impedance (Passive) 8 O
Minimum Impedance 5.4 O
Enclosure Material Plywood and MDF with EVCOAT
Flying Yes
Suspension (6) 3/8-inch threaded inserts

Height 616 mm (24.25″)
Width 382 mm (15.04″)
Depth 380 mm (14.96″)
Weight Net 20.2 kg (44.53 lbs)
