£250.00 Inc VAT
5″ 2 way Passive Micro Speaker
- Ultra-compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- 8Ω nominal impedance
- Black or white standard colour options
- Brackets Included

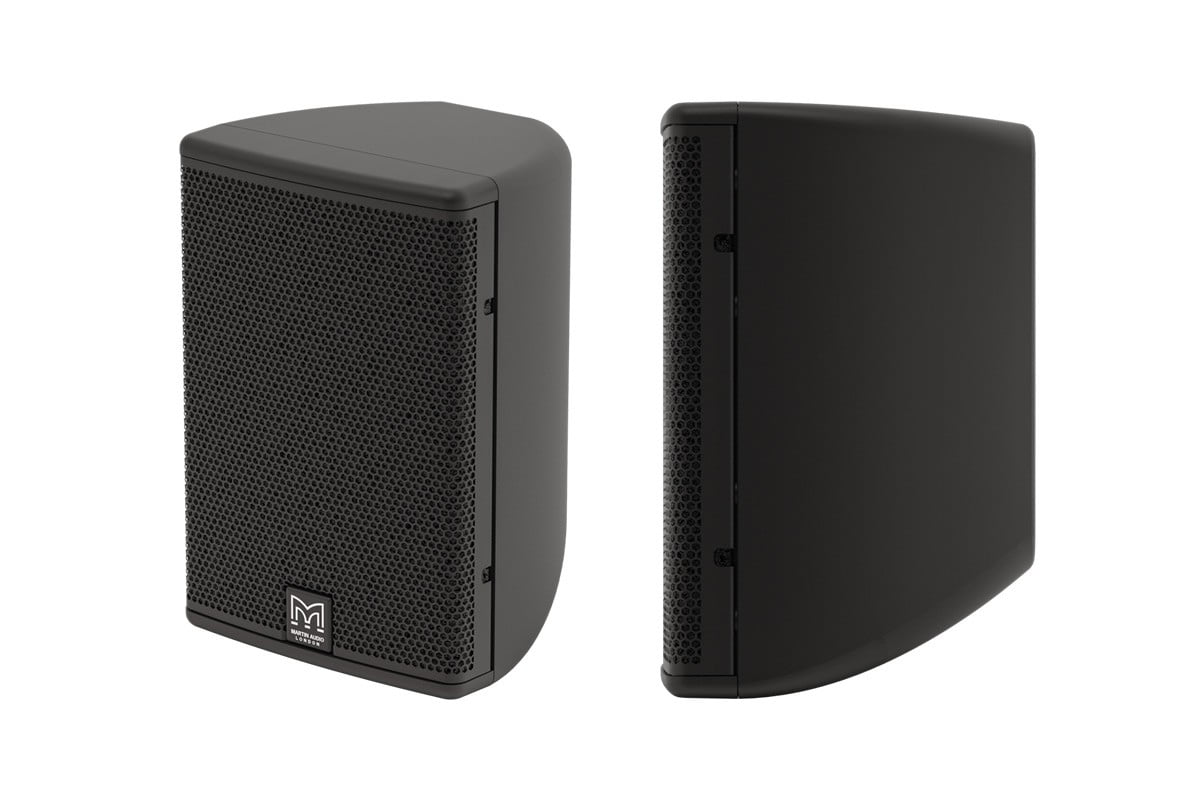

The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent-pending 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.

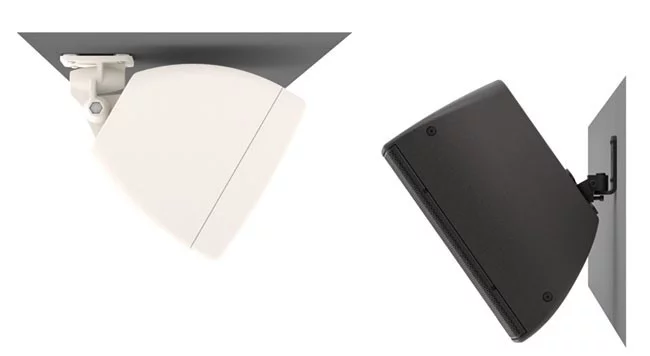

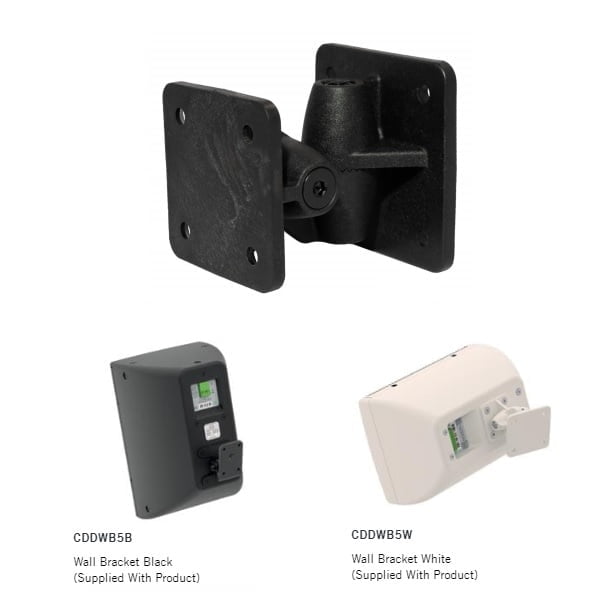

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.

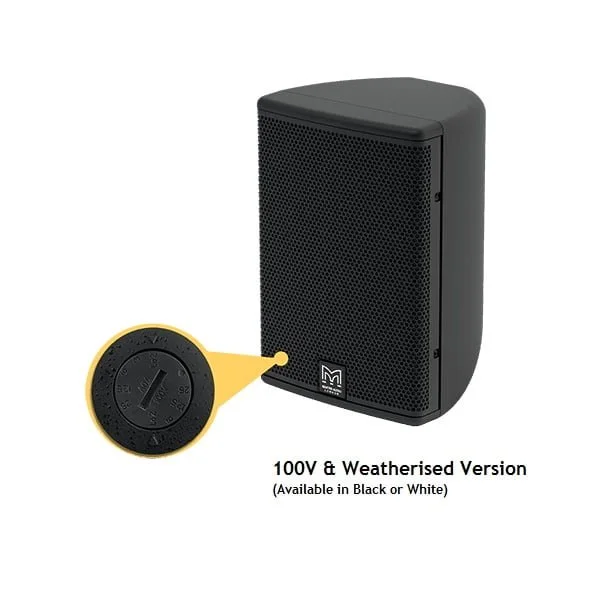

Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order. The CDD5TX option incorporates a 70V/100V line transformer.
A full-range, passive two-way system, the CDD5 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximise its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.
TYPE Ultra-compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE (1) 100Hz-20kHz ± 3dB, 10dB @ 70Hz
DRIVER LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system
HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
RATED POWER (2) 100W AES, 400W peak
RECOMMENDED AMPLIFIER MA2.8Q, MA2.0
SENSITIVITY (3) 90dB
MAXIMUM SPL (4) 110dB continuous, 116dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) (5) 120˚-90˚ horizontal, 80˚ vertical (user-rotatable)
CROSSOVER 2.5kHz passive
ENCLOSURE 3 litre, ABS
FINISH Black or white
PROTECTIVE GRILLE Black or white perforated steel with scrim cloth backing
CONNECTORS Low profile 13A push-lock
PIN CONNECTIONS Left to right: Input , Input -, Link -, Link
FITTINGS 6 x M5 inserts for wall/ceiling brackets
DIMENSIONS (W) 160mm x (H) 230mm x (D) 149mm, (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
WEIGHT 2.7kg (6lbs)
ACCESSORIES CDDCB5B ceiling bracket black, CDDCB5W ceiling bracket white
