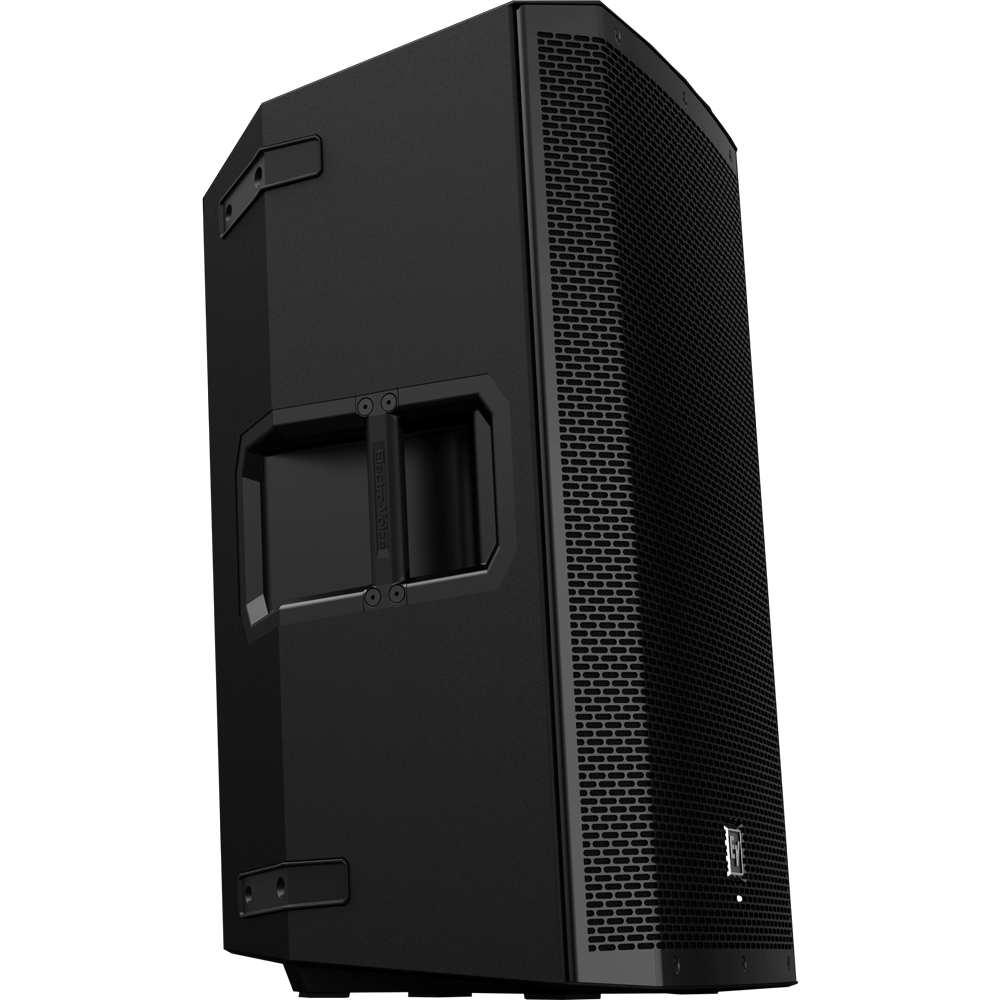

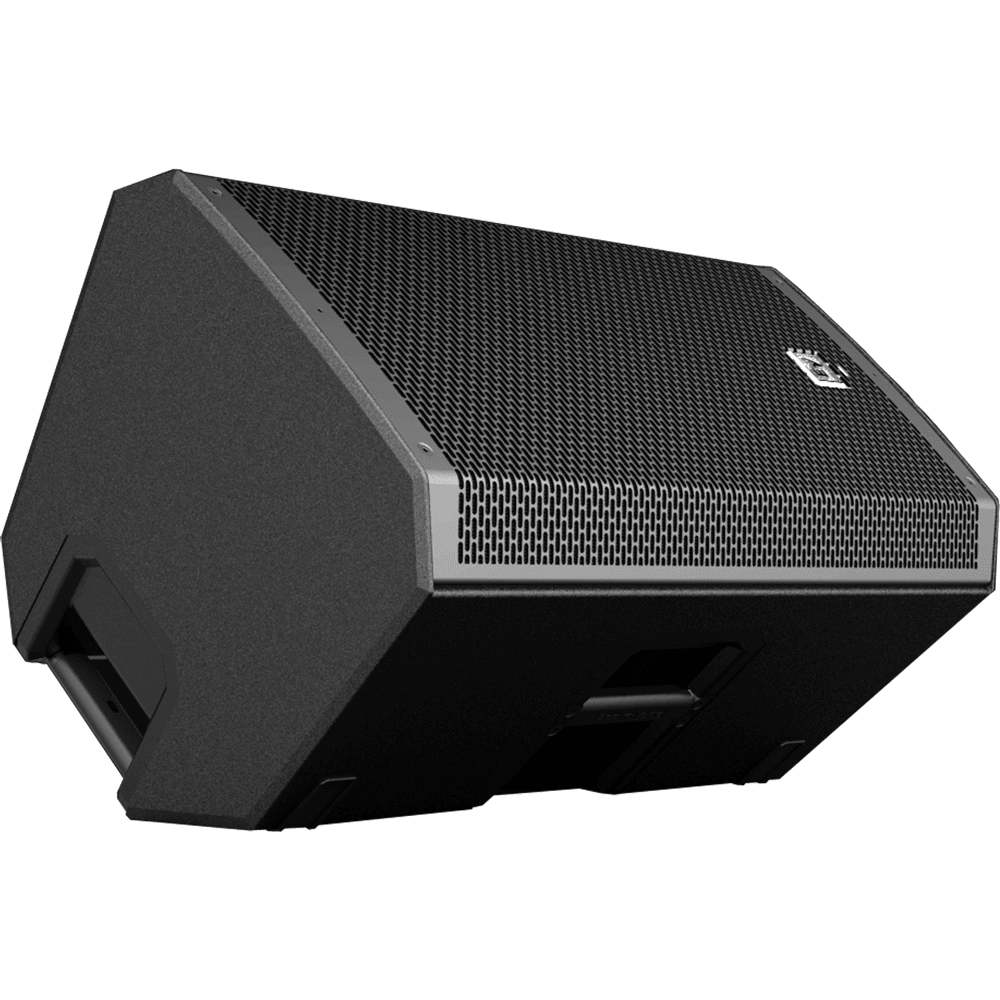

Big sound doesn’t need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.
When choosing a loudspeaker, it’s always wise to ask “What’s inside the box?” Then take a listen and hear the EV difference for yourself. Featuring custom drivers housed in a breakthrough new cabinet design, the two compact and versatile passive ZLX models make EV’s legendary sound quality and rugged reliability more accessible than ever before.
EV-engineered components for best-in-class sound

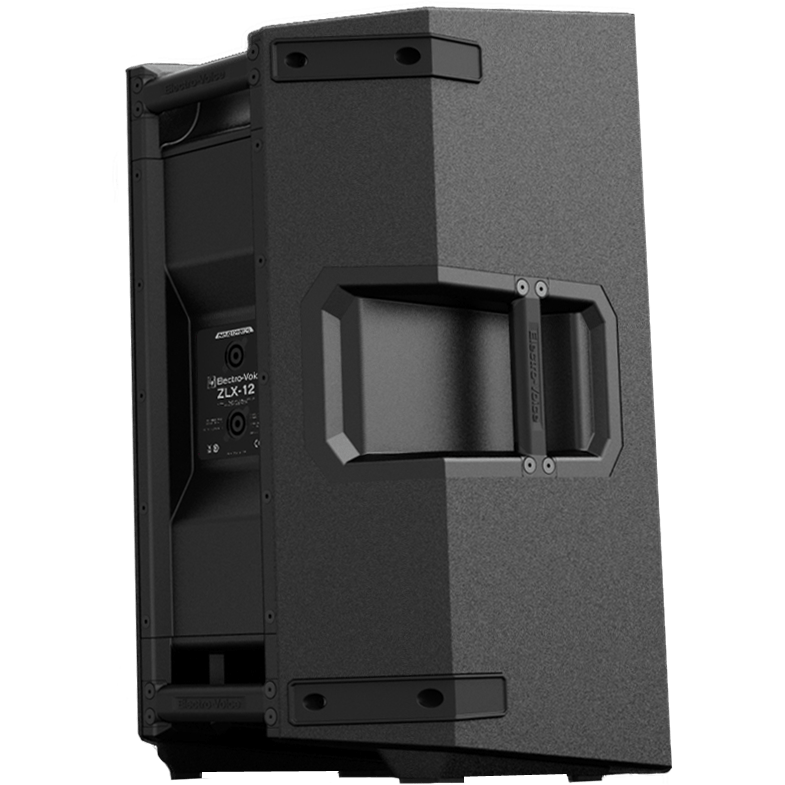

Lightweight, super-durable composite construction with unique hi/lo grip design for effortless pole mounting and portability
Patented split-baffle design for superior driver time alignment and enhanced sonic impact and intelligibility
Axial Sensitivity (SPL, 1 W @ 1 m) 95 dB Frequency Range 55 Hz – 20 kHz Maximum SPL 125 dB Nominal Impedance 8 Ω Power Handling (Continuous / Peak) 250 / 1000 W Frequency Response 82 Hz – 18 kHz Recommended High-Pass Frequency 40 Hz Coverage (Nominal -6 dB) H 90 ° Coverage (Nominal -6 dB) V 60 ° LF Transducer EVS-12K, 300 mm (12 in) Woofer HF Transducer DH-1K Crossover Frequency 2100 Hz Minimum Impedance 7 Ω Connector Type Dual NL4 Enclosure Material Polypropylene Grill 18 Gauge Steel with Black Powder Coat
Height 610 mm (24.02″) Width 356 mm (14.02″) Depth 356 mm (14.02″)
Weight Net 14.9 kg (32.85 lbs) Shipping Weight 18 kg (39.68 lbs)
