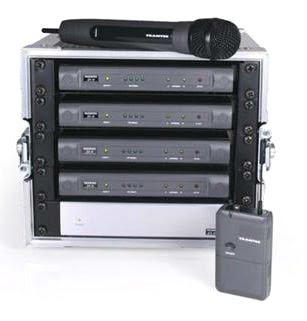

Trantec S4.16 CUBE


Racked ‘n’ Ready system

  • 4 x S4.16 receivers in a rack
  • Any combination of 4 transmitters
  • Includes antenna splitter unit
  • 1/2 width rack case
Tag: Categories: , SKU: RM/PACK/TRA01

The Trantec S4.16 UHF system boasts a multi-function receiver, 16 selectable frequencies and the latest PLL quartz tuning technology, making it the ultimate choice when looking for a product that will address your demands now, and into the future.

Fully assembled package includes:-

  • 4 x 4.16 receivers
  • 4 x 4.16 transmitters in any combination of handheld or beltpack (includes LP2 lapel microphone)
  • Antenna distribution unit (ADU), appropriate for attached receivers
  • Rack mounting trays
  • 2 x antennae
  • Power supply included
  • 1/2″ width rack case
  • All Tested & Ready To Go

This is a great cost saving package offering a ready-to-go solution for installed or portable radio mics (save around 10% when compared with individual products purchase)!

Transmitter choices
Please choose your microphone transmitters from the following options (note – some specific mics may add additional cost)

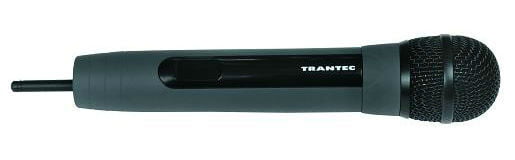

Hand Held dynamic (vocal) S4.16 HDX
Hand Held condenser (speech or vocal) S4.16 HCX

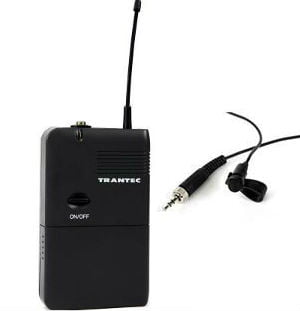

Beltpack (comes with LP2 lapel mic as standard)

You may choose any combination of transmitters (up to 4) with this system. For instance, you may wish to have 2 x dynamic handheld mics plus 2 x lapel mics with belt pack transmitters.

Additional plug-in microphones for beltpack transmitters are optional extras such as the following examples: SJ22-P-R theatre headset, SJEM-77 discreet earworn mic. Please call for details.

The S4.16 has 16 selectable frequencies incorporating the existing 4 licence free Channel 70 frequencies, already being used in the S4.4, allowing the user to operate up to 12 frequencies together intermodulation free. There is also the option of choosing this as a Channel 38 ready system for use with a licence.

The receiver has detachable antennae, allowing remote placement and the use of antenna distribution units for larger sets.

The S4.16 system is available in lapel, handheld, discreet headset and aerobic versions, the beltpacks of which can be switched for use with a musical instrument.

The S4.16 has a host of additional features including LEDs on the receiver showing Power On, AF Peak level, RF Level and Diversity Channel A or B. In addition, the diversity operation receivers have rear mounted detachable antennae and variable gain jack plug output.

The handheld version is fitted with a dynamic capsule and the beltpack has a locking 3.5mm jack plug. The transmitter battery life is in excess of ten hours.

The S4.16 gives the user the ability to run more frequencies, but we realise this means a potentially intimidating tangle of wires to connect if the antennae are to be distributed from a single pair. We have therefore come up with various assembled racks giving the user a “turnkey solution” for a set price. Included in this price are the receivers and transmitters (in any combination of beltpack or handheld), a professional quality 19″ rack, power supplies, antenna distribution units, antenna head amps, 10m of antenna cable, antenna mounting kit and antenna stands. These also come in 4, 8 and 12 way versions (19″ racks).

RF Frequency Range: 606-614MHz (G3), 854-865MHz (EA)
16 Channel Capability
Audio Frequency Response: Handheld 80Hz-16kHz ( /-3dB), Belt pack 60Hz-16kHz ( /-3dB)
Audio S/N Ratio: >96dBA
Audio output: Variable to 10dBu via unbalanced 1/4″ mono jack, 16 dBu via balanced XLR 3F
Display: 4 position RF bar graph, AF Peak (Overload), Diversity A/B
DC Input: 12V, 100mA
Dimensions: 35 x 213 x 98mm
Weight: Approx 580g

16 Channel capability
Controls: Frequency select, On/Off switch, Lapel/Instrument select, Gain adjust
Indicator: Battery status LED
LP2 Lavalier microphone: Omni-directional back electret condenser
Operating voltage 9v @ <50mA
Operating time approx 10 hours
Power Output: Max 10mW
Connectors: Audio input via 3.5mm jack socket
Dimensions: 60 x 100x 30mm including belt clip
Weight: Approx 90g
Fully meets with requirements of ETSI 300-422/455, FCC part 74h

16 Channel Capability
Controls: Frequency select and On/Off switch
Indicator: Battery status LED
High quality cardioid dynamic head
Operating voltage 9v @ <50mA
Operating time approx 10 hours
Power Output: Max 10mW
Dimensions: 280 x 50 max (including grille)
Weight: 210g
Fully meets with requirements of ETSI 300-422/455 FCC part 74h
