TOA 5000 Series True Diversity – Condenser ‘Roaming’ Mic

£599.00 Inc VAT

Condenser wireless handheld mic system ideal for speech & vocals

  • Ideal for use as roaming mic
  • True Diversity radio receiption
  • Rack Mountable receiver
  • Use with Remote Aerial system for improved radio reception
  • Available in channel 70 (no licence required) and Channel 38 (licence required)

Category: SKU: 00RMTOACON01

TOA are one of the most respected names in Pro-Audio, renowned for superior build and high quality. DM Music are pleased to offer the latest line of TOA UHF wireless systems that simply stand head and shoulders above anything else at this price.

Available in channel 70 (D04 – no licence required) and Channel 38 (G01 – licence required) – please select

The condenser mic capsule is ideal for vocals, speech and as a ROAMING mic as this will pick up sound from arms length. The hand held mic is rugged and will offer high quality, reliable for many years service.

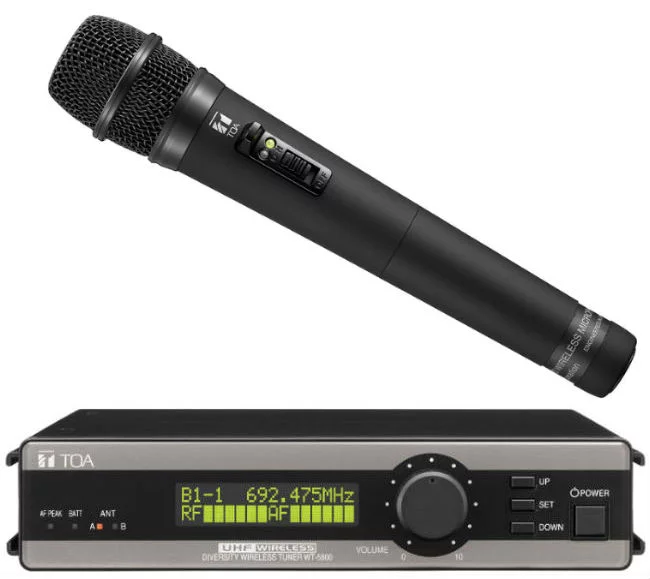

System includes:
WM5225 hand held condenser vocal / speech microphone
WT5800 True Diversity receiver unit
Mic clip
Power supply


  • Rack mountable
  • True Diversity
  • 16 Switchable frequencies!! You won’t run out of channels!
  • Balanced XLR Output
  • Digital display
  • Superb build quality
  • Stable UHF transmission
  • Economical to run – more than 10hrs from a single AA battery (not included)

TOA wireless microphone tuners rely on Phased Lock Loop(PLL)synthesis for excellent performance levels, stability and reliability. Oscillation frequency changes caused by changes in ambient temperature are kept to a minimum. For a dramatic reduction in noise during changeover between antennas, true diversity and space diversity are now employed. The two truediversity tuner models are equipped with a twin antenna and support condenser microphones. A channel search function is incorporated in all tuners, and a two-line LCD display enables faster meter reading. Remaining battery power indication is also provided.

TOA true diversity and space diversity circuitry are incorporated in the WT-5000 Series tuners to ensure constant area coverage. Compared to conventional diversity tuners, TOA models come with simpler and more effective circuitry, thus enhancing overall performance and reliability.

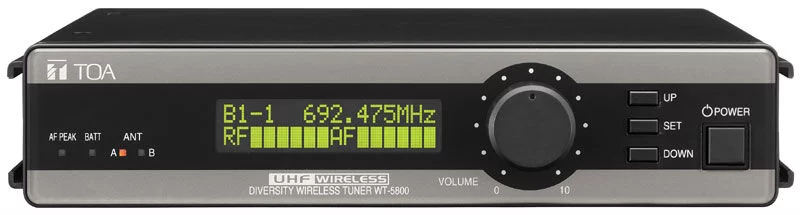

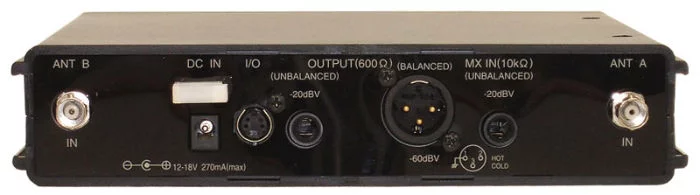

WT-5800 – rack mountable receiver
Phased Lock Loop (PLL) synthesis operation.
Four 16-channel banks of circuit frequencies.
True diversity technology.
Double super-heterodyne receiving system.
Two-line LCD display.
Auto mixing input function.
Squelch function (carrier, noise, tone).
Usable frequencies scanning channel search function.
Compact half-rack size body.
Microphone sensitivity adjustment function.
Compander circuitry for minimizing ambient noise.
Antenna distribution output.
Low-battery indicator.

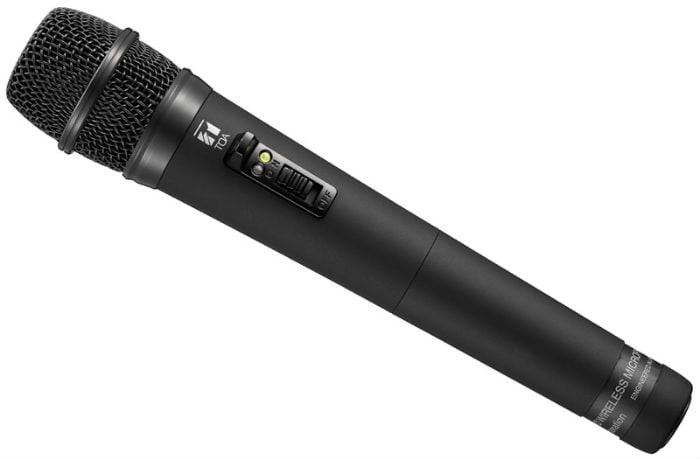

WM-5225 – UHF Handheld Wireless Condenser ‘Roaming’ Microphone
Ideal for speech, singing etc.
Operating range: 3m – 120m.
Electret condenser cardiod microphone element.
16 selectable channel frequencies.
Maximum input level: 126 dB SPL.
ON/OFF switch prevents the microphone from rolling.
Single AA battery operation for more compact and lightweight body.
Low-battery indicator
Built-in antenna
Replaces previous version WM5220

We recommend that you do not use cheap rechargeable batteries for radio mic systems. If you prefer rechargeables please you Nickel Metal Hydride (NiMH) types.
