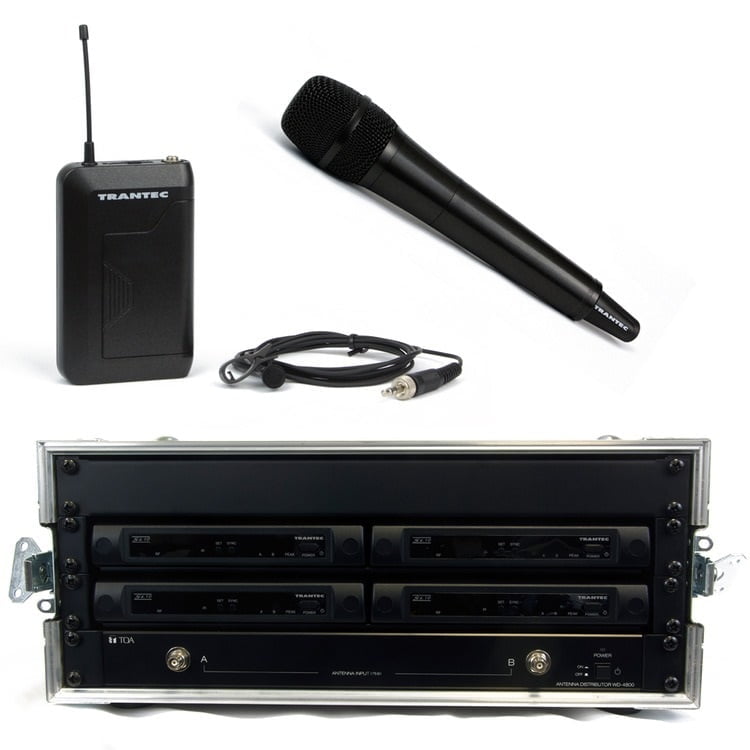

4 Way Trantec S4.10 Rack ‘n’ Ready system with ADU, PSU and Flight Case – Channel 38 or Channel 70
- USB based computer monitoring
- Simple programming of transmitters via infra-red
- Single AA transmitter battery life of approx. 10 hours
- 4 x Trantec S4.10 receiver
- 4 x Trantec S4.10 transmitters in any combination of handheld or beltpack (includes LP2 lapel microphone)
- Antenna
- Rack mounting trays
- Flight case
- Power supply allowing 1 single cable for assembled rack
- 230v ac 50Hz UK plug Trantec product code: S4.10L-G3-RACK-4W / S4.10L-GD4-RACK-4W
The Trantec S4.10 UHF system boasts a multi-function receiver, 16 selectable frequencies and the latest PLL quartz tuning technology, making it the ultimate choice when looking for a product that will address your demands now, and into the future.

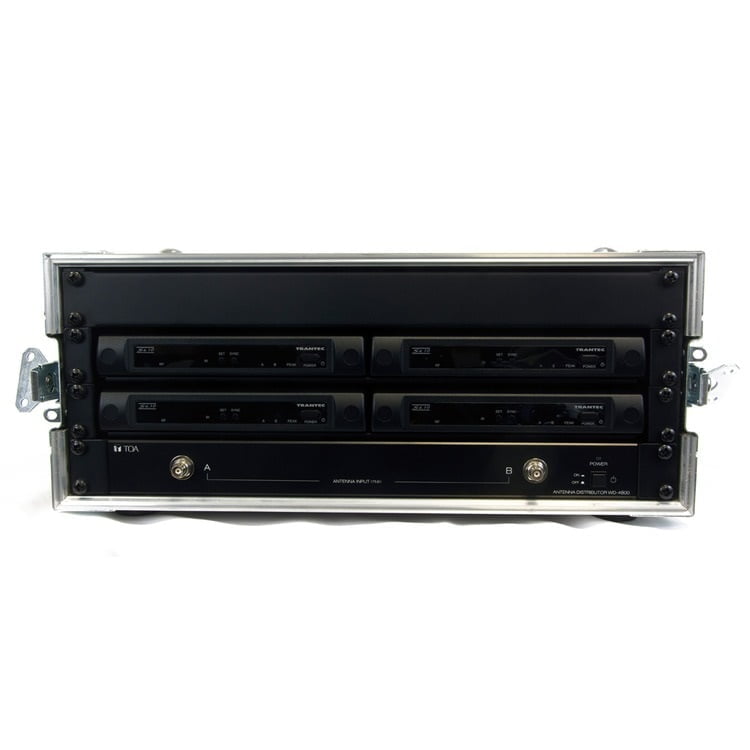

Assembled packages include:
- 4 x S4.10 receivers with LED’s showing AF peak level, RF level & diversity channel A or B
- 4 x S4.10 transmitters in any combination of beltpack (includes LP2 lapel microphone) or handheld
- Antenna Distribution Unit
- Power Supply
- Rack Mounting Trays
- 2 x Antennae
- 19″ Professional Flight Case.
Optional Remote Antenna Kit (not included) includes:
- 2 x 10m antenna cables
- 2 x antenna head amplifiers
- 2 x antenna stands.
Whether you opt for a 4, 6, 8 or 10 channel Racked’n’Ready system, these unique, compact, turnkey packages will be ideal for your hire stock, and appeal to schools, amateur dramatics, churches, and audio-visual applications.
Specifications
| Trantec S4.10 Receiver | |
| Diversity Reception | Antenna Diversity |
| Sensitivity | 10uV at 45dBA, S/N |
| Squelch | Tone SQ, Carrier SQ, Noise SQ |
| Audio Frequency Response | 50Hz – 15kHz |
| Audio Output Level | Balanced (XLR socket): -20dBu |
| Unbalanced (1/4″ jack socket): 10dBu | |
| Power Supply | 12 VDC 500mA – UK power supply |
| Dimensions | 215(W) x 39(H) x 102(D)mm excluding antenna and BNC |
| Weight | 480g |
| Trantec S4.10 Handheld Transmitter | |
| RF Carrier Power | 10mW |
| Audio Frequency Response | 80Hz – 15kHz |
| Audio Input Level | 140 dBSPL(maximum) |
| Battery | 1 x AA alkaline, 1.5V |
| Battery Life | Approx. 10 hours |
| Finish | Resin, coating |
| Dimensions | 250 x 55mm |
| Weight | 245g with battery |
| Trantec S4.10 Beltpack Transmitter | |
| RF Carrier Power | 10 mW |
| Audio Frequency Response | 50Hz – 15kHz |
| Audio Input Level | -6dBV (maximum), mic gain 0dB |
| Microphone connection | 3.5mm screw lockable |
| Battery Life | Approx. 10 hours |
| Battery | 1 x AA alkaline, 1.5V |
| Finish | Resin, Coating |
| Dimensions | 62(W) x 100(H) x 25(D)mm |
| Weight | 85g with battery |
Brand
Trantec
