XS Wireless Digital Portable ENG Set.

One-touch ease-of-use wireless audio set with XSW-D 3.5mm (1/8”) transmitter, XSW-D XLR Female transmitter, XSW-D 3.5mm (1/8”) receiver, ME2-II clip-on lavalier mic, 3.5mm (1/8″) coiled cable, cold shoe mount, belt clip and USB-A to USB-C charging cable.

XS Wireless Digital. Like any classic romance, you know it when you experience it—it’s an instant connection.

With the easy syncing of a portable transmitter and receiver, XS Wireless Digital uses a 2.4 GHz connection to create a wireless peer-to-peer connection. It’s as simple as that. Be it a complication-free lavalier for the one-person video team, or the ability to remove the cables from the stage or rehearsal room, this wireless tool empowers your creativity by allowing you to roam free.

Essentially a cable replacement, XS Wireless Digital uses a 2.4 GHz transmission to create a wireless peer-to-peer connection. It’s as simple as that. As a liberating solution for the musician moving about on stage, or a convenient approach to the rehearsal room, this wireless tool empowers your inner creativity by allowing you to roam free.

If you’re looking to change your relationship with cables and frequencies, then you need to try it out. Who knows? You might find you have an instant connection.

No more cables

A good connection doesn’t require being tied down. Wireless means no obstacles, no distractions, just effortless audio, every time. Empower your performance with the ability to roam free; lose the cables but keep the connection.

One touch ease-of-use

It’s simple, each XS Wireless Digital has only one button. Press to power up and link simultaneously, click once to mute, and hold to power down. It’s as easy as plugging in a cable, minus the cable part.

Digital for worldwide operation

Your sound should be as boundless as your ideas. Forget about having to set frequencies and step into the world of digital. Using a 2.4 GHz transmission, sync and go anywhere, anytime—effortlessly.

• FEATURES • One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75 m range (250 ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one • receiver
• Mix and match different connector types
• Mute from either transmitter or receiver

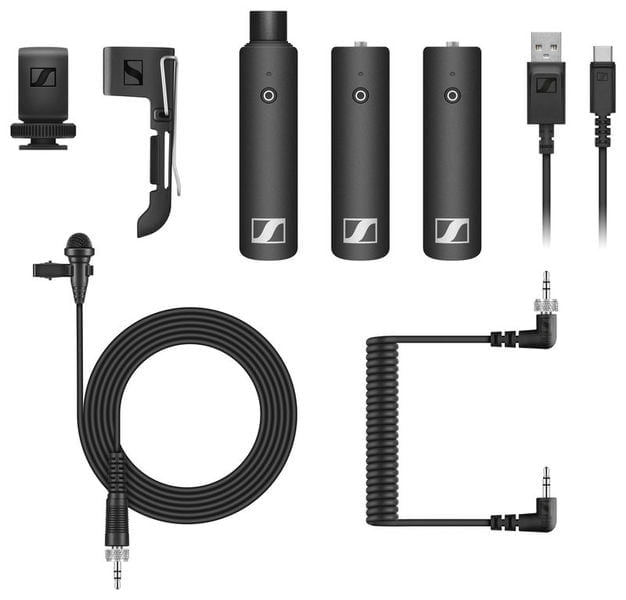

What’s in the Box

• XSW-D 3.5mm (1/8”) transmitter
• XSW-D XLR Female transmitter
• XSW-D 3.5mm (1/8”) receiver
• ME2-II clip-on lavalier mic
• 3.5mm (1/8″) coiled cable
• Cold shoe mount
• Belt clip
• USB-A to USB-C charging cable

USB C interface for charging:
Input voltage typ. 5.0 V
Charging temperature 0 °C – 60 °C (32 °F – 140 °F)
Charging time typ. 3 h

Battery pack:
Cell type Li-Ion
Nominal voltage 3.7 V
Cell capacity 850 mAh
Operating time up to 5 h

AF characteristics:
Codec aptX® Live

Audio frequency response 3.5 mm Jack/XLR:
80 – 18,000 Hz
6.3 mm Jack:
10 – 18,000 Hz
Audio output max. 12 dBu
Signal-to-noise ratio ≥ 106 dB
THD < 0.1 %
Audio latency < 4 ms
Frequency range 2,400 – 2,483.5MHz
Transmission power (EIRP) max. 10 mW
Modulation GFSK with TDMA

Environmental conditions:
Operating temperature -10 °C to +55 °C
(14 °F to 131 °F)
Relative humidity 95 % (non-condensing)
