Sennheiser XSW 2-865

£439.00 Inc VAT
  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via
  • remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels
Sennheiser

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

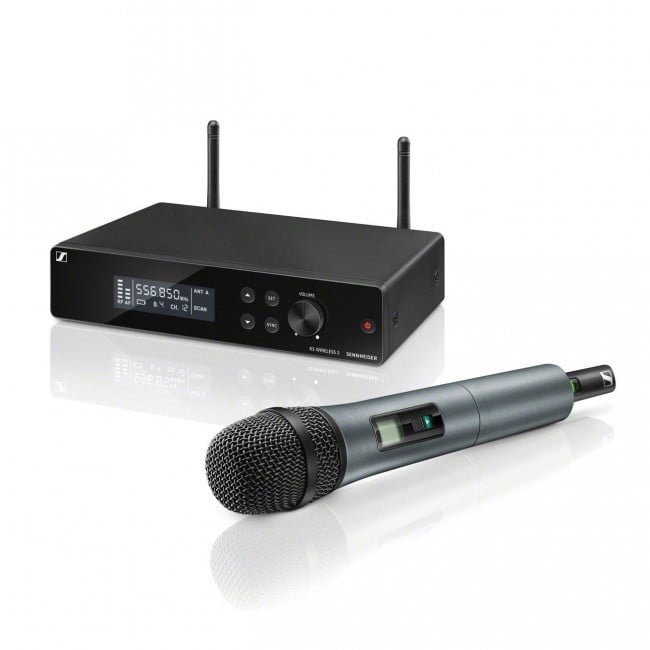

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail.
True Diversity receiver in a metal housing and rackmount kit included.

FEATURES

  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via
  • remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels



WHAT’S IN THE BOX?

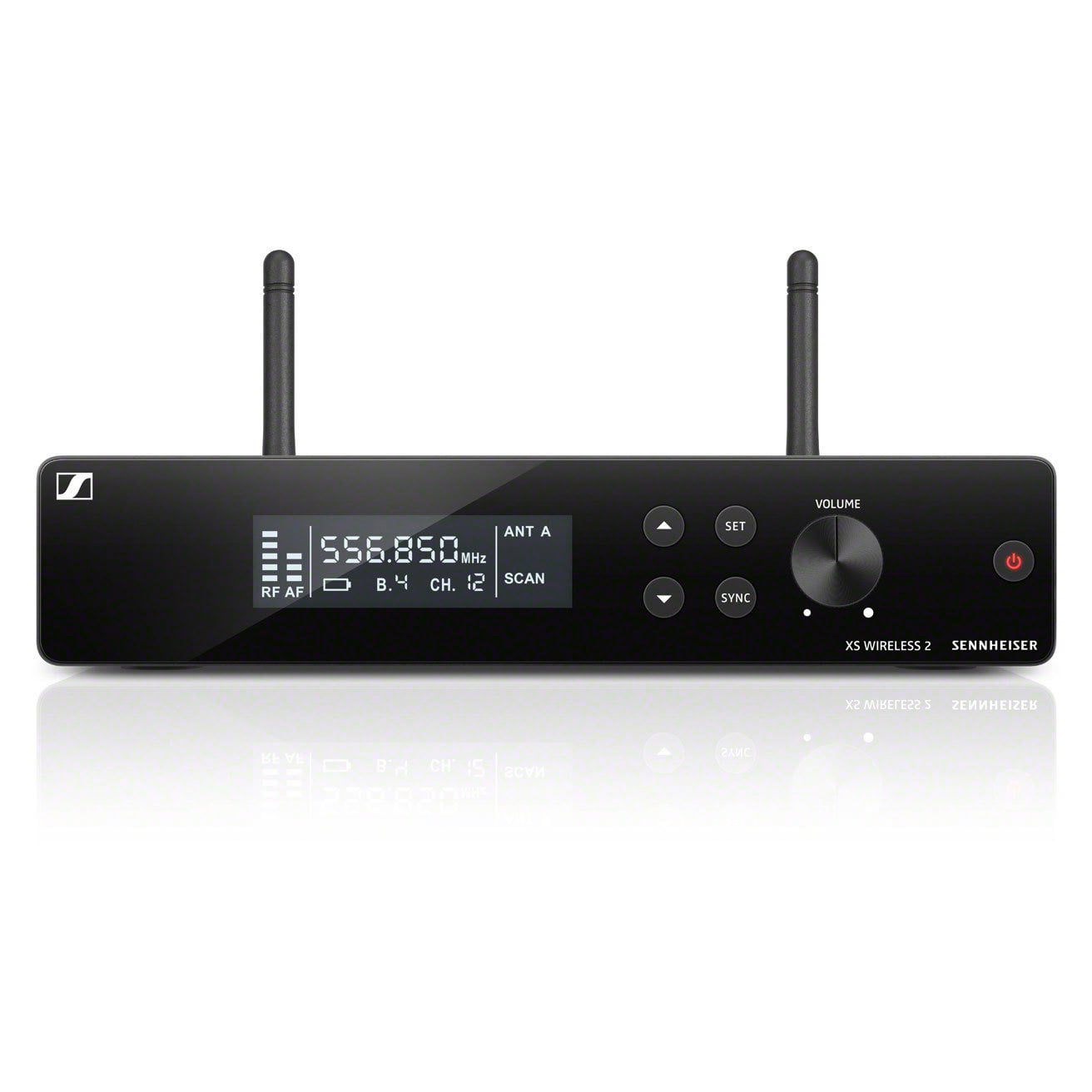

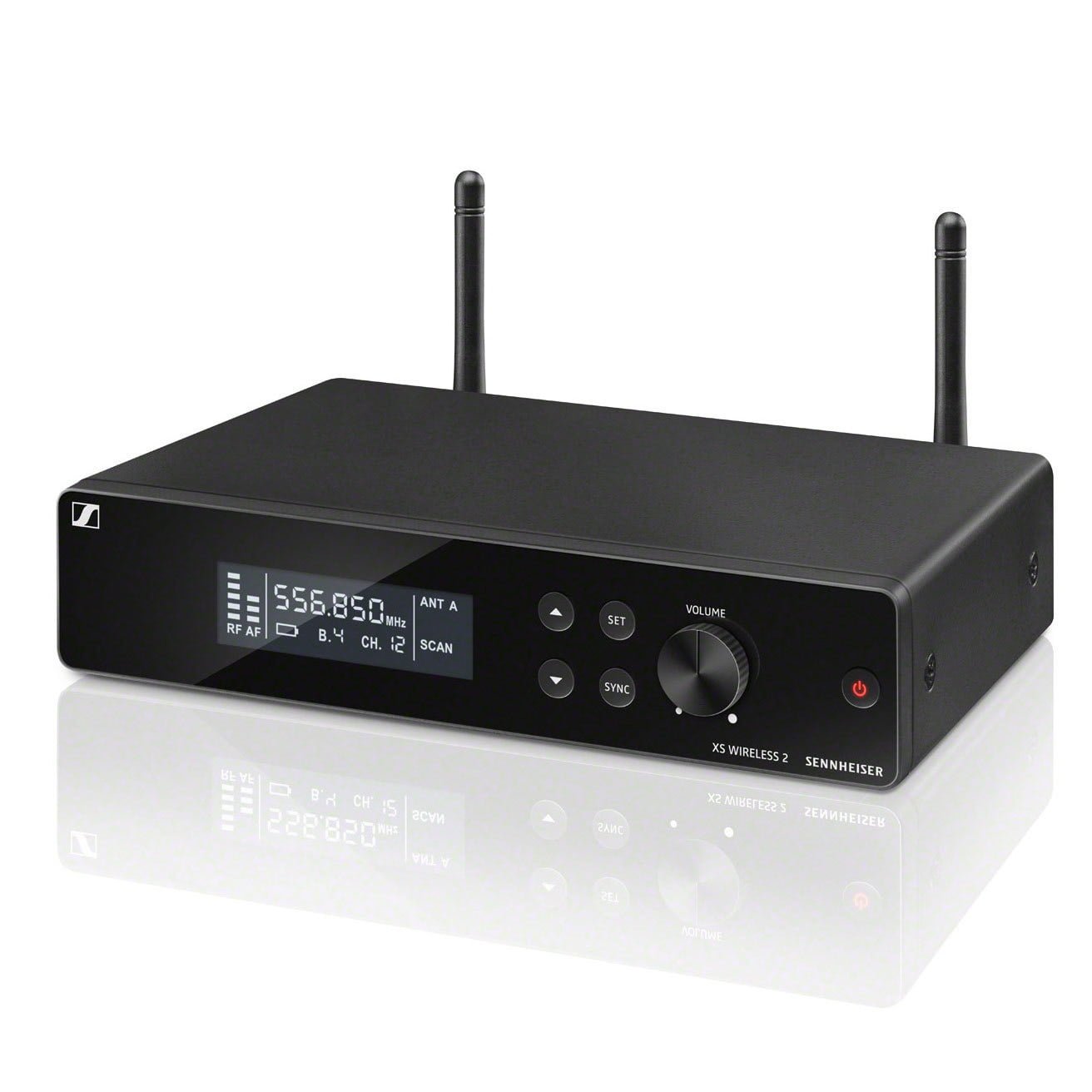

  • 1 receiver EM-XSW 2

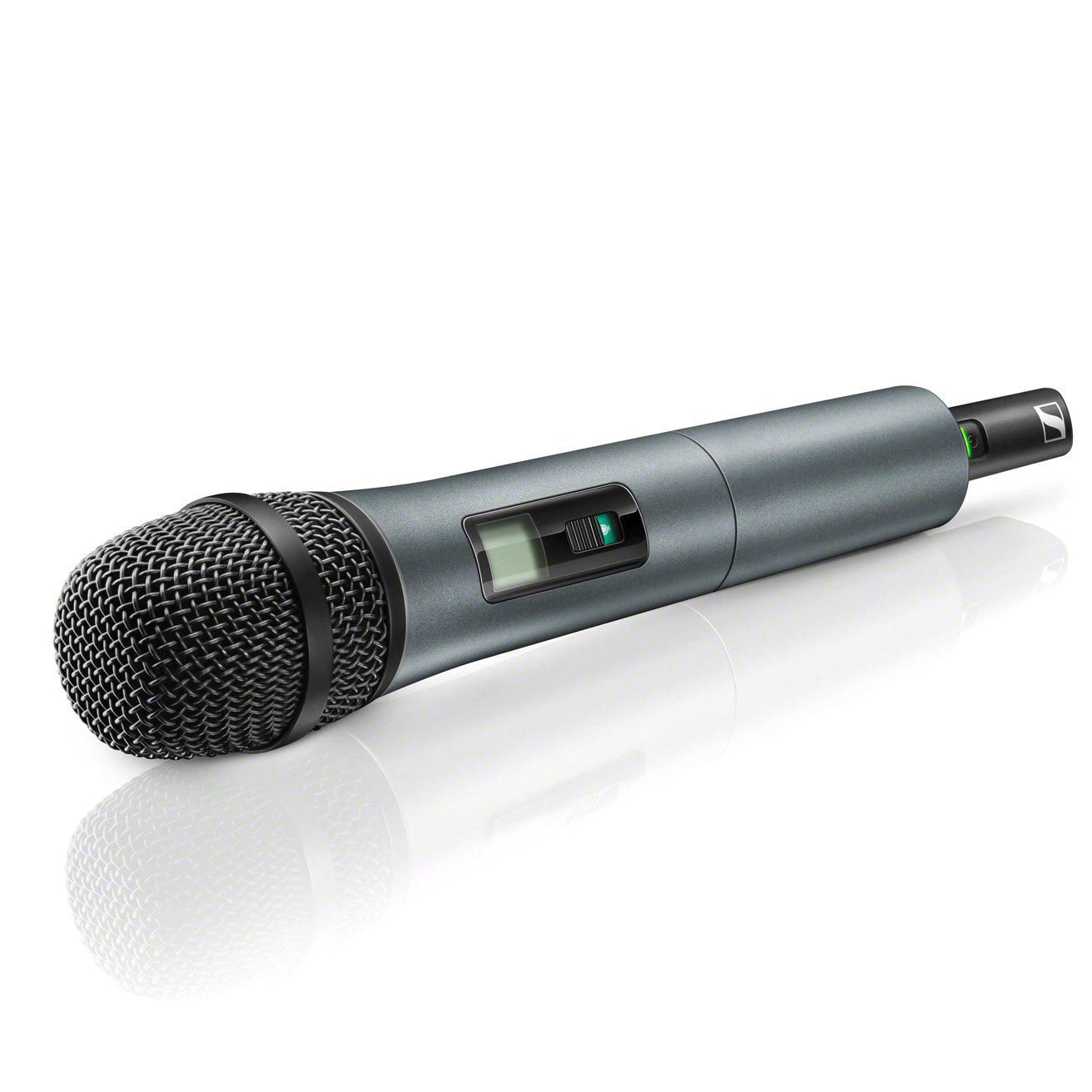

  • 1 handheld transmitter SKM 865-XSW
  • 1 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries
  • 1 rackmount kit
  • 1 pouch
  • user manual



Receivers

Dimensions approx. 200 x 42 x 127 mm
Weight approx. 680g
Power supply 12 V DC nom. / 300 mA
Housing metal, microphone: robust ABS
AF frequency response 50 to 16,000 Hz (–3 dB)

Microphone

Dimensions approx. 260 x 50 mm
Weight approx. 245g
Operating time approx. 10 hrs
Power supply 2 AA size batteries, 1.5 V
AF frequency response 80-16,000 Hz

Microphone condenser
Frequency response 50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern super-cardioid
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Modulation wideband FM
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): 6 dBu, XLR socket (balanced): 12 dBu

Frequency 8 frequency banks, each with up to 12 factory-preset channels
Frequency range A: 548-572 MHz
GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz

Sensitivity < 3 μV at 52 dB(A)rms S/N
Squelch switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity 1.8 mV / Pa
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 40 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to 40°C, storage: –20°C to 70°C
Receiver Principle double superheterodyne
Diversity principle True Diversity
