Name: Sennheiser EW-D ASA Antenna Splitter
SKU: RM/ACC/SEN-ASA-EW-D
Price: 595.00 GBP
Availability: BackOrder

£595.00 Inc VAT

Active Antenna Splitter for use with Evolution Wireless Digital systems.

Compatible with EW-D, EW-DX, G3/G4 EW100, EW300 & EW500 Systems

REPLACEMENT FOR ASA214 ANTENNA SPLITTER

Categories: Radio Mic Accessories, Radio Microphones, Sennheiser EW-D Series, Sennheiser EW-DX SeriesSKU: RM/ACC/SEN-ASA-EW-D

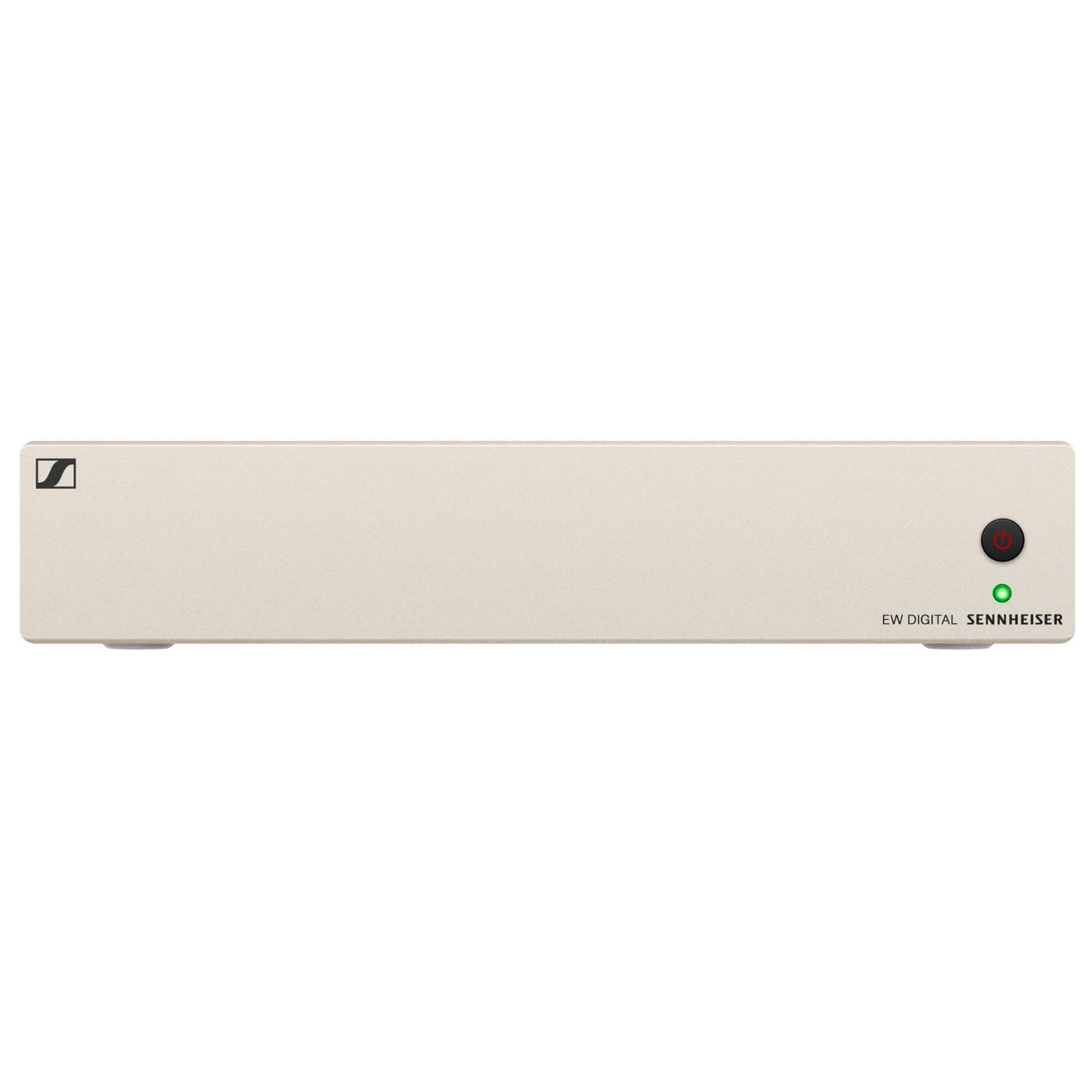

Evolution Wireless Digital ASA Active Antenna Splitter with 8 BNC Cables

Active Antenna Splitter for use with Evolution Wireless Digital systems.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.

What’s in the box?

EW-D ASA active antenna splitter (dual 1:4)
NT 12-35 CS power supply for EW-D ASA

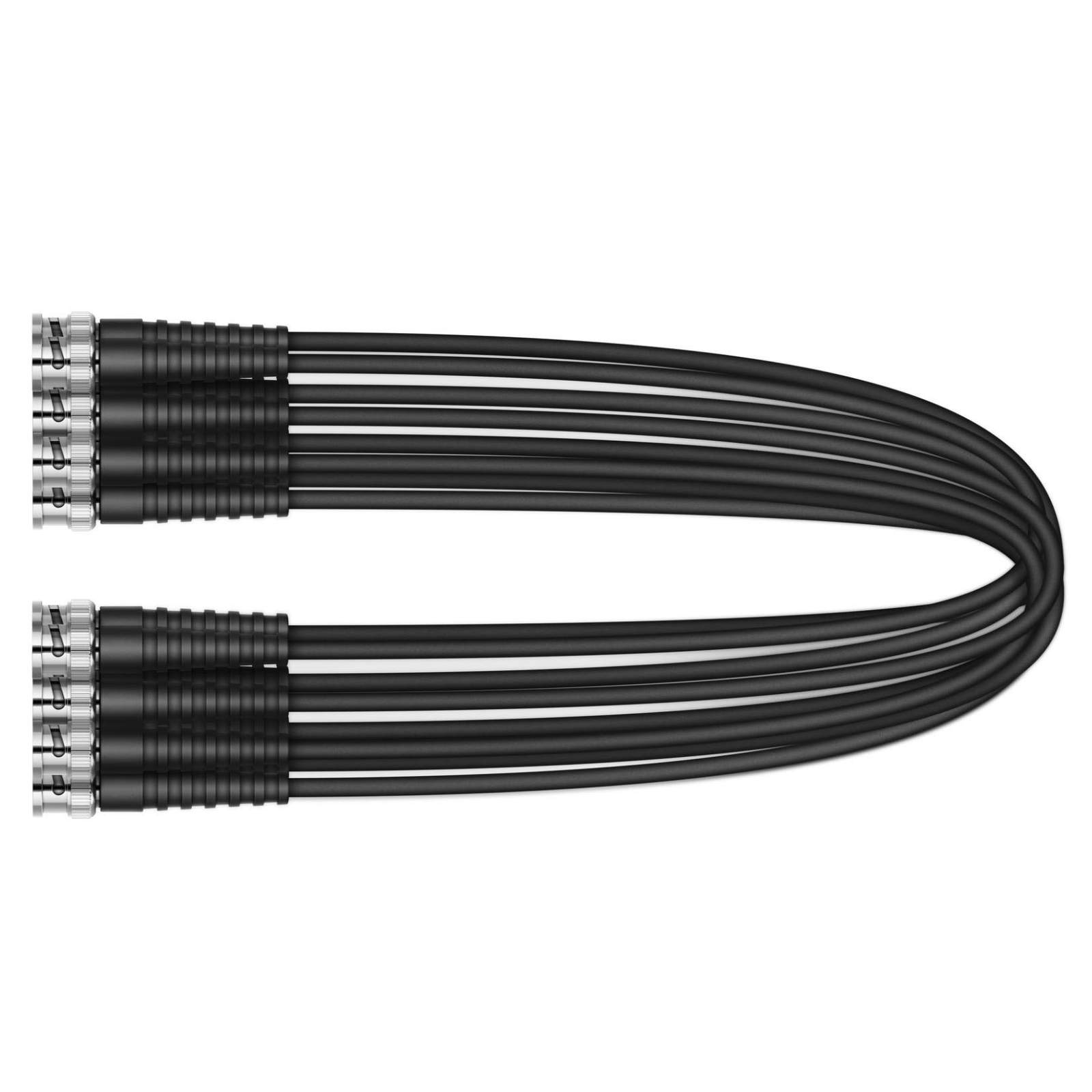

(8) BNC antenna interconnect cables

Frequency ranges (Select one)
- EW-D ASA (Q-R-S): 470 – 694 MHz
- EW-D ASA (T-U-V-W): 694 – 1075 MHz

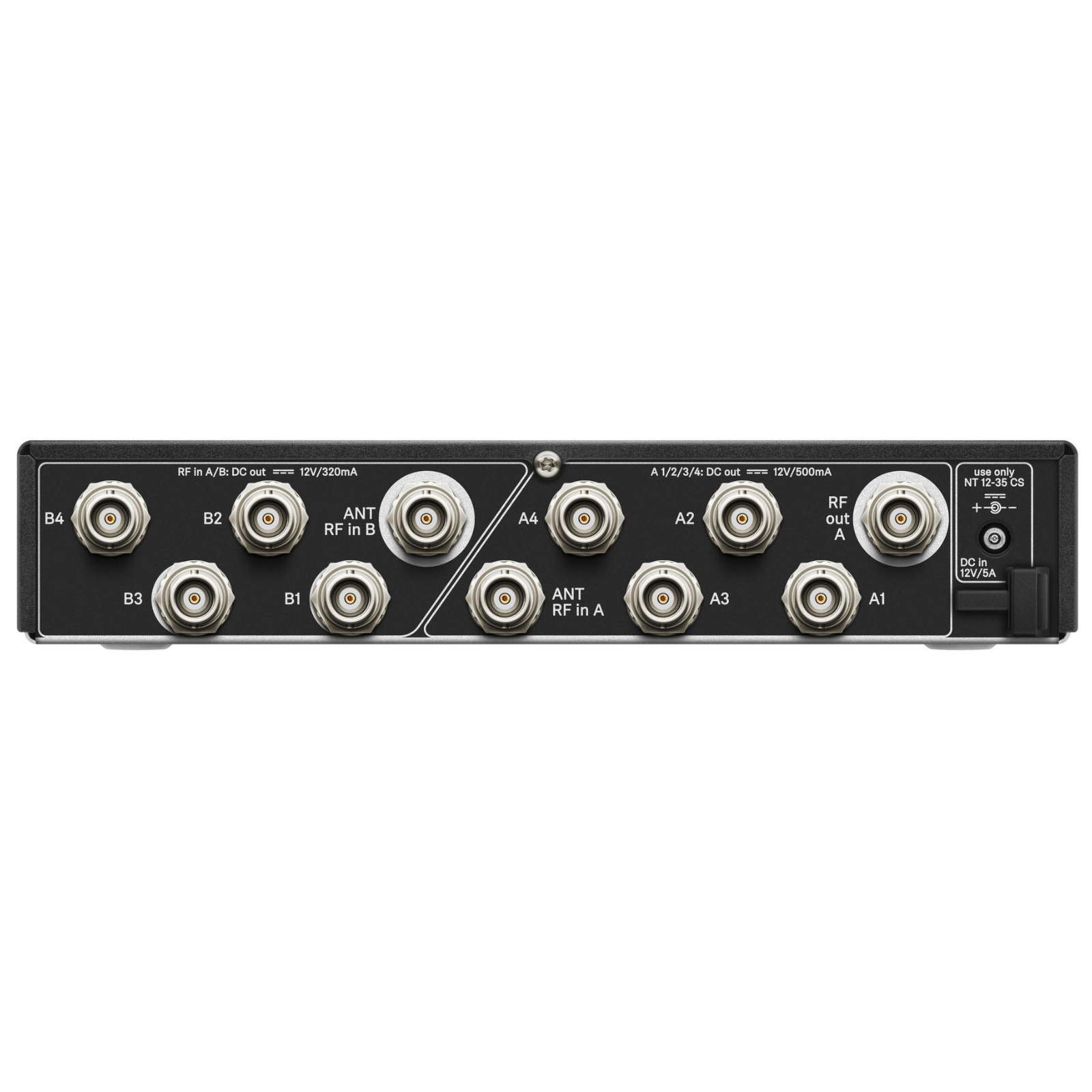

Antenna splitter: 2 x 1:4 or 1 x 1:8, active
Gain
- in A – out A: 0 ± 1 dB
- in A – out A1 … A4: 0 ± 1 dB
- in B – out B1 … B4: 0 ± 1 dB
IIP3: > 25 dBm
Impedance: 50 Ω
Reflection loss: 10 dB (all RF outputs)
Operating voltage: DC +12 V from NT 12-35 CS power supply unit
Current consumption: 210 mA
Total current consumption: max. 3 A (with 4 EW-D EM and connected EW-D AB)
Supply for antenna boosters at ANT RF in A and ANT RF in B: DC 12 V; 320 mA
Supply for receivers at A1 to A4
- DC 12 V
- Typically 350 mA, max. 500 mA
Dimensions: Approx. 212 x 168 x 43 mm
Weight: Approx. 1100 g
Operating temperature range: -10 °C – +55 °C (14 °F – 131 °F)
Storage temperature range: -20 °C – +70 °C (-4 °F – 158 °F)
Relative humidity: 5 – 95 % (non-condensing)
