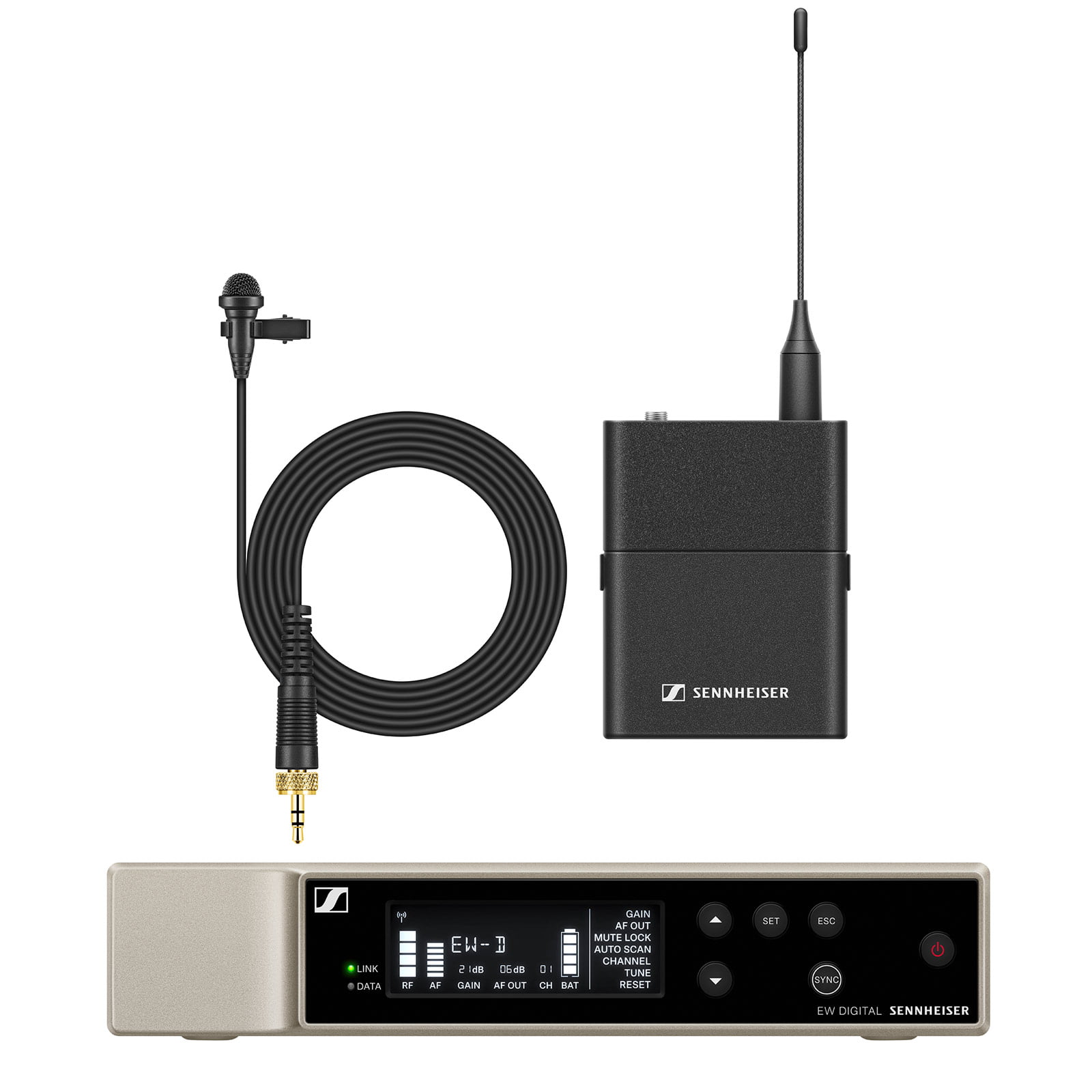

Sennheiser EW-D ME2 Set – Wireless Lavalier

£619.00 Inc VAT

New Sennheiser Evolution Wireless Digital

Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility suit perfectly for daily use on stage.

Sennheiser

Evolution Wireless Digital

Embrace the power of a digital UHF system, ready for any RF environment. Evolution Wireless Digital raises the bar by providing the highest dynamic range of any wireless system currently on the market, utilizing advanced features that simplify your setup and guarantee the most reliable connection. Maximize efficiency by taking full control with the Sennheiser Smart Assist app and automatically coordinate frequencies with ease. Increased bandwidth and the lowest latency of any digital wireless system currently available make Evolution Wireless Digital the most powerful tool for those who put quality and performance above all else.

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Features

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Includes:

  • EW-D EM receiver
  • EW-D SK bodypack transmitter
  • ME 2 lavalier microphone (omnidirectional)
  • 2 rod antennas

Specifications

Frequency ranges available (choose with purchase)

  • 606.2 – 662 MHz
  • 823.2 – 831.8 MHz & 863.2 – 864.8 MHz

NB. The above frequencies are the most common for UK ‘off the shelf use’ – contact us for others. Operation in all but 863-865MHz requires an Ofcom Licence.

Cable length

approx. 1.60 m

THD, total harmonic distortion

≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature

-10 °C – +55 °C (14 °F – 131 °F)

Operating relative humidity

5 – 95 % (non-condensing)

Audio frequency response

20 Hz – 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions

212 x 44 x 189 mm

Weight

approx. 1000 g (without antennas and power supply)

Current consumption

≤ 300 mA

Input voltage range

11 – 13 V ⎓

Transmission power

BLE: max. 10 mW EIRP

Audio output level

18 dBu max.

EW-D SK

Dimensions

63 x 80 x 20 mm (without antenna)

Power supply

2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack

Current consumption

< 300 mA

Input voltage range

2.0 – 4.35 V

Transmission power

Audio link: 10 mW
ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP

Weight

approx. 120 g

ME 2

Cable length

approx. 1.60 m

Connector

3.5 mm jack

Frequency response

50 to 18,000 Hz

Max. sound pressure level

130 dB

Transducer principle

pre-polarized condensor microphone

Pick-up pattern

omni-directional

Sensitivity in free field, no load (1kHz)

17 mV/Pa

Equivalent noise level

32 dB

Power supply

7.5 V

What’s in the Box

  • EW-D EM rack receiver
  • EW-D SK bodypack transmitter
  • ME 2 lavalier microphone (omni-directional)
  • 2 rod antennas
  • power supply with country adapters
  • rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Brand

Sennheiser

Sennheiser

DM Music Ltd are a Sennheiser Professional Audio Premium Partner. We have been supplying Sennheiser equipment for many years and regard it as our leading microphone brand. If you require anything not seen below then call us on: 01582 761122
