Martin Audio XD15

  • Home
  • DM Shop
  • Sound / PA
  • Speakers
  • Foldback Monitors
  • Unpowered Monitors
  • Martin Audio XD15
Martin Audio

£3,300.00 Inc VAT

The XD15 is a very high-output, wide-bandwidth, two-way system equally suited to portable live sound applications, theatre sound and fixed installations.

SKU: SP/LOW/MAR30 Categories: Installation Speakers, Passive Speakers, Unpowered Monitors
Share
0
  • Description
  • Specification
  • Brand
  • Reviews 0

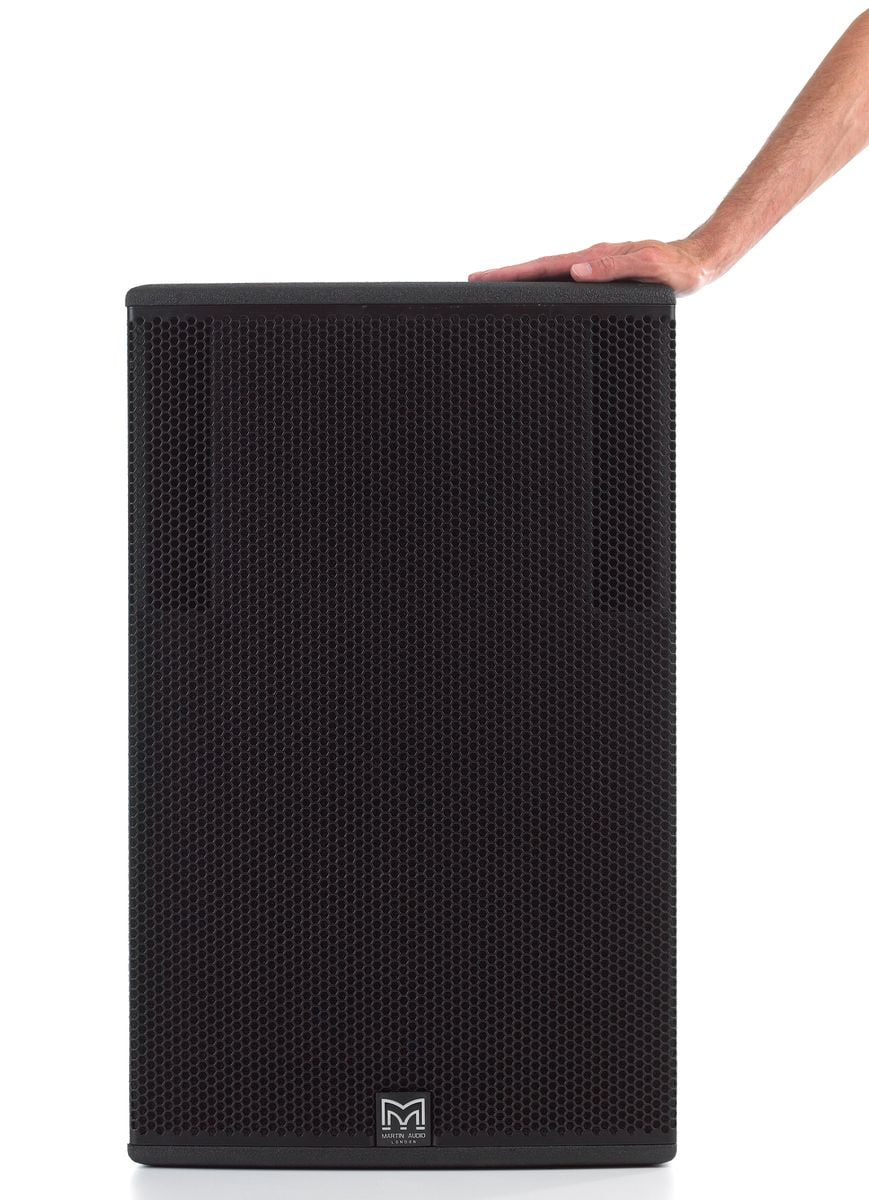

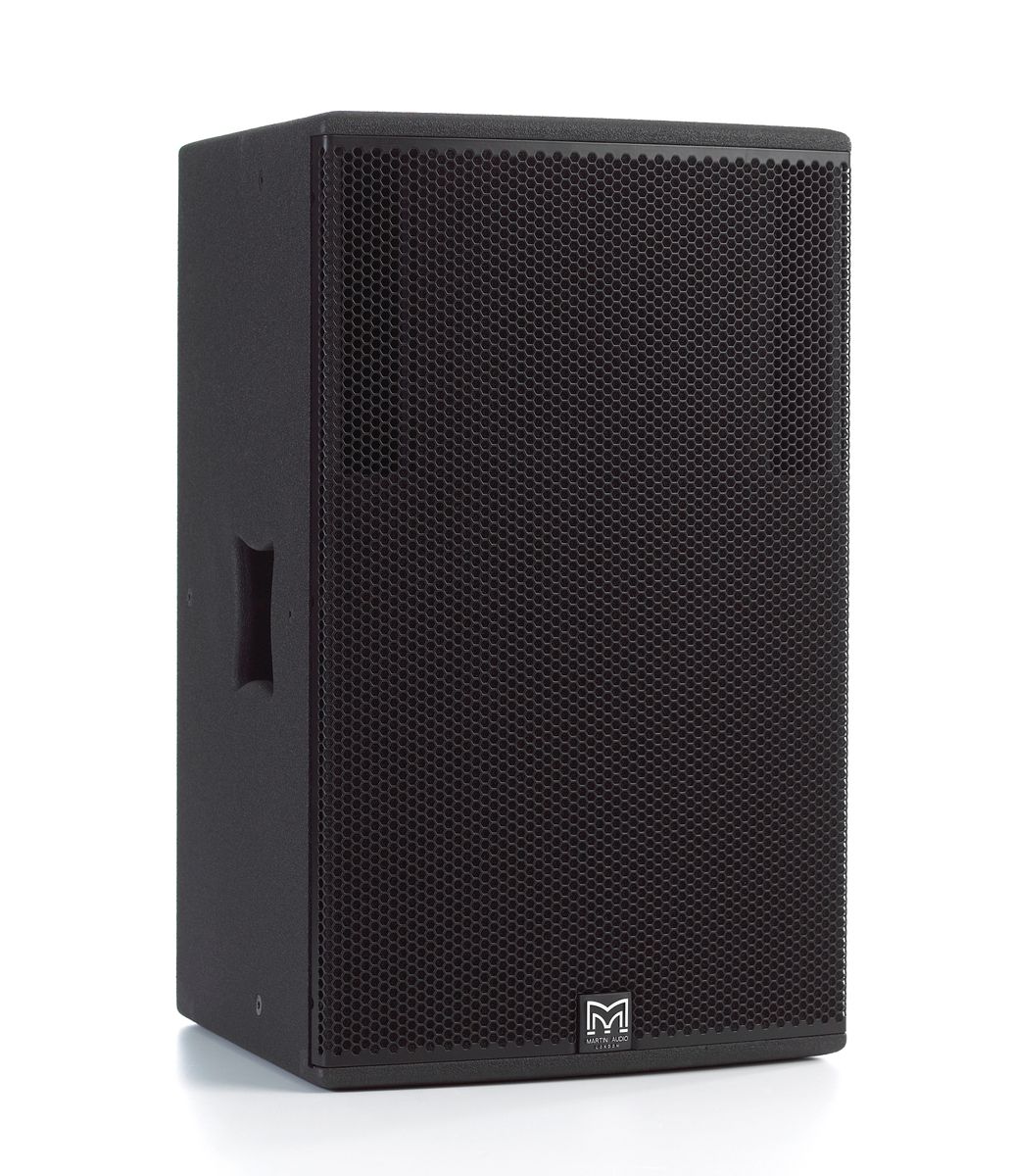

The XD15 is a very high-output, wide-bandwidth, twoway system equally suited to portable live sound applications, theatre sound and fixed installations. It features a high-specification 15” (380mm) low frequency drive unit and a 1.4” (35mm) exit compression driver mounted on a user-rotatable 80° x 50° constant directivity horn.

The 15” (380mm) LF driver has a lightweight 4” (100mm) voice coil and flux demodulation rings to reduce distortion at high excursions. Its neodymium motor system combines high sensitivity with low weight and advanced cooling reduces power compression to negligible levels. The 1.4” (35mm) exit HF driver has a 3” (75mm) pure titanium dome and ultra-high flux neodymium motor system for
maximum efficiency. The internal LF/HF crossover is switchable between passive or bi-amp operation, depending on user requirements.

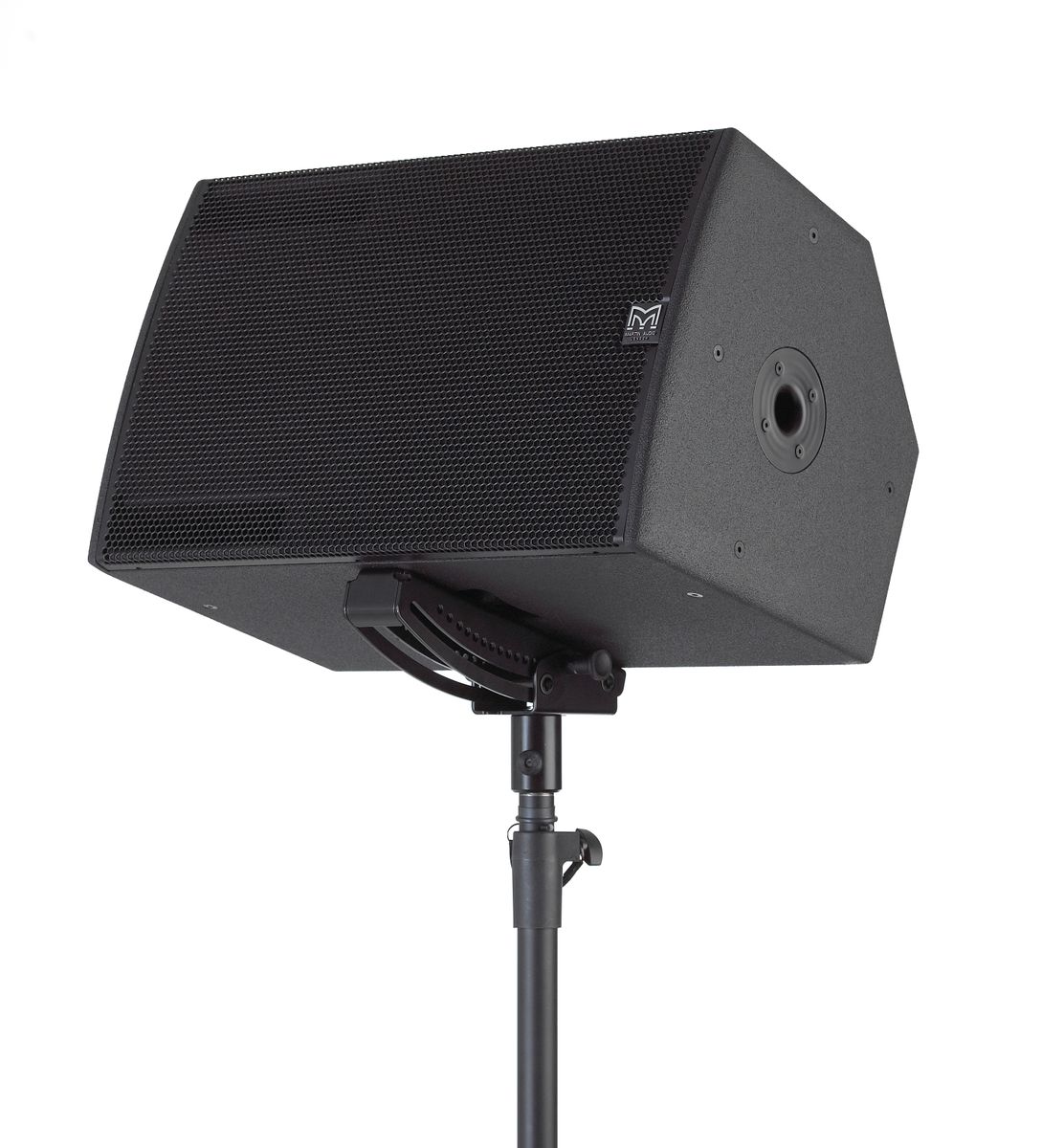

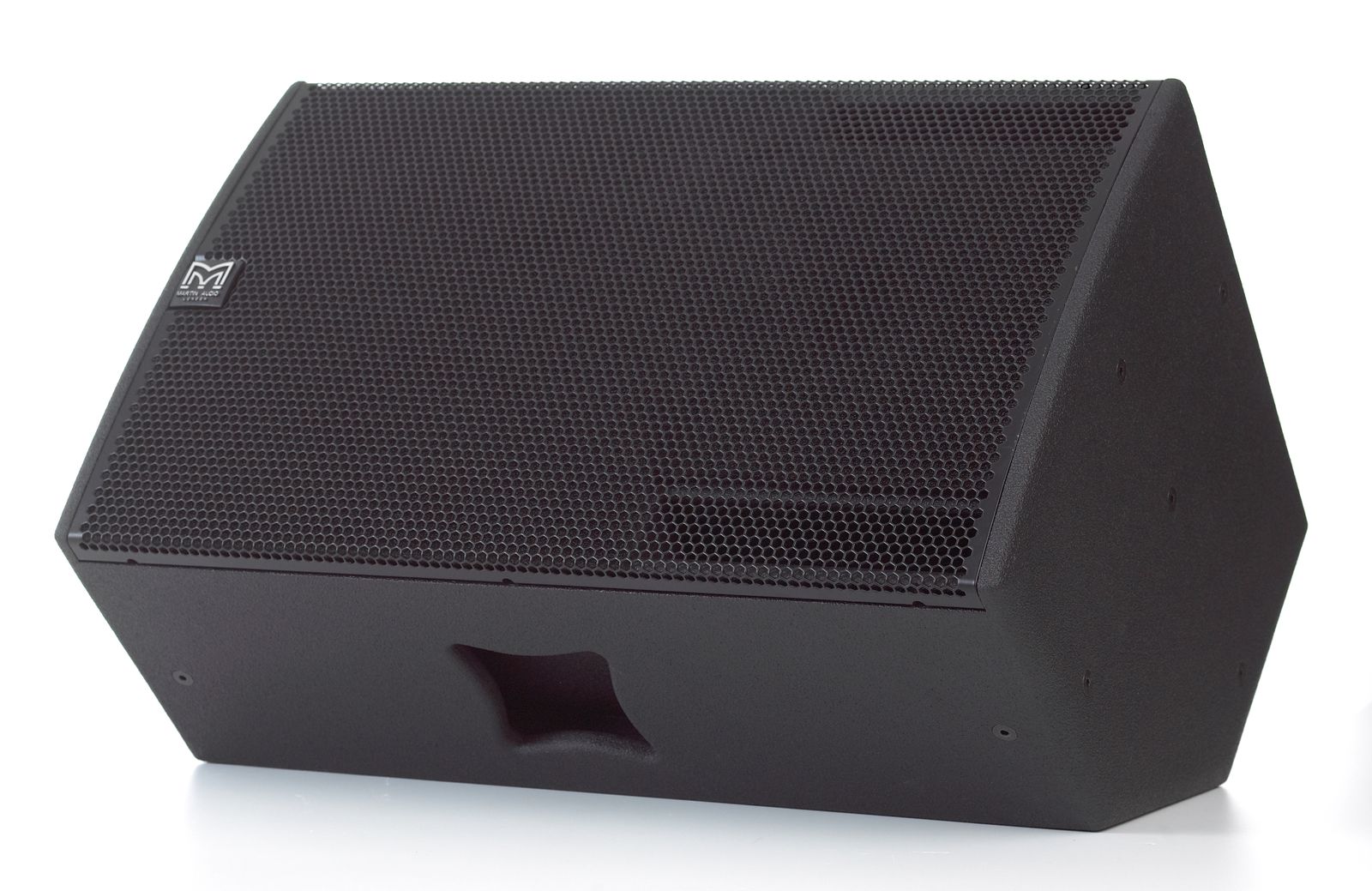

The XD15 is the perfect solution for very high-power applications where flexibility, ease of installation and speed of deployment are important factors. The versatile, multiangle enclosure and rotatable horn facilitate either horizontal or vertical orientation, and comprehensive brackets support the full variety of mounting options – including surface, ceiling and pole mount. Integral M8 inserts for simple eyebolt suspension increase the options even further. In its horizontal configuration, the XD15 is also ideal as a very high-output stage monitor.
When used in bi-amp mode, or with a subwoofer such as the Wavefront WS18X or WS218X it is recommended that the XD15 is used with the Martin Audio DX1.5 or
DX2 controller. When operated as a passive system, it may be used without a controller, but will benefit from the DX1.5 or DX2’s EQ and limiter functions.

FEATURES

  • Versatile, multi-angle plywood enclosure
  • Very high-output two-way system
  • 15″ (380mm)/4″ (100mm) coil, ultra-long excursion, low-distortion neodymium LF driver
  • 1.4″ (35mm) exit, titanium dome, neodymium HF compression driver
  • Rotatable 80° x 50° horn for portrait or landscape orientation
  • Switchable passive/bi-amp crossover
  • 8 ohm nominal impedance
  • Integral pole-mount and M8 rigging inserts
  • Comprehensive mounting options and accessories

APPLICATIONS

  • Portable live sound reinforcement
  • Theatre Sound
  • Fixed Installations
  • High power stage monitor

TYPE Very high-output, passive/bi-amp
two-way system
FREQUENCY RESPONSE (a) 55Hz-18kHz 3dB
-10dB @ 45Hz
DRIVERS 15″ (380mm)/4″ (100mm) voice coil, longexcursion, neodymium magnet LF driver
1.4″ (35mm) exit/3″ (75mm) voice coil, titanium
dome, neodymium magnet HF compression driver
RATED POWER (b) LF: 600W AES, 2400W peak
HF: 80W AES, 320W peak
RECOMMENDED AMPLIFIER MA3.0, MA5.2K
SENSITIVITY (c) FR: 99dB
LF: 100dB
HF: 108dB
MAXIMUM SPL (d) FR: 126dB continuous, 132dB peak
LF: 127dB continuous, 133dB peak
HF: 127dB continuous, 133dB peak
NOMINAL IMPEDANCE FR/LF: 8 ohms
HF: 16 ohms
DISPERSION (-6dB) 80° horizontal, 50° vertical user rotatable
CROSSOVER 1.75kHz switchable passive/bi-amp
ENCLOSURE 68 litre, multi-laminate birch ply
FINISH Textured black polyurea coating
PROTECTIVE GRILLE Black perforated steel, Declon® backed
CONNECTORS 2 x Neutrik® NL4
INPUT CONNECTIONS FR/LF ( ,-): 1 ,1-
HF ( .-): 2 ,2-
FITTINGS 17 x M8 threaded inserts,
1 x Pole mounting socket
2 x Pocket Handle
DIMENSIONS (W) 429mm x (H) 690mm x (D) 414mm
(W) 16.9ins x (H) 27.2ins x (D) 16.3ins
WEIGHT 32Kg (70.5lbs)
