Martin Audio XD12

  • Home
  • DM Shop
  • Sound / PA
  • Speakers
  • Foldback Monitors
  • Unpowered Monitors
  • Martin Audio XD12
Martin Audio

£2,700.00 Inc VAT

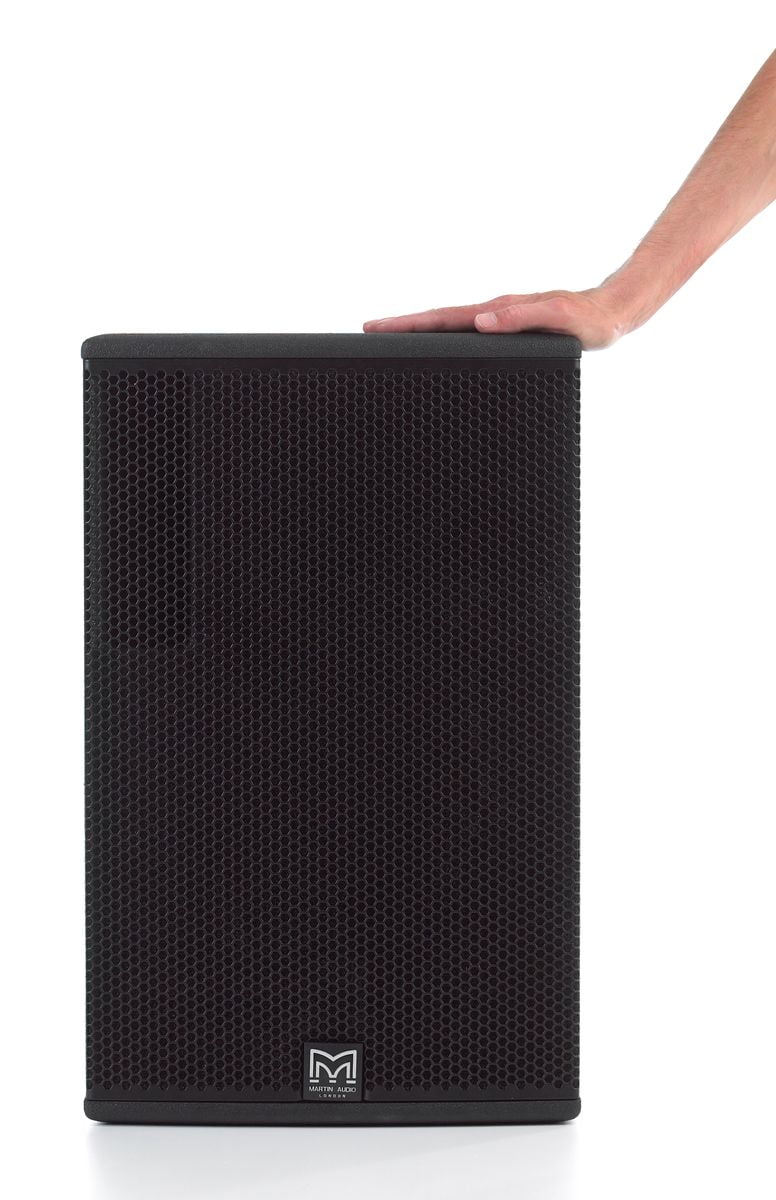

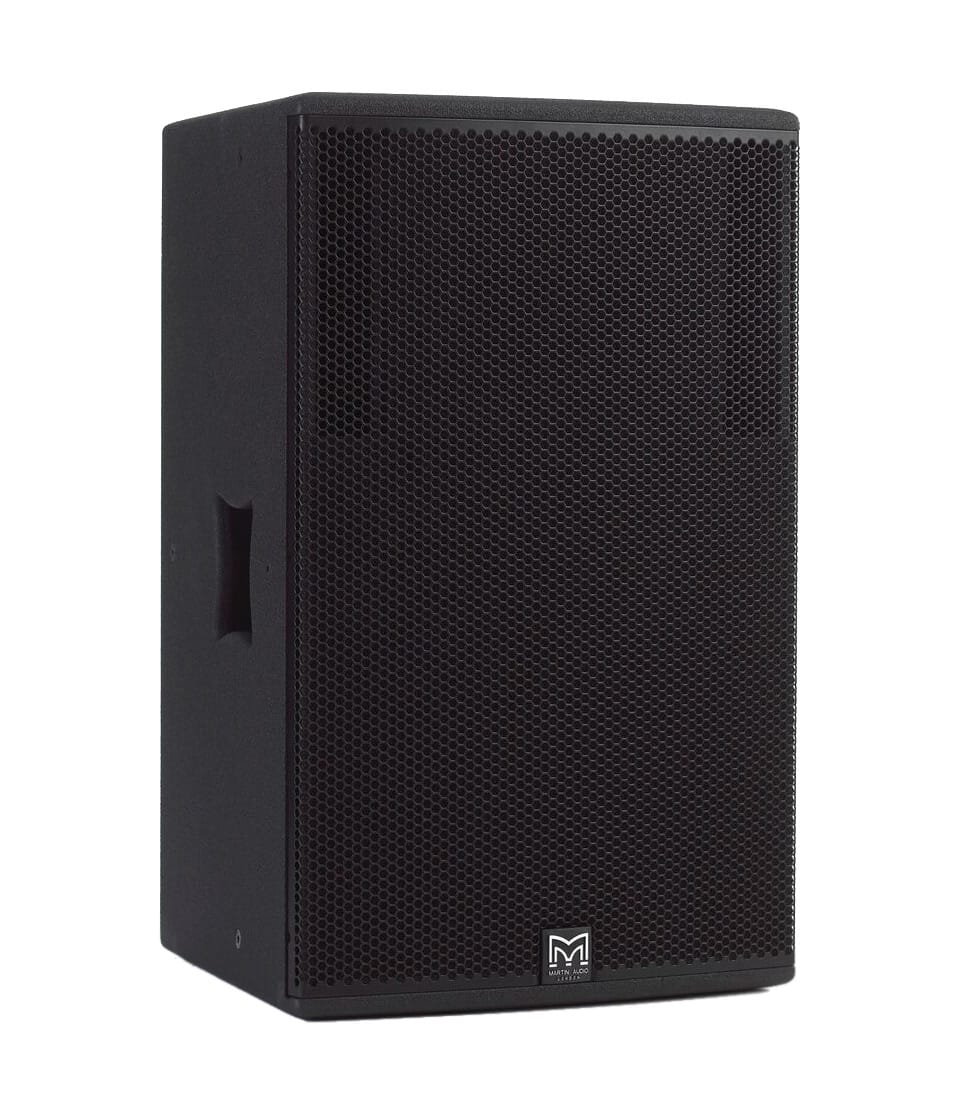

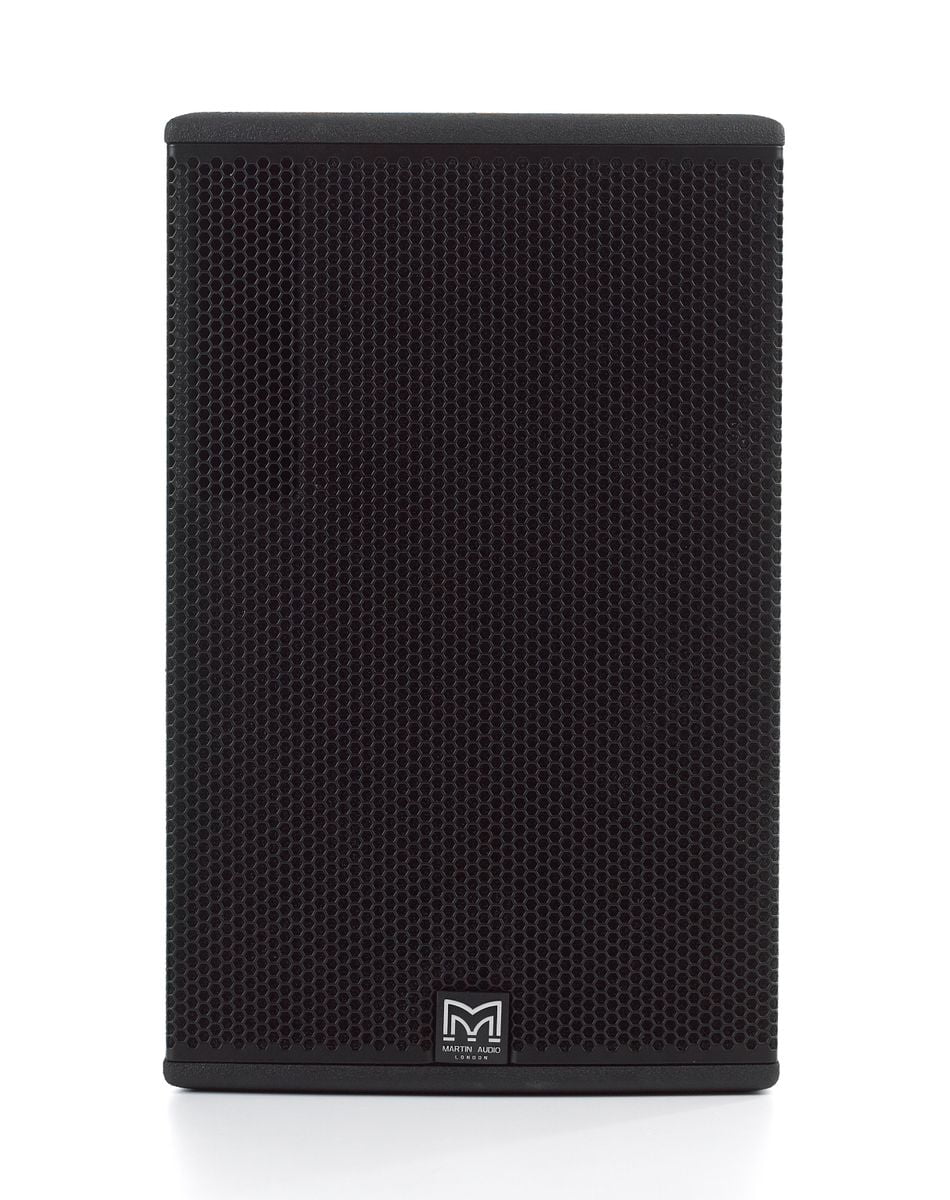

The XD12 is a high-power, high-output, two-way system equally suited to portable live sound applications, theatre and fixed installations.
It features a high-specification 12” (300mm) low frequency drive unit and a 1” (25mm) exit compression driver mounted on a user-rotatable 80° x 50° constant directivity horn.

SKU: SP/LOW/MAR29 Categories: Installation Speakers, Passive Speakers, Unpowered Monitors
Share
0
  • Description
  • Specification
  • Brand
  • Reviews 0

The 12” (300mm) LF driver has a lightweight 3” (75mm) voice coil and flux demodulation rings to reduce distortion at high excursions. Its neodymium motor system combines high sensitivity with low weight and advanced cooling reduces power compression to negligible levels. The 1” (25mm) exit HF driver has a 1.7” (44mm) titanium dome and ultra-high flux neodymium motor system for maximum efficiency, plus a copper cap to extend the HF response.

The internal HF/LF crossover is switchable between passive or bi-amp operation, depending on user requirements.

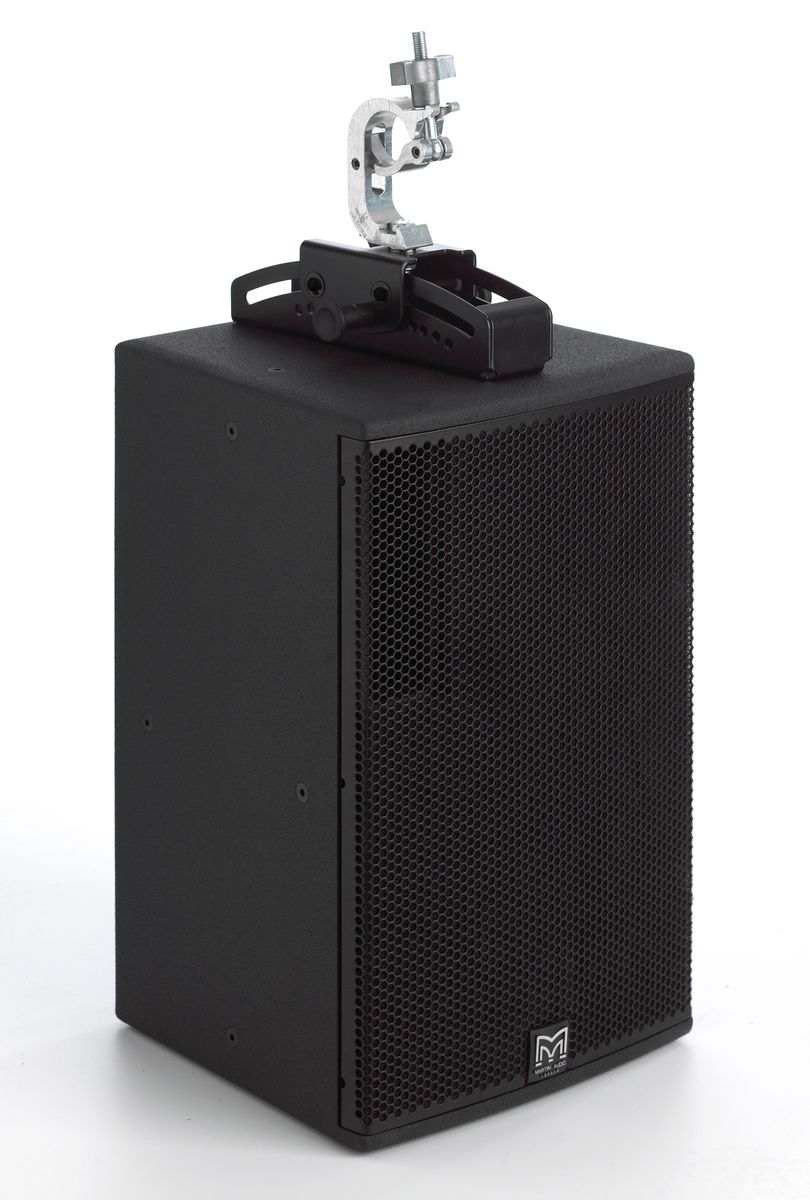

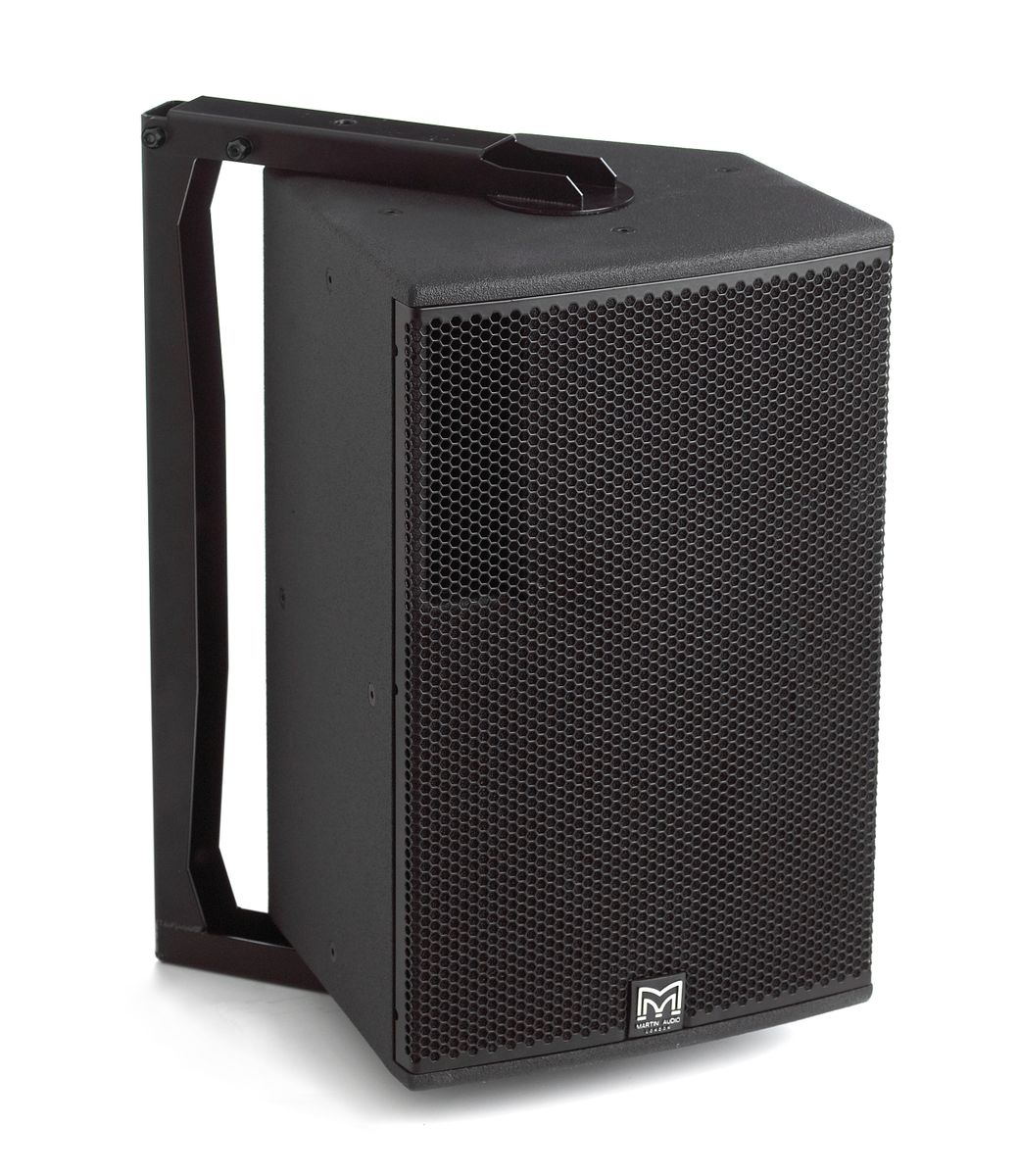

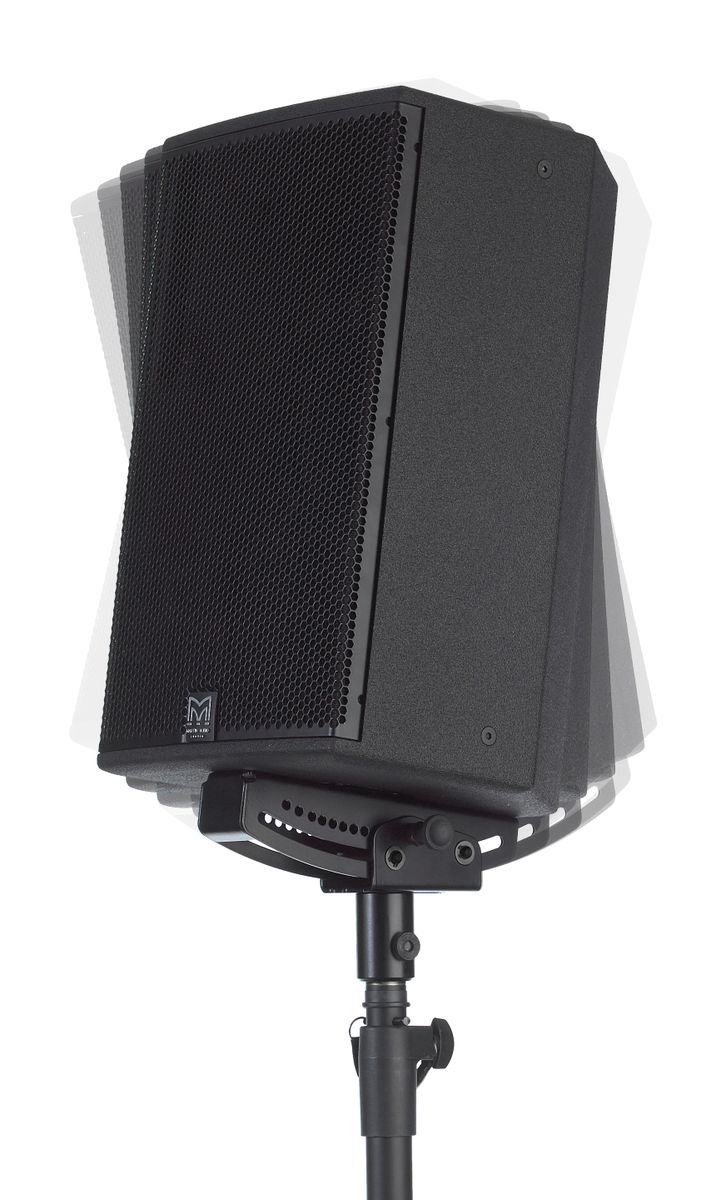

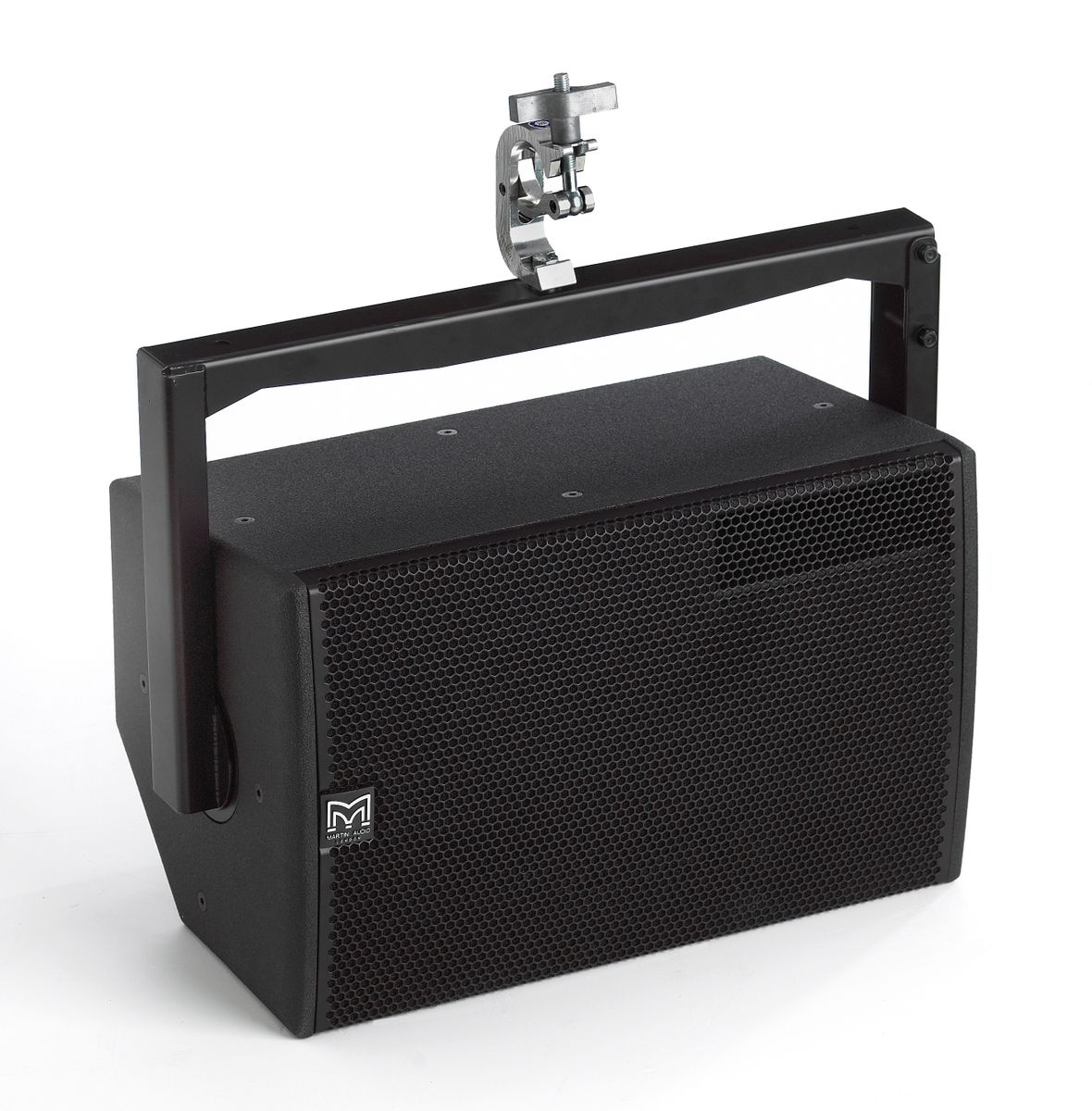

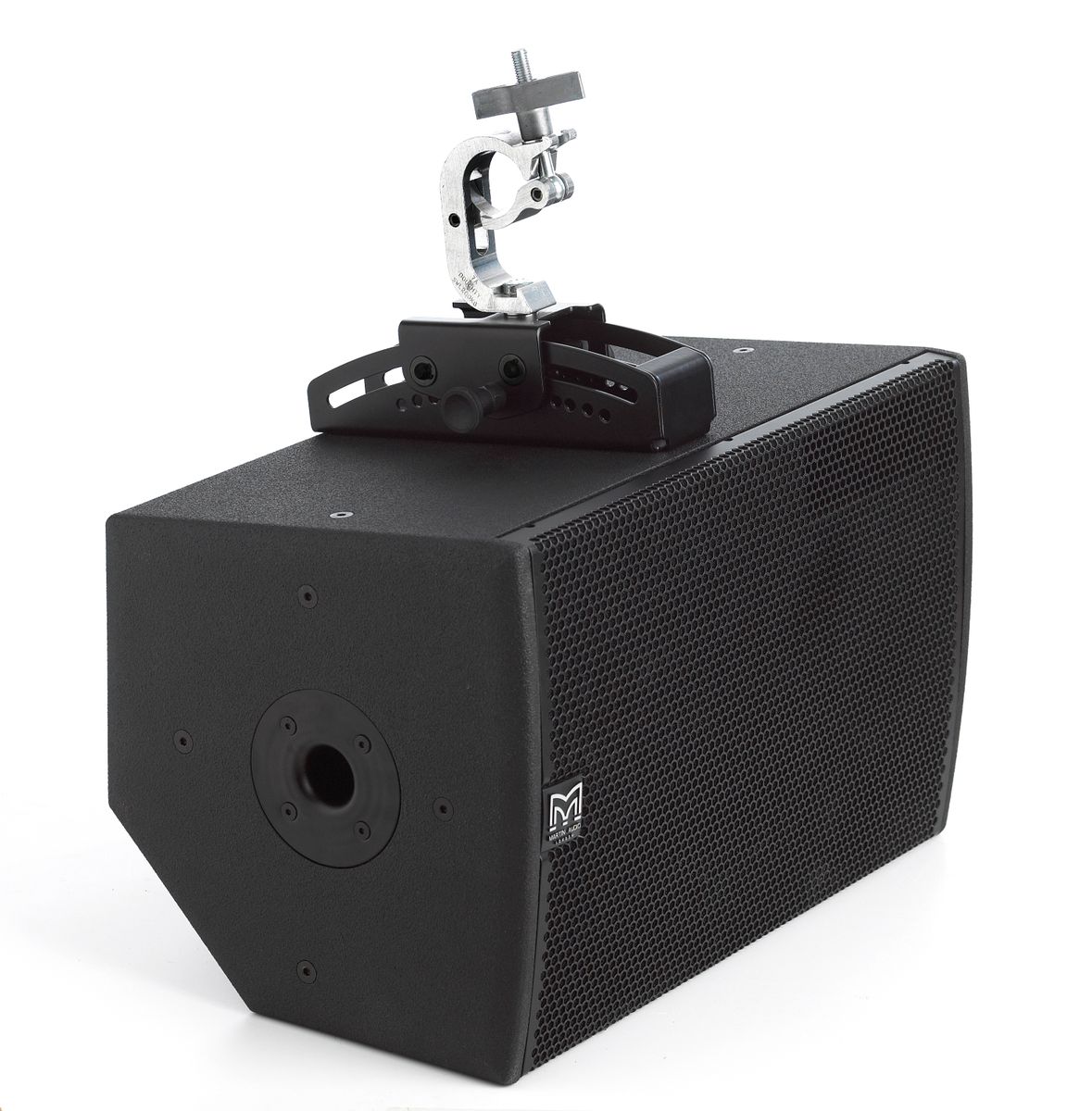

The XD12 is the perfect solution for high-power applications where flexibility, ease of installation and speed of deployment are important factors. The versatile, multi-angle enclosure and rotatable horn facilitate either horizontal or vertical orientation, and comprehensive brackets support the full variety of mounting options – including surface, ceiling and pole mount. Integral M8 inserts for simple eyebolt suspension increase the options even further. In its horizontal configuration, the XD12 is also ideal as a compact, high-output stage monitor.

When used in bi-amp mode, or with a subwoofer such as the Wavefront WS18X or WS218X, it is recommended that the XD12 is used with the Martin Audio DX1.5 or DX2 controller. When operated as a passive system, it may be used without a controller, but will benefit from the DX1.5 or DX2’s EQ and limiter functions.

FEATURES

  • Versatile high-output two-way system
  • Compact, multi-angle plywood enclosure
  • 12″ (300mm)/3″ (75mm) coil, long-excursion,
  • 1″ (25mm) exit, titanium dome, neodymium
  • User rotatable 80° x 50° horn
  • Switchable passive/bi-amp crossover
  • 8 ohm nominal impedance
  • Integral pole-mount and M8 rigging inserts
  • Comprehensive mounting options and accessories
  • Five year limited warranty

Applications

Portable live sound reinforcement
Theatre Sound
Fixed Installations
High power stage monitor
AV Presentations

TYPE

Compact, high-output, passive/bi-amp two-way system

FREQUENCY RESPONSE

(a) 65Hz-20kHz 3dB -10dB @ 55Hz

DRIVERS

12″ (300mm)/3″ (75mm) voice coil, longexcursion, neodymium magnet LF driver
1″ (25mm) exit/1.7″ (44mm) voice coil, titanium dome, neodymium magnet HF compression driver

RATED POWER (b)

LF: 400W AES, 1600W peak
HF: 50W AES, 200W peak

RECOMMENDED AMPLIFIER

MA2.0, MA3.0, MA5.2K

SENSITIVITY (c)

FR: 98dB
LF: 99dB
HF: 108dB

MAXIMUM SPL (d)

FR: 124dB continuous, 130dB peak
LF: 125dB continuous, 131dB peak
HF: 122dB continuous, 131dB peak

NOMINAL IMPEDANCE

FR/LF: 8 ohms
HF: 16 ohms

DISPERSION

(-6dB) 80° horizontal, 50° vertical user rotatable

CROSSOVER

2kHz switchable passive/bi-amp

ENCLOSURE

38 litre, multi-laminate birch ply

FINISH

Textured black polyurea coating

PROTECTIVE GRILLE

Black perforated steel, Declon® backed

CONNECTORS

2 x Neutrik® NL4

INPUT CONNECTIONS

FR/LF ( ,-): 1 ,1-
HF ( .-): 2 ,2-

FITTINGS

21 x M8 threaded inserts,
1 x Pole mounting socket
1 x Pocket Handle

DIMENSIONS

(W) 360mm x (H) 571mm x (D) 341mm
(W) 14.2ins x (H) 22.5ins x (D) 13.4ins

WEIGHT

19.5Kg (43lbs)
