£925.00 Inc VAT

12″ Ultra Compact Subwoofer

  • Ultra-Compact, single driver, direct radiating subwoofer
  • 12” (300mm) driver with 3” (75mm) voice coil
  • Water resistant cone
  • Large ports for reduced air noise
  • Perforated steel grille
  • Black or white standard colour options
  • Optional flying points
Martin Audio

Categories: , SKU: SP/SUB/MAR32

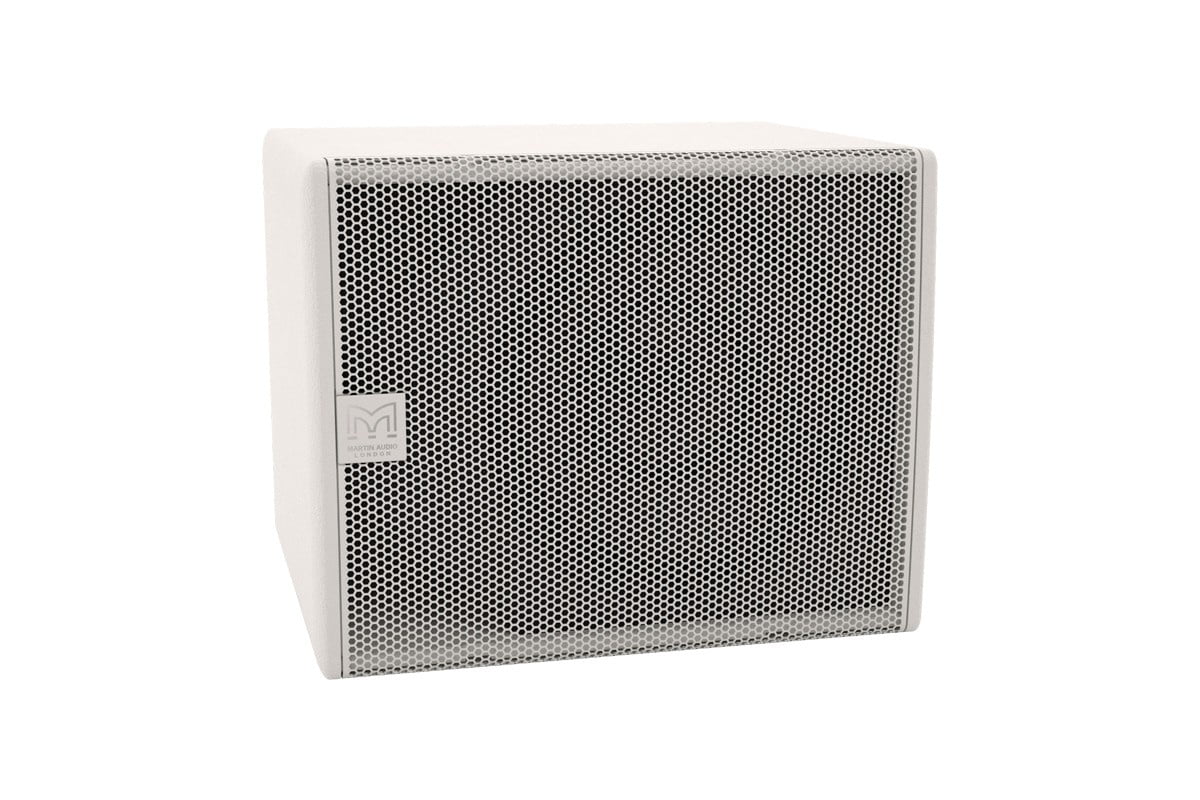

The SX112 is an ultra-compact direct radiating sub-bass system designed to extend the bandwidth and increase the headroom of full-range loudspeaker models. It features a very efficient 12″ (300mm) long-throw bass driver with a high power 3″ (75mm) voice coil and generously-sized reflex ports for low noise, high power operation.

With a response of 48Hz-150Hz ± 3dB, the ultra-compact size of the SX112 makes it an ideal partner for ADORN or CDD Series systems where space is at a premium or where the subwoofers need to be hidden. The enclosure is constructed from plywood and has an impact-resistant finish, while the driver is protected by a rigid perforated steel grille, which is pre-curved to withstand physical damage.

Finished in black (RAL9005) or white (RAL9016) textured paint as standard

When used with full-range systems, crossover and EQ functions can either be performed by the DX0.5 or DX4.0 system controllers.

TYPE Compact, single driver, direct radiating subwoofer
FREQUENCY RESPONSE 48Hz-150Hz ± 3dB -10dB @ 35Hz
DRIVER 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone
RATED POWER 400W AES, 1600W peak
MAXIMUM SPL 126dB continuous, 132dB peak (half space)
DISPERSION (-6DB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE 52 litre, Plywood
FINISH Black or white textured paint
PROTECTIVE GRILLE Black or white perforated steel
PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link+
FITTINGS 12 x M10 inserts
DIMENSIONS (W) 487mm x (H) 385mm x (D) 410mm
(W) 19.2ins x (H) 15.2ins x (D) 16.1ins
WEIGHT 21.5kg (47.3lbs)


Martin Audio
