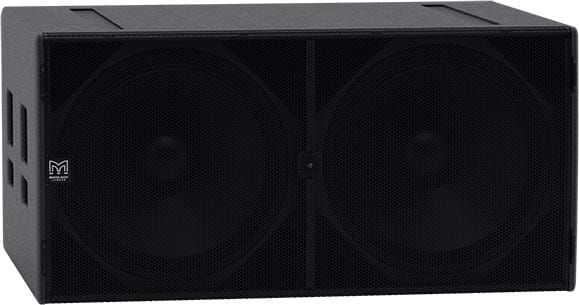

Martin Audio SXP218

£4,950.00 Inc VAT

Dual-driver, Direct Radiating Powered Subwoofer

  • Dual-driver, self-powered subwoofer
  • 2 x 18” (460mm) drivers with 4” (100mm) voice coils
  • Very high output capability
  • Onboard Class D amplification and DSP
  • Dante™ Digital Audio networking
Martin Audio

Categories: , SKU: SP/SUB/MAR36P

A self-powered system, the SXP218 incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers a total of 4000W peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz. DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.

For simple set-ups, ‘plug-and-play’ presets for operation with the CDD-Live 8,  CDD-LIVE 12 or CDD-LIVE 15— as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. Additional presets provide the appropriate settings for the rear-facing subwoofer in a cardioid pair.

As an alternative to its analogue inputs, the SXP218 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.

The enclosure is constructed from multi-laminate plywood with a durable polyurea coating and equipped with a perforated Zintec grille, four grab handles, skids and M10 flying inserts. SXP218 also features an M20 pole mount insert for added versatility in deployment.

The SXP218 achieves the ultimate in subwoofer performance for the most demanding professional applications – delivering very high output levels and superb transient performance with minimal distortion. With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. The design of the 18” drivers maximises output while minimising power compression and distortion, and the eight reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a prodigious maximum SPL capability of 143dB peak at 1 metre, the SXP218 is the ideal subwoofer for touring sound reinforcement, theatre and portable live sound applications — as well as premium installations — that require low frequency augmentation with low distortion at very high output levels.



Brand

Martin Audio

Martin Audio

Reviews

There are no reviews yet.

Be the first to review “Martin Audio SXP218”
ACOUSTICS
TYPE Dual-driver, direct radiating powered subwoofer
FREQUENCY
RESPONSE (3)
35Hz – 150Hz ±3dB, -10dB @ 30Hz
DRIVER 2x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet,
waterproof cone
INPUT SENSITIVITY -30dBu for 100dB SPL
MAXIMUM SPL (4) 140dB continuous / 143dB peak
DISPERSION Omnidirectional / or Cardioid (paired)
CROSSOVER Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired)
MODULE
AUDIO INPUT
CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE 20 kΩ balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp (+21dBu), over voltage protected
INTERNAL PROCESSING Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct LPF
Up to 200mS input delay
Pre-set selection via rear panel switch
NETWORK
CONNECTORS 2xNeutrik® Ethercon RJ45
PROTOCOL TCP/IP and UDP/IP
AMPLIFIER MODULE
TYPE Two 2 channel switch-mode, class D,
Bridged Tied Load
PEAK OUTPUT POWER 4000W
AVERAGE EFFICIENCY 89%
COOLING External fan
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output
POWER SUPPLY
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 – 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 250W
MAINS CONNECTOR Neutrik® Powercon True1
MECHANICAL
ENCLOSURE Extensively braced multi-laminate birch plywood.
FINISH Durable Polyurea Coating
PROTECTIVE GRILLE Black perforated Zintec
FITTINGS Two skids on base, with mating channels on top
Four rear-mounted 100mm (4in) castors
24 x M10 mounting points
4x Bar handles, 2 on each side
4x fittings for optional transit cover
M20 Pole mount insert
IP RATING IP24 factory option available
DIMENSIONS (W) 1085mm x (H) 537mm x (D) 792mm (920mm including castors)
(W) 42.72in x (H) 21.13in x (D) 31.16in (36.20in including castors)
WEIGHT 101.5kg (224lbs) w/o castors 105kg (231lbs) excluding castors
