Martin Audio SX218
Martin Audio SX212
5th July 2019
Martin Audio DX4.0
5th July 2019
£3,000.00 Inc VAT
2 x 18″ Dual Driver Subwoofer
- Dual-driver, direct-radiator subwoofer
- 2 x 18” (460mm) drivers with 4” (100mm) voice coils
- Water resistant cones
- Very high output capability
- Perforated steel grille
- Black or white standard colour options
- Powered Version Now Available
- Optional flying points

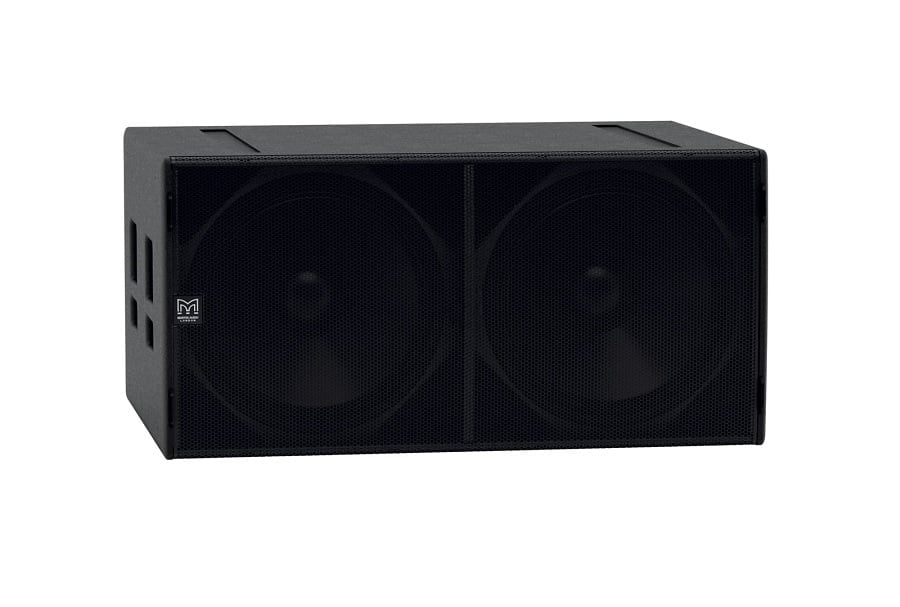

SX218
The loudspeaker shall be a subwoofer consisting of two 18” reflex-loaded, long-excursion, low frequency transducers. The on-axis frequency response shall be 35Hz-150kHz +/- 3dB and the loudspeaker shall produce a maximum SPL of 144dB peak calculated at 1 metre.
Power handling shall be 2000W AES, 8000W peak. Rated impedance shall be 8 ohms per driver. The rear connector panel shall be fitted with two NL4 type connectors and the loudspeaker shall be operated in conjunction with a dedicated controller amplifier.
The loudspeaker enclosure shall be constructed from multi-laminate plywood with a durable polyurea coating. The drivers shall be protected by a perforated Zintec grille and the enclosure shall be fitted with bar handles, skids and flying inserts.
Finished in black (RAL9005) or white (RAL9016) as standard
| TYPE | Dual-driver, direct radiating subwoofer |
| FREQUENCY RESPONSE | 35Hz – 150Hz ±3dB, -10dB @ 30Hz |
| DRIVER | 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone |
| RATED POWER | 2000W AES, 8000W peak |
| SENSITIVITY | 105dB |
| MAXIMUM SPL | 144dB |
| NOMINAL IMPEDANCE | 2 x 8Ω |
| DISPERSION (-6DB) | Omnidirectional/or Cardioid (paired) |
| ENCLOSURE | Multi-laminate birch/poplar ply |
| FINISH | Durable Polyurea Coating |
| PROTECTIVE GRILLE | Black perforated Zintec |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | LF1: 1+, 1- LF2: 2+, 2- |
| PINS CONNECTIONS (LINK) | LF1: 1+, 1- LF2: 2+, 2- |
| FITTINGS |
|
| DIMENSIONS (INCL SKIDS) |
|
| WEIGHT |
|
