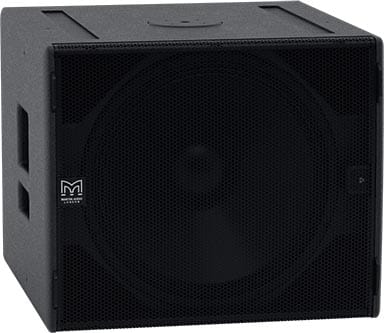

Martin Audio SXP118

£3,600.00 Inc VAT

Compact, Direct Radiating Powered Subwoofer

  • Compact, self-powered subwoofer
  • 1 x 18” (460mm) driver with 4” (100mm) voice coil
  • Onboard Class D amplification and DSP
  • Dante™ Digital Audio networking
  • Global mains operation with Power Factor Correction
Martin Audio

Categories: , SKU: SP/SUB/MAR35P

The SXP118 is a compact, high-performance subwoofer that extends the low frequency operating range of a CDD-LIVE full-range system to 40Hz — providing exceptional low frequency impact and increasing headroom. It features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure. The design of the 18” driver maximises output while minimising power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.

With a maximum SPL capability of 135dB peak at 1 metre, the SXP118 is the ideal subwoofer for theatre and portable live sound applications, as well as premium installations that require the maximum output from a compact enclosure. A self-powered system, the SXP118 incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W peak output to the driver, and its switched-mode power supply autoranges to global mains voltages from 100 to 240V 50/60Hz. DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VUNET™ proprietary software.
For simple set-ups, ‘plug-and-play’ presets for operation with the CDD-LIVE 8, 12 or 15 — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. Additional presets provide the appropriate settings for the rear-facing subwoofer in a cardioid pair. As an alternative to its analogue inputs, the SXP118 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run. The enclosure is constructed from multi-laminate plywood with a durable polyurea coating and equipped with a perforated Zintec grille, twin grab handles, skids, M10 flying inserts and a threaded pole socket. By adding the input board cover accessory, the subwoofer is fully weather resistant and suitable for permanent outdoor usage.

Features

• Compact, self-powered subwoofer
• 1 x 18” (460mm) driver with 4” (100mm) voice coil
• Onboard Class D amplification and DSP
• Dante™ Digital Audio networking
• Global mains operation with Power Factor Correction
• Tour-grade plywood enclosure with flying inserts
• IP24 rating option with rain cowl

Applications

• Live sound reinforcement
• Theatre sound
• Corporate AV events
• Fixed installations in Houses of Worship and concert halls

Brand

Martin Audio

Martin Audio

Reviews

There are no reviews yet.

Be the first to review “Martin Audio SXP118”
ACOUSTICS
TYPE Compact, direct radiating powered subwoofer
FREQUENCY
RESPONSE (3)
47Hz – 150Hz ±3dB, -10dB @ 41Hz
DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion,
ferrite magnet, waterproof cone
INPUT SENSITIVITY -20dBu for 100dB SPL (CDD12/15 pre-set)
-13dBu for 100dB SPL (CDD8 pre-set)
MAXIMUM SPL (4) 132dB continuous / 135dB peak
DISPERSION Omnidirectional / or Cardioid (paired)
CROSSOVER Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired)
MODULE
AUDIO INPUT
CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE 20 kΩ balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp (+21dBu), over voltage protected
INTERNAL PROCESSING Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct LPF
Up to 200ms input delay
Pre-set selection via rear panel switch
NETWORK
CONNECTORS 2 x Neutrik® Ethercon
PROTOCOL TCP/IP and UDP/IP
AMPLIFIER MODULE
TYPE 2 channel switch-mode, class D,
Bridged Tied
PEAK OUTPUT POWER 2000W total
AVERAGE EFFICIENCY 89%
COOLING External fan
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output
POWER SUPPLY
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 – 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 125W
MAINS CONNECTOR Neutrik® Powercon True1
MECHANICAL
ENCLOSURE Extensively braced multi-laminate plywood.
FINISH Durable Polyurea Coating
PROTECTIVE GRILLE Black perforated Zintec
FITTINGS Two skids on base, with mating channels on top
Four rear-mounted 100mm (4in) castors
M20 top-mounted thread plate for pole mounting
16 x M10 mounting points
2x Bar handles, 1 on each side
4x fittings for optional transit cover
IP RATING IP24 factory option available
DIMENSIONS (W) 600mm x (H) 509mm x (D) 632mm (760mm including castors)
(W) 23.62in x (H) 20.04in x (D) 24.86in (29.90in including castors)
WEIGHT 46.5kg (103lbs) w/o castors 50kg (110lbs) with castors
