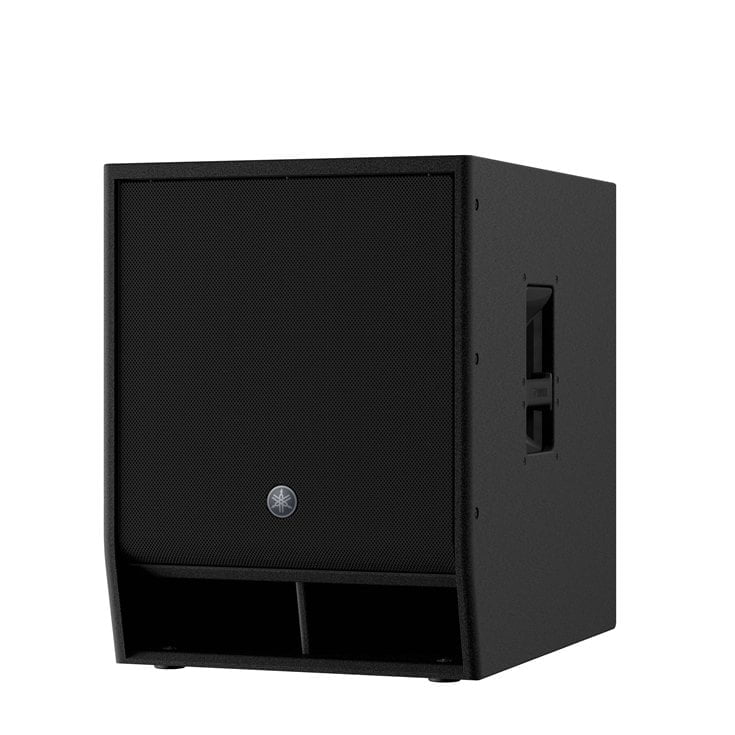

Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
Like the full-range DZR models, the DXS XLF subwoofers are also driven by 96kHz high power DSP processors and utilize the dynamic EQ.
Onboard D-XSUB LF processing gives you total management of your lower frequencies with NORMAL mode set for ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass with some extra punch. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from a cabinet of this size. Usually the higher the output, the more difficult it is to manage low frequency energy directivity, and significant stage-side sound pressure levels can seriously sabotage your monitoring, but with DXS XLF setups consisting of two or more subwoofers, selecting the Cardioid Mode effectively decreases the sound pressure on stage while increasing the bottom-end output directed towards the audience, resulting in a much cleaner stage monitoring environment. Without a doubt, your DZR full-range system will reach new performance heights when used with the pronounced, powerful lows of DXS XLF active subwoofers.

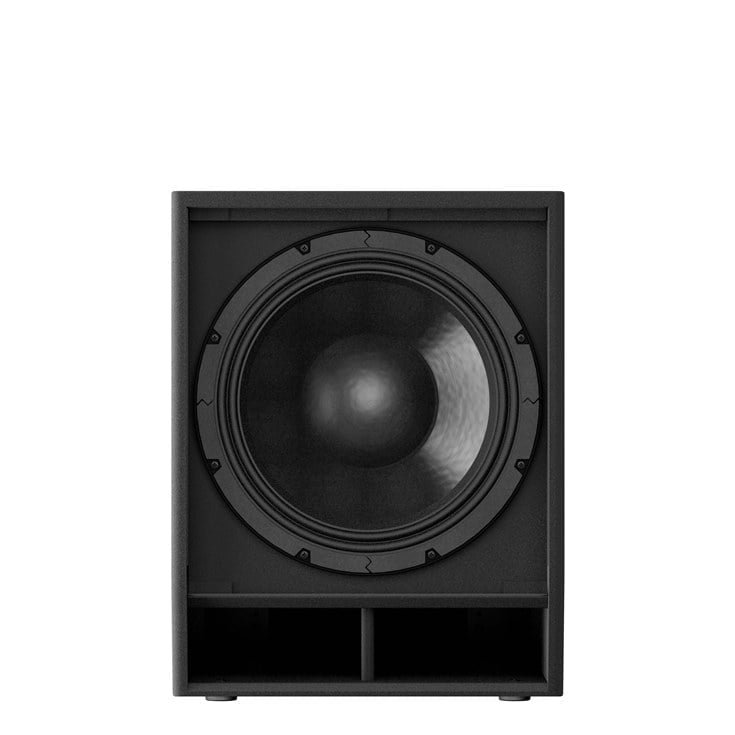

New Yamaha proprietary transducers with a durable die cast aluminum frame and 4” voice coil are crucial to achieving such impressive low frequency response, even at the highest output levels. A dual damper also helps to realize extraordinarily high linearity of the low frequencies by mitigating unwanted vibration during extreme output levels.
DXS XLF enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come. Additionally, the new, easy-to-grip aluminum handle, optional SPW1 wheel kit, and SPCVR speaker covers provide additional safety, portability, and peace of mind when you’re on the road.
|Speaker type||Powered Subwoofer, bass-reflex|
|Frequency range (-10dB)||33Hz – 150Hz|
|Components||LF||15″ Cone, 4″ Voice Coil, Ferrite magnet|
|Sampling frequency rate||Internal||96kHz and FIR Filter|
|A/D D/A Converters||96kHz AD/DA|
|Maximum output level (1m; on axis)||136dB SPL *1|
|Power rating||Dynamic||1600W *2|

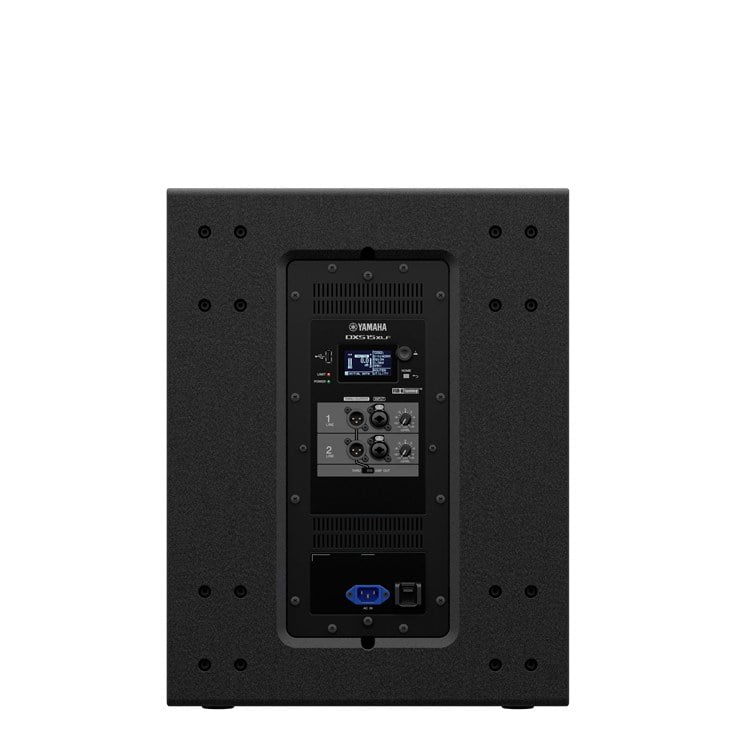

|I/O Connectors||Analog I/O||Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT|
|Others||USB2.0 Host 5V 500mA for USB memory DATA storage/load|
|AC||IEC AC inlet x1 (V-Lock)|
|Cooling||Fan cooling, Variable speeds|
|Power consumption||40W (Idle), 180W (1/8)|
|Handle||Aluminium die-cast, Side x2|
|Dimensions||W||450 mm (17.7″)|
|H||587 mm (23.1″) (with rubber feet)|
|D||600 mm (23.6″)|
|Net weight||40.0kg (88.2lbs)|
|Options||Cover: SPCVR-DXS15X, Caster: SPW-1|
|Others||Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black|
|Floor Monitor Angle||–|
|Pole socket||Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)|
