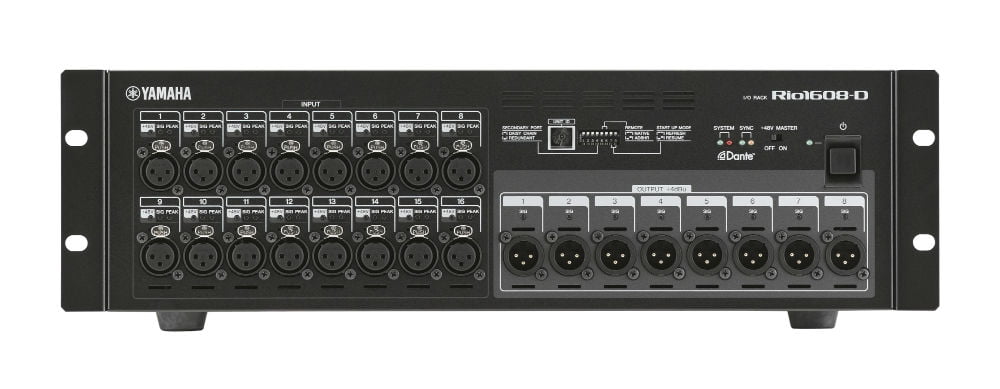

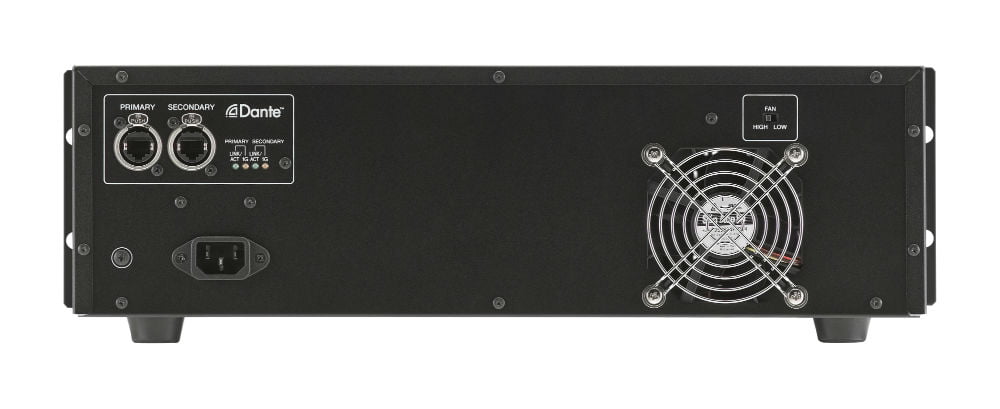

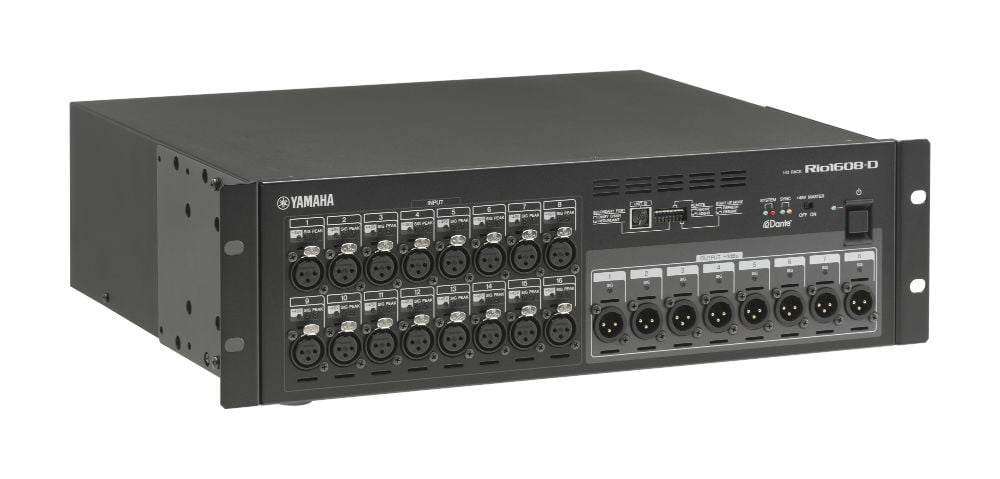

Yamaha Rio1608-D

  • Home
  • DM Shop
  • Sound / PA
  • Mixers
  • Digital Mixers
  • Digital Snake / Stagebox
  • Yamaha Rio1608-D
Yamaha Rio1608-D
Yamaha Rio1608-D
Yamaha Rio1608-D
Yamaha

£5,259.00 Inc VAT

I/O Rack – stagebox for the CL series desks
The 3U size
16 ins, 8 outs,
4 AES/EBU outputs

SKU: MX/ACC/YAM08 Categories: Digital Mixers, Digital Snake / Stagebox
Share
0
  • Description
  • Specification
  • Brand
  • Reviews (0)

Network capabilities are rapidly becoming fundamental and indispensable in today’s fast-paced world of digital live sound. CL series consoles feature separate console and I/O rack components that communicate via the Dante™ network audio protocol, allowing fast, efficient design and deployment of capable systems from the most basic to the dazzlingly complex. The ability to add Lake® processing via expansion slots also adds to the system’s versatility and adaptability to the widest range of mixing needs.

Dante for Fast, Flexible Networking

The complexity and variety of today’s live sound systems makes fast, adaptable configuration and setup capability vital. Of course the highest level of sonic performance must be maintained at the same time. CL series consoles use the Dante network protocol developed by Audinate to allow flexible connection to multiple I/O rack units configured and located according to the needs of the application, while at the same time providing redundancy for superior reliability.

Up to Eight I/O Rack Units

Dante directly supports star network configurations, so up to eight I/O rack units can be connected to any single CL series console and conveniently located wherever they are needed most. A few simple DIP switch settings are all that is required to change to daisy-chain networking as required.

Simple Setup

The ability to set up even complex systems quickly and easily is another benefit of Dante networking. In most cases devices on the network are recognized and set up automatically. And since patching operations that usually require a separate computer can be carried out directly from the CL console, changes to the initial setup are painless as well.

Redundancy for Reliability

Dante also makes it easy to maximize system reliability. Star networks allow the use of redundant primary and secondary lines for each device, for the utmost reliability in critical applications. With this type of setup a malfunction in a cable or other network component won’t bring the whole system down. The show will go on.

Full Integration of FOH and Monitor Control

Multiple CL series consoles can share control of the same I/O rack unit, allowing unprecedented system flexibility and efficient use of system resources. A new Gain Compensation function adds the ability to combine FOH and monitor control via a single network, for comprehensive digital live sound integration.

I/O Rack Unit Sharing with Gain Compensation

One obvious drawback of connecting multiple consoles to a single I/O rack unit is that gain adjustments made from one console can cause unexpected gain changes at the other consoles. The Gain Compensation function implemented in the CL consoles ensures that when the analog gain stage is adjusted from one of the consoles, corresponding compensation is automatically applied at the digital stage so that the level sent from the I/O rack unit to the connected CL consoles remains constant.

General specifications Rio3224-D Rio1608-D
Sampling frequency rate Internal 44.1kHz, 48kHz, 88.2kHz, 96kHz 44.1kHz, 48kHz, 88.2kHz, 96kHz
External 44.1kHz: 4.1667%, 0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: 4.1667%, 0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: 4.1667%, 0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: 4.1667%, 0.1%, -0.1%, -4.0% 44.1kHz: 4.1667%, 0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: 4.1667%, 0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: 4.1667%, 0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: 4.1667%, 0.1%, -0.1%, -4.0%
Signal delay Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total harmonic distortion Less than 0.05% 20Hz-20kHz@ 4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@ 4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min. Less than 0.05% 20Hz-20kHz@ 4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@ 4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min.
Frequency response 0.5, -1.5dB 20Hz-20kHz, refer to 4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / 0.5, -1.5dB 20Hz-40kHz, refer to 4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz 0.5, -1.5dB 20Hz-20kHz, refer to 4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / 0.5, -1.5dB 20Hz-40kHz, refer to 4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz
Dynamic range 108dB typ., INPUT to OUTPUT, Input Gain = Min 108dB typ., INPUT to OUTPUT, Input Gain = Min
Crosstalk -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min. -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
Power requirements US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
Power consumption 120W 70W
Dimensions W 480mm (18 7/8in) 480mm (18 7/8in)
H 232mm (9 1/4in) 144mm (5 3/4in)
D 361.5mm (14 1/4in) 361.5mm (14 1/4in)
Net weight 12.4kg (27.3lb) 8.8kg (19.4lb)
Others Temperature Range: Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃ Temperature Range: Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃

Analog input characteristics

Input Terminals GAIN Actual Load
Impedance
For Use With
Nominal
Input Level Connector
Nominal Max. before clip
INPUT 1-16 66dB 10kΩ 50-600Ω Mics &
600Ω Lines
-62dBu (0.616mV) -42dBu (6.16mV) XLR-3-31 type (Balanced)*1
18dB -14dBu (155mV) 6dBu (1.55V)
17dB 3kΩ -13dBu (174mV) 7dBu (1.74V)
-6dB 10dBu (2.45V) 30dBu (24.5V)
INPUT 17-32*5 66dB 10kΩ 50-600Ω Mics &
600Ω Lines
-62dBu (0.616mV) -42dBu (6.16mV) XLR-3-31 type (Balanced)*1
18dB -14dBu (155mV) 6dBu (1.55V)
17dB 3kΩ -13dBu (174mV) 7dBu (1.74V)
-6dB 10dBu (2.45V) 30dBu (24.5V)

*1. XLR-3-31 type connectors are balanced.(1=GND, 2=HOT, 3=COLD)
*2. In these specifications, 0dBu = 0.775 Vrms.
*3. All input AD converters are 24bit linear, 128times oversampling.
*4. 48V DC ( phantom power ) is supplied to INPUT XLR type connectors via each individual software controlled switch. *5. Rio3224-D only

Analog output characteristics

Output Terminals Actual Source
Impedance
For Use With
Nominal
Max.Output Level
Select SW*4
Output Level Connector
Nominal Max. before clip
OUTPUT 1-8 75Ω 600Ω Lines 24dB (default) 4dBu (1.23 V) 24dBu (12.3V) XLR-3-32 type (Balanced)*1
18dB -2dBu (616mV) 18dBu (6.16V)
OUTPUT 9-16*5 75Ω 600Ω Lines 24dB (default) 4dBu (1.23 V) 24dBu (12.3V) XLR-3-32 type (Balanced)*1
18dB -2dBu (616mV) 18dBu (6.16V)

*1. XLR-3-32 type connectors are balanced.( 1=GND, 2=HOT, 3=COLD )
*2. In these specifications, 0dBu = 0.775 Vrms.
*3. All output DA converters are 24bit, 128times oversampling.
*4. There are switches inside the body to preset the maximum output level. *5. Rio3224-D only

Digital Input & Output Characteristics

Terminal Format Data length Level Connector
Primary/Secondary Dante 24bit or 32bit 1000Base-T

Digital Output Characteristics

Terminal Format Data length Level Connector
AES/EBU OUT 1-4*1 AES/EBU AES/EBU Professional Use 24bit RS422 XLR-3-32 type (Balanced)*1

*1 Rio3224-D only

Brand

Yamaha

DM Music Ltd are a Yamaha Commercial Audio Premier Dealer. We have been supplying Yamaha equipment for many years and regard it as one of our leading brands. If you require anything not seen below then call us on: 01582 761122
Yamaha

Reviews

There are no reviews yet.

Be the first to review “Yamaha Rio1608-D” Cancel reply

You must be logged in to post a review.

Related products

  • Allen & Heath Qu-32Allen & Heath Qu-32

    Allen & Heath Qu-32

  • Allen & Heath Qu-24Allen & Heath Qu-24

    Allen & Heath Qu-24

  • Soundcraft Si Expression 3Soundcraft Si Expression 3

    Soundcraft Si Expression 3

    £2,839.00 Inc VAT

Need professional advice or a bespoke solution for your requirement? Click Here

Contact us today for your church's audio visual solution!
DM Music Logo

We are the leading supplier and installer of Sound and Audio Visual systems to UK Churches. Since 1992 we have completed over 3,000 church installations. ...read more


Heritaqe AV

A division of DM facilitating non-Church related installation work. ...read more

We're here to help, call us for free support and advice: 01582 761122

Email us: support@dmmusic.com

Need it installed? We are an installation company!

Buy securely online with confidence

We offer training at your Church

Subscribe to our newsletter here

Did you know? ❓ We work with expert carpenters t Did you know? ❓ We work with expert carpenters to design and build totally bespoke consoles to suit every PA, AV or streaming requirement 📝🔨

#livestream #livestreaming #church #av #pa #audiovisual #professional #bespoke #worship #roland #lumens #magewell #live #streaming #uk #broadcast #youtube #facebook #twitch #service #cathedral #console #rack #equipment #yamaha #carpenter #blackmagic #blackmagicdesign
Whatever your live-streaming requirement is, our p Whatever your live-streaming requirement is, our project managers will work with you to find the perfect solution!

Pictured is a portable multi-camera system which we installed in Wilton, Wiltshire towards the end of 2020.

Cameras - @bolintechnology
Vision mixer - @roland_uk
Camera controller - @marshall_usa
Streaming encoder - #magewell

#livestream #livestreaming #church #av #pa #audiovisual #professional #bespoke #worship #roland #bolin #marshall #live #streaming #uk #broadcast #youtube #facebook #twitch #service #cathedral
We recently installed PA, AV and streaming systems We recently installed PA, AV and streaming systems as part of a major refurbishment project for a church in Guildford.

This included professional products from @allenandheath @roland_uk @zero88 @birddog_gear @kramerelectronicsltd @yamaha_proaudio_official @lgcommdisplays @surgexav and many more!

Bespoke operator consoles designed and built in-house by @dmmusicltd

#proav #installation #audiovisual #bespoke #consultants #guildford #dmmusic
Recently installed acoustic wall and ceiling panel Recently installed acoustic wall and ceiling panels.

#churchinstallation #churchinstall #acousticpanels #acoustictreatment #artnovion #soundsbetter
Recently installed discreet PTZ camera with custom Recently installed discreet PTZ camera with custom bracket.

#churchstreaming #churchinstall #churchinstallation #churchav #ptzcamera
More PTZ Camera testing - NDI, SDI, HDMI, HDBaseT. More PTZ Camera testing - NDI, SDI, HDMI, HDBaseT.
It’s great to be installing so many more PTZ cameras to help churches live stream their services.

#livestreaming #churchonline #churchlivestream #churchav #ptzcamera #churchavinstallation
If you’re thinking about streaming your church s If you’re thinking about streaming your church services take a look at our ‘Before You Start Streaming’ Guide for some advice on how to approach it. Link in bio.
#Churchstreaming #livestreamingchurch #livestreamingchurchservice #churchlivestream #churchlivestreaming #churchaudiovisual
Another successful DM audio-visual installation in Another successful DM audio-visual installation in a new build London Church. The @martinaudio CDD range helped us overcome the audio challenges.  #churchsoundsystem #churchsound #churchav #martinaudio #martinaudiocdd
Discreetly installed custom panel with bespoke con Discreetly installed custom panel with bespoke control.
#custominstall #churchaudiovisual #yamahamtx #crestron #churchinstall #martinaudiocdd
Follow on Instagram

Support Links

About Us

Contact Us

Privacy Policy & Cookies

Terms & Conditions

Delivery & Returns Info

Job Opportunities

© 2021 DM Music Ltd
DM Music Ltd, Unit 4, Riverside Estate, Coldharbour Lane, Harpenden, Hertfordshire, AL5 4UN | Registered in England & Wales No.06747770
0
