AR2412 is the Main AudioRack for the GLD digital mixing system and compatible with the Qu Series.

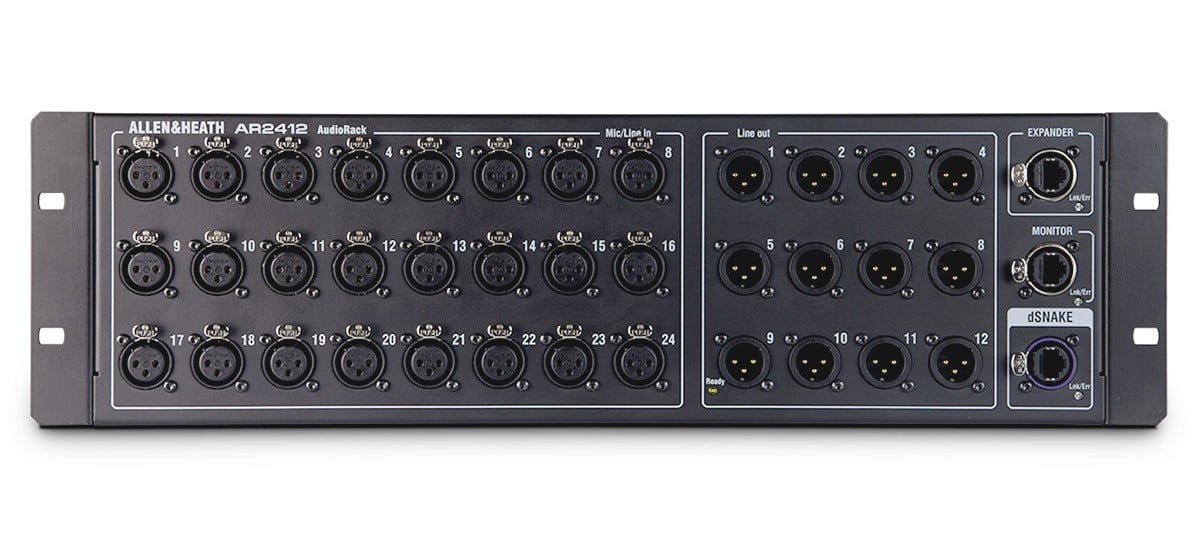

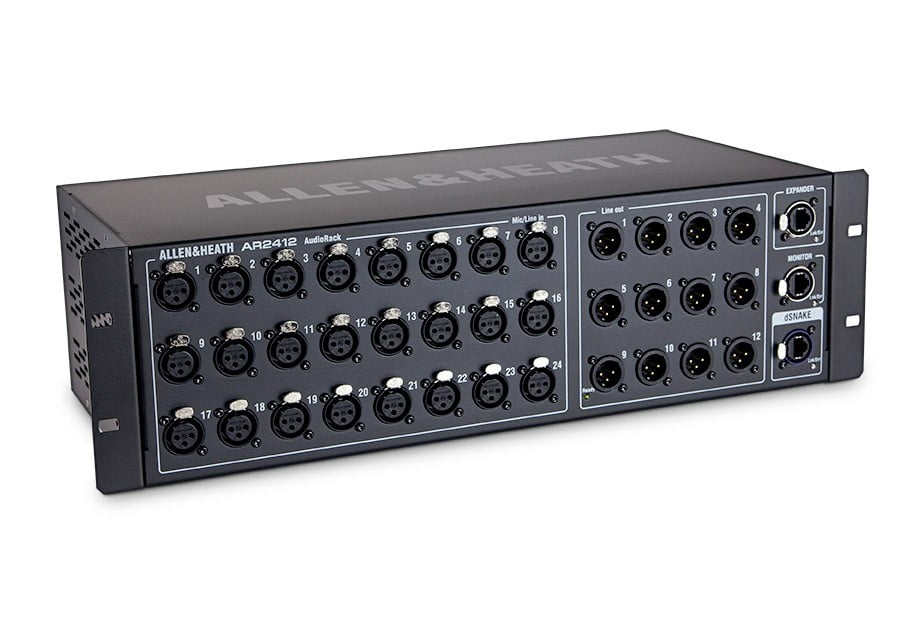

AR2412 provides 24 XLR inputs and 12 XLR outputs when connected to a GLD-80 mixer. Connection is over Cat5 cable running Allen & Heath’s dSNAKE protocol, allowing the AR2412 to be positioned up to 120m from the GLD-80. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable. For larger systems, a GLD-AR84 Expander AudioRack can be connected to the AR2412 to add a further 8 XLR inputs and 4 XLR outputs. AR2412 also includes an Aviom compatible Monitor port.
