Discontinued

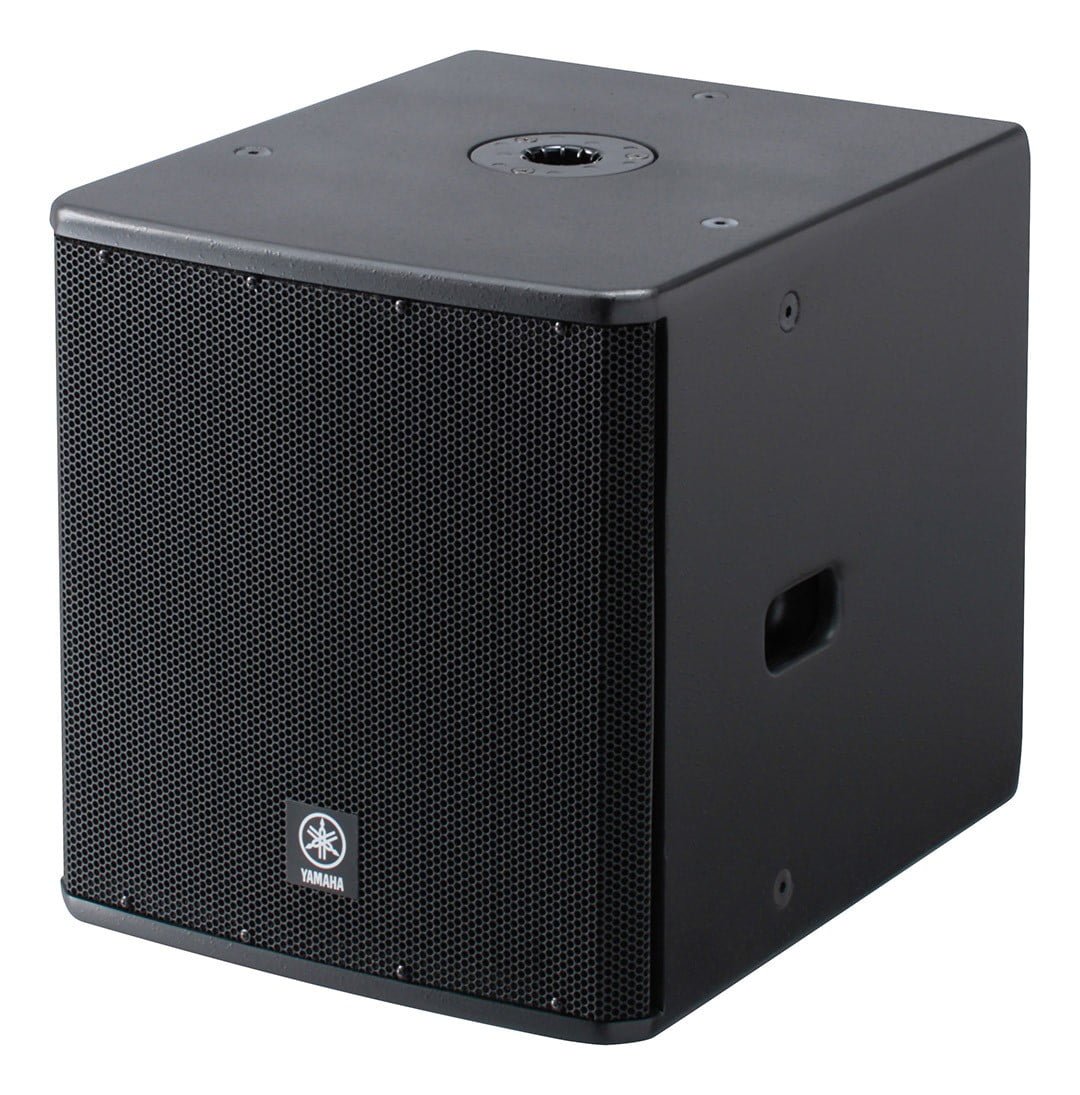

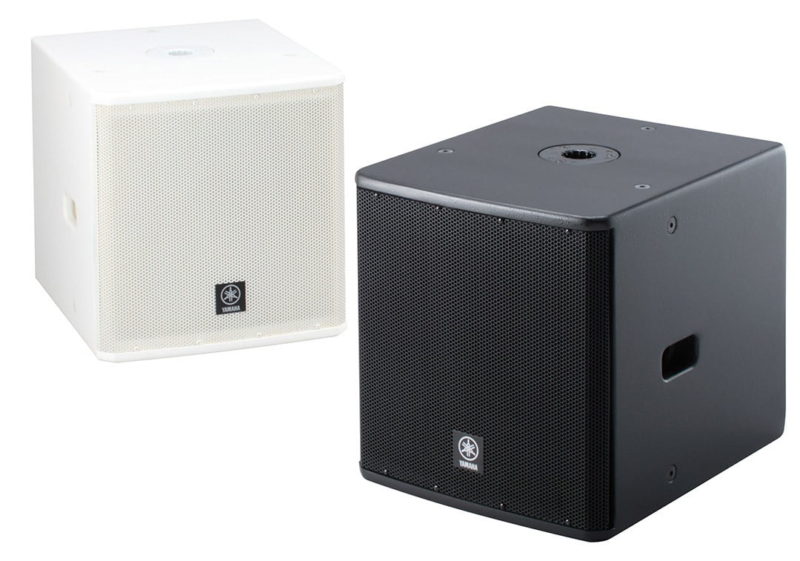

- 12″ subwoofer
- Twelve 10mm-screw suspension points (M10) provided for flexible rigging
- Durable black finish (can be painted to match any interior)
- 1-3/8 inch pole socket on top surface
- Parallel-wired Neutrik NL4 and barrier strip connectors
These speakers feature Uni-Phase design and matching sound – even between different models – for easy system setup and tuning.
- 12″ subwoofer
- Twelve 10mm-screw suspension points (M10) provided for flexible rigging
- Durable black finish (can be painted to match any interior)
- 1-3/8 inch pole socket on top surface
- Parallel-wired Neutrik NL4 and barrier strip connectors
| Nominal impedance | 8ohms | |
|---|---|---|
| Power rating *1 | NOISE | 700W |
| PGM | 1400W | |
| MAX | 2800W | |
| Sensitivity (1W, 1m) |
93dB SPL |
|
| Peak SPL (calculated) | 127dB SPL |
|
| Continuous SPL (calculated) | 121dB SPL |
|
| Components | 12″ woofer, 4″ voice coil |
|
| Frequency range (-10dB) *2 |
45Hz-2kHz | |
| Connectors | 1x NL4 and barrier strip, wired in parallel | |
| Shape | Rectangular | |
| Dimensions (W x H x D) |
mm | 378x294x454 |
| in | 14.9×15.5×17.9 | |
| Weight | 24kg, 53lbs | |
| Flying hardware | 12x M10 | |
Brand
Yamaha
DM Music Ltd are a Yamaha Commercial Audio Premier Dealer. We have been supplying Yamaha equipment for many years and regard it as one of our leading brands. If you require anything not seen below then call us on: 01582 761122
