£1,429.00 Inc VAT

18″ Passive Subwoofer

  • 18” subwoofer with 4” Voice Coil
  • High power 1000W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet
Yamaha
Category: SKU: SP/SUB/YAM21

Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.

  • 18” subwoofer with 4” Voice Coil
  • High power 1000W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • SpeakON NL4MP x 3 (Parallel x2, Output x1)
  • Dual-pole socket
  • Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

Best in Class SPL performance

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.

Intelligent processing to maximize system performance

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).

Premium materials. Road-tested toughness

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.

Brand

Yamaha

DM Music Ltd are a Yamaha Commercial Audio Premier Dealer. We have been supplying Yamaha equipment for many years and regard it as one of our leading brands. If you require anything not seen below then call us on: 01582 761122
Yamaha

Reviews

There are no reviews yet.

Be the first to review “Yamaha CXS 18 XLF”
General specifications
Speaker type Subwoofer, Bass-reflex
Frequency range (-10dB) Passive: 32 Hz – 3kHz, Normal (*1): 32 Hz – 150 Hz, Extend (*1): 29 Hz – 150 Hz
Coverage area
Floor Monitor Angle
Components LF 18″ Cone, 4″ Voice Coil, Ferrite magnet
HF
Crossover
Power rating NOISE 500 W (EIA 426-A)
PGM 1000 W (EIA 426-A)
PEAK 2000 W (EIA 426-A)
Nominal impedance
SPL Sensitivity (1W; 1m on axis) 100dB *2
Peak (Calculated) 133 dB *2

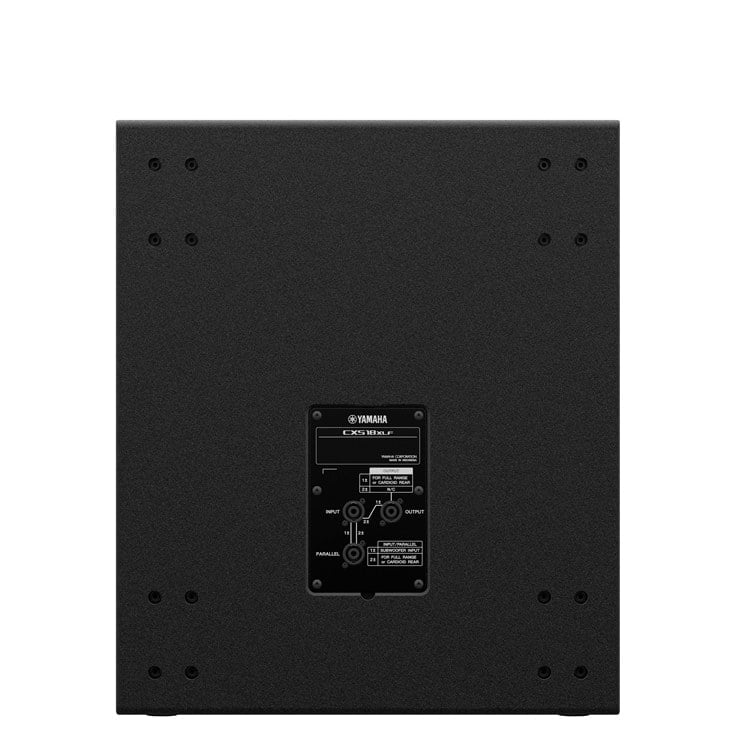

I/O connectors SpeakON NL4MP x 3 (Parallel x2, Output x1)
Handle Aluminium die-cast, Side x2
Pole socket Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
Rigging
Dimensions W 550 mm (21.6″)
H 657 mm (25.9″) (with rubber feet)
D 720 mm (28.4″)
Net weight 43.6kg (96.1 lbs)
Options Cover: SPCVR-DXS18X, Caster: SPW-1
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
