Trantec S4.16 E

  • Home
  • DM Shop
  • Sound / PA
  • Radio Microphones
  • Headset Radio Mics
  • Trantec S4.16 E
Trantec S4.16 E
Trantec S4.16 E
Trantec S4.16 E
Trantec S4.16 E
Trantec

Discontinued

Discreet earworn radio mic system

  • True Diverstiy radio reception
  • 4 selectable UHF frequencies in Chan 70
  • Also available for Chan 38
  • Single 9V battery operation
  • With (SJ) EM-77P earworn mic (3.5mm jack conn)
SKU: RM/HD/TRA01 Category: Headset Radio Mics Tag: Discontinued
Share
0
  • Description
  • Specification
  • Brand
  • Reviews (0)

The Trantec S4.16 UHF system boasts a multi-function receiver, 16 selectable frequencies and the latest PLL quartz tuning technology, making it the ultimate choice when looking for a product that will address your demands now, and into the future.

The S4.16 has 16 selectable frequencies incorporating the existing 4 licence free Channel 70 frequencies, already being used in the S4.4, allowing the user to operate up to 12 frequencies together intermodulation free.

The receiver has detachable antennae, allowing remote placement and the use of antenna distribution units for larger sets.

The S4.16 system is available in Lapel and headset versions, which can be switched for use with a musical instrument, plus a Handheld with a dynamic or condenser capsule.

The EM-77 is a high quality single ear microphone consisting of an electret transducer capsule exhibiting an omni-directional characteristic.

Because of it’s lightweight contruction, it allows the user complete freedom of movement making it ideal for theatre, conference and education use.

All S4.16 systems are supplied with antenna, battery, instrument lead and power supply.

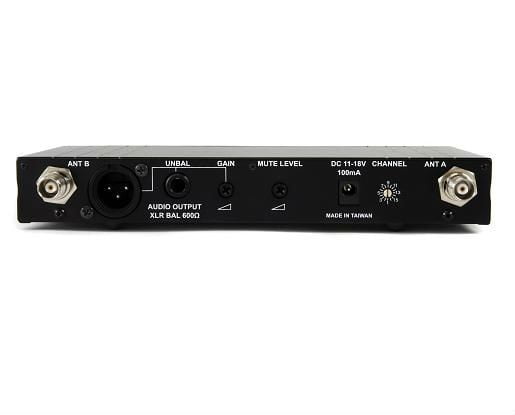

S4.16RX-EA RECEIVER
RF Frequency Range: 606-614MHz (G3), 854-865MHz (EA)
16 Channel Capability
Audio Frequency Response: Handheld 80Hz-16kHz ( /-3dB), Belt pack 60Hz-16kHz ( /-3dB)
Audio S/N Ratio: >96dBA
Audio output: Variable to 10dBu via unbalanced 1/4″ mono jack, 16 dBu via balanced XLR 3F
Display: 4 position RF bar graph, AF Peak (Overload), Diversity A/B
DC Input: 12V, 100mA
Dimensions: 35 x 213 x 98mm
Weight: Approx 580g

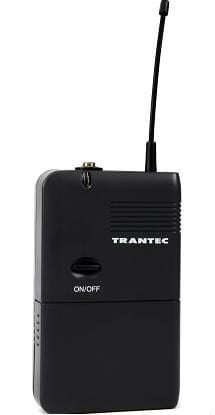

S4.16LTX-EA TRANSMITTER
16 Channel capability
Controls: Frequency select, On/Off switch, Lapel/Instrument select, Gain adjust
Indicator: Battery status LED
SJEM-77-P earworn microphone: Omni-directional back electret condenser
Operating voltage 9v @ <50mA
Operating time approx 10 hours
Power Output: Max 10mW
Connectors: Audio input via 3.5mm jack socket
Dimensions: 60 x 100x 30mm including belt clip
Weight: Approx 90g
Fully meets with requirements of ETSI 300-422/455, FCC part 74h
