Digital Wireless hand held Vocal system

  • Dynamic Cardioid mic capsule
  • Operating on 2,4GHz, 24Bit / 48kHz linear PCM
  • Rugged construction, simle to use
  • No Licence required
Tag: Category: SKU: RM/HH/SON03FP

As a digital radio mic system operating in the 2.4GHz (Wifi) range this may experience interference from Wifi transmissions etc in certain locations and may not be suited to installations in Churches.

Please also see our DM Quick Expert Guide for more information.

Sony’s newest wireless microphone series combines ease of use, superb RF transmission reliability and high sound quality into four affordable and highly flexible packages. The new 2.4 GHz DWZ series includes combinations of hand-held microphones, bodypack transmitters and rack-mount or compact size receivers, with the various components ideal for use by musicians, or in classroom, corporate and institutions AV applications.

The new packages are distinguished by their sleek design and contemporary look, highlighted by a yellow band on each of the products as a unique identifying feature.

The DWZ components share many high-performance features, including:

  • 24-bit linear PCM digital audio transmission
  • Two modes of 2.4GHz frequency selection (wide band frequency hopping for simple operation or narrow band frequency hopping for coordinated spectrum use)
  • Rack-mount receivers with integrated colour LCD and built-in digital Equalizer
  • Interchangeable handheld capsule design supports Sony or third-party microphone capsules
  • Balanced and unbalanced audio outputs.

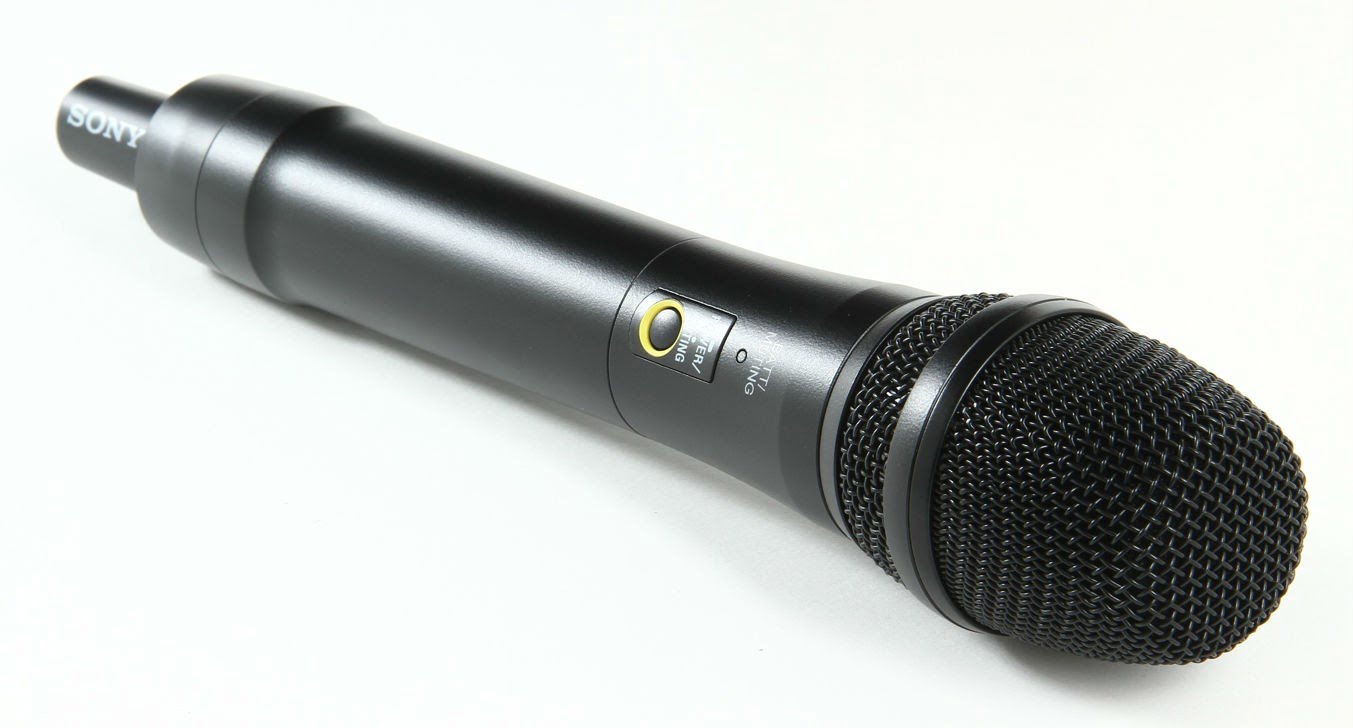

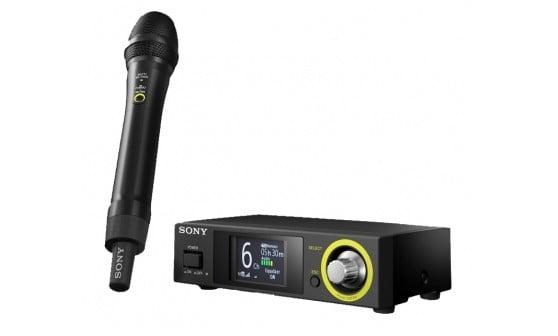

The DWZ-M50 Vocal Kit includes a uni-directional dynamic interchangeable microphone capsule with a stylish handheld transmitter and half-rack size receiver, ideal for vocal applications.

Transmitter Type: Handheld
Carrier Frequencies: 2402.0-2478.5 MHz
RF Power Output: 10mW (e.i.r.p)

Receiver Type: Rack-mount (Half / 1 channel)
Reception Type: Space diversity
Antenna Type: External whip antenna
Receiving Frequencies: 2402.0-2478.5 MHz
RF Sensitivity: 24 dBμV or less

Capsule Type: Dynamic
Directivity: Uni-directional
Maximum Input Level: 142 dB SPL (with 12 dB attenuator)
Audio Attenuator Adjustment Range: 0 / 6 / 12 dB
Frequency Response: Transmission: 10 Hz to 22 kHz – Microphone unit: 70 Hz to 16 kHz
Dynamic Range: 102 dB (A-weighted)
Audio Delay: Narrow band: Approx. 3ms / Wide band: Approx. 6 ms
Distortion (T.H.D): 0.03% or less (-38 dBu, 1 kHz input)

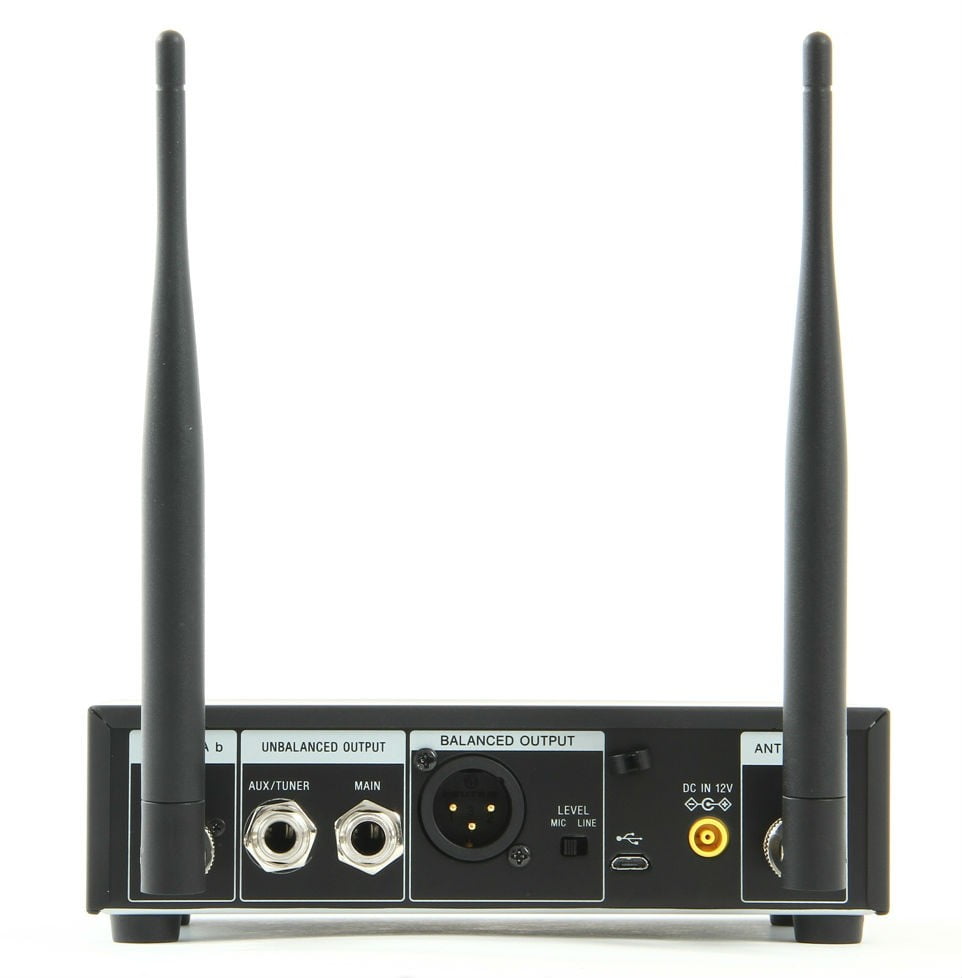

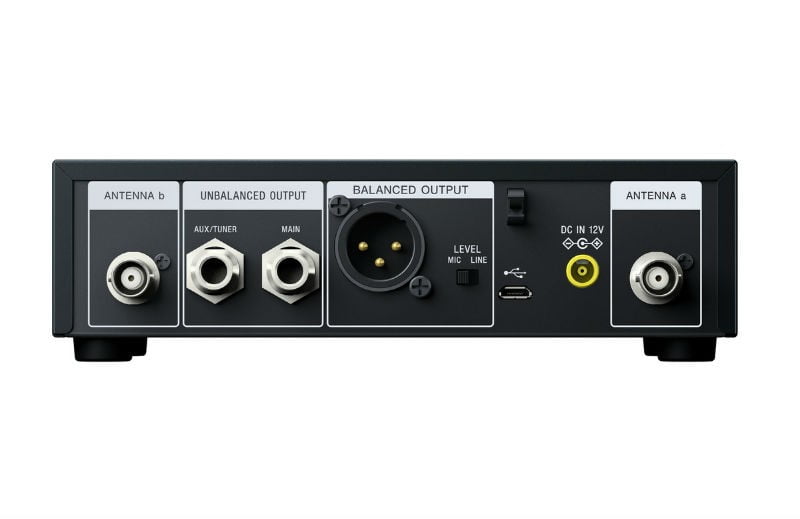

Analogue Output: XLR-3-32, balanced (x1) / Phone jack, unbalanced (x2)
Reference Output Level: Balanced output: MIC: –58 dBu / LINE: –12 dBu – Unbalanced output: –28 dBu

Other Equipment
Display: Color LCD
USB Port (for firmware update): TX x1 / RX x 1

Power Requirements: DC 12 V
Battery Operating Time: Approx. 10 hours of continuous use (25 °C (77 °F) ambient temperature, with two Sony LR6 (size AA) alkaline dry cell batteries)
Operating Temperature: 0°C to 50°C / 32°F to 122°F
Storage / Transport Temperature: -20°C to 60°C /-4°F to 140°F
ZTX-M01: 48 x 258 mm (1 15/16 × 10 1/4 inches) (diameter/length)
ZRX-HR50: 166 x 44 x 96 (6 5/8x 1 3/4 ×3 7/8 inches) (w/h/d)
ZTX-M01: Approx. 305 g (11 oz.) (including batteries)
ZRX-HR50: Approx. 510 g (1 lb. 2.0 oz.)
Supplied Accessories: Microphone holder (1), Antenna (2), AC adapter (1), Operating instructions (1)
