Sony DWZ-B70HL
Sony DWZ-B70HL
Sony DWZ-B70HL
Sony DWZ-B70HL
Sony

Discontinued

Digital Wireless lapel & headset radio mic system

  • Operates on 2,4GHz, 24Bit / 48kHz linear PCM
  • Rugged and simple to use
  • No licence required
SKU: RM/LAP/SON04FP Category: Headset Radio Mics Tag: Discontinued
Share
0
  • Description
  • Specification
  • Brand
  • Reviews (0)

As a digital radio mic system operating in the 2.4GHz (Wifi) range this may experience interference from Wifi transmissions etc in certain locations and may not be suited to installations in Churches.

Please also see our DM Quick Expert Guide for more information.

Sony’s newest wireless microphone series combines ease of use, superb RF transmission reliability and high sound quality intofour affordable and highly flexible packages. The new 2.4 GHz DWZ series includes combinations of hand-held microphones, bodypack transmitters and rack-mount or compact size receivers, with the various components ideal for use by musicians, or in classroom, corporate and institutions AV applications.

The new packages are distinguished by their sleek design and contemporary look, highlighted by a yellow band on each of the products as a unique identifying feature.

The DWZ components share many high-performance features, including:

  • 24-bit linear PCM digital audio transmission
  • Two modes of 2.4GHz frequency selection (wide band frequency hopping for simple operation or narrow band frequency hopping for coordinated spectrum use)
  • Rack-mount receiverswith integrated colour LCD and built-in digital Equalizer
  • Balanced and unbalanced audio outputs.

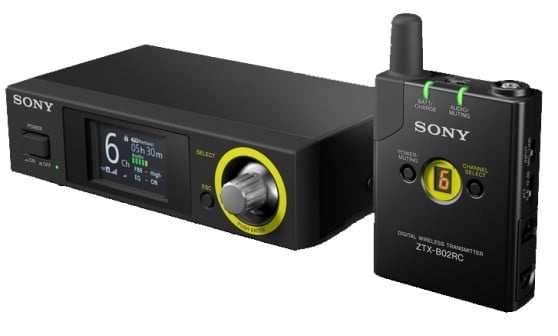

The DWZ-B70HL Headset and Lavalier Kit includes:

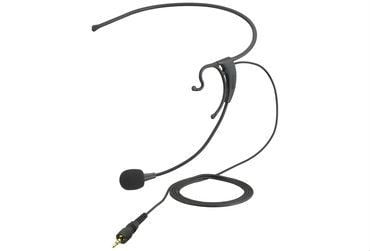

uni-directional condenser headset microphone ECM-HZ1UBMP
uni-directional condenser Lavalier microphone ECM-LZ1UBMP
bodypack transmitter ZTX-B02RC
half-rack size receiver with advanced DSP ZRX-HR70

Transmitting

Transmitter Type Bodypack

Carrier Frequencies 2402.0-2478.5 MHz

RF Power Output 10mW (e.i.r.p)

Receiving

Receiver Type Rack-mount (Half / 1 channel)

Reception Type Space diversity

Antenna Type External whip antenna

Receiving Frequencies 2402.0-2478.5 MHz

RF Sensitivity 24 dBƒÊV or less

Audio

Capsule Type Electret condenser

Directivity Uni-directional

Maximum Input Level  MIC: -22 dBu INST/LINE: 8 dBu (when attenuator level is 0 dB)

Audio Attenuator Adjustment Range  0 / 10 / 20 dB

Frequency Response

Transmission: 10 Hz to 22 kHz

Headset microphone: 60 Hz to 18kHz

Lavalier microphone: 60 Hz to 18kHz

Dynamic Range MIC: 102 dB (A-weighted) / INST/LINE: 98 dB (A-weighted)

Audio Delay Narrow band mode: Approx. 3 ms / Wide band mode: Approx. 6 ms (Transmitter Receiver)

(Additional Audio Delay for Intelligent Feedback Reducer / Low: 0 ms, Mid: 8 ms, High: 16 ms)

Distortion (T.H.D) 0.03% or less (-38 dBu, 1 kHz input)

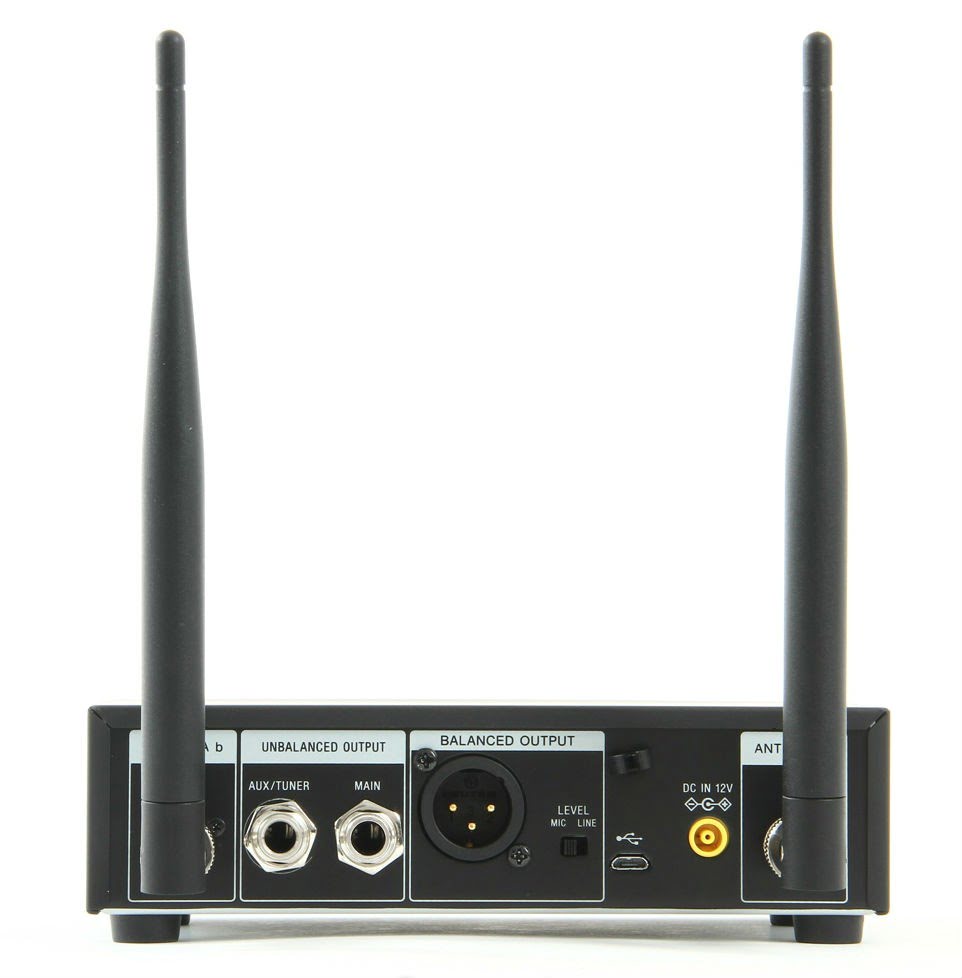

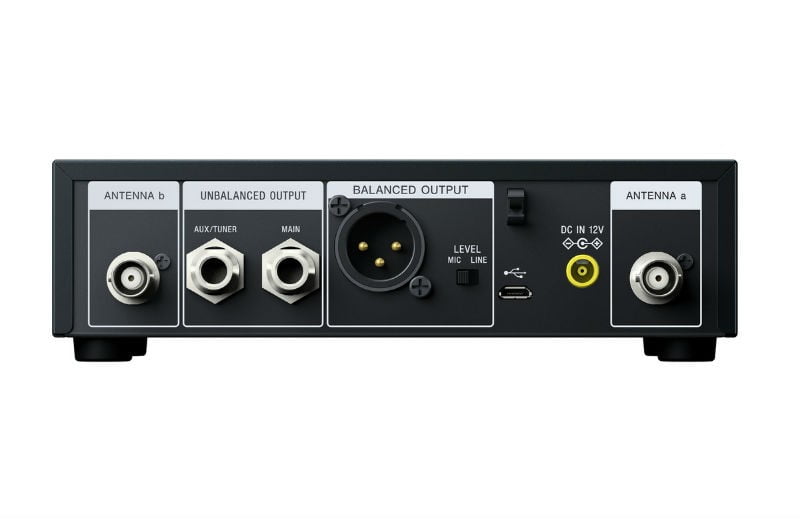

Analogue Output XLR-3-32, balanced (x1) / Phone jack, unbalanced (x2) (Intelligent Feedback Reducer is available)

Reference Output Level Balanced output: MIC: .58 dBu / LINE: .12 dBu, Unbalanced output: .28 dBu

Other Equipment

Encryption AES 128-bit

Display LCD

USB Port (for firmware update) TX x1 / RX x 1

General

Power Requirements

ZRX-HR70: External DC input: 12 V DC

ZTX-B02RC: 3.0 V DC (two LR6 (size AA) alkaline dry cell batteries)

*Rechargeable function is available with two HR6 (size AA) Ni-MH

rechargeable batteries

ZRX-HR70: External DC input: 12 V DC

Battery Operating Time Approx. 10 hours of continuous use (25 ‹C (77 ‹F) ambient

temperature, Sony LR6 (size AA) alkaline dry cell batteries)

Operating Temperature 0‹C to 50‹C / 32‹F to 122‹F

Storage / Transport Temperature -20‹C to 60‹C /-4‹F to 140‹F -20‹C to 60‹C /-4‹F to 140‹F

Dimensions

ZTX-M02RC: 48 x 258 mm (1 15/16 ~ 10 1/4 inches)

(diameter/length)

ZRX-HR70: 168 x 44 x 96 (6 5/8x 1 3/4 ~3 7/8 inches) (w/h/d)

ZTX-B02RC: 63 ~ 87 ~ 20 mm (2 1/2 ~ 3 1/2 ~ 13/16 inches)

(w/h/d) (excluding the antenna)

ZRX-HR70: 168 x 44 x 96 (6 5/8x 1 3/4 ~3 7/8 inches) (w/h/d)

Mass ZTX-M02RC: Approx. 308 g (11 oz.) (including batteries)

ZRX-HR70: Approx. 510 g (1 lb. 2.0 oz.)

ZTX-B02RC: Approx. 162 g (5.7 oz.) (including batteries)

ZRX-HR70: Approx. 510 g (1 lb. 2.0 oz.)

Supplied Accessories ZTX-M02RC (1), ZRX-HR70 (1), Mic holder (1), Antenna (2),

AC adapter (1), Quick Start Guide (1), Before Use (1), CD-ROM (1)

ZTX-B02RC (1), ZRX-HR70 (1), Uni-directional Lavalier Microphone (1),

Uni-directional Headset Microphone (1), Mic holder clip (1), Cord Clip (1),

Wind Screen (1), Belt Clip (1), Belt Clip Screw (1), Antenna (2),

AC adapter (1), Quick Start Guide (1), Before Use (1), CD-ROM (1)

Brand

Sony

Sony

Reviews

There are no reviews yet.

Be the first to review “Sony DWZ-B70HL” Cancel reply

You must be logged in to post a review.

Related products

  • Sennheiser ew 300 G4-HEADMIC1-RC Bodypack Headmic SetSennheiser ew 300 G4-HEADMIC1-RC Bodypack Headmic Set

    Sennheiser ew 300 G4-HEADMIC1-RC Bodypack Headmic Set

    £1,005.00 Inc VAT
  • Trantec S4.10 Theatre Headmic Radio SystemTrantec S4.10 Earworn Presenter's Radio System (SJEM77-P)

    Trantec S4.10 Theatre Headmic Radio System

    £469.00 Inc VAT
  • Audio Technica BP893xAudio Technica BP893x

    Audio Technica BP893x

    Call for price

Need professional advice or a bespoke solution for your requirement? Click Here

Contact us today for your church's audio visual solution!
DM Music Logo

We are the leading supplier and installer of Sound and Audio Visual systems to UK Churches. Since 1992 we have completed over 3,000 church installations. ...read more


Heritaqe AV

A division of DM facilitating non-Church related installation work. ...read more

We're here to help, call us for free support and advice: 01582 761122

Email us: support@dmmusic.com

Need it installed? We are an installation company!

Buy securely online with confidence

We offer training at your Church

Subscribe to our newsletter here

Busy day finishing up this bespoke stage 🔨📏 Busy day finishing up this bespoke stage 🔨📏 Trimmed in solid oak with built-in storage and floor boxes with angled socket plates - CNC machined in house 😍 #dmmusic #avinstaller #soundsystems #carpentry #stage #church #bespoke #custom #installation #churchav
Did you know? ❓ We work with expert carpenters t Did you know? ❓ We work with expert carpenters to design and build totally bespoke consoles to suit every PA, AV or streaming requirement 📝🔨

#livestream #livestreaming #church #av #pa #audiovisual #professional #bespoke #worship #roland #lumens #magewell #live #streaming #uk #broadcast #youtube #facebook #twitch #service #cathedral #console #rack #equipment #yamaha #carpenter #blackmagic #blackmagicdesign
Whatever your live-streaming requirement is, our p Whatever your live-streaming requirement is, our project managers will work with you to find the perfect solution!

Pictured is a portable multi-camera system which we installed in Wilton, Wiltshire towards the end of 2020.

Cameras - @bolintechnology
Vision mixer - @roland_uk
Camera controller - @marshall_usa
Streaming encoder - #magewell

#livestream #livestreaming #church #av #pa #audiovisual #professional #bespoke #worship #roland #bolin #marshall #live #streaming #uk #broadcast #youtube #facebook #twitch #service #cathedral
We recently installed PA, AV and streaming systems We recently installed PA, AV and streaming systems as part of a major refurbishment project for a church in Guildford.

This included professional products from @allenandheath @roland_uk @zero88 @birddog_gear @kramerelectronicsltd @yamaha_proaudio_official @lgcommdisplays @surgexav and many more!

Bespoke operator consoles designed and built in-house by @dmmusicltd

#proav #installation #audiovisual #bespoke #consultants #guildford #dmmusic
Recently installed acoustic wall and ceiling panel Recently installed acoustic wall and ceiling panels.

#churchinstallation #churchinstall #acousticpanels #acoustictreatment #artnovion #soundsbetter
Recently installed discreet PTZ camera with custom Recently installed discreet PTZ camera with custom bracket.

#churchstreaming #churchinstall #churchinstallation #churchav #ptzcamera
More PTZ Camera testing - NDI, SDI, HDMI, HDBaseT. More PTZ Camera testing - NDI, SDI, HDMI, HDBaseT.
It’s great to be installing so many more PTZ cameras to help churches live stream their services.

#livestreaming #churchonline #churchlivestream #churchav #ptzcamera #churchavinstallation
If you’re thinking about streaming your church s If you’re thinking about streaming your church services take a look at our ‘Before You Start Streaming’ Guide for some advice on how to approach it. Link in bio.
#Churchstreaming #livestreamingchurch #livestreamingchurchservice #churchlivestream #churchlivestreaming #churchaudiovisual
Another successful DM audio-visual installation in Another successful DM audio-visual installation in a new build London Church. The @martinaudio CDD range helped us overcome the audio challenges.  #churchsoundsystem #churchsound #churchav #martinaudio #martinaudiocdd
Follow on Instagram

Support Links

About Us

Contact Us

Privacy Policy & Cookies

Terms & Conditions

Delivery & Returns Info

Job Opportunities

© 2021 DM Music Ltd
DM Music Ltd, Unit 4, Riverside Estate, Coldharbour Lane, Harpenden, Hertfordshire, AL5 4UN | Registered in England & Wales No.06747770
0
