Pure sound: the super-cardioid capsule captures more of what you want while rejecting off-axis noise. This makes the mic very resistant to feedback as well as a great choice for those working with loud stage volume levels.

The included soundcheck mode on the receiver makes it possible to check the RF signal strength and audio levels continuously. The new G3 sync function allows you to wirelessly link the transmitter with the receiver with a simple push of a button. Lastly, the true diversity receiver has a built-in 5 band equalizer which completes this professional sound package.

If you do intend to run on Channel 38 you will require a licence from Ofcom. Operating on Channel 70 will not require a licence.

Features:

• Sturdy metal housing (transmitter and receiver
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Illuminated graphic display (transmitter and receiver)
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter feature battery indication in 4 steps, also shown on receiver display
• Handheld transmitter with easy-exchangeable microphone modules from evolution series
• Integrated Equalizer and Soundcheck mode
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Wide range of accessories adapts the system to any requirement

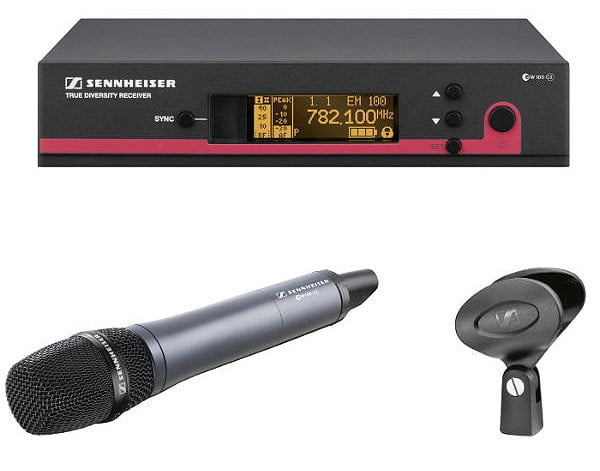

Delivery Includes:

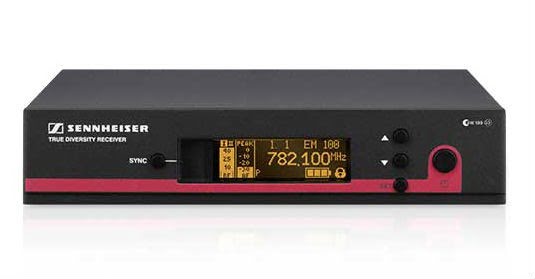

1 EM 100 G3 rack-mount receiver

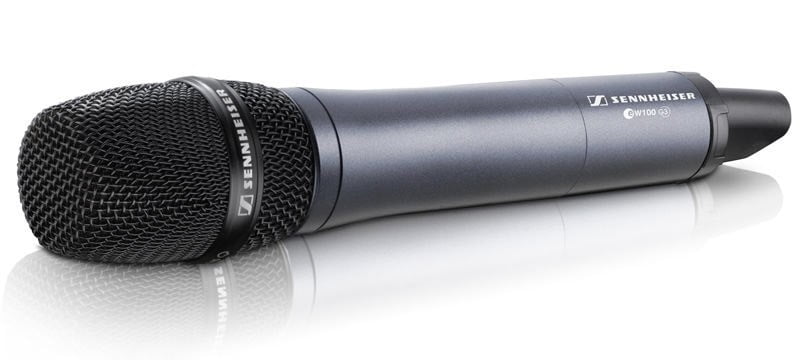

1 SKM 100-845 G3 handheld transmitter (dynamic, super-cardioid)
1 MZQ 1 microphone clip
1 NT 2 power supply unit
2 antennas
2 stacking elements
2 AA batteries
Operating instructions

Technical Data

RF frequency range 516 ….. 865 MHz
Transmission/receiving frequencies 1680
Presets 12
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Compander HDX
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 110 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC

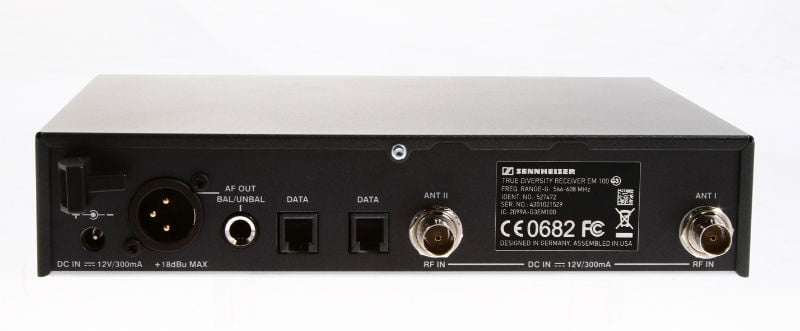

Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) XLR: 18 dBu max
Audio output level (unbalanced) Jack: 10 dBu max
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 900 g
RF output power 30 mW
Operating time (transmitter) typ. 8 h
Dimensions (Transmitter) d= 50 mm, l= 265 mm
Weight (Transmitter) 450 g
Transducer; Microphone type dynamic
AF sensitivity 1,6 mV/Pa
Sound pressure level (SPL) 154 dB(SPL) max.
Pick-up pattern super-cardioid
