- Beltpack to Beltpack wireless lapel system
- For use with cameras and portable presentations

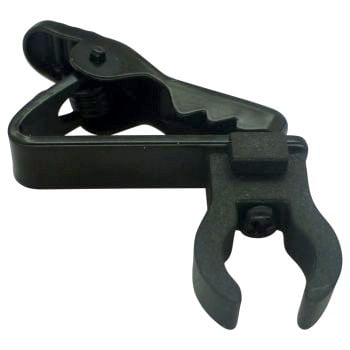

- Includes ME-2 US lapel mic
- Available in Chan 70, Chan 38 and other coordinated frequencies

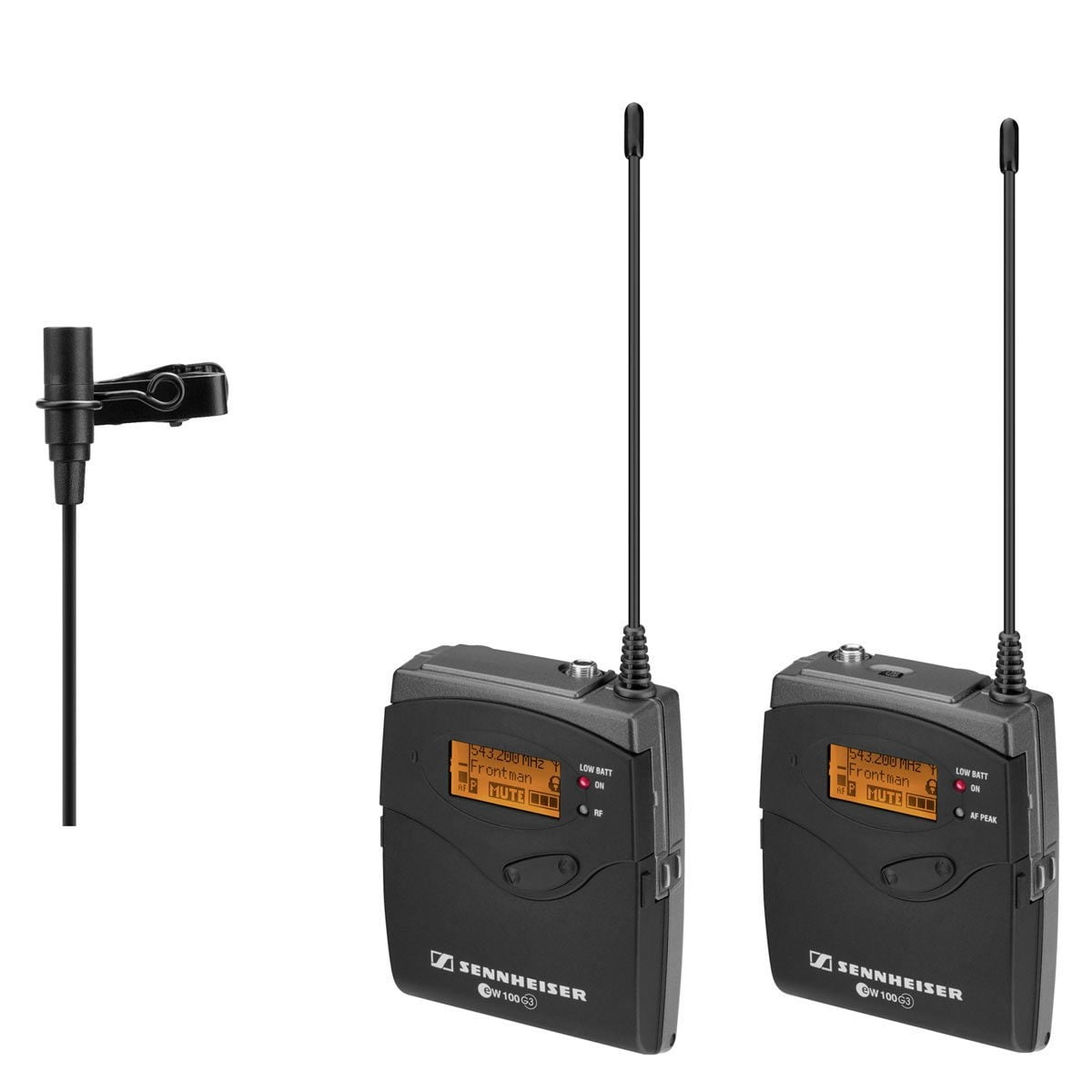

Fast, flexible and professional: these characteristics make the ew 112-p G3 the perfect fit for every ambitious reporting team seeking both portability and great sound quality. The nearly invisible clip-on omni-directional microphone transmits its signal via a bodypack transmitter with mute function and a portable, battery-powered adaptive-diversity receiver. The receiver and transmitter are lightweight and easy to operate, yet rugged and packed with features.
If you do intend to run on Channel 38 you will require a licence from Ofcom. Operating on Channel 70 will not require a licence.
Features:
- Sturdy metal housing (transmitter and receiver)
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- Adaptive-diversity reception for high reception quality
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter and receiver feature battery indication in 4 steps
- Programmable Mute function
- Contacts for recharging BA 2015 accupack directly in the transmitter or receiver
- Wide range of accessories adapts the system to any requirement
Delivery Includes:
- 1 EK 100 G3 diversity receiver
- 1 SK 100 G3 bodypack transmitter
- 1 ME 2 clip-on microphone (omni-directional)
- 1 CL 1 jack cable
- 1 CL 100 XLR cable
- 1 CA 2 camera adaptor
- 4 AA batteries
- Operating instructions
Transmission/receiving frequencies | 1680 |
Presets | 12 |
Switching bandwidth | 42 MHz |
Peak deviation | /- 48 kHz |
Compander | HDX |
Frequency response (microphone) | 80…..18000 Hz |
Signal-to-noise ratio | > 110 dB(A) |
THD, total harmonic distortion | < 0,9 % |
In compliance with | ETS 300422 , ETS 300445 , CE , FCC |
Audio-XLR connector | 3,5 mm jack |
Audio output level (balanced) | 10 dBu max |
Dimensions (Receiver) | 82 x 64 x 24 mm |
Weight (Receiver) | ~ 160 g |
RF output power | 30 mW |
Operating time | typ. 8 h |
Input voltage range | 1,8 V line |
Input voltage range | 3,0 V eff line |
Dimensions (Transmitter) | 82 x 64 x 24 mm |
Weight (Transmitter) | ~ 160 g |
Transducer; Microphone type | elektret |
AF sensitivity | 20 mV/Pa |
Sound pressure level (SPL) | 130 dB(SPL) max. |
Pick-up pattern | omni- directional |
