TOA 5000 Series True Diversity Lapel System

£619.00 Inc VAT

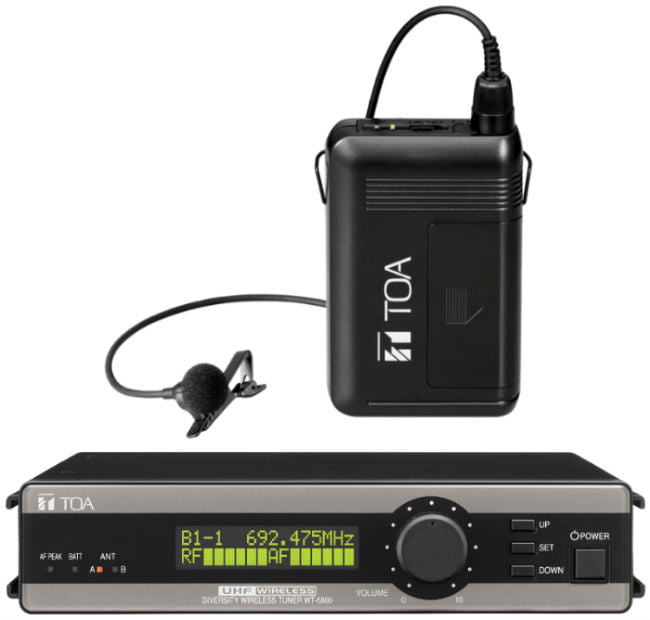

Lapel radio mic system – True Diversity
Includes….

  • WT5800 receiver (True Diversity)
  • WM-5325 beltpack transmitter
  • YP-M5310 lapel mic (omnidirectional)
  • Simple to use, reliable radio mic system
  • Rack mountable (with optional rack kit)
  • Available in Channel 70 (no licence required) and Channel 38 (licence required)
TOA

Category: SKU: RM/LAP/TOA07

TOA are one of the most respected names in Pro-Audio, renowned for superior build and high quality.

Available in channel 70 (no licence required) (D04) and Channel 38 (licence required) (G01) – please select

FEATURES

  • Rack mountable
  • True Diversity
  • Balanced XLR Output
  • Digital display
  • Superb build quality
  • Stable UHF transmission
  • Economical to run – more than 10hrs from a single AA battery!

TOA wireless microphone tuners rely on Phased Lock Loop(PLL)synthesis for excellent performance levels, stability and reliability. Oscillation frequency changes caused by changes in ambient temperature are kept to a minimum. For a dramatic reduction in noise during changeover between antennas, true diversity and space diversity are now employed. The two truediversity tuner models are equipped with a twin antenna and support condenser microphones. A channel search function is incorporated in all tuners, and a two-line LCD display enables faster meter reading. Remaining battery power indication is also provided.

TOA true diversity and space diversity circuitry are incorporated in the WT-5000 Series tuners to ensure constant area coverage. Compared to conventional diversity tuners, TOA models come with simpler and more effective circuitry, thus enhancing overall performance and reliability.

System includes:

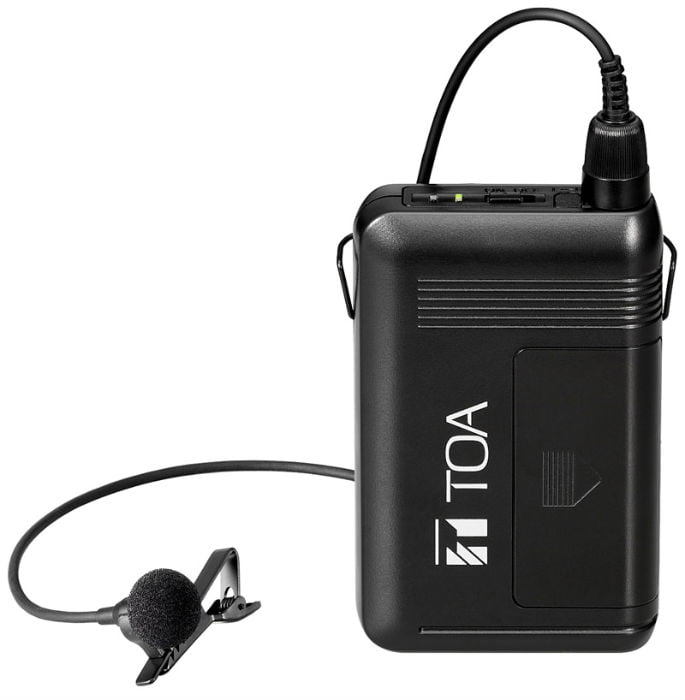

WM-5325:
UHF beltpack transmitter

Operating range: 3m – 120m.
Omnidirectional electret condenser microphone element.
Four 16-channel banks of circuit frequencies.
Maximum input level: 110dB SPL.
Built-in circuitry minimizes ambient noise effects.
Single AA battery operation for more compact and lightweight body.
Low-battery indicator.
Connector for 3.5 mini-plugs.
Built-in antenna.
Neck strap is provided.

TOA wireless microphone tuners rely on Phased Lock Loop(PLL)synthesis for excellent performance levels, stability and reliability. Oscillation frequency changes caused by changes in ambient temperature are kept to a minimum. For a dramatic reduction in noise during changeover between antennas, true diversity and space diversity are now employed. The two truediversity tuner models are equipped with a twin antenna and support condenser microphones. A channel search function is incorporated in all tuners, and a two-line LCD display enables faster meter reading. Remaining battery power indication is also provided.
The WT-5000 Series tuner units are the 250mA true diversity WT-5800 and space diversity WT-5805, and the 130mA space diversity WT-5810. The WT-5800 and WT-5805 each provide 4 x 16 selectable frequencies, while the WT-5810 provides a 16-frequency selection.

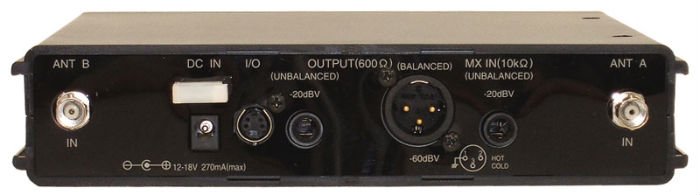

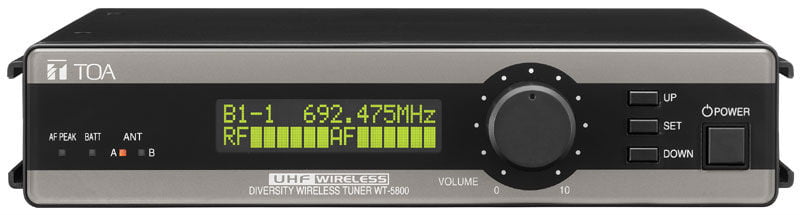

WT-5800: UHF True Diversity receiver

Phased Lock Loop (PLL) synthesis operation.
Four 16-channel banks of circuit frequencies.
True diversity technology.
Double super-heterodyne receiving system.
Two-line LCD display.
Auto mixing input function.
Squelch function (carrier, noise, tone).
Usable frequencies scanning channel search function.
Compact half-rack size body.
Microphone sensitivity adjustment function.
Compander circuitry for minimizing ambient noise.
Antenna distribution output.
Low-battery indicator.

NOTE: If using rechargeable batteries we recommend Nickel Metal Hydride (NiMH) type.
