Sennheiser EW-DX MKE 2 / 835-S Set – Dual Lapel/Handheld System

£2,279.00 Inc VAT
  • Consists of EW-DX SKM-S, MMD 835 capsule, EW-DX SK, MKE 2, EW-DX EM 2 and 2 x BA 70
  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
Sennheiser

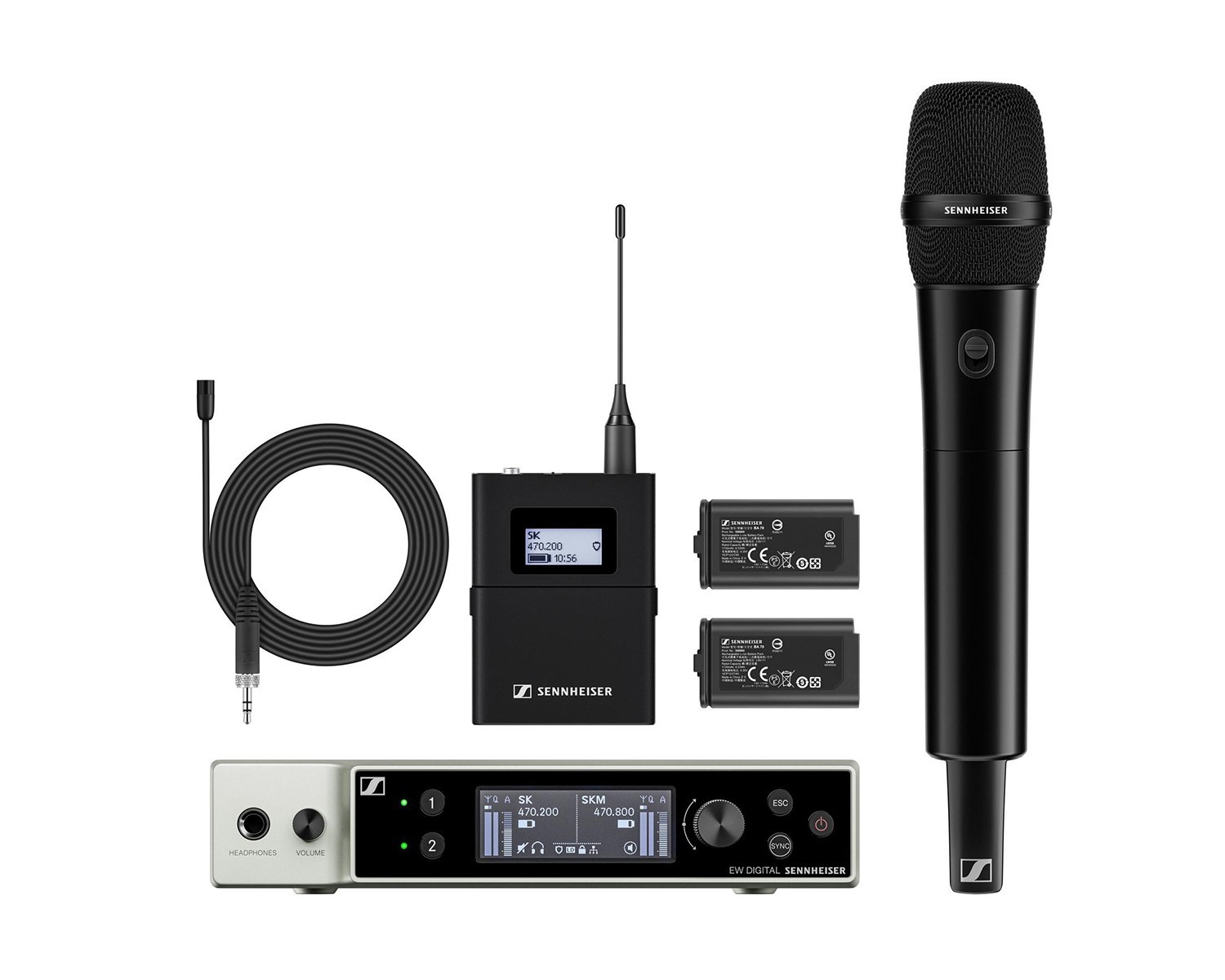

This combo set consists of 1 x EW-DX SKM-S (handheld with mute switch), 1 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX SK (wireless bodypack transmitter), 1 x MKE 2 (omni-directional clip-on lavalier microphone), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.

The Best Choice for Professional Users, Businesses and Educators: All-in-one combo set for digital wireless applications featuring 2-channel receiver, handheld transmitter and body pack transmitter with clip-on lavalier microphone.

Features

  • 134 dB input dynamic range – no need to set gain on your wireless transmitters at all, thanks to the proprietary Sennheiser Performance Audio Codec (SePAC)
  • AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing – even without RF knowledge
  • Network-enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM – Available in mid-2023) and 3rd party media control systems via plug-in
  • Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late-2023)
  • Secure transmission of confidential content using AES 256 encryption
  • Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
  • Function buttons – control all the transmitter settings directly from the handheld including button lock function
  • Persistent E-Ink display for “always on” information – parameters visible on screen even when taking out batteries
  • Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
  • Up to 88 MHz switching bandwidth
  • Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
  • Digital audio trim
  • Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)
  • Sennheiser Standard Capsule Interface – compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
  • Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
  • Worldwide usage (specific frequencies subject to local RF regulations)

System

  • Audio link frequency ranges (select in product drop down):
    • Q1-6:  470.2 – 526 MHz
    • R1-6:  520 – 576 MHz
    • R4-9:  552 – 607.8 MHz
    • S1-7:  606.2 – 662 MHz
    • S4-7:  630 – 662 MHz
    • S7-10:  662 – 693.8 MHz
    • U1/5:  823.2 – 831.8 MHz & 863.2 – 864.8 MHz
    • V3-4:  925.2 – 937.3 MHz
    • Y1-3:  1785.2 – 1799.8 MHz
  • Bluetooth® Low Energy (BLE) frequency range:  2402 – 2480 MHz
  • Audio frequency response:
    • 20 Hz – 20 kHz (-3 dB)
    • @ 3 dBfs
  • Audio THD:
    • ≤ -60 dB for 1 kHz
    • @ -3 dBfs input level
  • Dynamic range:  134 dB
  • System latency:  1.9 ms
  • Operating temperature:  -10 °C – +55 °C (14 °F – 131 °F)
  • Relative humidity:  5 – 95 % (non-condensing)

 EW-DX EM 2 (Rack Receiver)

  • Input voltage:  11 – 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
  • Input current:  ≤ 1 A
  • Transmit power (radiated):  BLE: max. 10 mW EIRP
  • Audio output power:  18 dBu max.
  • Headphone output:  2x 70 mW @ 32 Ω
  • Ethernet:
    • RJ-45 socket, IEEE802.3
    • 100Base-TX (half+full duplex)
    • 10Base-T (half+full duplex)
    • (CAT5e or higher)
  • Dimensions:  212 x 44 x 189 mm (8.35″ x 1.73″ x 7.44″)
  • Weight:  approx. 1000 g (2.2  lbs) (without antennas and power supply)

MMD 835 (Microphone Module)

  • Transducer principle:  dynamic
  • Sensitivity:  2.1 mV/Pa
  • Sound pressure level:  154 dB SPL
  • Pick-up pattern:  cardioid

EW-DX SKM-S (Handheld Transmitter)

  • Input voltage:  2.0 – 4.35 V
  • Input current:  < 300 mA
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):
    • Audio link: 10 mW ERP
    • (Range Y1-3: 12 mW ERP)
    • LD mode: 10 mW ERP
    • BLE: max. 10 mW EIRP
  • Dimensions (ø x l)
    • (incl. MMD  835 microphone module):  50 x 268 mm (1.97″ x 10.55″)
    • (without microphone module):  40 x 200 mm (1.57″ x 7.87″)
  • Weight (without batteries)
    • (incl. MMD  835 microphone module):  approx. 304 g (0.67 lbs)
    • (without microphone module):  approx. 195 g (7.14 lbs)

EW-DX SK (Bodypack Transmitter)

  • Input voltage:  2.0 – 4.35 V
  • Input current:  < 300 mA
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):
    • Audio link: 10 mW ERP
    • (Range Y1-3: 12 mW ERP)
    • LD mode: 10 mW ERP
    • BLE: max. 10 mW EIRP
  • Dimensions (without antenna):  63.5 x 85 x 20 mm (2.5″ x 3.35″ x 0.79″)
  • Weight (without batteries):  approx. 115-120 g (0.26- 0,27 – lbs)

MKE 2 (Lavalier Microphone)

  • Transducer principle:  pre-polarized condenser microphone
  • Pick-up pattern:  omni-directional
  • Sensitivity (free field, no load) (1 kHz):  5 mV/Pa +- 3 dB
  • Max. SPL at 1 kHz:  142 dB
  • Frequency response:  20 to 20,000 Hz
  • Equivalent noise level A-weighted:  26 dB
  • Connector:  3.5 mm jack
  • Cable length:  approx. 1.60 m (62.99″)
  • Supply voltage:  7.5 V
