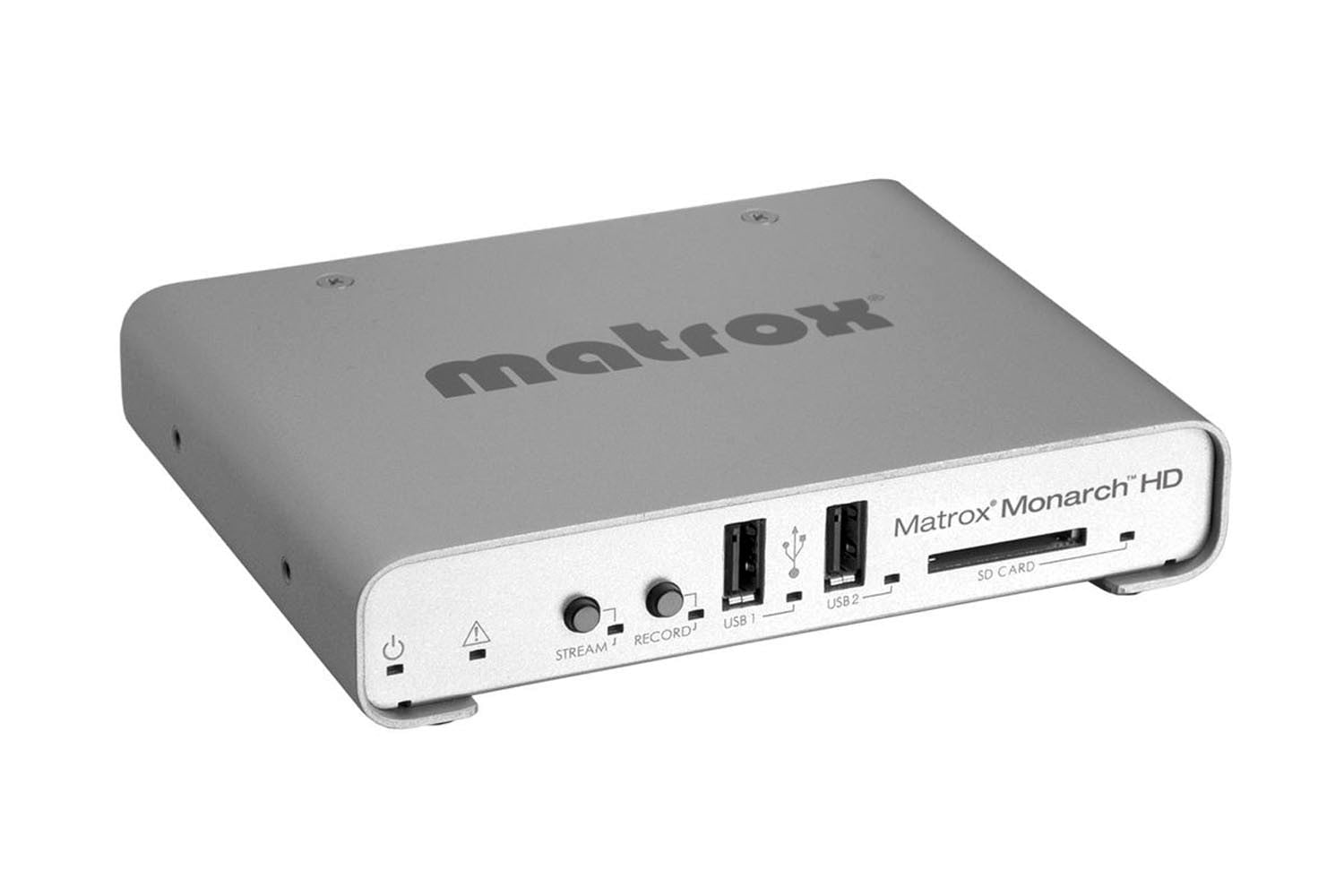

Matrox Monarch HD

Call for price

Small, easy-to-use video streaming and recording device designed to stream a live event while simultaneously recording a higher, master quality version. Streaming to YouTube or Facebook Live is made easy through simplified set up for these platforms.

  • Simultaneous Live Streaming & Recording
  • HDMI Input and Output
  • Up to 20Mbps Streaming/30Mbps Recording
  • H.264 RTSP/RTMP Streaming
  • H.264 MP4 Recording with 2 Ch AAC Audio

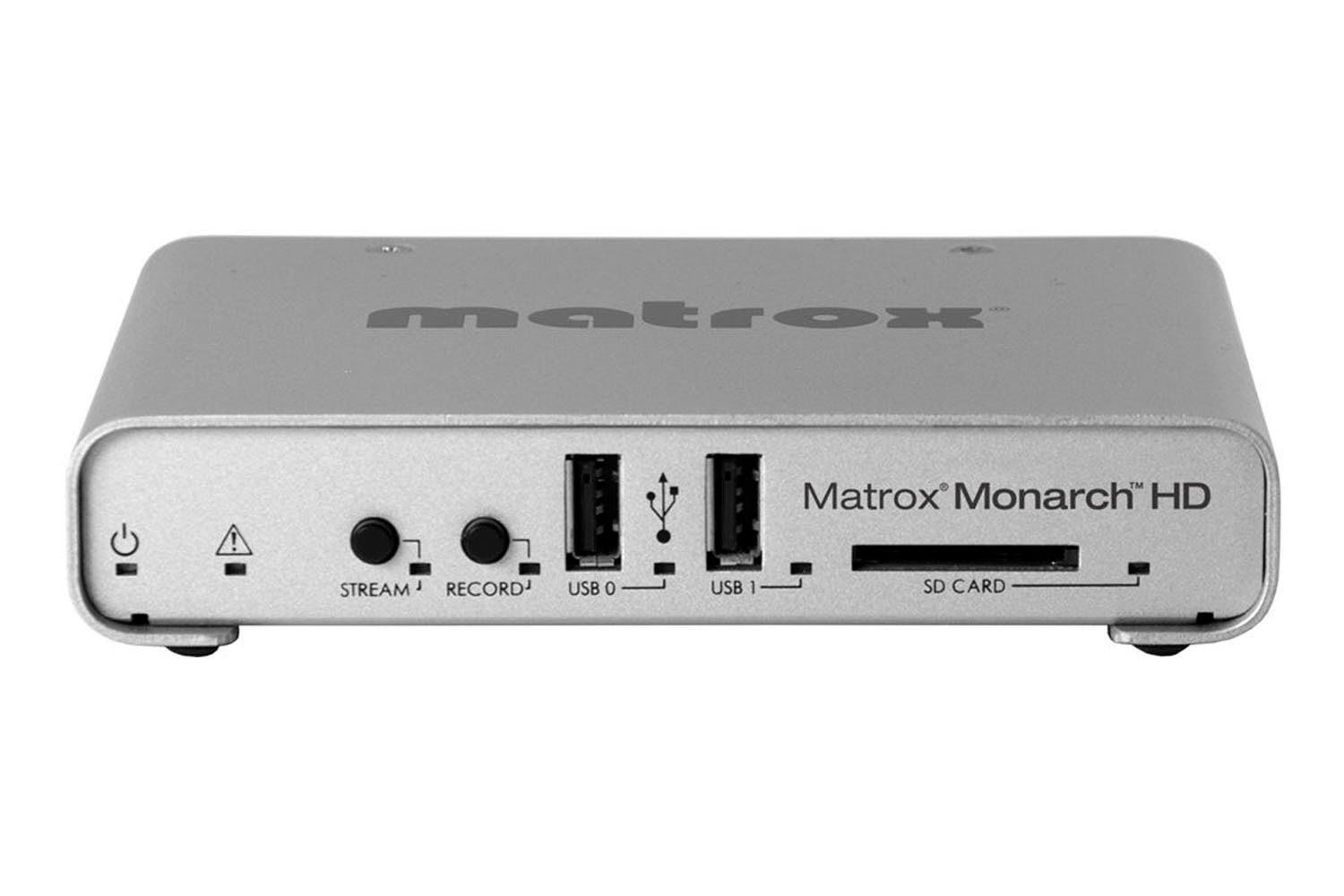

  • Start/Stop Front Panel Buttons
Matrox
Category: SKU: OB/AV/EN/MATROX01

Professional Video Streaming and Recording Appliance

Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers to stream a live event while simultaneously recording a higher, master quality version for post-event editing or archiving. Webcasting to YouTube and Facebook Live is made easy through its simplified set up for these popular platforms. All that’s needed is to pair the device once with these accounts and it’s automatically retained for subsequent streams.

From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.

Easily Webcast to Your Audience

Monarch HD can provide live content to CDNs such as YouTube, Facebook Live, and Ustream; media servers such as Adobe Flash and Wowza; or directly to a computer or device found on a LAN.The device is easily configured and paired for YouTube and Facebook accounts with a few short steps. As a certified “Works with Wowza” encoder it allows users to benefit from enhanced integration with the Wowza™ streaming engine. Additionally, Monarch HD supports XML files generated for use with Flash Live Media Encoder.

Record Master Quality Video while Streaming

If an event is worth streaming, it is worth recording at the highest possible quality. The better the recording quality, the more value it offers a post event produced asset. These assets can be made available to your audience as fast turnaround VOD files or as fully post produced highlight reels.

Matrox Monarch HD supports sharing the H.264 encoder between the streaming and recording processes so recording quality and upload bandwidth are independent of each other. A typical setting will let a user record a master quality file at 25 Mbps while simultaneously streaming at a bitrate of 5 Mbps. As a dedicated streaming or recording appliance, Matrox Monarch HD can stream at bitrates up to 20 Mbps or record at bitrates as high as 30 Mpbs.

Matrox Monarch HD injects the highest quality video into every bit regardless of input source or target bitrate. Combining the power of the built-in H.264 encoder with Matrox’s high quality deinterlacing and scaling engines guarantees stunning results.

Ready to Edit and Upload with MP4 and MOV

Matrox Monarch HD gives the option of recording high quality H.264 video as MP4 or MOV files. These formats offer maximum versatility for use in any application. Upload a file to your own web server or to a Content Delivery Network (CDN) like YouTube. Alternatively, you can directly import the file into most creation tools without the need for file transcoding.

Robust and Practical Design

Powerful and robust, Matrox Monarch HD offers simple, one touch stream and record pushbuttons, low power consumption, a locking power connector, and a fanless design. Matrox Monarch HD’s HDMI output makes it easy to monitor what you are streaming and recording, regardless of whether the signal is received from a camera, a switcher, a signal convertor, or a computer. All eight channels of embedded audio can be passed from the HDMI input to HDMI output ports. Two channels of analog audio input with loopout are also available via 1/8″ stereo jacks. Its design allows Matrox Monarch HD to be just as easily located on a desktop as in a rack–up to three units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back.

Record to Anything

Matrox Monarch HD lets you select from a variety of recording media types. Use an SD card when a compact portable solution is required or a USB drive for long form recording. Alternately, a system drive on a computer found on the network may prove extremely useful if multiple individuals need to access the footage.

The Monarch HD provides users the ability to create split files while recording. This is particularly useful when recording for extended periods of time. The user can enter a file length and Monarch HD will automatically split your recording into separate files, switching to a new file without losing a single frame. When loaded on an NLE timeline sequentially, they will playback seamlessly and can be exported as a single contiguous file.

Regardless of how or where you store the footage, the record controls can be executed without affecting the streaming operations. High quality files will be available to create video assets to complement the live stream well after the event is completed.

Presets and Profiles for Simple Configuration

The Monarch HD firmware ships with a number of typical streaming and recording presets that define all the encoding parameters including resolution and bitrate. Whether preset or custom parameters are used, they only need to be entered once and saved as a unique profile. A profile not only contains encoding parameters but also destination information detailing where the encoded video is being sent. Multiple profiles can be saved if the device is used in different environments. Recording and streaming profiles are saved independently allowing a user to mix and match profiles depending how the Monarch is being used at the time. Each profile can be loaded instantly without having to re-enter data.

Remote Command and Control

A simple web page is all that is needed to harness the power of Matrox Monarch HD. You can control and configure the appliance using any device on your network that supports a standard web browsing application.

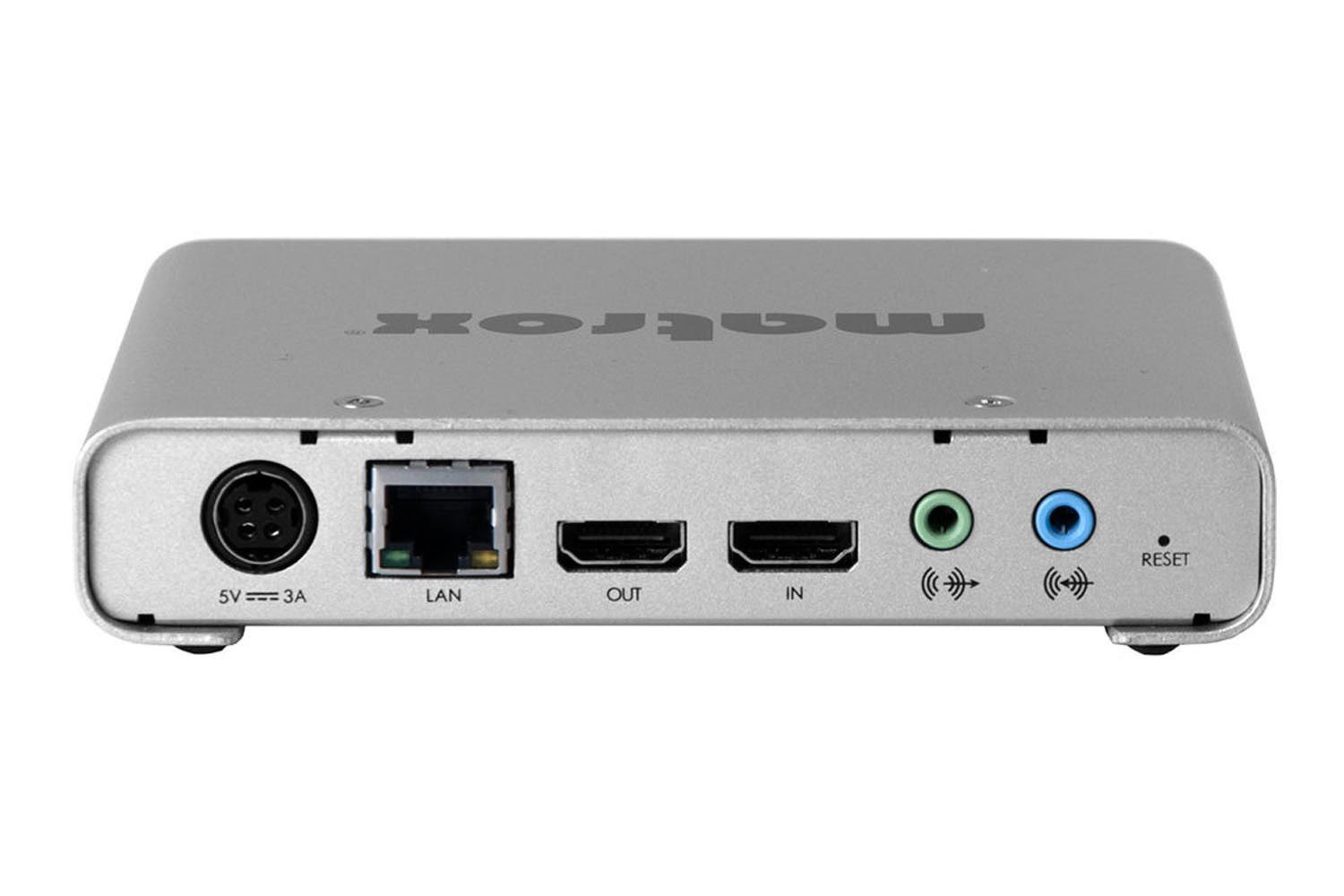

Inputs and Outputs
HDMI Video Input Progressive
1920×1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
1280×720@ 60/59.94/50 Frames per secondInterlaced
1920x1080i 29.97/25 frames per secondVideo Input Format is Auto-Detected
HDMI Video Output Preview output of video input signal. 2 Frame delay from input to output.
Audio Input Processes first two channels of audio embedded in HDMI input signal.
Unbalanced analog stereo input via 1/8” (3.5mm) jack.
Line Level
Audio Output Passthrough of all embedded audio channels in HDMI signal.
Unbalanced analog stereo output via 1/8” (3.5mm) jack – passthrough of input.
Line Level
H.264/MPEG-4 Part 10 (AVC) Video Encoder
Resolutions Selectable encoding resolutions ranging from:
128×128 to 1920×1080
Bit Rates Ranges Record Only Mode: 100 kbps to 30 Mbps
Stream Only Mode: 100 kbps to 20 MbpsIndependent Stream and Record Mode**:
Recording: 100 kbps – 30 Mbps
Streaming: 100 kbps – 10 Mbps
Maximum combined total bitrate of 30 Mbps**Note that when both streaming and recording resolutions are above 1280×720, the encode parameters must be identical for both processes. Completely Independent recording and streaming settings are available when either the streaming or the recording resolution is 1280×720 or below.
Encode Frame Rates Encode frame rates representing 1:1, ½ and ¼of the input frames rates are supported

Note that the maximum encode frame rate is 30 fps when encode resolution is 1920 x 1080

Encoding Profiles Baseline, Main and High
Encoding Controls 2.0, 3.0, 3.1, 4.0, 4.1 Level Support
GOP Size and Structure
Variable bit rate support
Average max/min data rate controls
Deblocking Filter
View Samples Click here
MPEG-4 AAC Audio Encoder
Standard AAC-LC
Sample Frequency 32, 44.1 and 48 kHz when digitized from analog source
Channels 2 channels Stereo (L/R)
Bit Rates Range from 32 kbps to 256 kbps
Scaler
High Quality multi-tap 10 bit Down Scaler and De-Interlacer.
Available to both streaming and recording operations.
Recording File Format
File Type Industry Standard MP4 and MOV files with two channels of embedded AAC audio.
Recording Lengths Maximum file length of 300 minutes – irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch HD will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes.
Network Interfaces
Connector RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing
Protocols RTMP, RTSP/RTP
IPv4 Support
Unicast and Multi Unicast (number of clients may vary from 3 to 10)
User Interface
Computer Based control HTTP via standard PC or Mac web browser using Matrox Command Center. The simple Monarch HD Control API is also available to programmers to create their own application to start and stop the Monarch HD.
Physical Interface On Device push buttons for independent streaming and recording Start/Stop control
Storage Types for File Recording
2 x USB 2.0 Support for NTFS (3.1) and FAT32 file system
The Monarch HD will support writing to USB3 devices at USB2 speeds. Also note, there is a very high variability in the performance capabilities of “thumb” drives (even USB3 versions). Many are optimized for “read” operations while the Monarch HD requires sustained “write” capabilities. For best results, Matrox recommends using powered USB drives. If small portable media is required, SD cards may be more suitable.
1 x SD card Slot Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported. (Class 10 highly recommended).
Network Mapped Drive Support for writing to shared folders in computers found on a network using Windows Share protocols (SMB v1) (suitable for windows system) as well as NFS protocols (suitable for Mac and Linux systems).
Matrox Command Center Web UI
Status Page Provides relevant operational information concerning Status of MonarchHD unit at that time including; Input video detection and resolution, State and configuration of Streaming operation, State and configuration of Recording operation, Error conditions, etc.
Control Page Recording and Streaming operations initiated here including Synchronized start/stop operations. Multiple Monarch devices can be synchronized in a Master/Slave topology to allow for synchronized record and streaming operations across multiple units via a single interface.
Record Settings Configuration of recording parameters set within this page. A number of presets are included which are selected based on post event use of the recorded asset. If file is to be uploaded for VOD purposes, a YouTube preset may be selected. If content is to be edited for high quality production, a higher bitrate preset may be preferable.
Streaming Settings Configuration of Streaming parameters performed on this page. The RTMP or RTSP credentials as well as encoding parameters are entered. Encoder presets have been included to quickly select an ideal encoder settings based on desired delivery resolution or bitrate. The loading of Flash Media Server XML configuration files is supported.
Administrative tools Device Naming, IP configuration, Date/Time settings and a variety of other tasks performed via this page.
Additional Tools Matrox provide PC or Mac based utilities to help detect Monarch HD Device on a particular Network (DHCP server required).
Physical
Dimensions 5.60 in. long (14.2 cm)
4.30 in. deep (10.9 cm) excluding inserted SD-CARD
4.40 in. deep (11.2 cm) including inserted SD-CARD
1.22 in. (3.1 cm) high including rubber feet
Weight 0.66 lbs (300 grams) excluding power supply
Operating conditions 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
Power
  • Line Voltage: 100-240V AC, 0.5A
  • Frequency: 50-60 Hz
  • Input: External AC/DC adapter – IEC320-C8
  • Output: +5VDC, 3A max
  • Total power consumption: 15 Watts
  • DIN4 Locking Power Connector
Transport and Storage Max Operating Altitude: 3000 meters
Max Transport altitude: 12,000 meters
Storage Humidity 5 to 95% relative humidity (non-condensing)
Regulatory
  • FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI
  • RoHS Directive 2002/95/EC
Warranty 2 years with free telephone support
Kit Contents
In the box
  • Matrox Monarch HD device
  • Matrox Monarch HD external power supply
  • IEC-C8 power cords (US, GB and EU)
