Datavideo HS-1600T + 3x PTC-140T

Call for price

The Complete Portable Streaming Package!

Includes: 3x Datavideo PTC-140T Cameras & 1x HS-1600T Streaming Studio.

  • Video mixer + Camera Controller
  • Streaming Encoder (no PC needed!)
  • Recording to SD Card
  • Built-in Monitor Screen
  • Single CAT cable to each camera (signal, control and power over one cable – HDBaseT)



PC NOT REQUIRED FOR STREAMING!
Datavideo

This Datavideo PTZ bundle around the PTC-140T and also includes HS-1600T portable studio.
The PTC-140T is a low-cost HDBaseT PTZ camera, which features 20x optical zoom, 10 digital zoom. The PTC-140T is an IP camera as well, supporting H.264/H.265 video compression and dual stream output.

The HS-1600T Portable Video Studio supports Full HD 1080P and is designed for religious, education and AV markets.

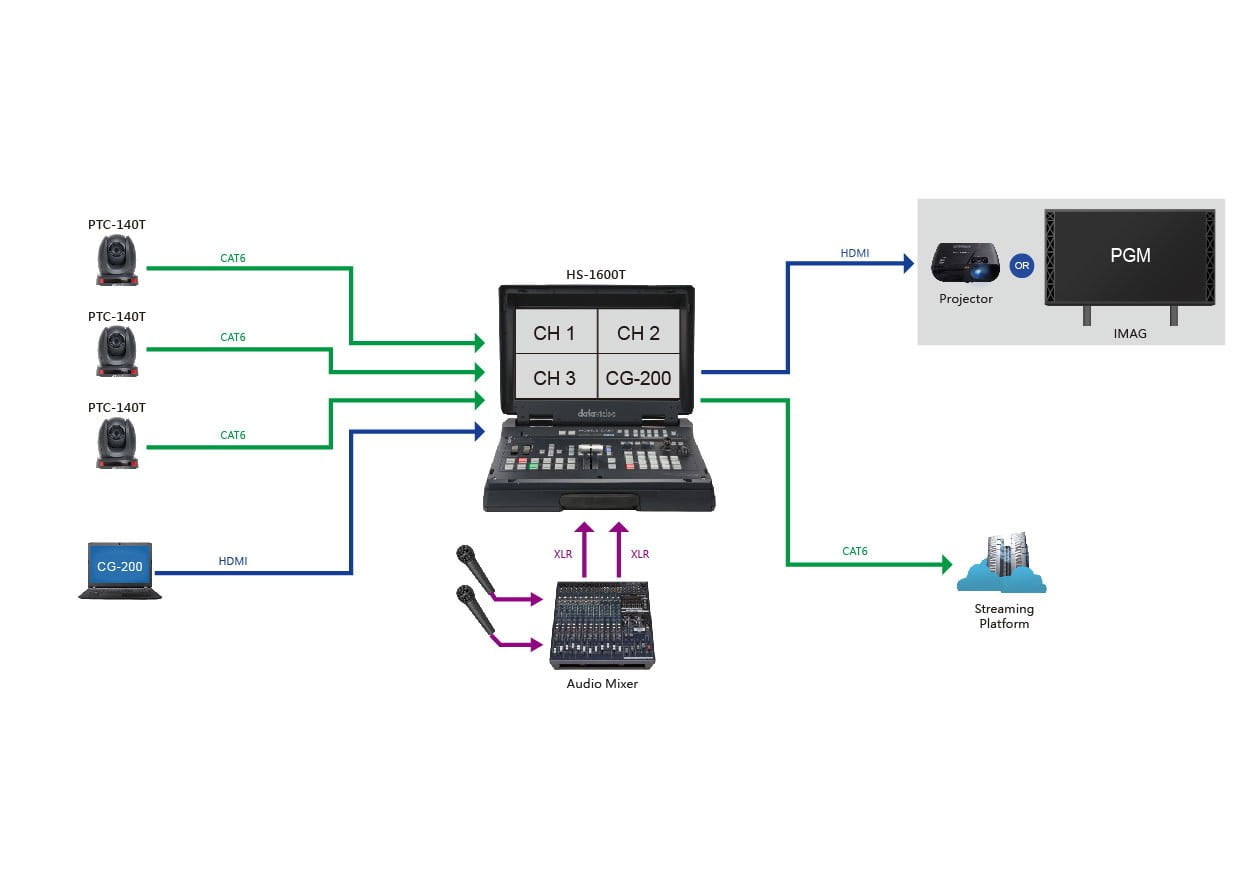

Its built-in HDBaseT technology can receive Full HD 1080p signals from PTC-140T via CAT6 cable (maximum distance 100 meters).
It’s also equipped with the PoE solution to provide power to three PTC-140T. The HS-1600T has Joystick control for Pan, Tilt and Zoom of the PTC-140T. In addition, the HS-1600T also allows the user to adjust the cameras Focus, IRIS and other settings. HS-1600T features easy-to-use video streaming and recording for users who need to simultaneously stream a live event and record the master quality version for post-event editing.

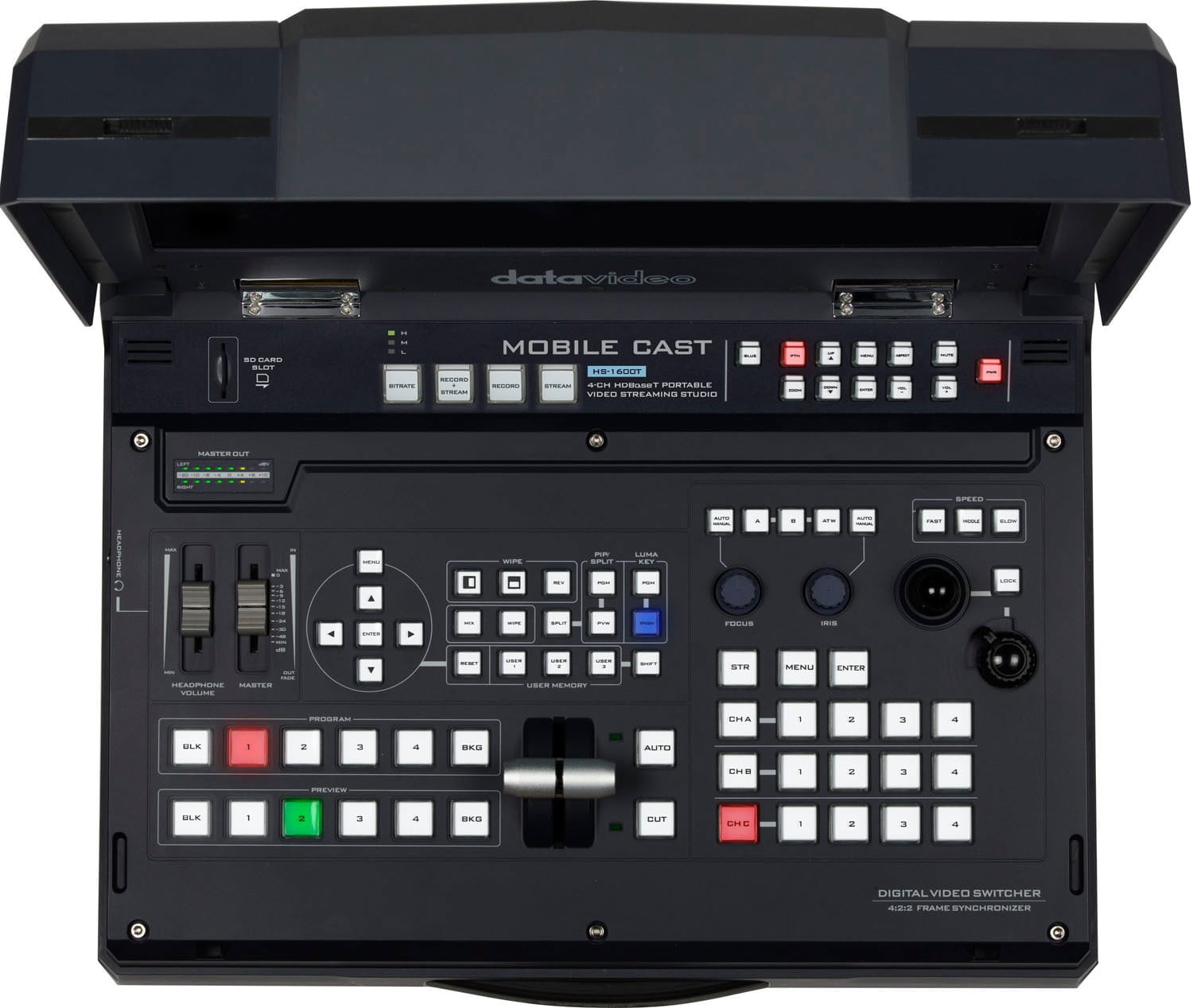

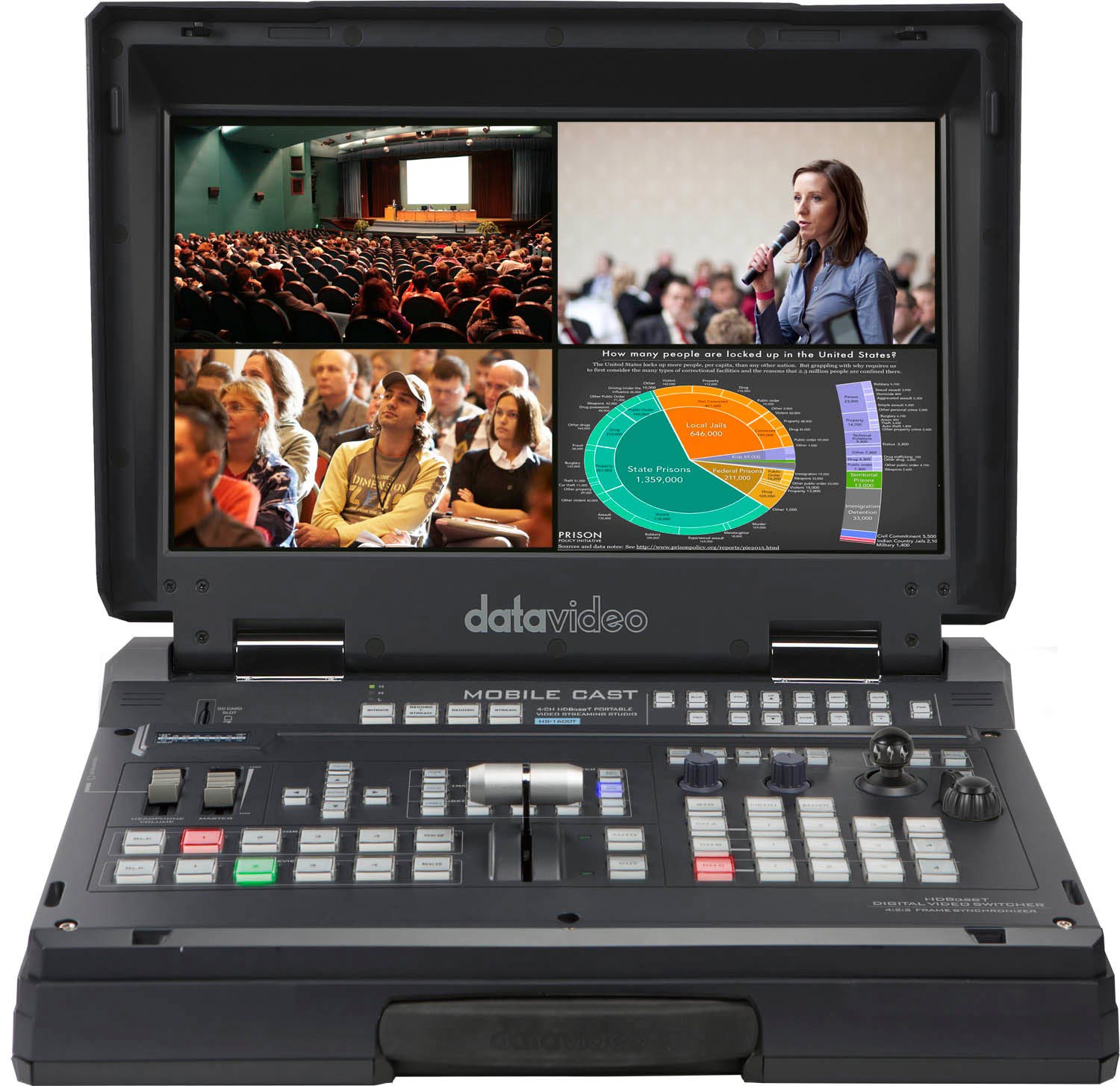

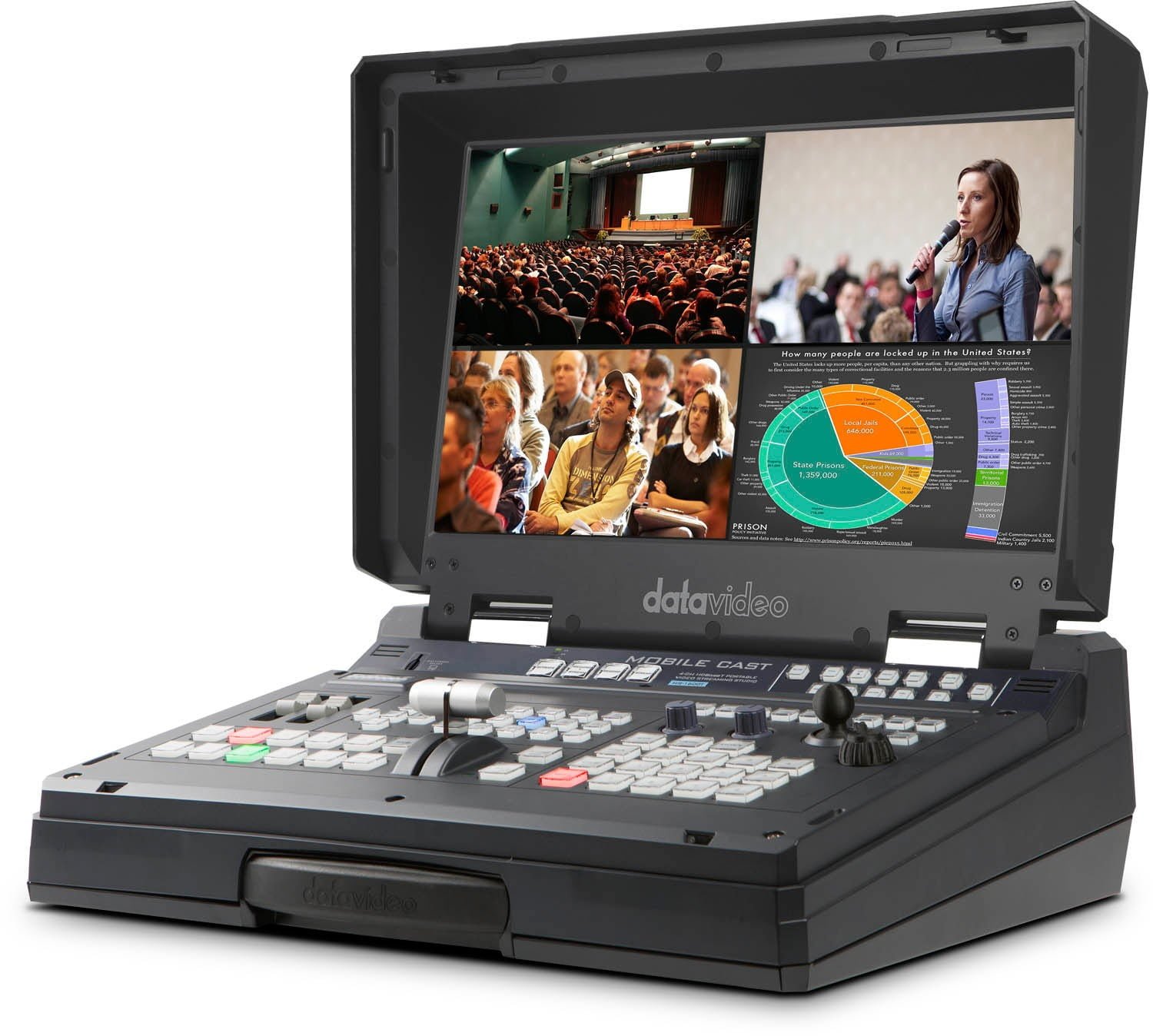

HS-1600T

4-Channel HD/SD HDBaseT Portable Video Streaming Studio

Made for mobility. Made for the web.

The HS-1600T brings a new level of simplicity to production workflows. You’ll set up faster and easier thanks to its portable “briefcase” design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.

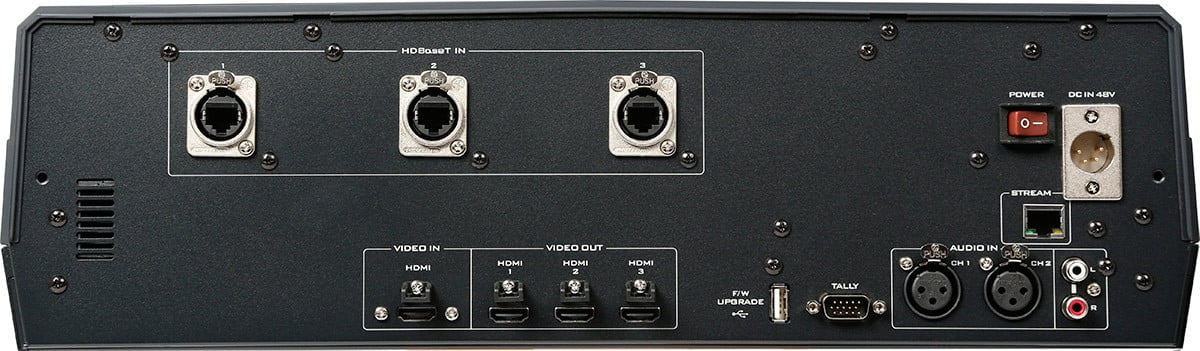

Variety of video and audio input/output

4 Video inputs (RJ-45 x 3 + HDMI x 1) and 3 video outputs (HDMI x 3)
Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2

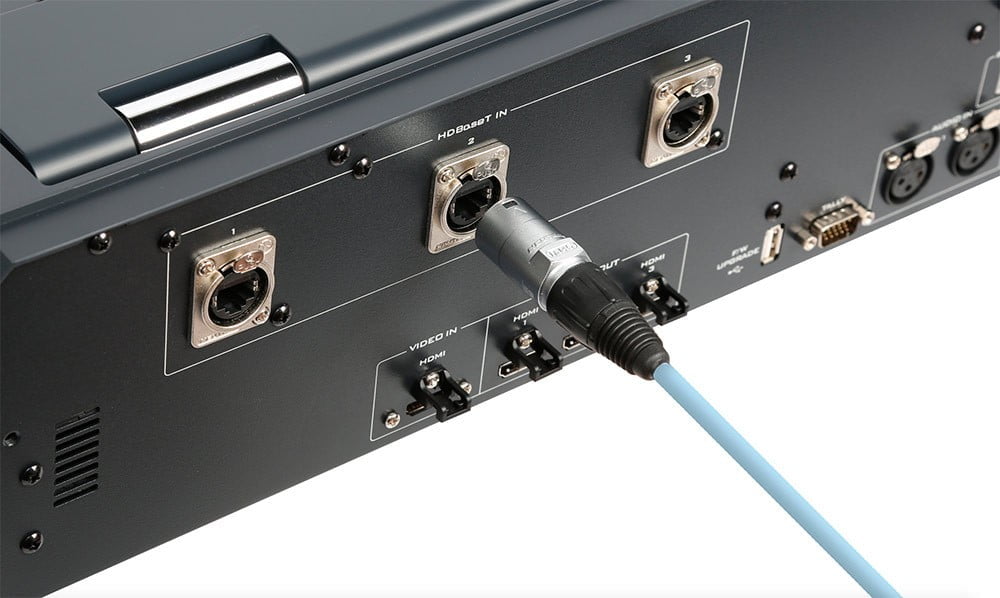

Made with HDBaseT Technology

Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets).

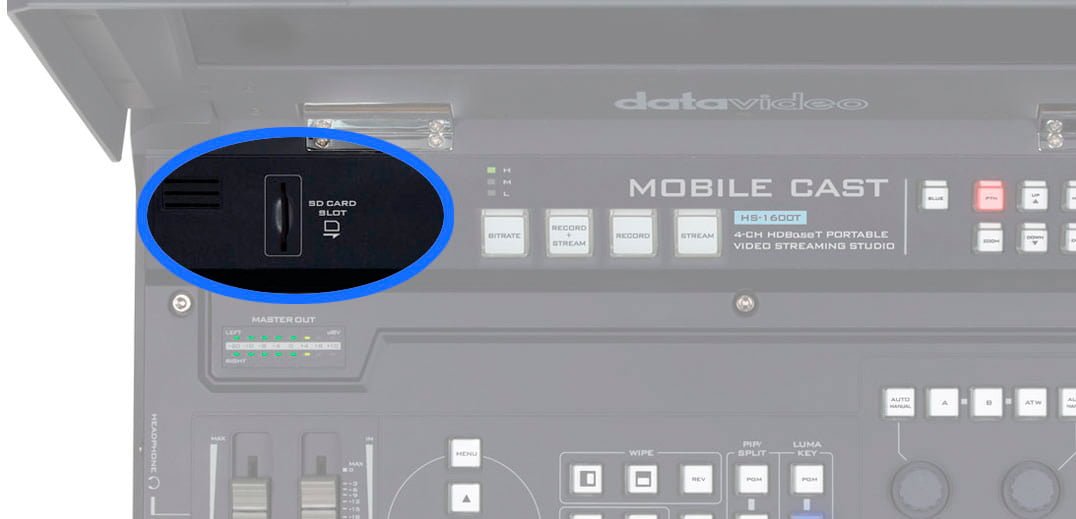

Built-in H.264 recorder for SD cards

The HS-1600T comes with a built-in web-ready recorder. Simply insert your SD card, and you’ll have video files that can be immediately uploaded to the video network of your choice or to your website.

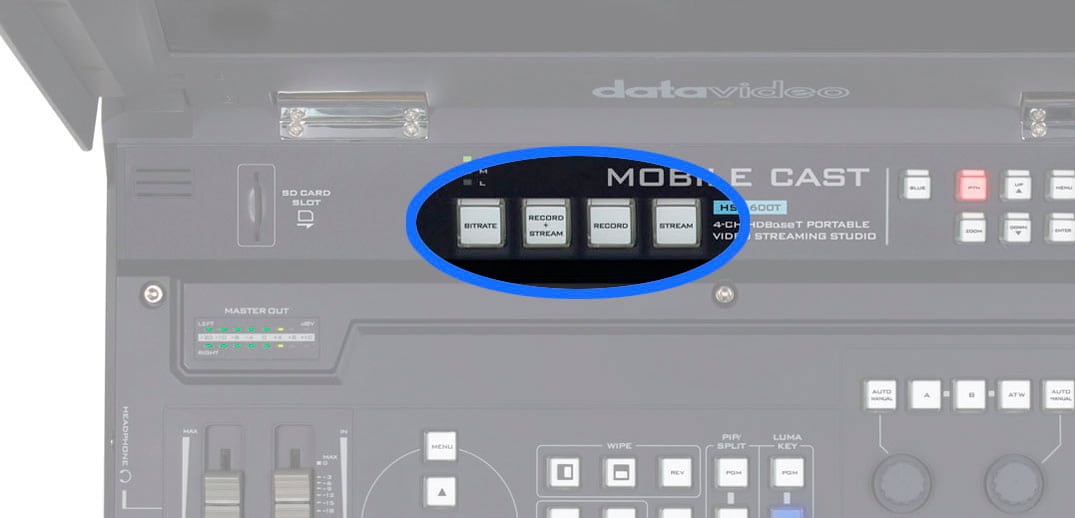

Stream to Facebook Live, YouTube, Twitch, and more

With the built-in H.264 streaming encoder, you can stream your show to virtually any CDN including Facebook, YouTube or Twitch in no time.

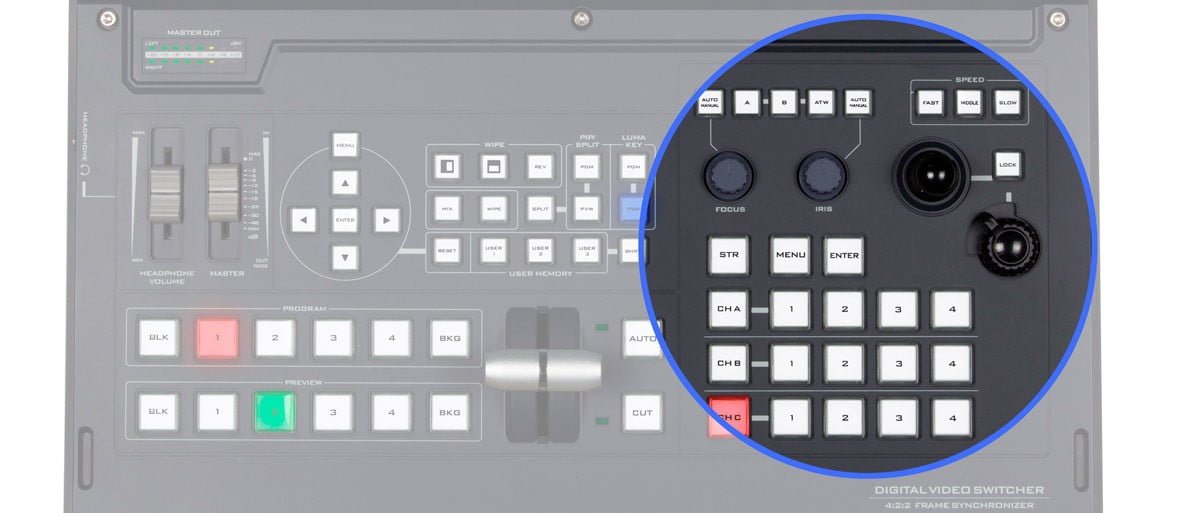

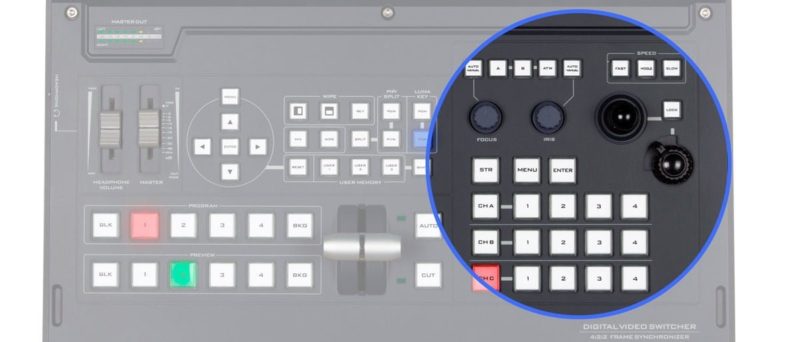

Built-in camera control

The HS-1600T’s next generation design saves you time, money, and table space with its built-in camera control interface for up to 3 Datavideo PTZ cameras.

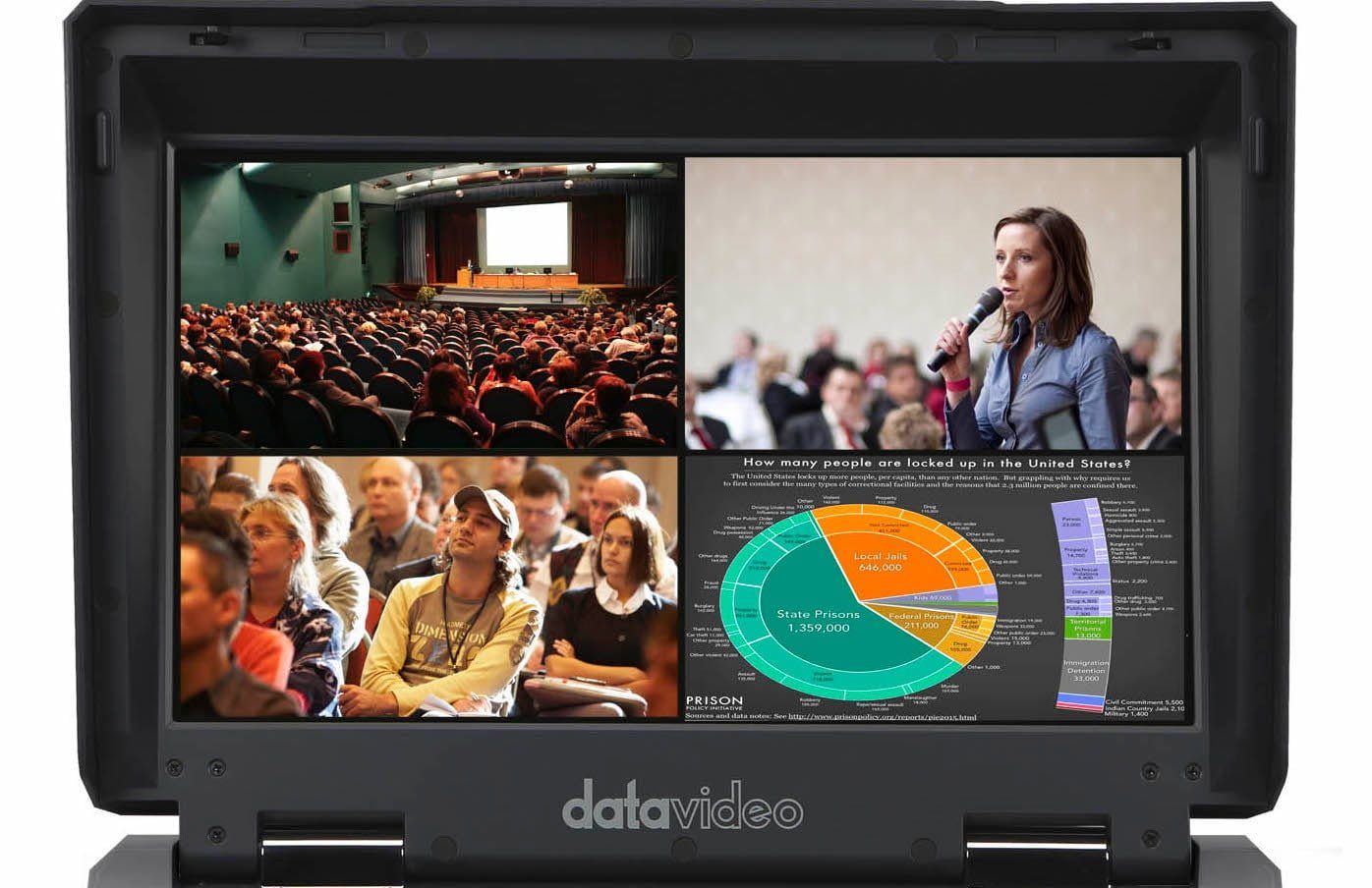

17.3” LED Backlit Monitor

Built-in Monitor Display. 17.3” HD TFT LED backlit monitor with resolution 1920×1080 pix.

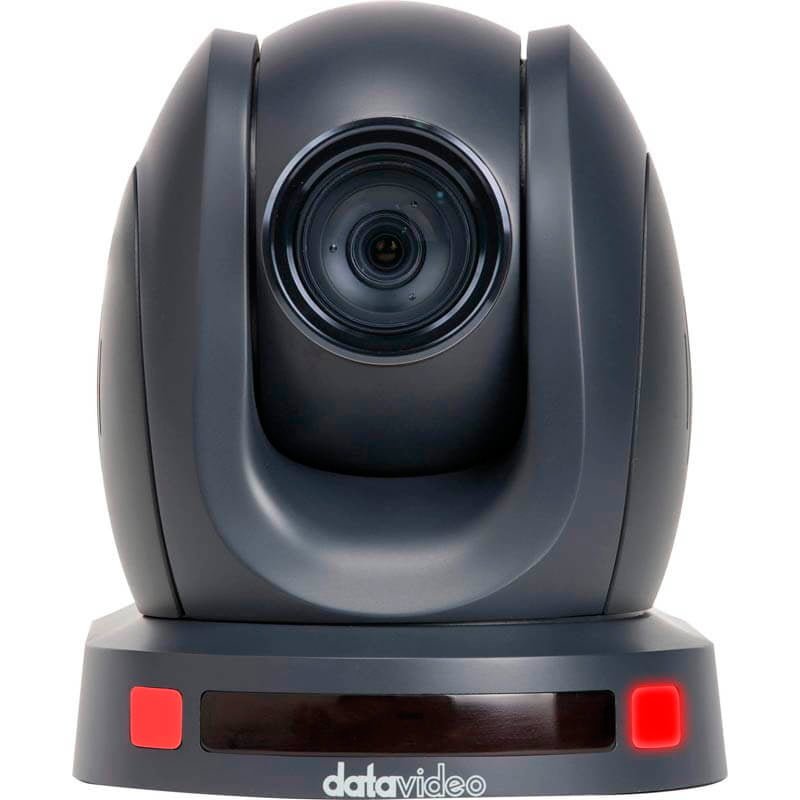

PTC-140T

HDBaseT PTZ Cameras

  • HDBaseT PTZ Camera
  • 1/2.8 inch CMOS sensor. Up to Full HD with 60fps.
  • 20x Optical Zoom, 10x Digital Zoom
  • Advanced noise reduction
  • Audio Input Interface
  • H.264/H.265 video compression for streaming

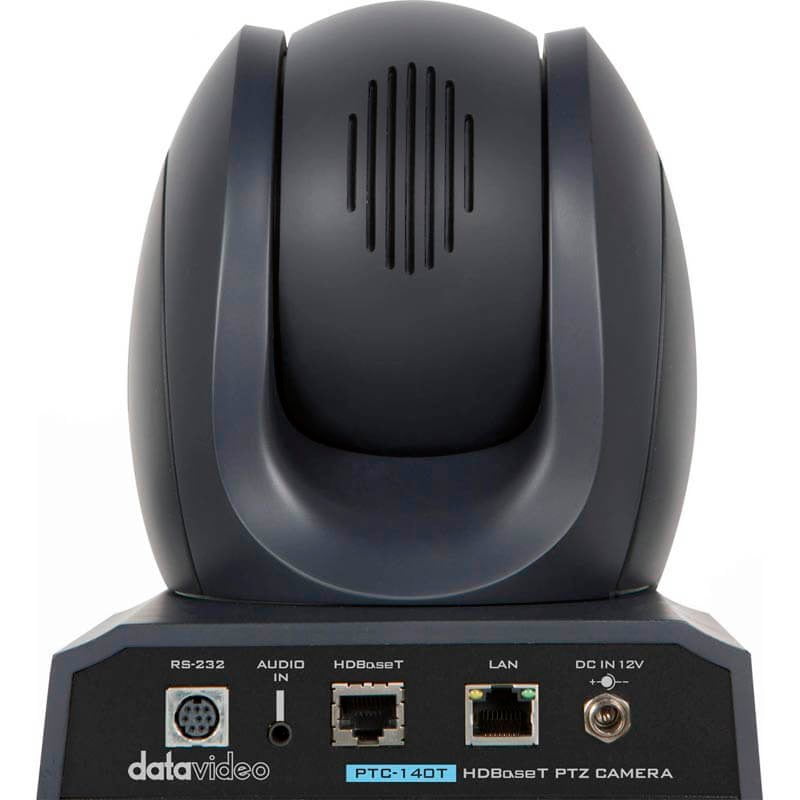

The PTC-140T is a cost-effective HDBaseT PTZ camera featuring PoE, a built-in streaming encoder, and 20x optical zoom. All signals, power and control data travel through a single CAT6 (“network cable”) and can reach a distance up to 100 meters. The PTC-140T’s on-board streaming encoder can encode up to 2 simultaneous streams to any cloud service, including Datavideo’s own DVS-200. The PTC-140T is compatible with HDBaseT portable studios such as the HS-1500T and HS-1600T and controllers like the RMC-300 and RMC-180.

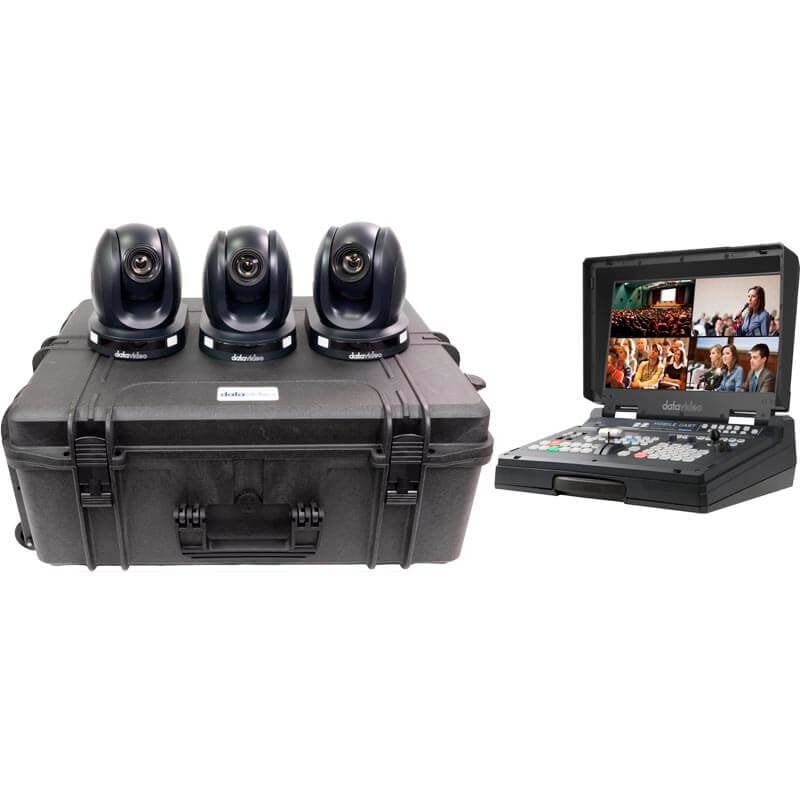

Kit includes:

  • 3x PTC-140T HDBaseT PTZ Camera
  • Heavy duty case with rubber seals to protect valuable equipment from water & dust
  • Custom foam hardcase
  • HS-1600T HDBaseT 4 input Portable Video Studio

PTC-140T

  • 3x PTC-140T
  • 3x Ceiling Mount Bracket-A
  • 3x Ceiling Mount Bracket -B
  • 18x Ceiling Mount Bracket screw M3*4mm
  • 3x IR Remote Controller
  • 3x DC 12V adaptor
  • 3x UK Figure 8 Power Cable
  • 1x Heavy duty case with custom foam

HS-1600T

  • 1x HS-1600T
  • 1x AD Switch DC 48V with AC Cord
  • 3x Ethernet Cable

HS-1600T – Specifications

HS-1600T 4-Channel HD/SD HDBaseT Portable Video Streaming Studio
Video Standard HD & SD
Video Format 1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i/p 50Hz
480i/p 59.94Hz
Video Input 3 x HDBaseT
1 x HDMI
Computer Graphic Interface 1 via HDMI
Down-converted Output Yes
Video Output 3 x HDMI PGM
1 x STREAM (RJ-45)
Audio Input 2x Balanced XLR
1x Stereo RCA (L/R)
De-embedded Digital Audio
Audio Output 1x Stereo headphone
Embedded Audio Support Input 2 channels, Output 2 channels
Audio Delay Calibration N/A
A+V Switching N/A
USK 1x USK Lumakey
DSK N/A
Picture in Picture 1
Logo Insertion N/A
Built-in Audio Mixer Yes, 4 channels
Built-in Monitor Display 17.3” HD TFT LED backlit, 1920×1080 pix
Built-in Intercom & Tally N/A
Streaming Video Encode H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)
Streaming Control Web browser UI for configuration and control Socket commands
Recording File System FAT, exFAT, NTFS
Recording File Format MP4
Recording Setting Control Web UI for system configuration and control
Special Features Built-in camera controller
Dimension (LxWxH) 455 x 355 x 134 mm
Weight 17.2 Lbs (7.8 kg), Reinforce Plastic Case
Power DC 48V, 4.16A
Operating Temp. Range 0~40 °C
Options CB-60/61/62

PTC-140T – Specifications

  • HDBaseT PTZ Camera
  • 1/2.8 inch CMOS sensor. Up to Full HD with 60fps.
  • 20x Optical Zoom, 10x Digital Zoom
  • Advanced noise reduction
  • Audio Input Interface
  • H.264/H.265 video compression for streaming
  • Multiple Network Protocol: support RTSP, RTMP protocols and support, easy to link streaming media server
  • Compatible with HS-1500T and HS-1600T HDBaseT Portable Video Studios, and remote controllable by RMC-300C and RMC-180 PTZ Camera Controller
  • Video format: 1080p 60/59.94/50/30/29.97/25 | 1080i 60/59.94/50 | 720p 60/50/30/25/59.94/29.97
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: >55dB
  • Min. Illumination: 0.5Lux (F1.8, AGC ON)
  • Electronic Shutter: Auto/ Manual
  • Gamma Control: Off/ Normal
  • Iris Control: Auto/ Manual
  • Digital Noise Reductions: Yes
  • On-Screen Display (OSD): English, Simplified Chinese
  • White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
  • AGC / Gain Control: Auto/ Manual
  • Mirror / Flip Image: Yes
  • Focus Mode: Auto / Manual
  • Panning/Tilting Range: Pan: 340° , Tilt: +90° to -30°
  • Panning/Tilting Speed Pan: 0.1~60°/sec | Tilt: 0.1~30°/sec
  • Focal Length: f=5.2 (wide) ~98 (tele) mm | F1.6 to F3.5
  • Field of View(Horizontal, Wide): Approx. 54.7° (WIDE END) / 3.3° (TELE END)
  • Image Compensation: Backlight Compensation
  • Audio Input: Line In (IP Stream Output)
  • Tally LED: Dual color (Red, Green)
  • Filter: M52.0 x 0.75 Thread with UV Protection
  • Remote Control Interface and Transmit Distance: RS-232 | Lan (RJ-45)
  • F/W Update: Ethernet
  • IR Control: Yes
  • Size of Screw Hole for Tripod: 1/4-20 UNC



  • Camera Control Unit: HS-1500T / HS-1600T / RMC-180 / RMC-300
  • Image Sensor: 1/2.8 inch high quality HD CMOS sensor
  • NDI | HX: No
  • Output: HDBaseT (PoE), RJ-45
  • Preset: 255
  • Protocol: VISCA, DVIP
  • Remote Control Interface: RS-232, Lan (RJ-45)
  • Video Format: 1080p 60/59.94/50/30/29.97/25
    1080i 60/59.94/50
    720p 60/50/30/25/59.94/29.97
  • Zoom: 20x Optical Zoom, 10x Digital Zoom
