K-Array KZ-10

  • Home
  • DM Shop
  • Sound / PA
  • Speakers
  • Foldback Monitors
  • Small Monitors
  • K-Array KZ-10

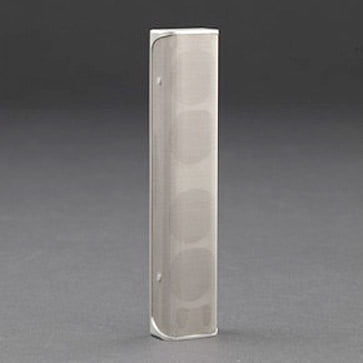

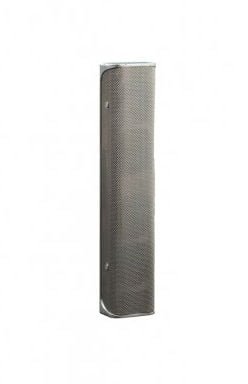

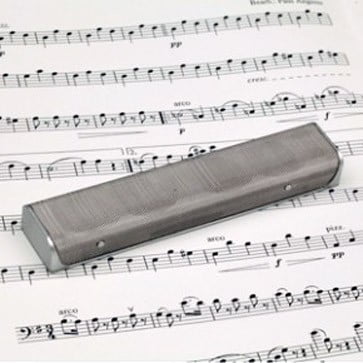

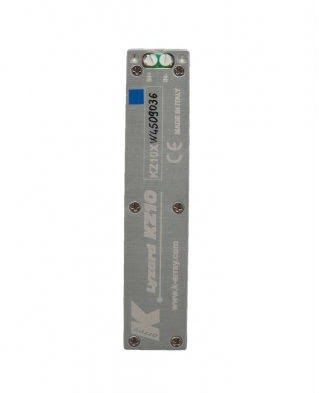

K-Array KZ-10
K-Array KZ-10
K-Array KZ-10
K-Array KZ-10
K-Array KZ-10
K-Array

Discontinued

K-Array ‘Lizard’ Ultra Micro Line Array Speaker

  • Smallest Line Array speaker in the World
  • Excellent sound clarity and depth for the size
  • Only 10cm long, 40g weight!
  • ideal as infill, monitor etc
SKU: SP/LOW/KAR08 Categories: Installation Speakers, Passive Speakers, Small Monitors, Unpowered Monitors Tag: Discontinued
Share
0
  • Description
  • Specification
  • Brand
  • Reviews (0)

The KZ10 is a remarkable ultra micro line array designed for discreet use in a variety of situations such as restaurants, bars, museums etc. The rugged enclosure contains a line array of 4 x 0.5″ longexcursion, full range drivers housed in a sleek case built around a super strong chassis.

The high efficiency drive units have neodymium magnet structures and suspensions engineered for maximum linear excursion and minimum residual transducer noise.
This miniature slim column is a mere 1.7cm deep and delivers true crystal clear audio with an amazing output of 92dB continuous; remarkable from such a miniscule enclosure. The system delivers long throw and coherent coverage making it ideal for use in space constrained situations. Up to four KZ10’s can be integrated to the KKS50 sub bass, extending the frequency range to 35Hz.

The KZ10 weighs a mere 90g and measures 2.2 x 10 x 1.7cm.
All the components are designed in-house at our Florence based R&D department. They are custom manufactured to our exacting standards and quality control system in Italy.

Features

  • Multiple 0.5″ long excursion full range drivers
  • Wide range frequency response
  • Integrated connector
  • Full aluminum ultra strong frame
  • Available in Black or White
  • High dynamic range capability
  • Only 90g of weight

Applications

  • Background music systems in restaurants and clubs
  • High quality distributed systems for paging and music
  • Exhibit audio for museum displays
  • Space-sensitive fill for broadcast

Available in black, white or any custom colour (please call for details – for custom colours prices have added surcharge)

Specifications
Speakers power handling 8 W(AES)
Max power 15 W 1
Impedance 16 O
Operating
frequency range 350 Hz – 18 KHz /- 3dB
SPL 1W/1mt 82 dB 2
Maximum SPL 92 dB continuous – 98 dB peak
Coverage
Horizontal 140deg
Vertical 20deg
Cross over
Type External crossover required
Frequency 250Hz 24dB/oct suggested minimum
Transducers
Full-range 4 x 0.5″ Neodymium
speakers with 0.5″ voice coil
Powered Input
Connection 2 X silicon screw
Recommended Amplifiers
KA1-1, KA3-3, KA7, KA7-7
to drive till 4 KZ10 each channel with dedicated preset
Physical
Dimensions 2.1 x 10 x 1.2 cm (0.83″x 3.94″x 0.47″)
Weight 40 g (0.09 lb)

Brand

K-Array

K-Array

Reviews

There are no reviews yet.

Be the first to review “K-Array KZ-10” Cancel reply

You must be logged in to post a review.
