When choosing a loudspeaker, it’s always wise to ask “What’s inside the box?” Then take a listen and hear the EV difference for yourself. Featuring custom drivers housed in a breakthrough new cabinet design, the two compact and versatile passive ZLX models make EV’s legendary sound quality and rugged reliability more accessible than ever before.

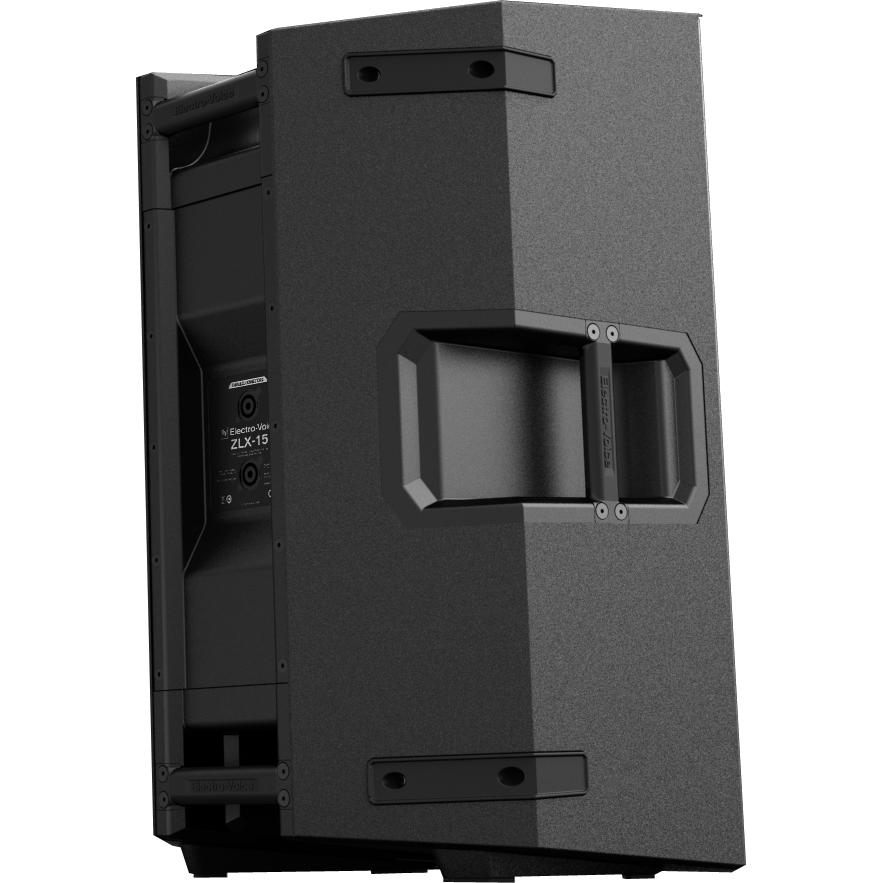

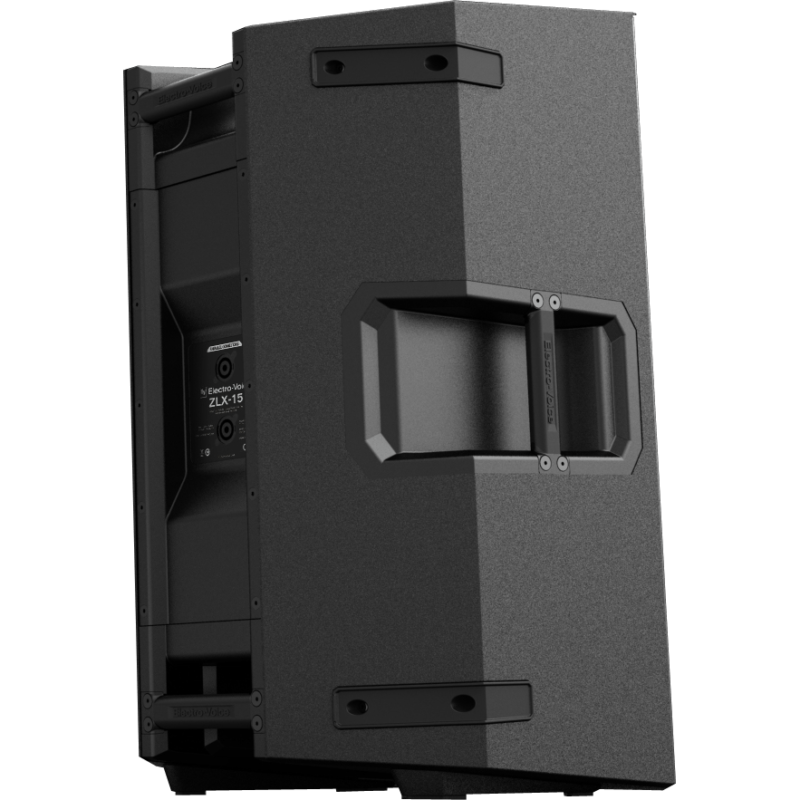

EV-engineered components for best-in-class sound. Lightweight, super-durable composite construction with unique hi/lo grip design for effortless pole mounting and portability Patented split-baffle design for superior driver time alignment and enhanced sonic impact and intelligibility

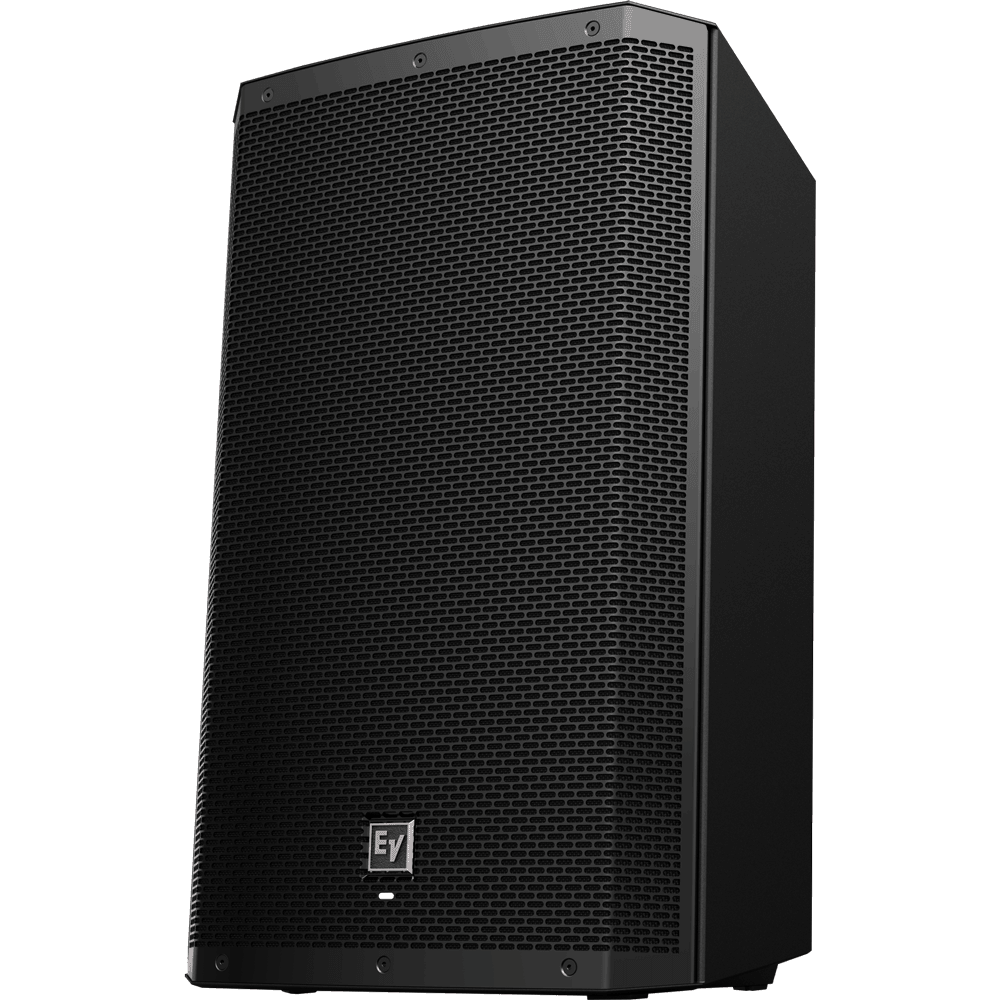

The ZLX-15 gives you the confidence of the industry’s most trusted components – engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer.
Axial Sensitivity (SPL, 1 W @ 1 m) 96 dB Frequency Range 44 Hz – 20 kHz Maximum SPL 126 dB Nominal Impedance 8 Ω Power Handling (Continuous / Peak) 250 / 1000 W Frequency Response 56 Hz – 18 kHz Recommended High-Pass Frequency 40 Hz Maximum SPL (1% THD) 0 dB Coverage (Nominal -6 dB) H 90 ° Coverage (Nominal -6 dB) V 60 ° LF Transducer EVS-15L, 380 mm (15 in) Woofer HF Transducer DH-1K Crossover Frequency 1700 Hz Minimum Impedance 7 Ω Connector Type Dual NL4 Enclosure Material Polypropylene Grill 18 Gauge Steel with Black Powder Coat
Height 685 mm (26.97″) Width 423 mm (16.65″) Depth 383 mm (15.08″)
Weight Net 16.6 kg (36.6 lbs) Shipping Weight 22 kg (48.5 lbs)
