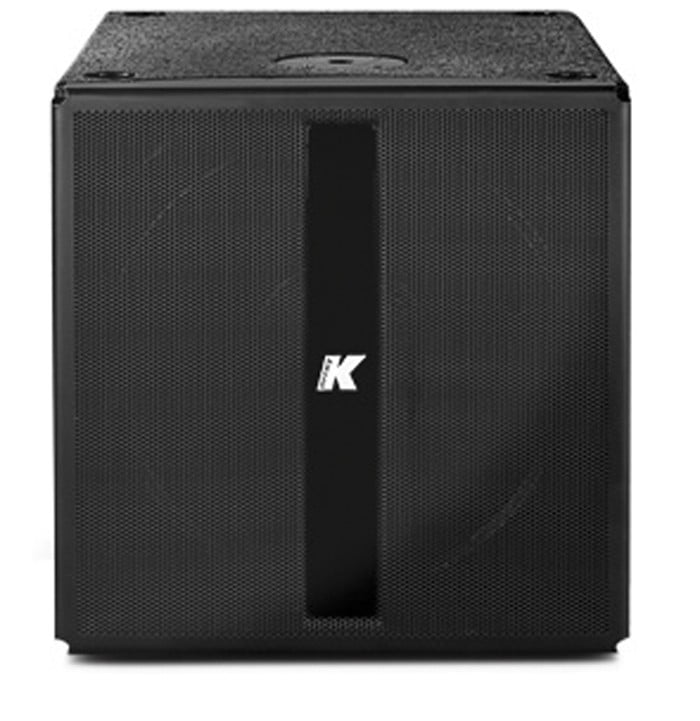

Ultra-light, high-power 18” subwoofer
KMT18P is a high performance sub-bass system designed for use with small and medium wavefront systems, in both touring and install applications.

Tag: Categories: , SKU: SP/LOW/KAR24

The KMT18P is a high performance sub-bass system designed for use with small to medium wavefront systems, in both touring and install applications. It features a 800 watt 18” drive unit with magnet structure and suspension engineered for maximum linear excursion.

The ultra-light reflex cabinet is fitted with two pocket handles and one M20 thread mount position for attaching mid-high speakers . It features large area porting to reduce air noise.

The KMT18P is designed to be powered by KMT18 speakon output and to be easily integrated with KK102 mid-high speakers. The KMT18P is ideal for medium throw applications, like theaters, concert halls, AV installations.

All the KMT18P components are designed by K- array R&D department and custom made under K-array control quality system.


  • Fitted with integral handles
  • Direct radiating, long excursion 18” driver
  • Analog and digital AES-EBU inputs
  • RS485 and USB connectivity for remote control


  • Theatrical sound reinforcement
  • Concert halls, clubs, houses of worship
  • Portable and installed AV systems
  • Cinema surround sound and effects


Power handling 800 W (AES)
Impedance 8Ω
Frequency range 30 Hz – 150 Hz. /- 3dB (Preset dependent)
Maximum SPL 130 dB continuous – 136 dB peak

Horizontal Omni
Vertical Omni

Type External Crossover required
Frequency Low pass @ 150 Hz, 24 dB/oct suggested

Full range 1 x 18” Neodymium magnet with 3” voice coil

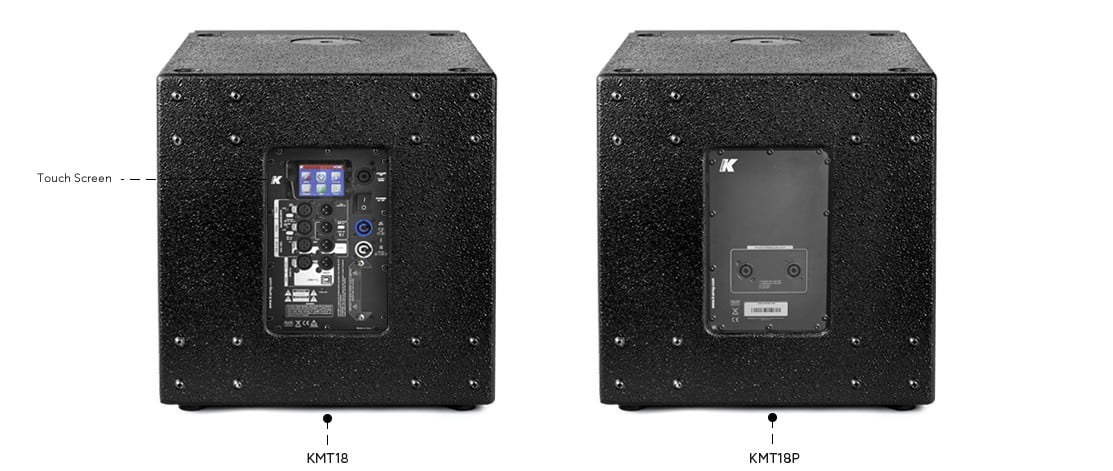

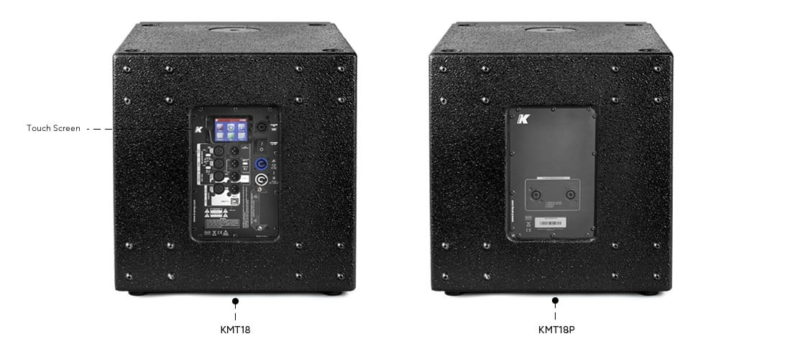

Power Audio Input
Connectors 2 x 4-pin Speakon
Wiring 1 1- (signal IN & LINK); 2 2- (through)

Dimensions 46.5 x 47.5 x 61 cm (18.31”x 18.70” x 24.02”)
Weight 24.6 kg (54.23 lbs)
