Clear, powerful, and musical, the Live X series was born to command the stage for professional music performance.
Available in both powered and passive versions, Live X loudspeakers offer top-quality components in remarkably affordable configurations that put the EV-quality experience within reach for artists, engineers, and live-sound businesses. Designed for a wide range of portable sound applications, Live X loudspeakers are housed in hardy stackable enclosures of solid wood, making them lighter than comparable-quality composite or plastic boxes and therefore easier to load, transport, and set up. With high output, extended frequency range, and high sensitivity, Live X loudspeakers are clean, flat, and hot, making music of all kinds sound its best. The Live X series is serious gear for serious sound.

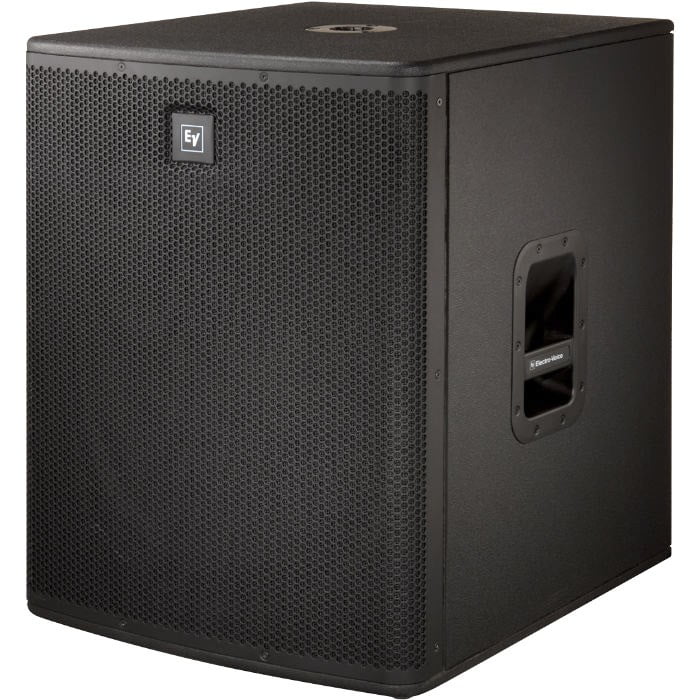

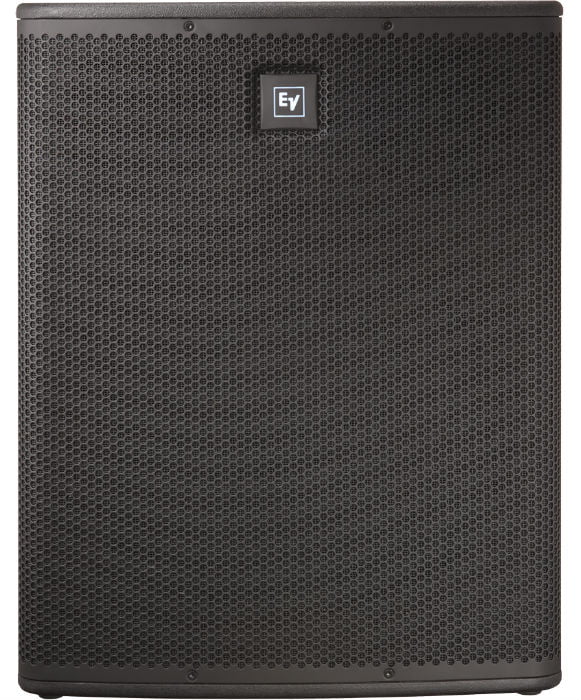

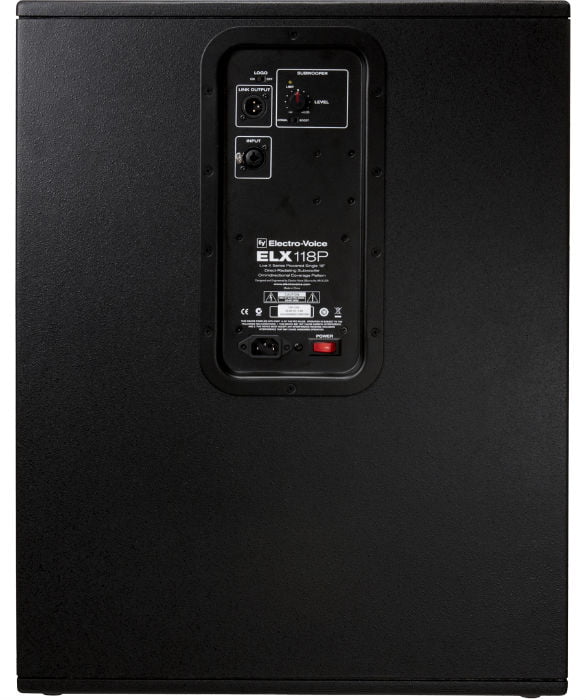

ELX118 performance with self-amplification
EVS-18K woofer for extended LF
32 Hz to 130 Hz frequency range
Lightweight, cool-running 700 W Class D amp
Selectable Normal/Boost modes

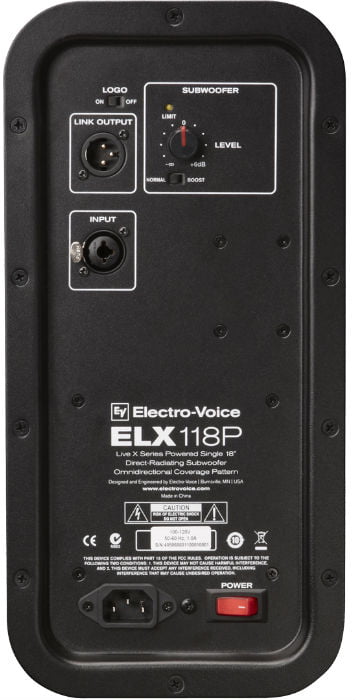

XLR and TRS combo input
XLR parallel output
Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint Frequency Response (-3 dB) 42 Hz – 100 Hz Hz Frequency Response (-10 dB) 32 Hz – 130 Hz Hz Max. SPL/1m (calc) 134 dB Coverage (Nominal -6 dB) H Omnidirectional ? Coverage (Nominal -6 dB) V Omnidirectional ? LF Transducer (1) EVS-18K, 457mm (18″) Woofer HF Transducer N/A Crossover Frequency 100 Hz Connector Type (1) XLR/TRS Combo Jack, (1) XLR Link Output Grill 18GA Steel with Black Powdercoat Height 661 mm (26.02″) Width 507 mm (19.96″) Depth 574 mm (22.6″) Weight Net 31.7 kg (69.89 lbs) Shipping Weight 39.3 kg (86.64 lbs)
