Clear, powerful, and musical, the Live X series was born to command the stage for professional music performance.

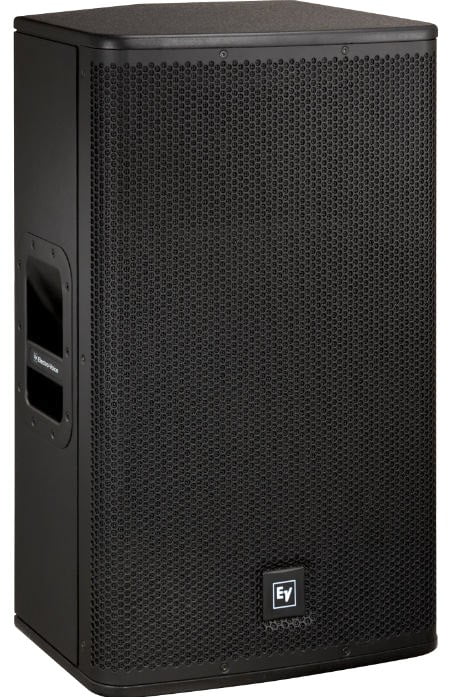

Available in both powered and passive versions, Live X loudspeakers offer top-quality components in remarkably affordable configurations that put the EV-quality experience within reach for artists, engineers, and live-sound businesses. Designed for a wide range of portable sound applications, Live X loudspeakers are housed in hardy stackable enclosures of solid wood, making them lighter than comparable-quality composite or plastic boxes and therefore easier to load, transport, and set up. With high output, extended frequency range, and high sensitivity, Live X loudspeakers are clean, flat, and hot, making music of all kinds sound its best. The Live X series is serious gear for serious sound.

ELX115 performance with self-amplification
44 Hz to 20 kHz frequency range
Lightweight, cool-running 1000 W Class D amp
Biamped with 24 dB/octave crossover
Transducer protection
Bypassable high-pass for external subwoofer

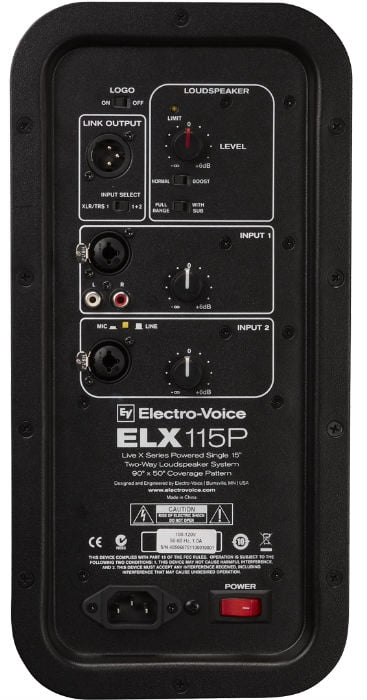

XLR, TRS, and RCA input connections
Versatile gain, mixing, and processing controls
Pre- or post-mix parallel outputs

Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Frequency Response (-3 dB) 56 Hz – 18 k Hz
Frequency Response (-10 dB) 44 Hz – 20 k Hz
Max. SPL/1m (calc) 134 dB
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 50
LF Transducer (1) EVS-15K, 381mm (15″) Woofer
HF Transducer DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver
Crossover Frequency 1.7 k Hz
Connector Type (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output
Grill 18GA Steel with Black Powdercoat
Height 708 mm (27.87″)
Width 432 mm (17.01″)
Depth 382 mm (15.04″)
Weight Net 24.3 kg (53.57 lbs)
Shipping Weight 29.5 kg (65.04 lbs)

Brand

EV
