Martin Audio CDD-LIVE 8

£2,500.00 Inc VAT

Ultra-compact, Coaxial Differential Dispersion Powered 2-way System

  • Ultra-compact, self-powered two-way system
  • Coaxial Differential Dispersion™ technology
  • Onboard Class D amplification and DSP
  • Dante™ Digital Audio networking
  • Global mains operation with Power Factor Correction
  • Vertical and horizontal mounting options



Martin Audio

Category: SKU: SP/POW/MAR03

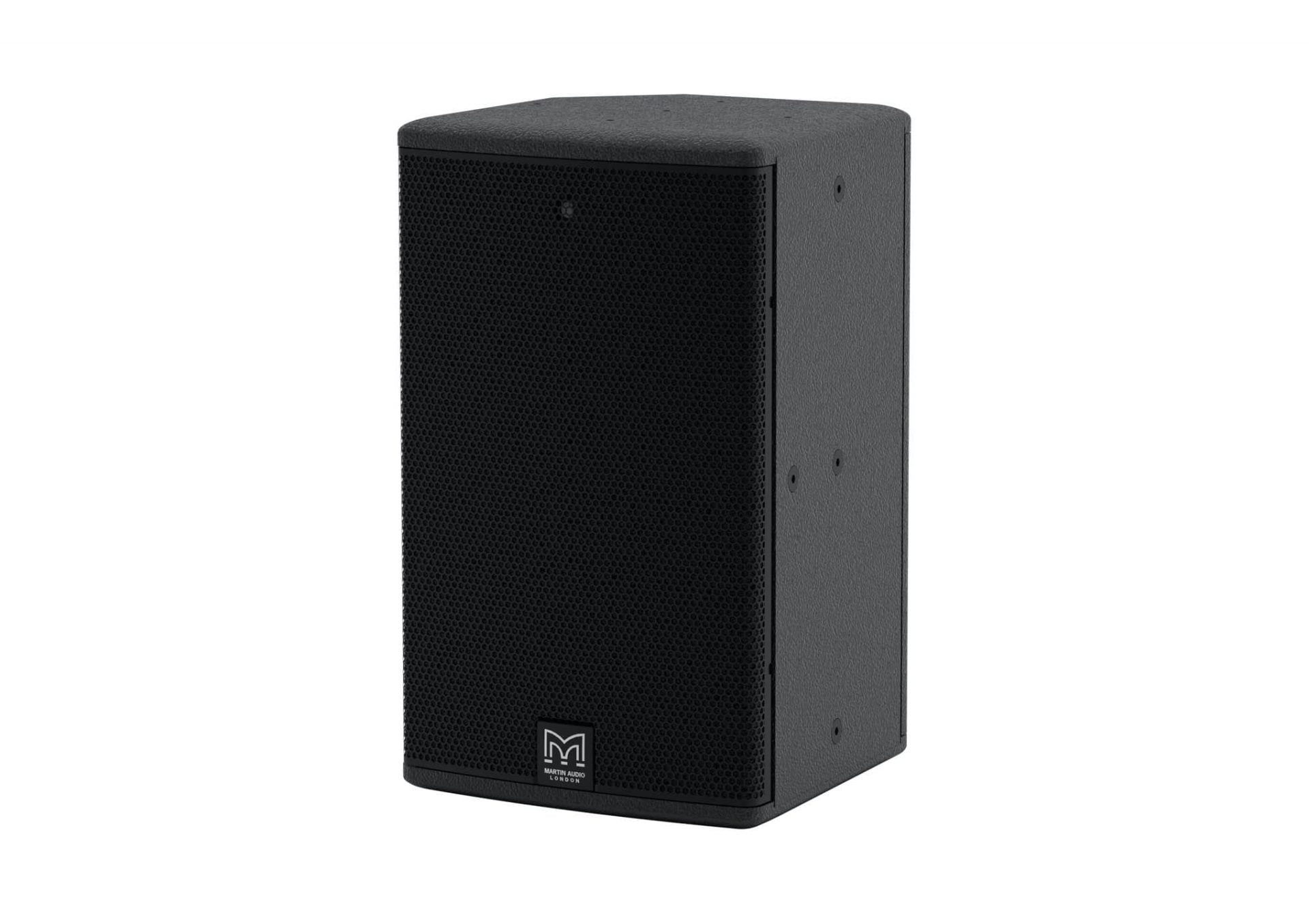

The CDD-LIVE 8 is an ultra-compact, self-powered, two-way system featuring an 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation. Its small size gives no indication of its high output capability and exceptional fidelity.
As a stand-alone loudspeaker, it has a multitude of professional applications — from small-medium scale sound reinforcement, AV presentations and HoW to distributed systems, frontfill/infill and use as a micro stage monitor.

With wide coverage close-up, the Coaxial Differential Dispersion technology employed in the CDD-LIVE 8 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns, and its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs.

A self-powered system, the CDD-LIVE 8 incorporates a two-channel Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 1000W LF 300W HF peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz.

DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.

For simple set-ups, ‘plug-and-play’ presets — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. As an alternative to its analogue inputs, the CDD- LIVE 8 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.

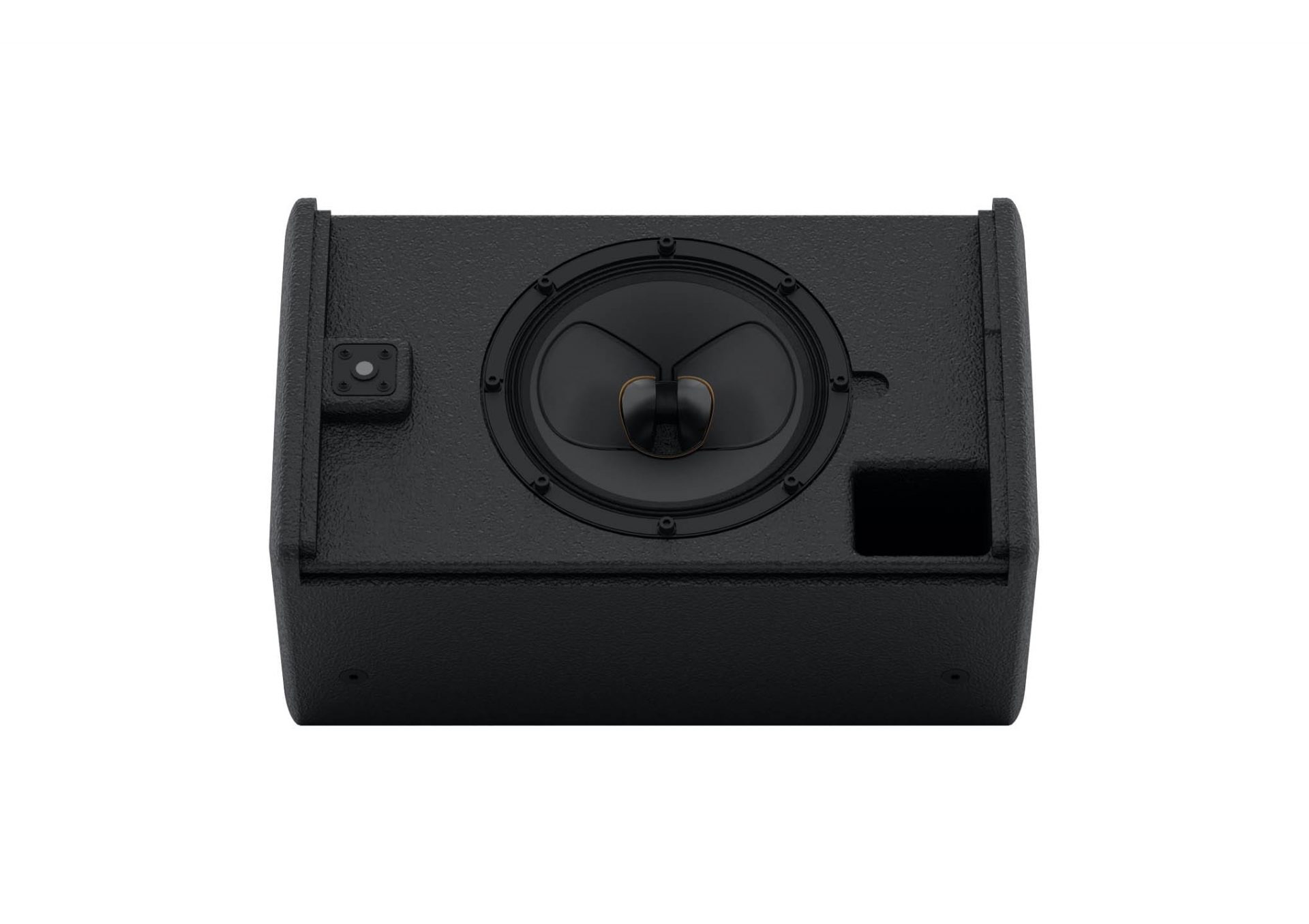

The CDD-LIVE 8 is incredibly versatile. Its multi-angle enclosure can be used in either horizontal or vertical orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The tour-grade enclosure is constructed from multi-laminate plywood and finished in a hard-wearing polyurea coating. Integral fittings include a top-hat for pole mounting and multiple M8 inserts for attachment to a wall-bracket, yoke or universal bracket with a wide range of up and down tilt angles.

Features

  • Ultra-compact, self-powered two-way system
  • Coaxial Differential Dispersion™ technology
  • Onboard Class D amplification and DSP
  • Dante™ Digital Audio networking
  • Global mains operation with Power Factor Correction
  • User-rotatable CDD™ driver
  • Vertical and horizontal mounting options
  • Tour-grade, multi-angle plywood enclosure
  • IP24 rating option with rain cowl
  • Comprehensive mounting accessories





Acoustics
TYPE Ultra-compact, Coaxial Differential Dispersion powered two-way system
FREQUENCY
RESPONSE (1)
70Hz – 20kHz ±3dB, -10dB @ 50Hz
DRIVER LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
INPUT SENSITIVITY -26dBu for 100dB SPL
MAXIMUM SPL (2) 117dB continuous / 123dB peak
DISPERSION 110˚-80˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER 2.3kHz Active LR8 Balance presets for pole mount/ pole mount with sub/ stage monitor
Module Audio Input
CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE 20 kΩ balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp ( 21dBu), over voltage protected
Internal Processing Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct HPF
Low latency HF FIR filters
Up to 200ms input delay
Pre-set selection via rear panel switch
Network
CONNECTORS 2x Neutrik ® Ethercon RJ45
PROTOCOL TCP/IP and UDP/IP
Amplifier
TYPE 2 channel switch-mode, class D
PEAK OUTPUT POWER 1300W total 1000W LF, 300W HF
AVERAGE EFFICIENCY 89%
COOLING External convection cooled, with internal fan
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output
Power Supply
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 – 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 85W
MAINS CONNECTOR Neutrik® Powercon True1
Mechanical
ENCLOSURE Extensively braced multi-laminate plywood.
FINISH Textured black PU coating.
PROTECTIVE GRILLE HEX perforated mild steel with protective zinc plating and black
powder coat finish. Backed with black grille cloth
FITTINGS Top hat for pole mounting
15 x M8 mounting points
Single pocket handle
Optional weather protection cowl
IP RATING IP24 factory option available
DIMENSIONS (W) 258mm x (H) 428mm x (D) 254mm (W) 10.16in x (H) 16.85in x (D) 10.00in
WEIGHT 14kg (30.8lbs) excluding Transit cover
ACCESSORIES Transit Cover Optional wall, yoke and universal brackets

Brand

Martin Audio
