dB Technologies B-Hype 15

£299.00 Inc VAT

15″ Powered Speaker

  • Maximum efficiency up to 126.5 dB SPL
  • Professional acoustic performance
  • Innovative horn design for uniform and extended coverage
  • Clean and contemporary design enhancing portability
  • Double stage monitor angle
  • Preset EQ Flat /Boost
dB Technologies
Categories: , SKU: SP/POW/DBT08

The active two-way speaker series providing a professional sonic performance to all kind of users. The most accurate sound reproduction combined with aggressive sound pressure levels and enhanced portability.

  • Maximum efficiency up to 126.5 dB SPL
  • Professional acoustic performance
  • Innovative horn design for uniform and extended coverage
  • Compact featherweight
  • Clean and contemporary design enhancing portability
  • 3 handles
  • Double stage monitor angle
  • Preset EQ Flat /Boost

B·Hype series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.

The new B·Hype 15 is a versatile active speaker. It is equipped with one 1” neodymium compression driver (1” voice coil), and one 15” woofer (2” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

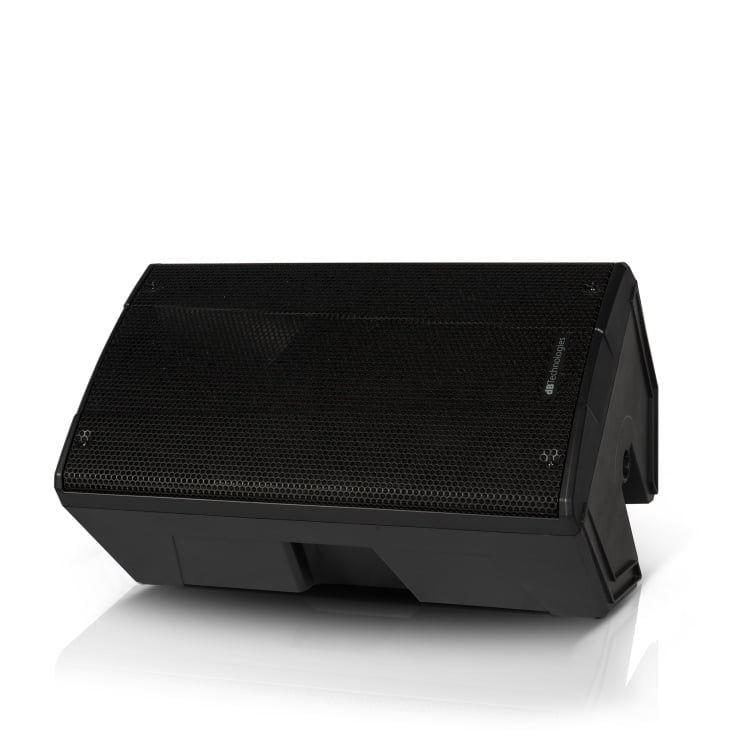

The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1xside and 1 on top-) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.

Brand

dB Technologies

dB Technologies

Reviews

There are no reviews yet.

Be the first to review “dB Technologies B-Hype 15”
Speaker Type  2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB]  51 – 20.000 Hz
Frequency Response [-6 dB]  57 – 19.700 Hz
Max SPL  126.5 dB
Type HF  Compression Driver
HF voice coil  1 “
LF  15 “
LF voice coil  2 “
Crossover Frequency  2100 Hz (24 dB/oct.)
Horizontal Dispersion  asymmetrical 85° up / 120°down
Vertical Dispersion  85° (+25/ -60°)
Amplifier
Amp Technology  Custom Made
Amp Class  Class D – Passice cooling (convection)
Power Peak  400 w
Processor
Controller  DSP 28/56 bit- 48 kHz
Limiter  Peak, RMS, Thermal
Controls  Volume, Audio Input Sensitivity, DSP Preset
Input
Main Connection  VDE
Signal Input  Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out  (Balanced) 1xXLR OUT (LINK)
Mechanics
Housing  Polypropylene
Grille  Full Metal Grille
Handles  3 (2 on side 1 on top)
Pole Mount  36 mm
Width  415 mm (16.34 in)
Height  725 mm (28.54 in)
Depth  391 mm (15.39 in)
Weight  17.4 kg (38.36 lbs)
Angles Up  Double wedge angle 45°
