£459.00 Inc VAT

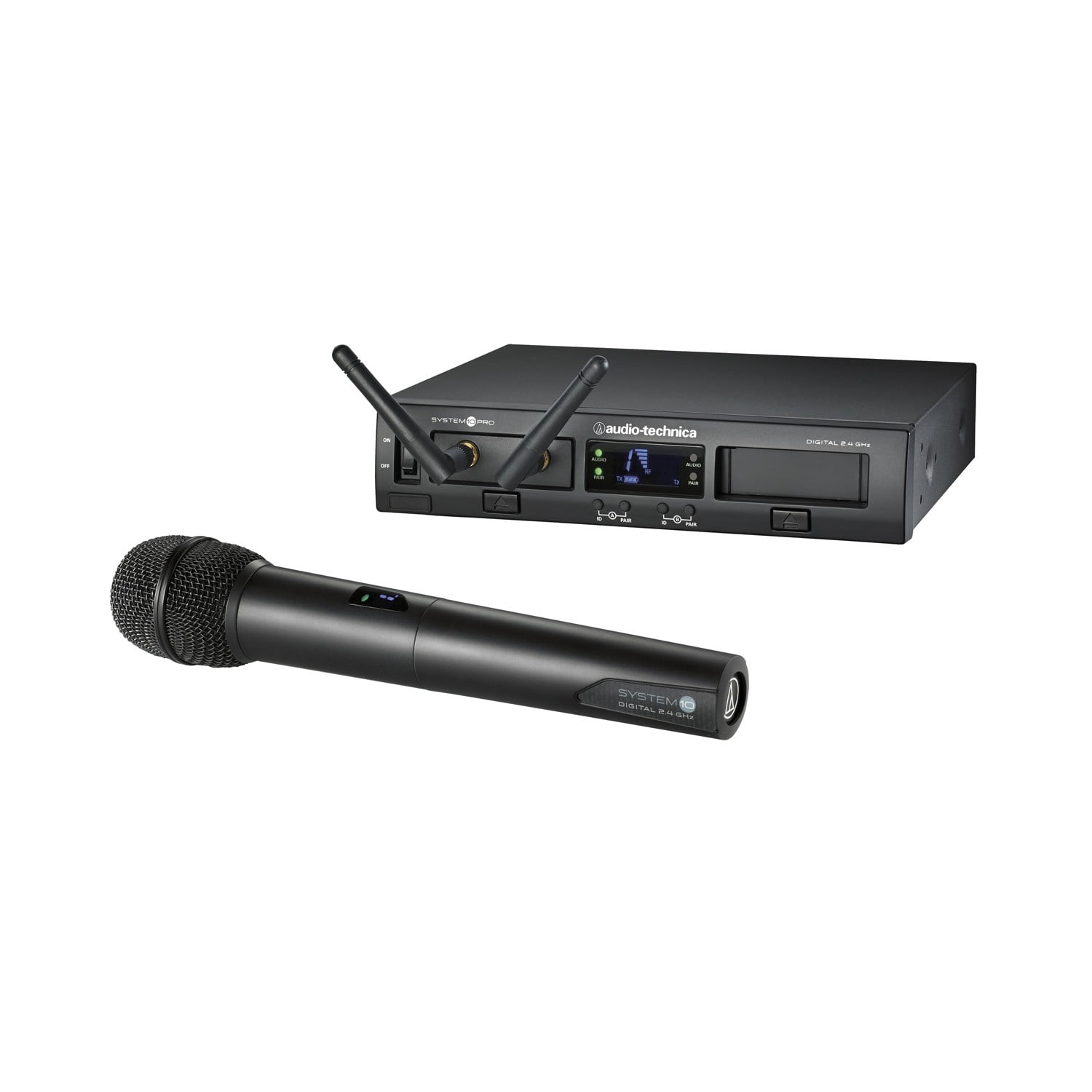

System 10 PRO Handheld Rack-Mount Digital Wireless System
Audio-Technica’s System 10 PRO rack-mount digital wireless system provides wireless that’s so simple to use, so dependable, and so automatic, you never have to think about it. Set it up anywhere, turn it on and it’s good to go.
System comprising of…
Handheld Wireless Mic
System 10 PRO delivers interference-free operation in the 2.4 GHz range (i.e., outside TV bands) with many innovative features for ultimate versatility. The durable half-rack chassis houses two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable.
Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels. Like all the products in the System 10 wireless family, the System 10 PRO rack-mount features 24-bit/48kHz operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time and space.
Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.
System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.
Operating Frequencies: 2.4 GHz ISM band
Dynamic Range: >109 dB (A-weighted), typical
Total Harmonic Distortion: <0.05% typical
Operating Range: 30 m (100′) typical Open range environment with no interfering signals
Operating Temperature Range: 0° C to 40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Frequency Response: 20 Hz to 20 kHz Depending on microphone type
Receiving System: Diversity (frequency/time/space)
Maximum Output Level: XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: 6 dBV
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions: 190.0 mm (7.48″) W x 46.2 mm (1.82″) H x 128.5 mm (5.06″) D
Net Weight: 290 grams (10.2 oz)
Accessory Included: Power supply
RF Output Power 10 mW
Batteries (not included) Two 1.5V AA
Battery Life >7 hours (alkaline) Depending on batt. type & use pattern
Dimensions 254.8 mm (10.03″) long,
50.0 mm (1.97″) diameter
Net Weight (w/o batteries) 280 grams (9.9 oz)
Accessory Included AT8456a Quiet-Flex™ stand clamp
