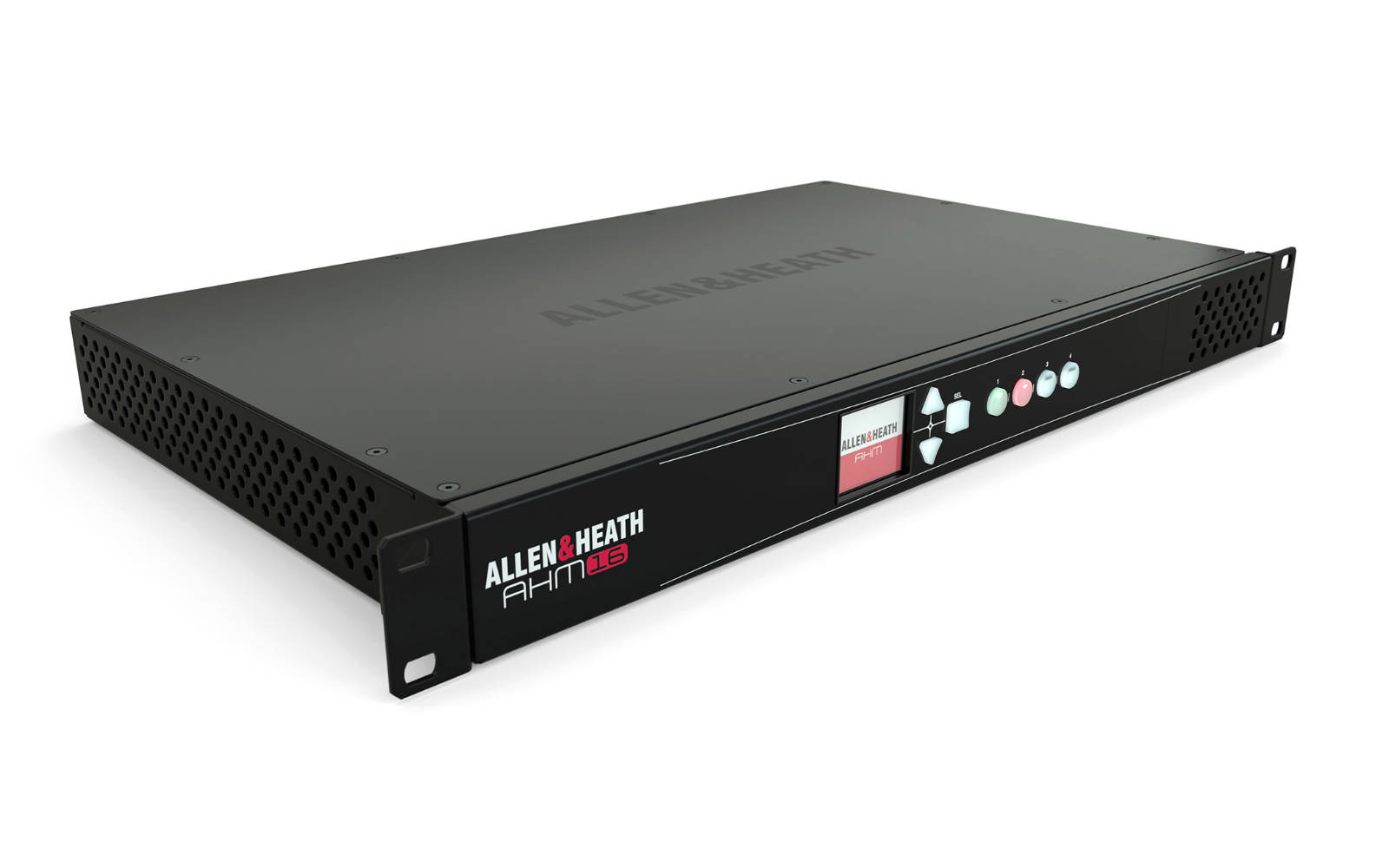

16×16 AUDIO MATRIX PROCESSOR

With an unrivalled price-performance ratio, AHM-16 delivers a 16×16 matrix with uncompromised processing for single room applications and smaller multi-room environments.

Features

• 16×16 processing matrix
• 8×8 local analogue I/O
• I/O Port for audio networking, up to 128×128

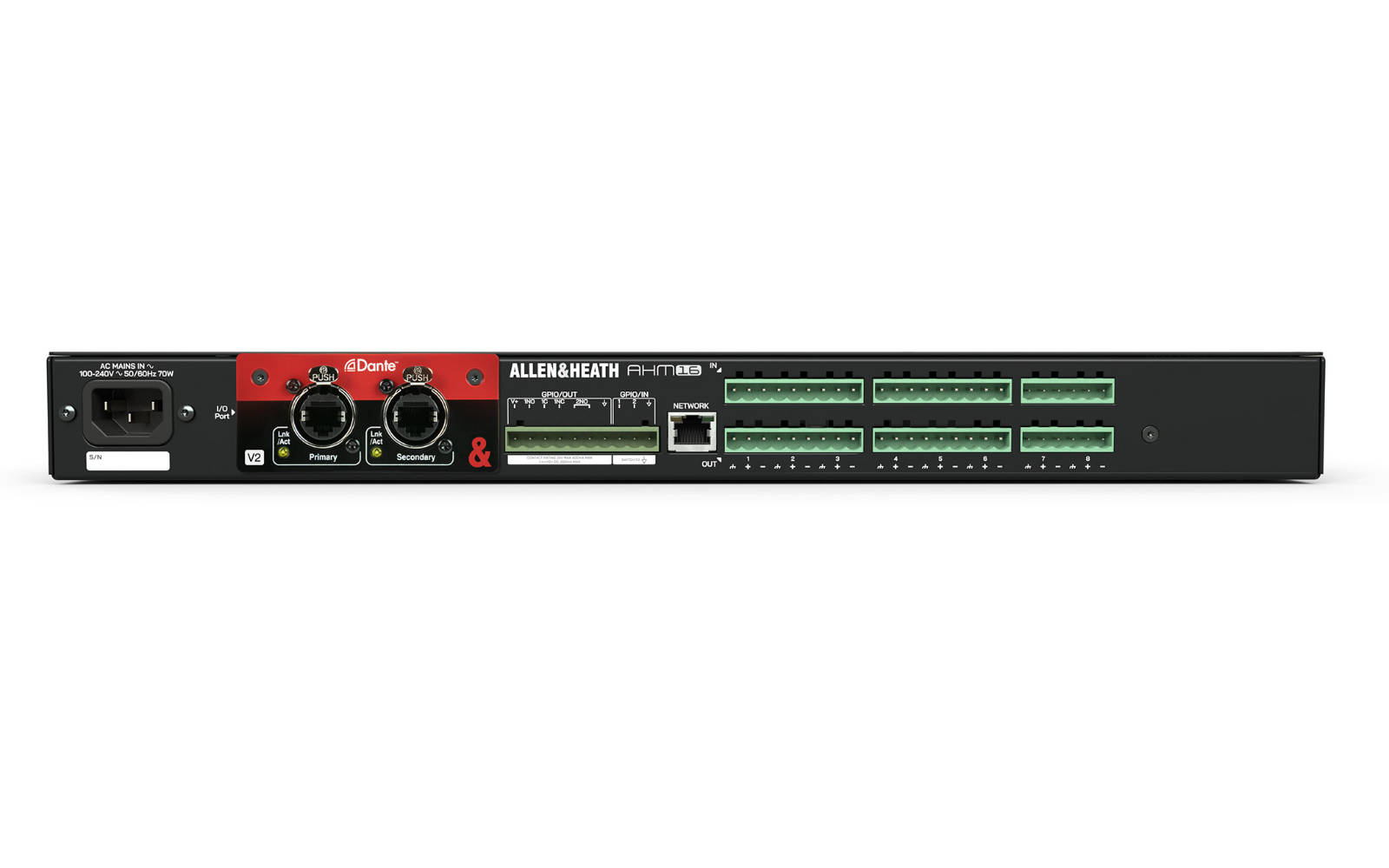

• Dante 96kHz option card (AES67 and DDM ready)

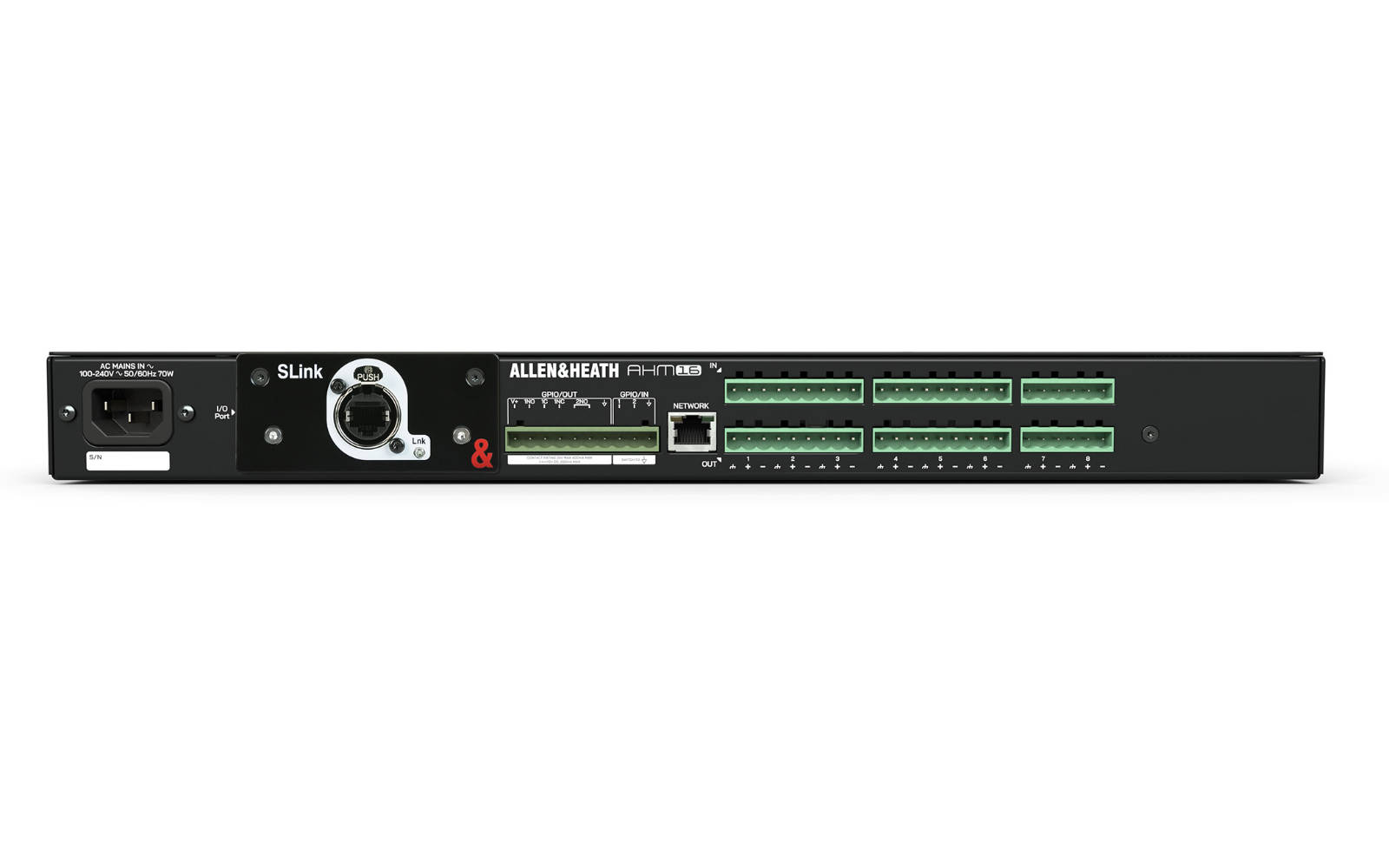

• SLink 128×128 option card for audio expansion
• 16 configurable processing outputs – mono / stereo zones or speaker processing
• 96kHz FPGA core with ultra-low latency

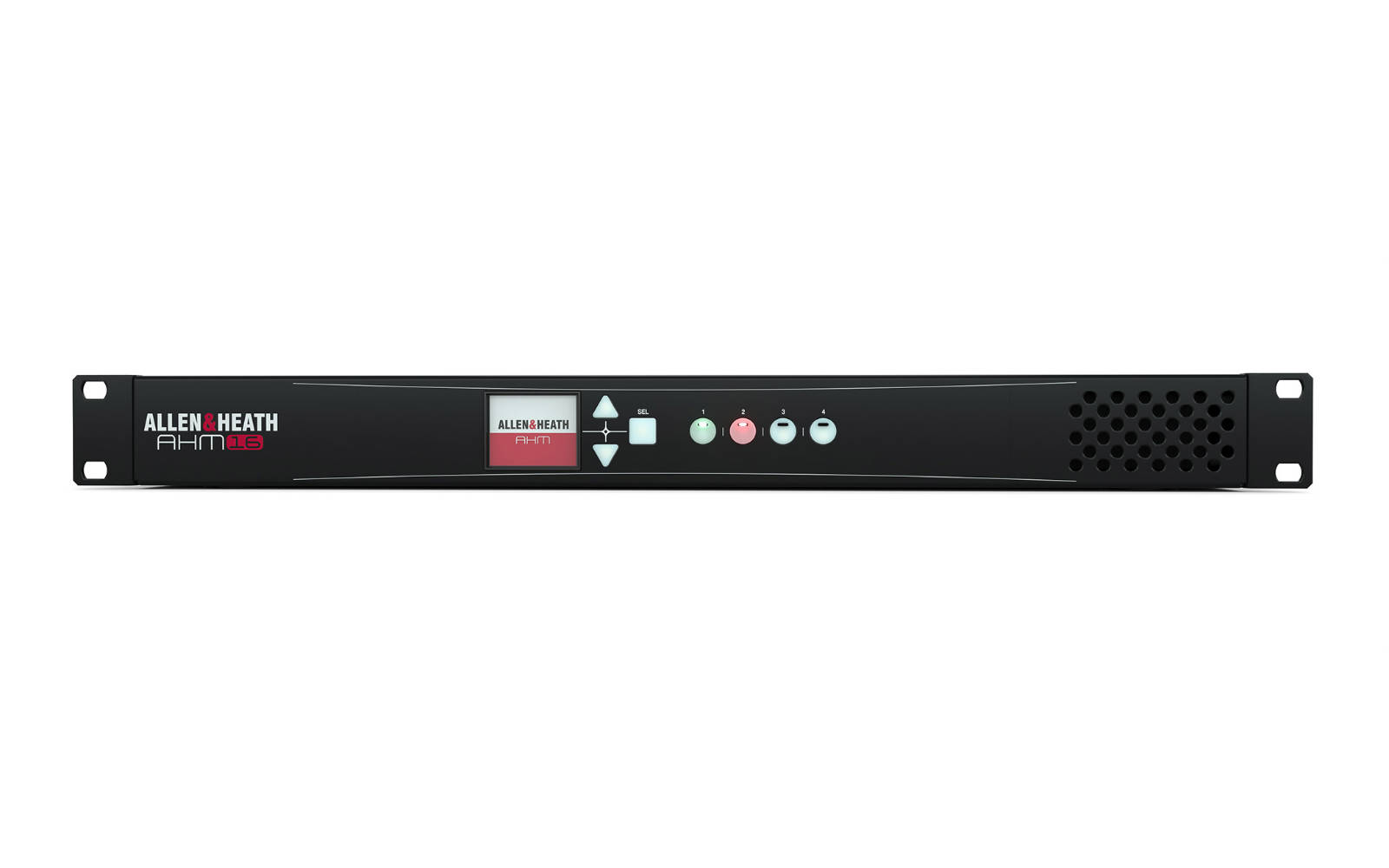

• Front panel screen and navigation
• 4x SoftKeys
• Compatible with IP1, IP6, IP8 remote controllers
• 2×2 local GPIO plus networkable GPIO interface
• TCP/IP protocol for third party integration
• Crestron, AMX and Extron drivers

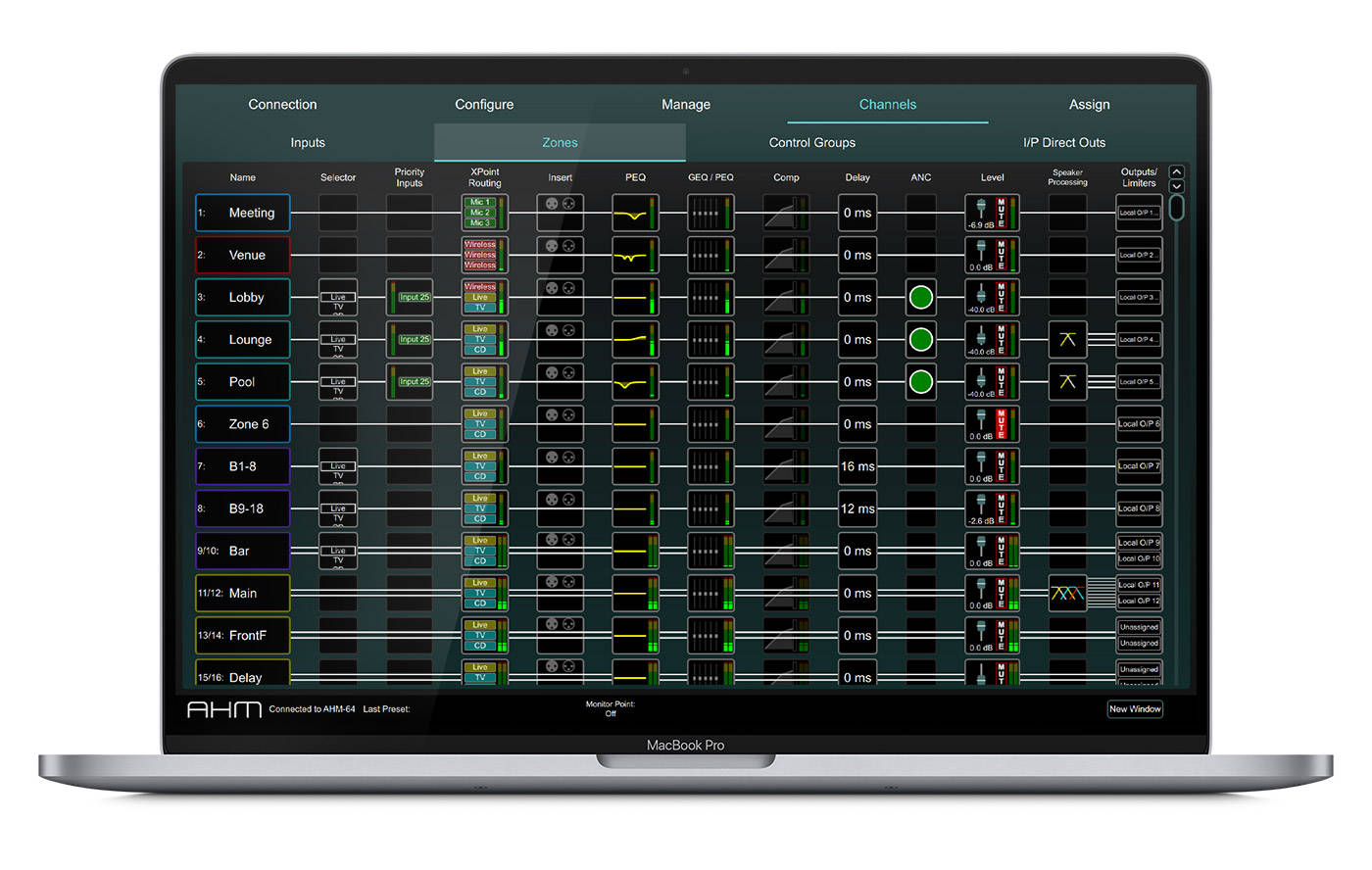

• Mac / Windows System Manager software
• Custom Control app and editor for BYOD
• 4 user profiles
• Integrated stereo playback
• Event scheduler

ALWAYS IN CONTROL

In addition to remote controllers, GPIO and 3rd party integration, AHM-16 has a front panel screen and 4x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

SOUND MANAGEMENT

• Automatic Mic Mixer
• ANC (Ambient Noise Compensation)
• Priority Ducking
• 8-band PEQ, dynamics and delay on every input and zone
• Speaker processing with x-over filter, delay, limiter and PEQ
