32×32 AUDIO MATRIX PROCESSOR

With 32 zone outputs, echo cancelling and audio networking options, AHM-32 is ideal for multi-room installations.

Features

• 32×32 processing matrix
• 12×12 local analogue I/O
• I/O Port for audio networking, up to 128×128

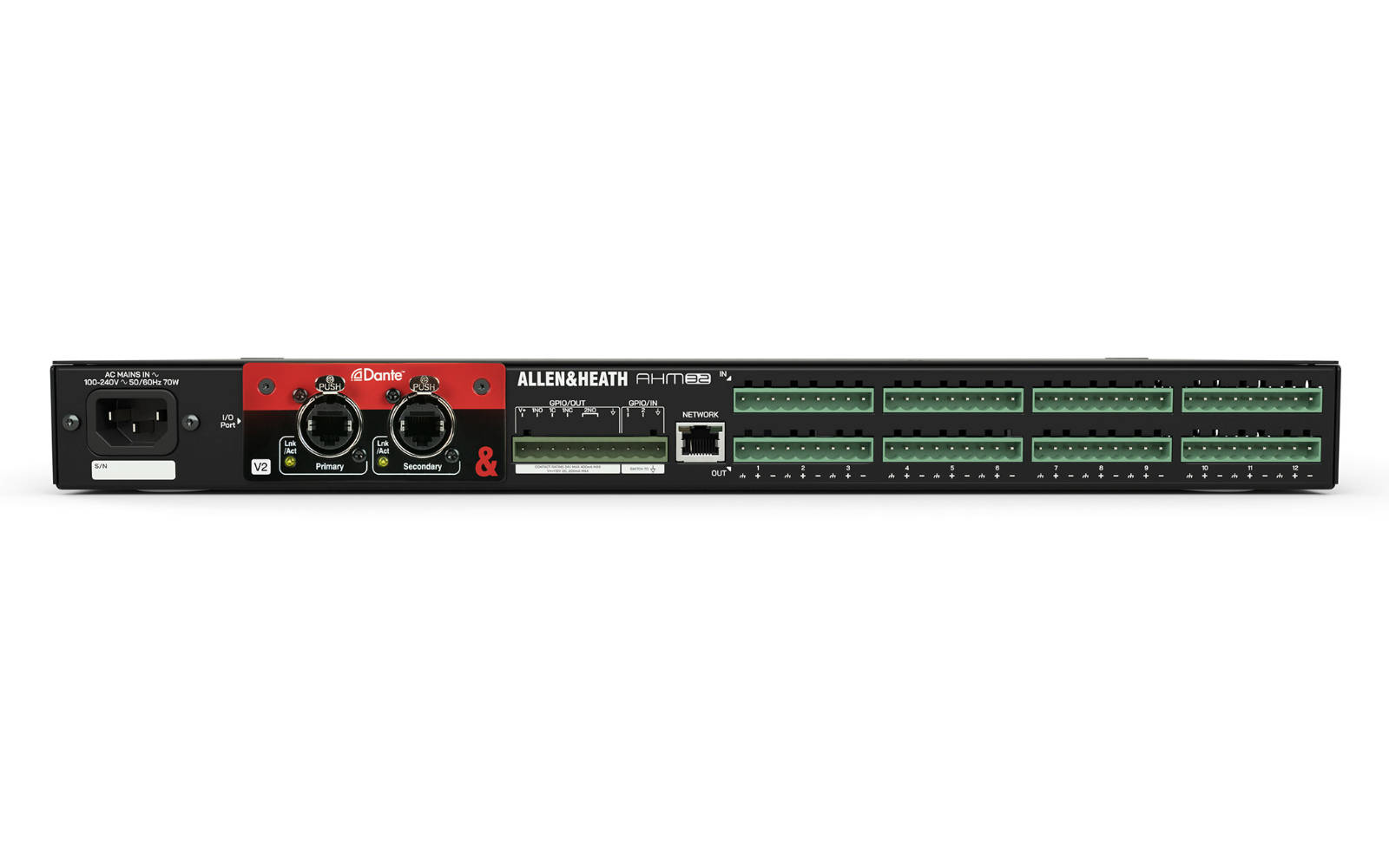

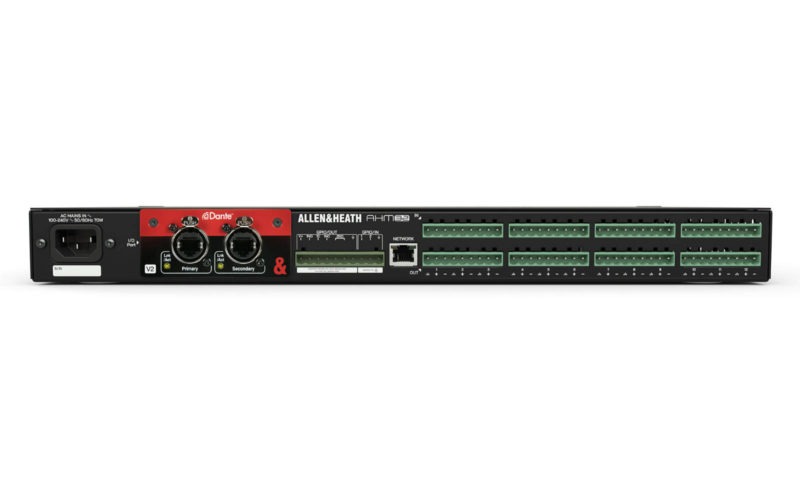

• Dante 96kHz option card (AES67 and DDM ready)

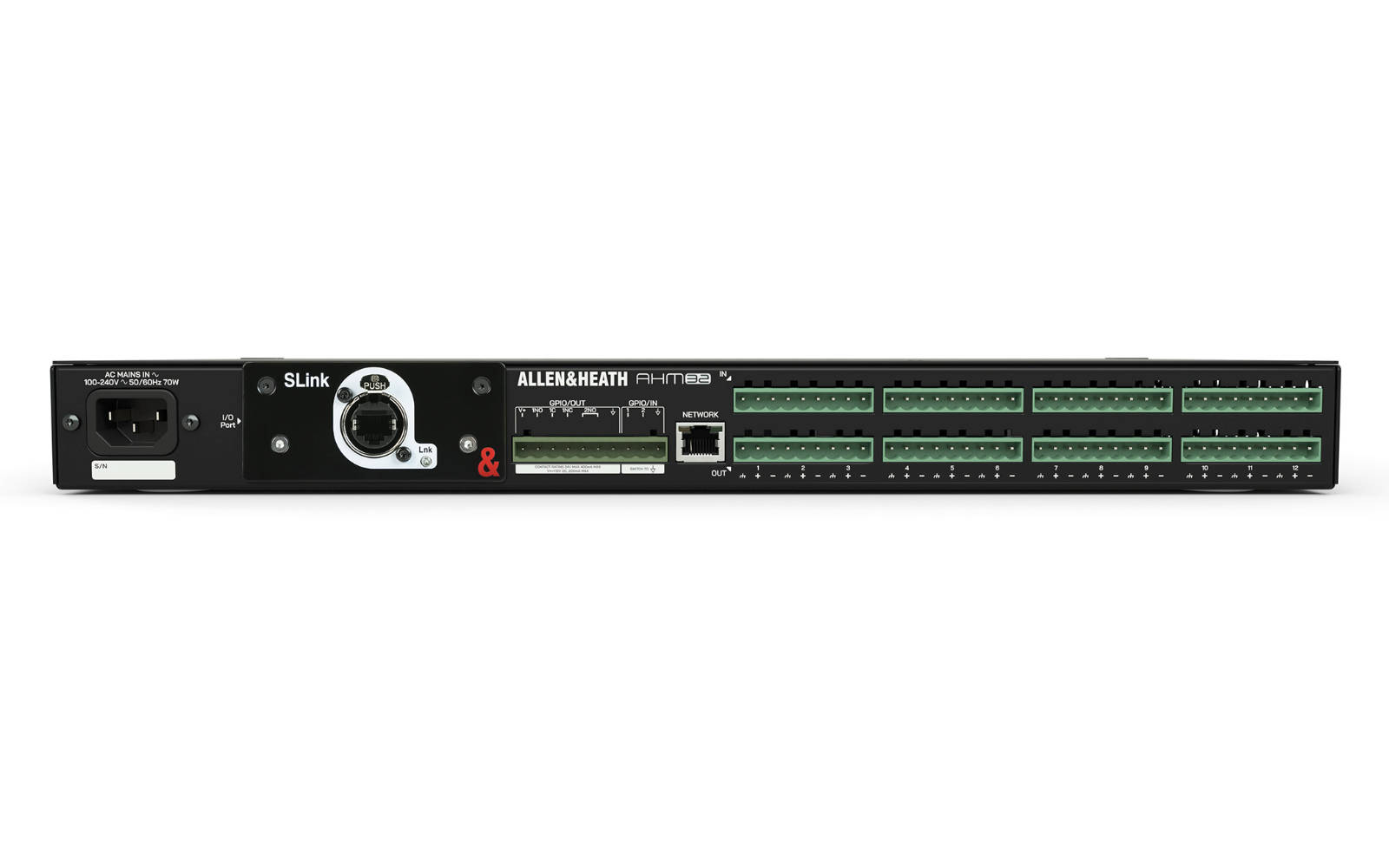

• SLink 128×128 option card for audio expansion
• 32 configurable processing outputs – mono / stereo zones or speaker processing
• 96kHz FPGA core with ultra-low latency

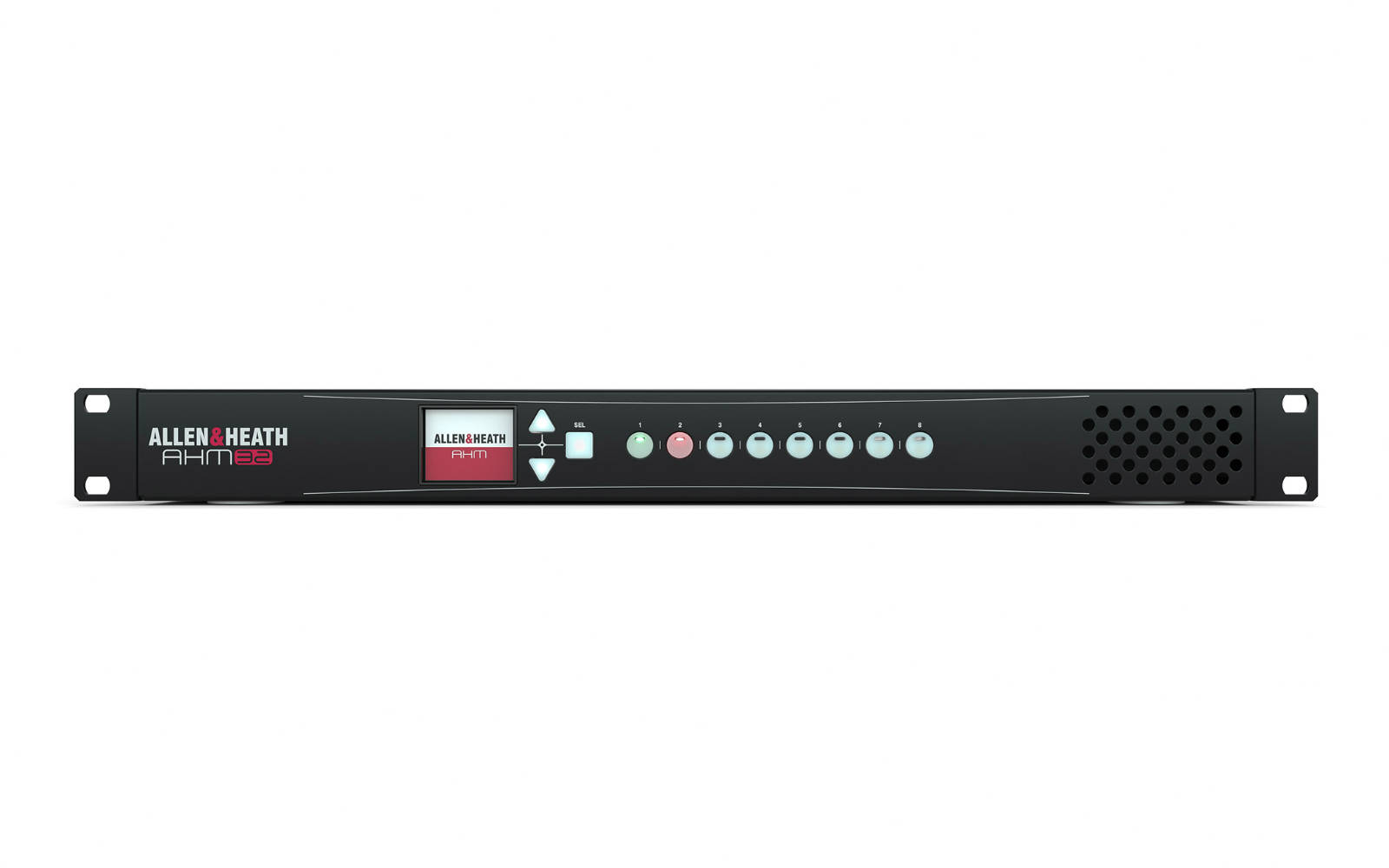

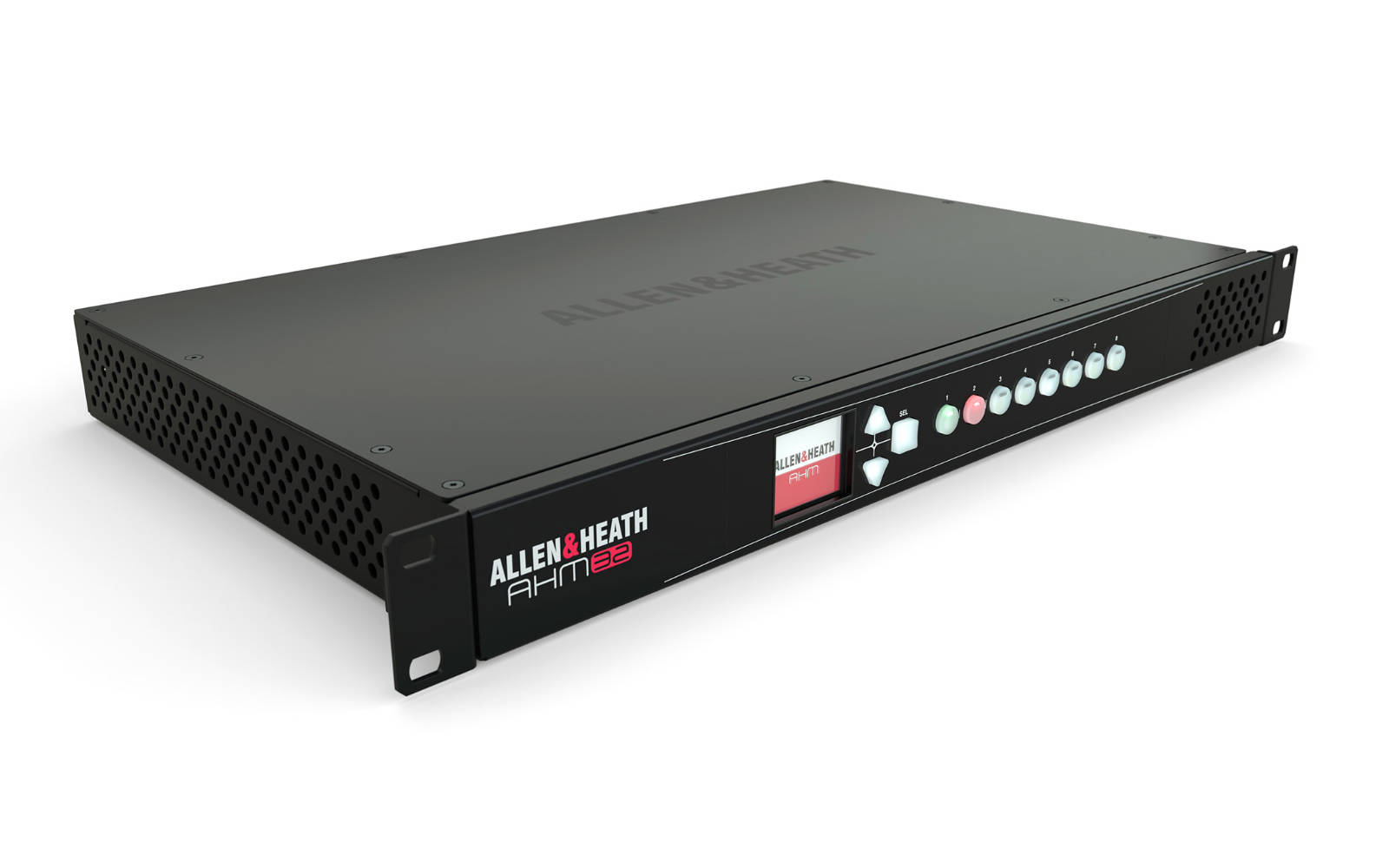

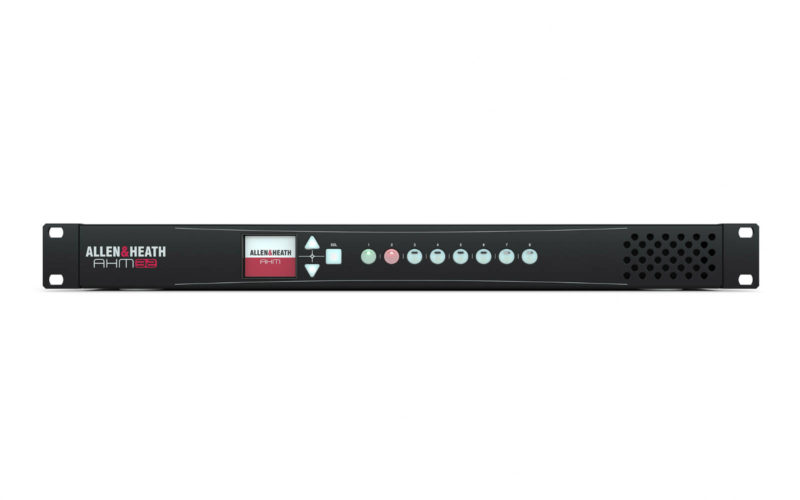

• Front panel screen and navigation
• 8x SoftKeys
• Compatible with IP1, IP6, IP8 remote controllers
• 2×2 local GPIO plus networkable GPIO interface
• TCP/IP protocol for third party integration
• Crestron, AMX and Extron drivers
• Mac / Windows System Manager software
• Custom Control app and editor for BYOD
• 16 user profiles
• Integrated stereo playback
• Event scheduler

ALWAYS IN CONTROL

In addition to remote controllers, GPIO and 3rd party integration, AHM-32 has a front panel screen and 8x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

ACOUSTIC ECHO CANCELLATION

The Acoustic Echo Cancellation (AEC) module for AHM-32 provides 12 channels of AEC and is designed for teleconferencing and videoconferencing scenarios.

SOUND MANAGEMENT

• 4x Automatic Mic Mixers
• ANC (Ambient Noise Compensation)
• Priority Ducking
• 8-band PEQ, dynamics and delay on every input and zone
• Speaker processing with x-over filter, delay, limiter and PEQ
