Yamaha VXS3FT

  • Home
  • DM Shop
  • Sound / PA
  • Speakers
  • Passive Speakers
  • Yamaha VXS3FT
Yamaha VXS3FT
Yamaha VXS3FT
Yamaha VXS3FT
Yamaha VXS3FT
Yamaha VXS3FT
Yamaha VXS3FT
Yamaha

Call for price

Surface Mount Speaker (Pair)

  • 3.5” full-range speaker units
  • High-impedance model for large installations
  • Attractive, discreet design complements elegant décor
  • Acoustic design for sophisticated, natural reproduction
  • Black and white models available
SKU: SP/HVL/YAM20 Categories: Installation Speakers, Passive Speakers
Share
0
  • Description
  • Brand
  • Reviews (0)
  • Specification

The polished presence of the VXS3F or VXS3FT can add stylish appeal to any environment. These speakers present a slim installed profile that appears to float in space, blending easily with just about any décor. The size of the speaker enclosure has been reduced as much as possible, while smoothly flowing lines and surfaces add visual charisma.

Compact surface-mount speakers elegantly blend into any interior décor (High-impedance models)

  • 3.5” full-range speaker units
  • High-impedance model for large installations
  • Attractive, discreet design complements elegant décor

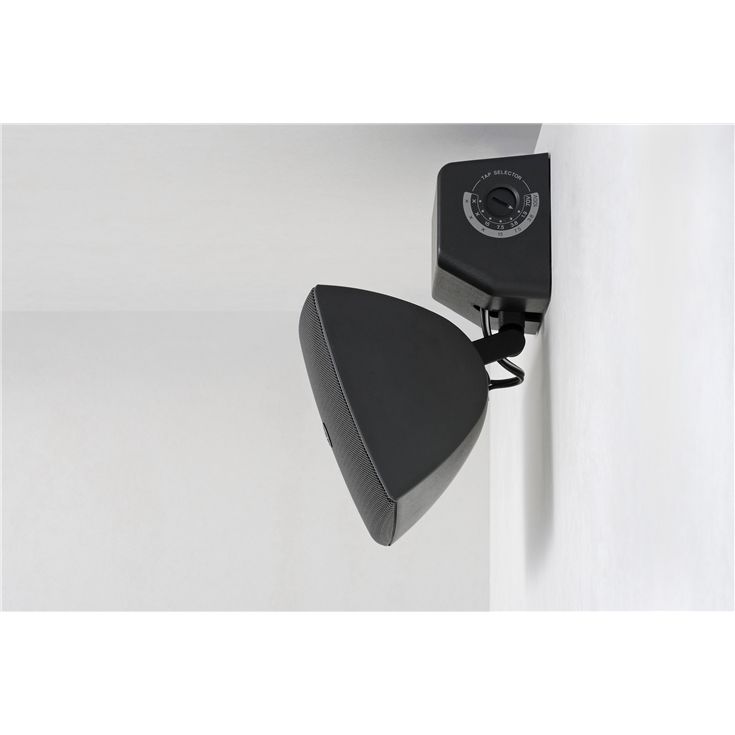

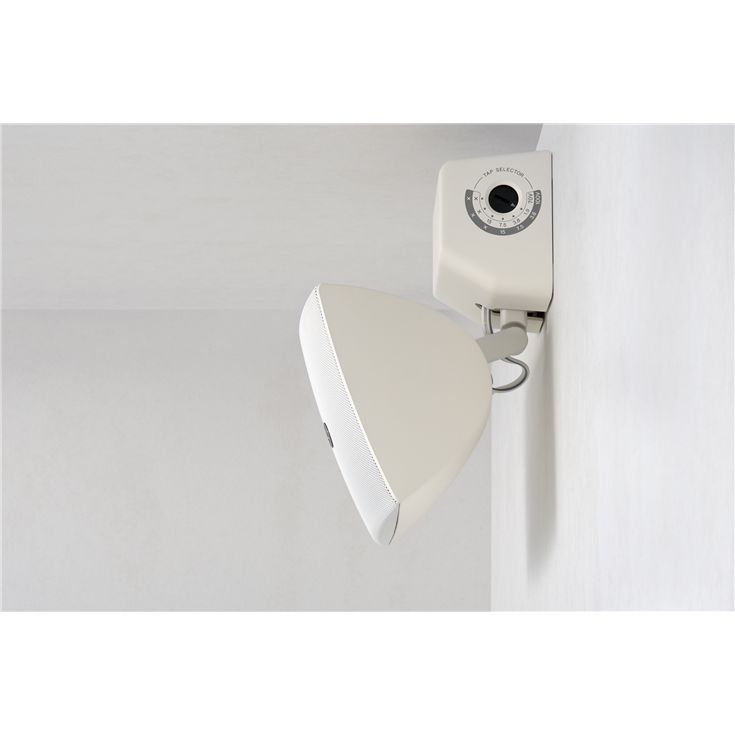

  • Supplied bracket with dedicated transformer complements the overall design
  • Acoustic design for sophisticated, natural reproduction
  • Individual speakers cover a wide angle
  • Paintable enclosures and grilles
  • Black and white models available
  • 1.7kg (3.7 lbs)*, W 184mm x H 178mm x D 139 mm (W 7.3″ x H 7.0″ x D 5.5″)* *Including bracket

Sophisticated Natural Sound

The VXS3F and VXS3FT deliver refined, naturally pleasing sound. In order to provide richly expressive music playback even at low volume, Yamaha has applied years of accumulated skill and experience in tuning the system for the most natural reproduction of musical instruments as well as human voices. Careful selection of the highest quality drivers and components also elevates overall quality.

Choose the Model that Meets Your Needs

The VXS3F and VXS3FT are designed to deliver the same outstanding performance in different installed settings*. The VXS3F is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The VXS3FT is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output watts) to be adjusted after installation for added flexibility. * The VXS3F and VXS3FT feature the same enclosure, but are supplied with different mounting brackets.

Designer’s Comments

The compact VXS3F and VXS3FT feature an elegantly sculpted exterior design that visually expresses the outstanding quality and clarity of their sound. Gracefully flowing curves from rear to front represent the directness of the sound, while the triangular cross section makes optimum use of the space between walls and ceiling for seamless, efficient installation. With a design that creates the illusion of floating gently in space rather than appearing as a mechanical “unit” attached to a surface as an afterthought, these speakers are ideal for owners and proprietors who want to provide the highest sound quality without disrupting their interior décor.- Takenori OMACHI, Yamaha Design Laboratory –

Brand

Yamaha

DM Music Ltd are a Yamaha Commercial Audio Premier Dealer. We have been supplying Yamaha equipment for many years and regard it as one of our leading brands. If you require anything not seen below then call us on: 01582 761122
Yamaha

Reviews

There are no reviews yet.

Be the first to review “Yamaha VXS3FT” Cancel reply

You must be logged in to post a review.

Speaker type Full-range, Acoustic suspension
Frequency range (-10dB) 130Hz -20kHz
Nominal coverage H 150°
V 160°
Components LF-HF 3.5″ Cone
Power rating NOISE –
PGM –
PEAK –
Nominal impedance –
SPL Sensitivity (1W; 1m on axis) 86dB SPL *1
Peak (Calculated) –

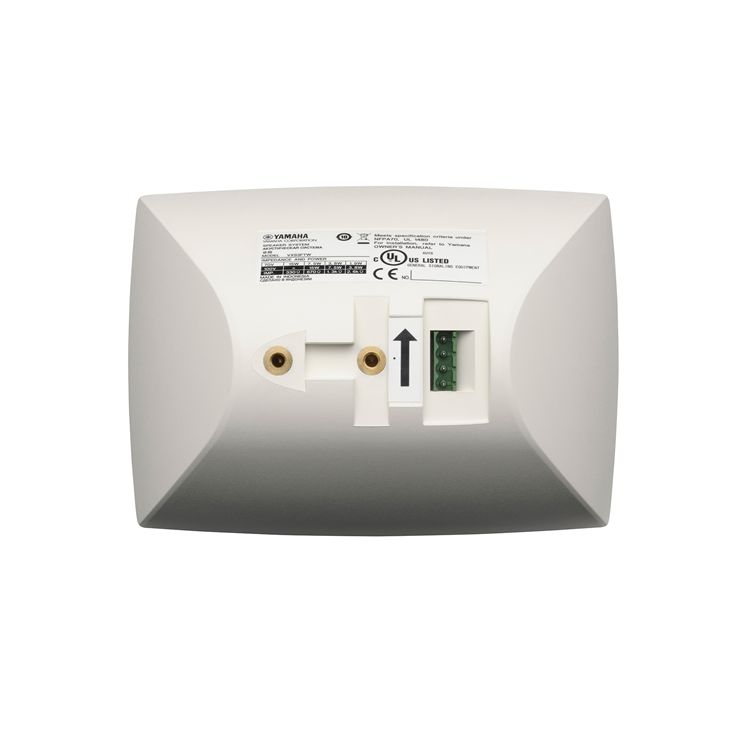

I/O connectors 1x Barrier strip (Input: + / -)
Protection circuit Load protection Full-range power limiting for protecting network and transducers
Finish VXS3FT: Black (approx. Munsell N3), VXS3FTW: White (approx. Munsell N9)
Dimensions W 184mm (7.3″) *2
H 130mm (5.1″) *2, 178mm (7.0″) *2,*3
D 94mm (3.7″) *2, 139mm (5.5″) *2,*3
Net weight 1.0kg (2.2lbs), 1.7kg (3.7lbs) *4
Accessories Bracket Gear, Bracket Base (with transformer), Bracket Cover, Safety Wire
Packaging Packaged in pairs
Certificate UL1480, NFPA70, CE, EAC, RoHS
Transformer taps 100V 15W, 7.5W, 3.8W
70V 15W, 7.5W, 3.8W, 1.9W
