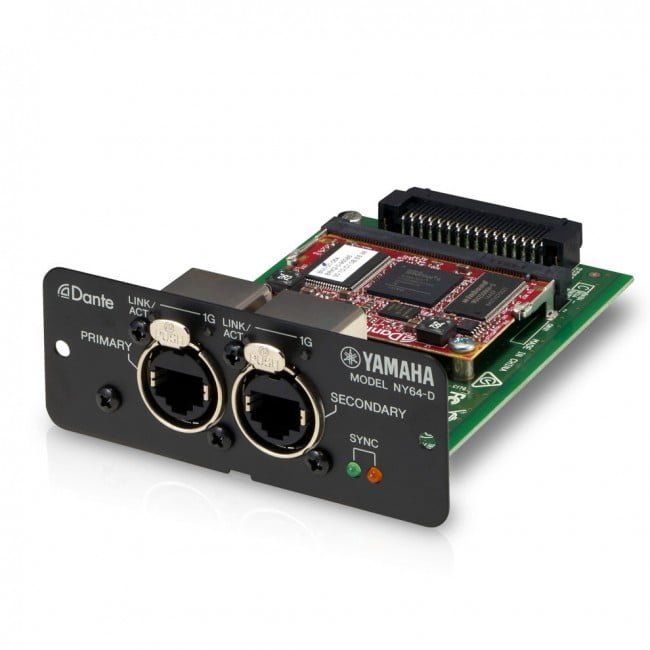

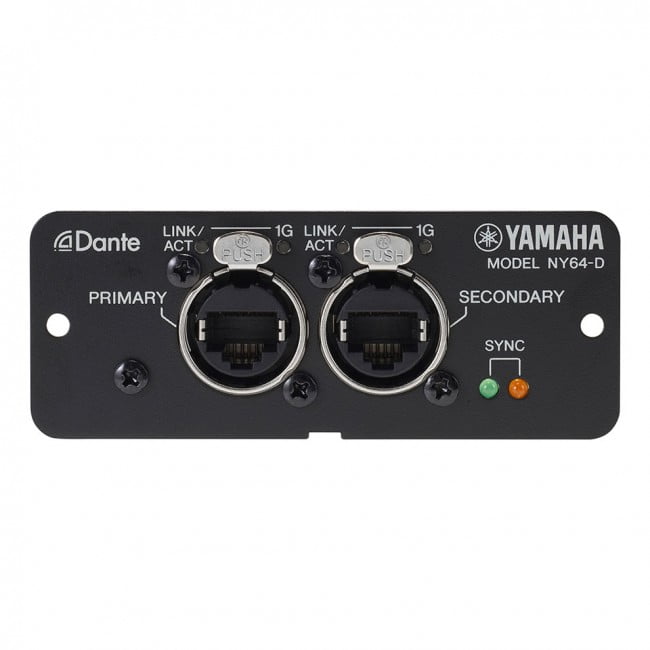

The NY64-D is a Dante expansion card for TF series consoles

Combine a TF Series mixer, a NY64-D expansion card and a Tio1608-D unit and you get a hugely versatile live sound mixing solution.

Categories: , SKU: MX/ACC/YAM10

The NY64-D is an I/O expansion card for TF series consoles that allows transmission and reception of up to 128 channels (64 in/64 out) of uncompressed 48 kHz 24 bit digital audio data via a Dante™ audio network.

Used in conjunction with the Tio1608-D I/O it becomes possible to create a versatile stage box system with up to 48 inputs and 24 outputs.

* NY64-D is compatible with only TF series Digital Mixing Console.

General specifications

Sampling frequency rate External 44.1kHz or 48kHz: 4.1667%, 0.1%, -0.1%, -4.0% (±200ppm)
Dimensions W 100mm (3-7/8″)
H 39mm (1-4/8″)
D 133mm (5-2/8″)
Net weight 0.2kg (0.4lbs)
Accessories Owner’s Manual
Others Temperature Range: Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃

Digital Input & Output Characteristics

Terminal Format Data length Level Audio Connector
Primary/Secondary Dante 24bit or 32bit 1000Base-T 64ch ( NY64-D to other devises)
64ch (Other devises to NY64-D)
etherCON Cat5e



DM Music Ltd are a Yamaha Commercial Audio Premier Dealer. We have been supplying Yamaha equipment for many years and regard it as one of our leading brands. If you require anything not seen below then call us on: 01582 761122
